ZYNQSDR ADI Pluto+ 70Mhz-6Ghz SDR Software Defined Radio XC7z020 AD9363 for Libiio iioscope SDRsharp Matlab
ZYNQSDR ADI Pluto+ 70Mhz-6Ghz SDR Software Defined Radio XC7z020 AD9363 for Libiio iioscope SDRsharp Matlab
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
ADI Pluto+ 70Mhz-6Ghz SDR Software Defined Radio AD9363 for Libiio iioscope SDRsharp Matlab
Statement:
* ADI Pluto+ is intended for educational, scientific and hobby use only. Please consciously abide by the laws and regulations of your country or region!
Features:
* Using XC7z020-2CLG400I FPGA with 2-core Cortex A9
* The AD9363 RFSOC is turned on in AD9361 mode. The frequency range is 70MHz~6GHz, and the maximum sampling rate is 61.44MHz
* 1GB 32bit wide DDR3 1066MHz frequency
* With 32M QSPI storage, ADI Pluto+ supports TF card expansion
* Supports automatic switching of QSPI boot and TF card boot (insert a TF card for TF card boot; remove the card for QSPI boot)
* On-board JTAG circuit and USB to serial port. Only one cable is required to supply power and debug

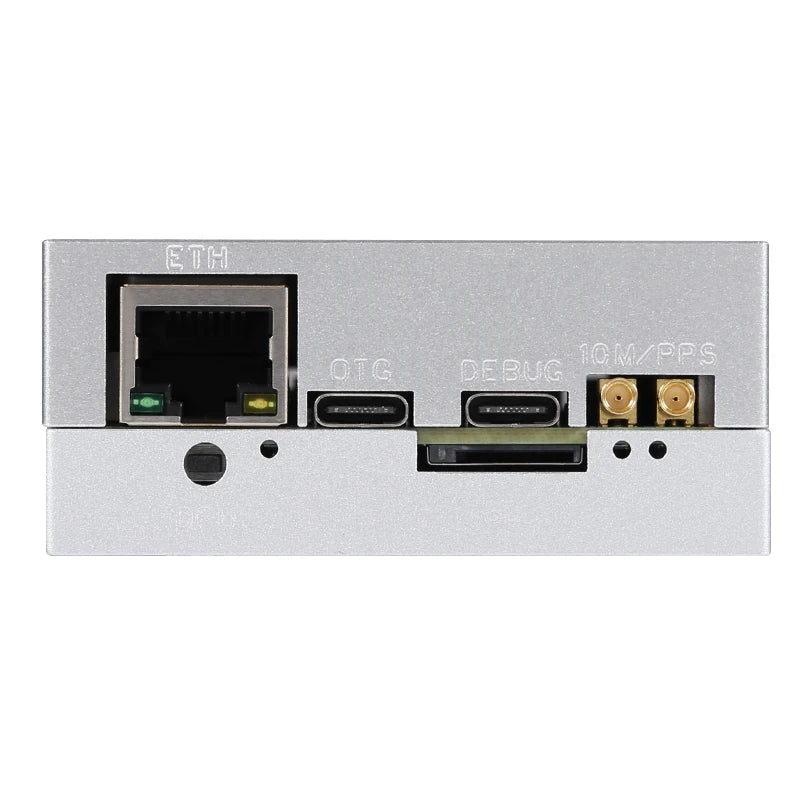

* Supports USB OTG interface, master and slave. All USB interfaces are TYPE-C interfaces. Supports OTG mode automatic recognition and opens the USB port to supply power
* VCTCXO is used. The initial frequency accuracy is 0.5PPM, and it supports PPS or 10MHz external disciplined oscillator
* Gigabit Ethernet interface
* The design current of all power rails in the digital part is 4A. The current is abundant. AD936x is powered by a ADP1755 high-performance LDO to improve RF performance
* ADI Pluto+ is designed with 10 layers of PCB, impedance matching, and signal integrity

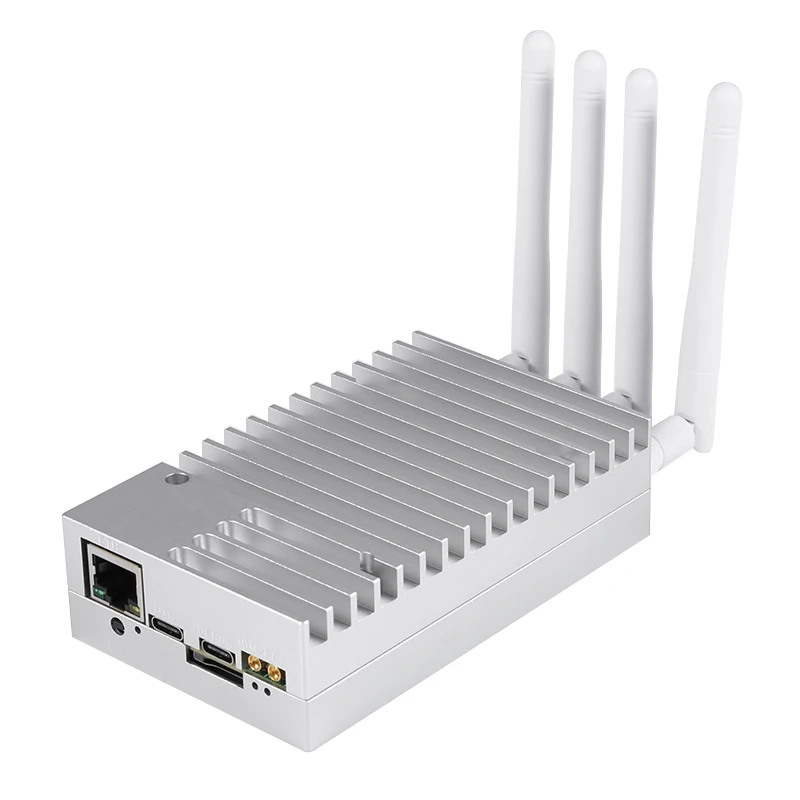

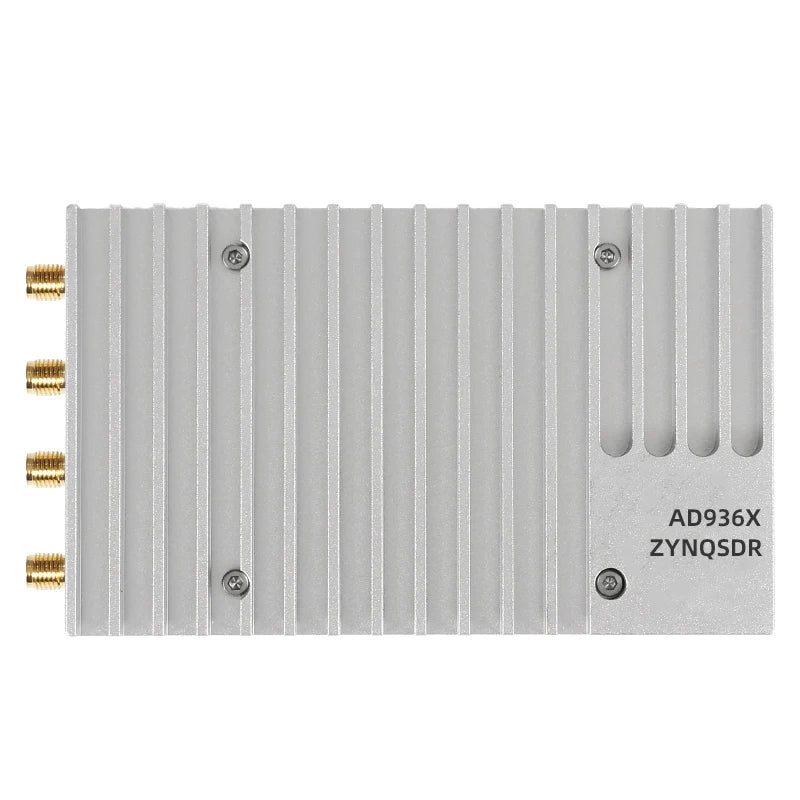

* The product adopts a CNC shell to strengthen heat dissipation and ensure strength

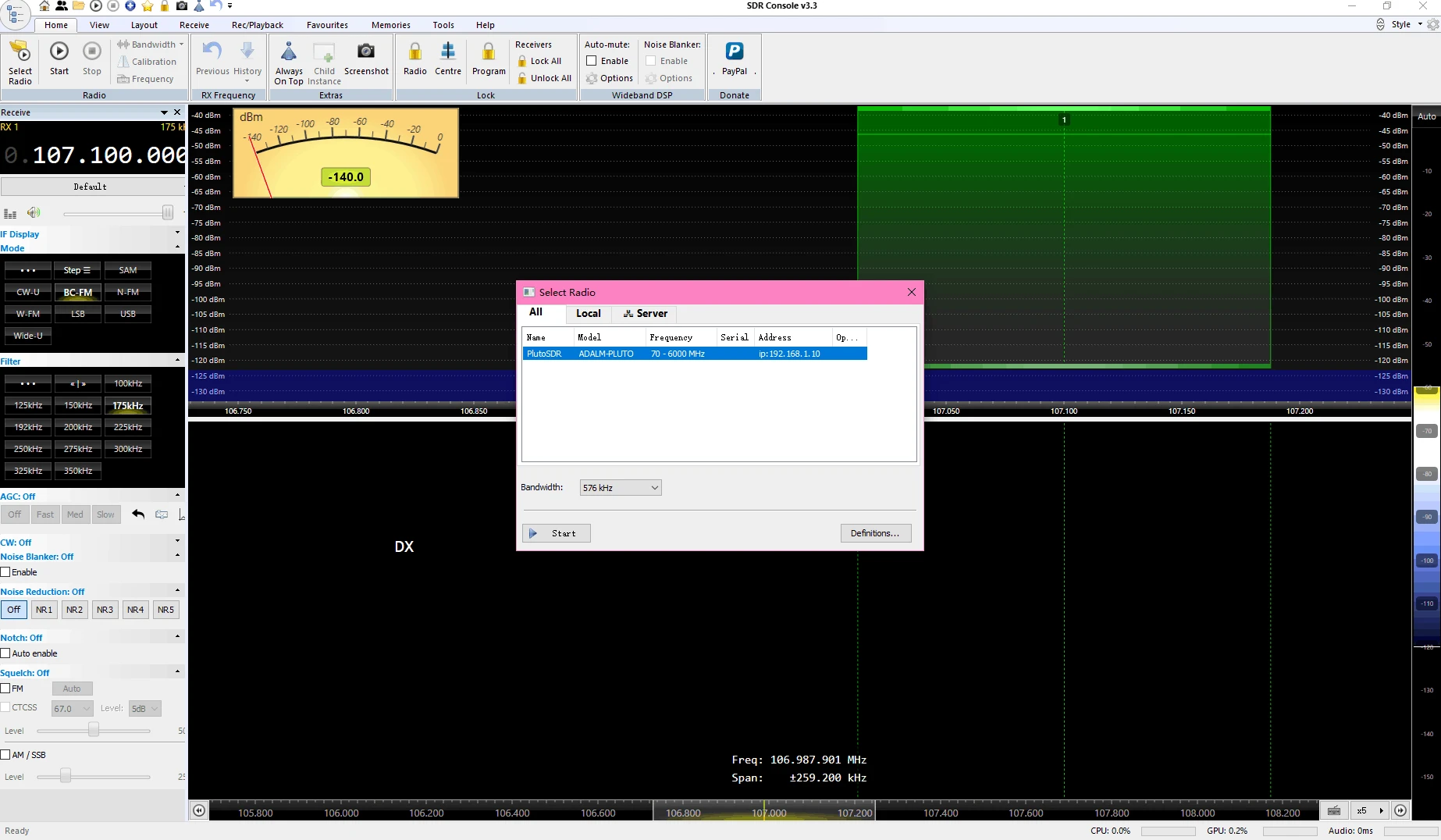

* The software interface is libiio. It can be connected to libiio-enabled software such as for iioscope, SDRsharp, Matlab and GNURadio. In addition, you can contact customer service for other signal processing problems

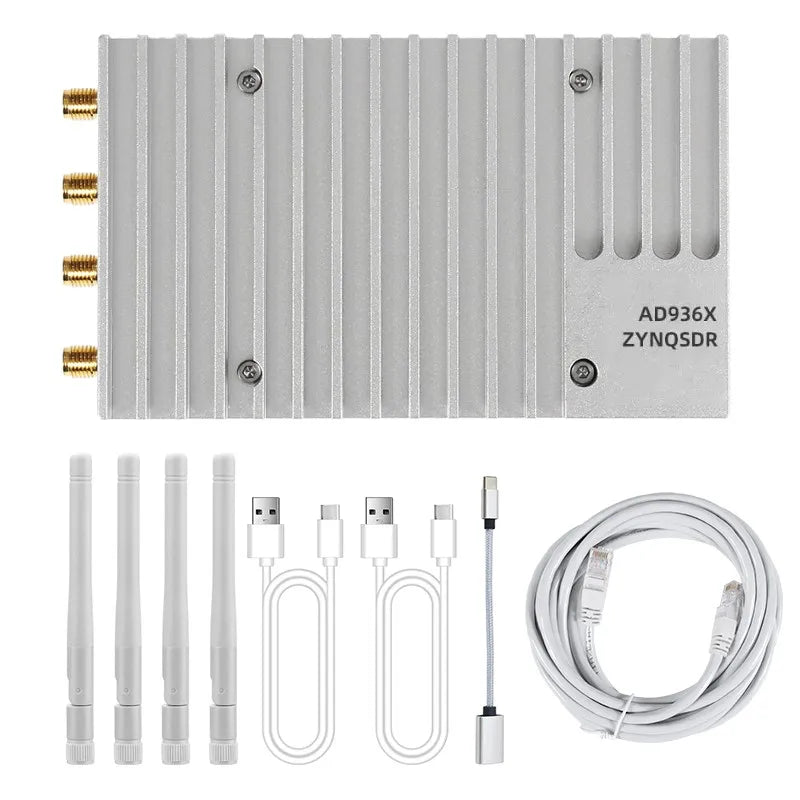

Package Included:
* 1 x Main unit
* 4 x Antennas
* 2 x USB cables
* 1 x Cable adapter
* 1 x Wrench
* 1 x Network cable
Packaging Details:
* G.W.: 0.6kg
Note:
* TF/SD card is not included.
* We only sell hardware, No firmware provided.
(This product is compatible with many firmwares, and buyers can find firmwares on various websites.)
* to start the device, a SD card is require
