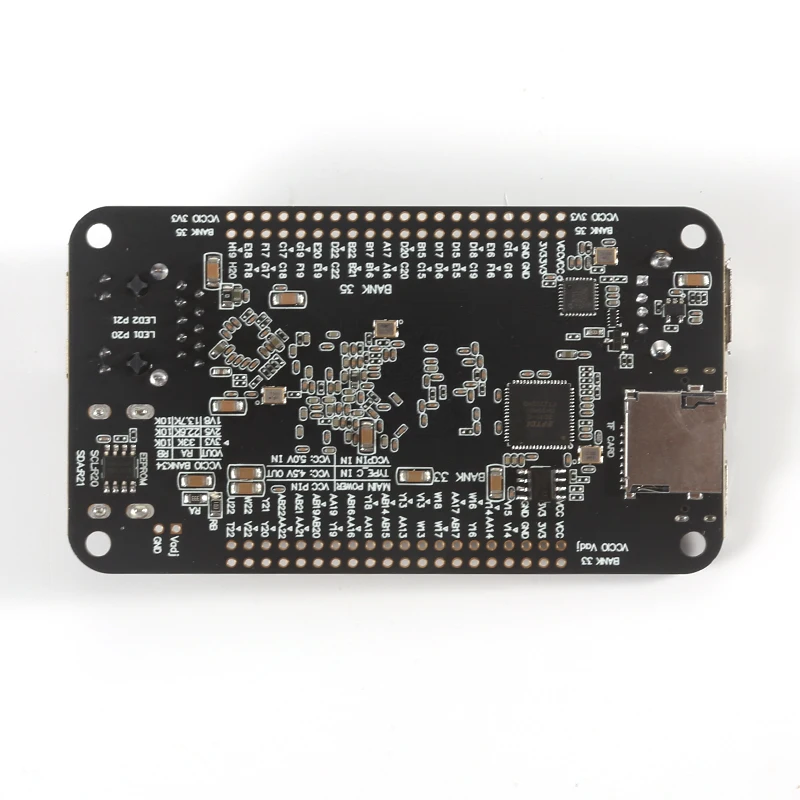

ZYNQ Xilinx Zynq-7000 FPGA XC7Z020 FPGA Development Board Kit Core Borad
ZYNQ Xilinx Zynq-7000 FPGA XC7Z020 FPGA Development Board Kit Core Borad
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Pin not welded
1.47-inch vertical screen resolution: 320x172
http://www.hellofpga.com/index.php/2023/04/27/smart-zynq-sp/
ZYNG 7020 minimum system XC7Z020 New version

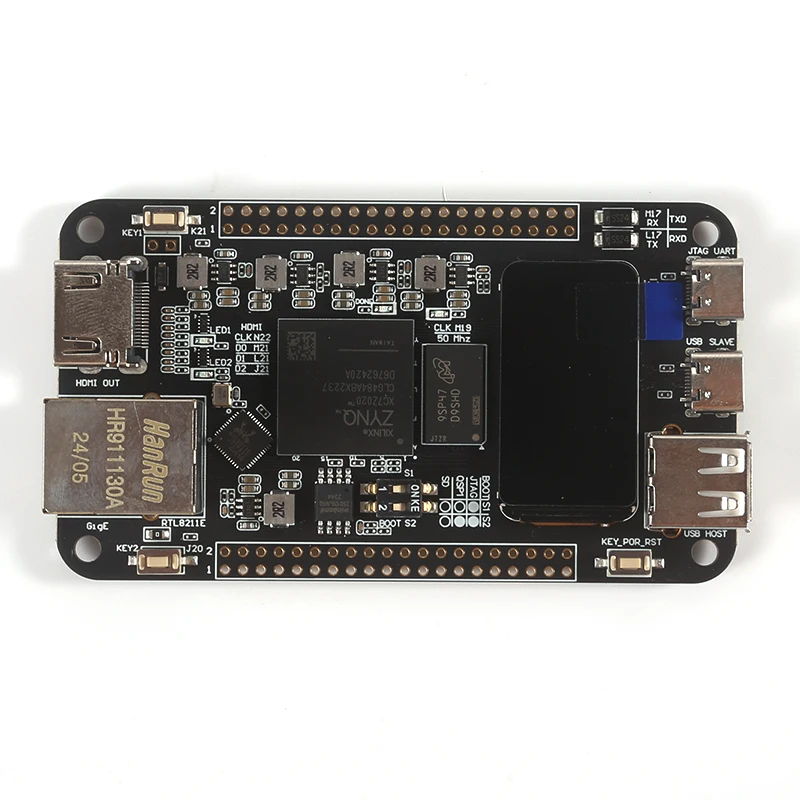

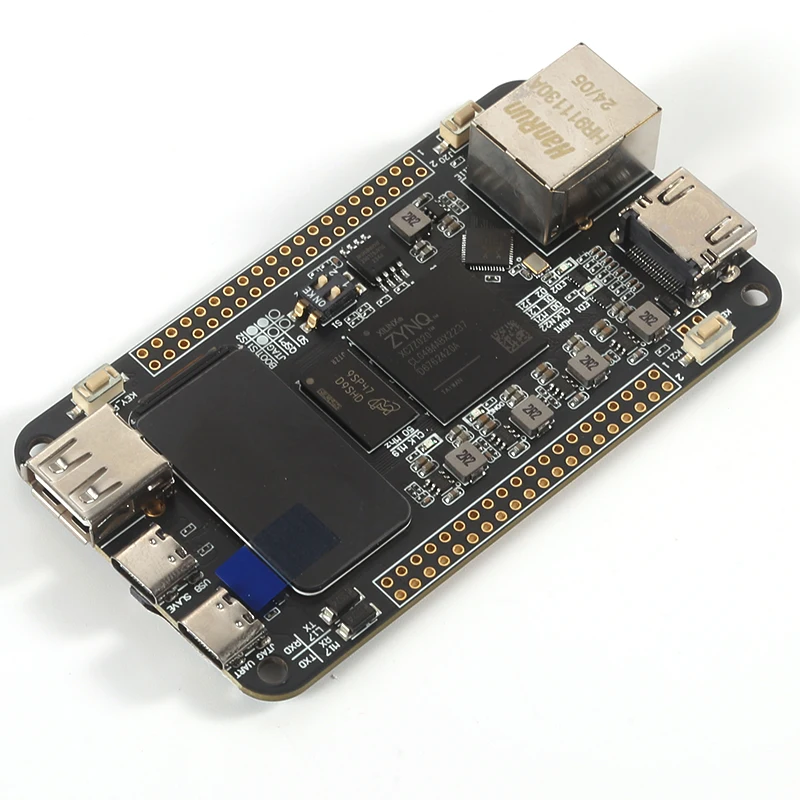

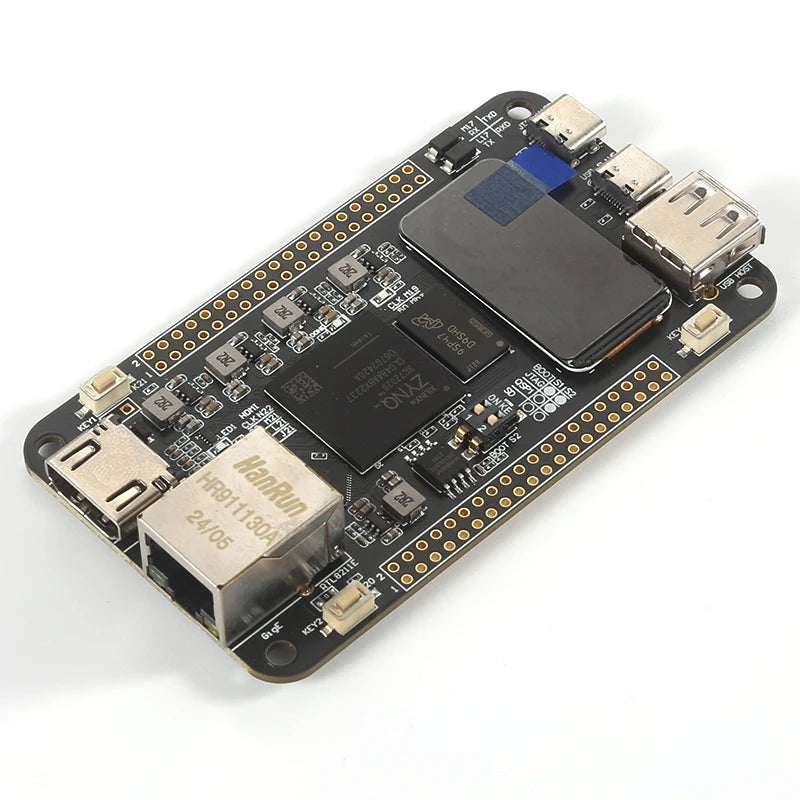

Board resources:
1. Main chip 7020 (new chip industrial grade)
2. 512MB DDR3
3.TF card slot
4. 16MB QSPI FLASH (can be started)
5.EEPROM 2KB (PL)
6. Two-way LED (PL)
7. Two keys (PL) + one POR reset button
8. All Way UART (PL)
9. One XILINX downloader onboard
10. One USB port can be used as a USB SLAVE or USB HOST
11. Leads 68 GP1O (all are PL end leads) (34 groups) are all connected by two difference lines, and the difference line is equal in length
12. One side of the BANK is independently powered, and the BANK voltage can be adjusted through the resistance
13. Gigabit Ethernet (connected to the PL end)
14. HDMI output interface

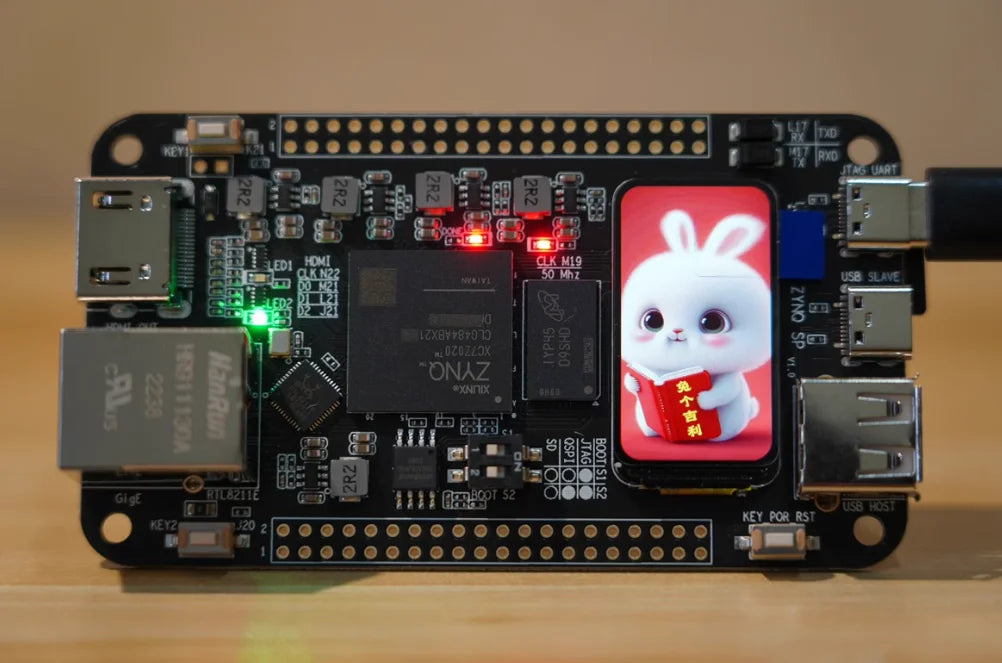

15. 1.47 inch color LCD display 172X320 (connected to PL end)
16. PL is connected to a 50M active crystal oscillator
Hdmi, USB and downloader are connected to ESD electrostatic protection devices
Eight layers of gold
