Zishan MD4 CS43198 HiFi DSD Digital Player Bluetooth DAC 192K DSD256 Coaxial Optical Fiber Signal Output RCA/3.5mm Headphone
Zishan MD4 CS43198 HiFi DSD Digital Player Bluetooth DAC 192K DSD256 Coaxial Optical Fiber Signal Output RCA/3.5mm Headphone
Sale
Sold out
Pre-order
Regular price
$118.52 USD
Regular price
$182.34 USD
Sale price
$118.52 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Add $299.99 more to get FREE SHIPPING!
$0.00
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Note : Two version( please choose the color)
DualCS43198(JRC2068)
DuaCS43198(MUSES02)
Manual:
https://drive.google.com/drive/folders/1xpT9i8vsviTjkKP5Z2vdKIXt2a5qHWGO
1. Compatible with most music formats and USB disk file systems on the market
APE, FLAC, WAV, MP3, M4A, WMA, AIFF, AAC, DSF, DFF, ISO, CUE, and even multi-channel DTS5.1. It supports multiple partitions, file systems NTFS, EXFAT, FAT32, and hard disk U disk without capacity limit,
Fast Analyze CUE and ISO
PCM up to 384k 32bit
DSD hard solution up to DSD256
It supports common file systems such as NTFS, EXFAT, FAT32, and multiple partitions
2. Adopt self-developed Bluetooth module
Employ the ESP 32 Bluetooth module developed by Zishan, Bluetooth version 4.2, and support SBC, APTX, APTX-HD, LDAC protocols. The LDAC protocol can reach a maximum of 96k 24b.
3. Support USB DAC function
Support UAC2.0 protocol, connect computer win10 and win11 systems without driver, and realize the highest PCM 348K 32b and DSD128 playback.

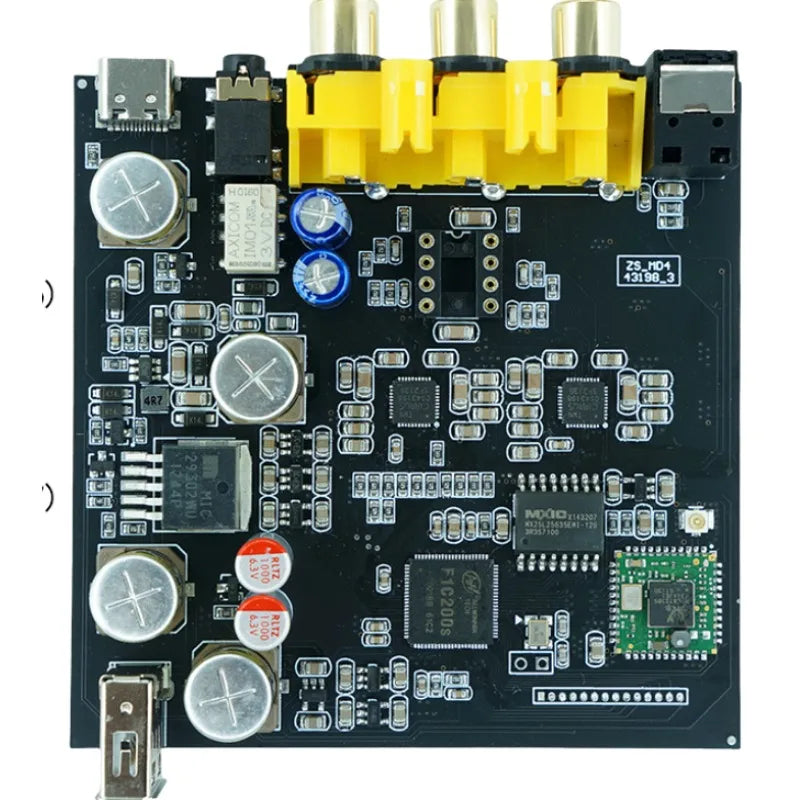

4. NO PLL and ALL Signal comes from CPLD
Zishan's dual crystal oscillator+CPLD I2S solution. All signals come from CPLD and there is no frequency doubling phase-locked loop. The audio crystal oscillator is divided by CPLD until DAC
CPLD takes over I2S of master control and Bluetooth, and simultaneously synthesizes SPDIF signal output in real time
5. Single CS43198
The single CS43198 configuration includes an CS43198 chip. Although it is a single DAC chip, it has a very high cost performance ratio. At the same time, it provides a plug and socket op amp socket for buyers to replace their favorite op amp. Currently, the standard op amp JRC2068
6. The simplest DAC ->LPF design
Thanks to the dual power supply design, the whole machine does not have a coupling capacitor, and the DAC is connected with the necessary LPF to provide a standard 2Vrms level
The physical relay suppresses switch popping without any audio switch or mute tube
Multiple censers and ghosts. I believe that the simplest design can bring most of DAC into play
7. Coaxial support DoP
In short, it means that DSD signals are transmitted through the coaxial line. But at the same time, the decoder needs to support DoP function. If your decoder DAC is ES9038 or mojo or other decoder that supports DoP, when you use coaxial fiber to connect MD1 to play DSD music, you can realize real DSD signal transmission and playback

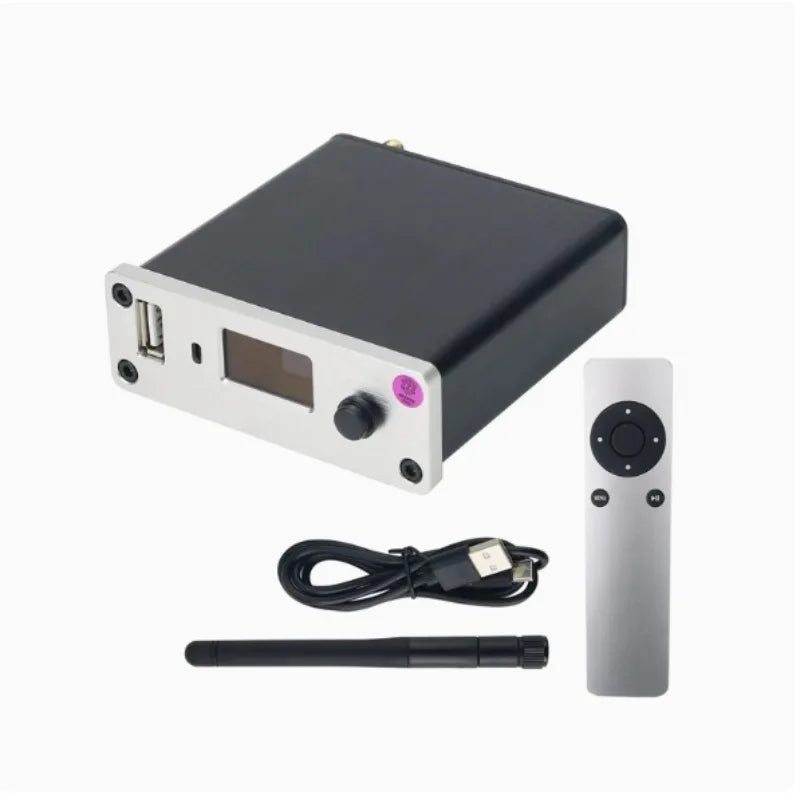

8. Equipped with a remote control
It is equipped with a remote control to facilitate remote song cutting. All functions can also be operated through the five way keys on the front panel of the remote control.
