XT-360-AT Portable Spectrum Analyzer Signal Measuring Instrument 30MHz~6000MHz 30MHz~6GHz Mircro USB Interface PC Connect

CIT XT-360-AT Portable Spectrum Analyzer Frequency meter Signal Detecting Instrument 30MHz~6GHz Mircro USB Interface PC Controllled by AT Instunction SET

Feature:

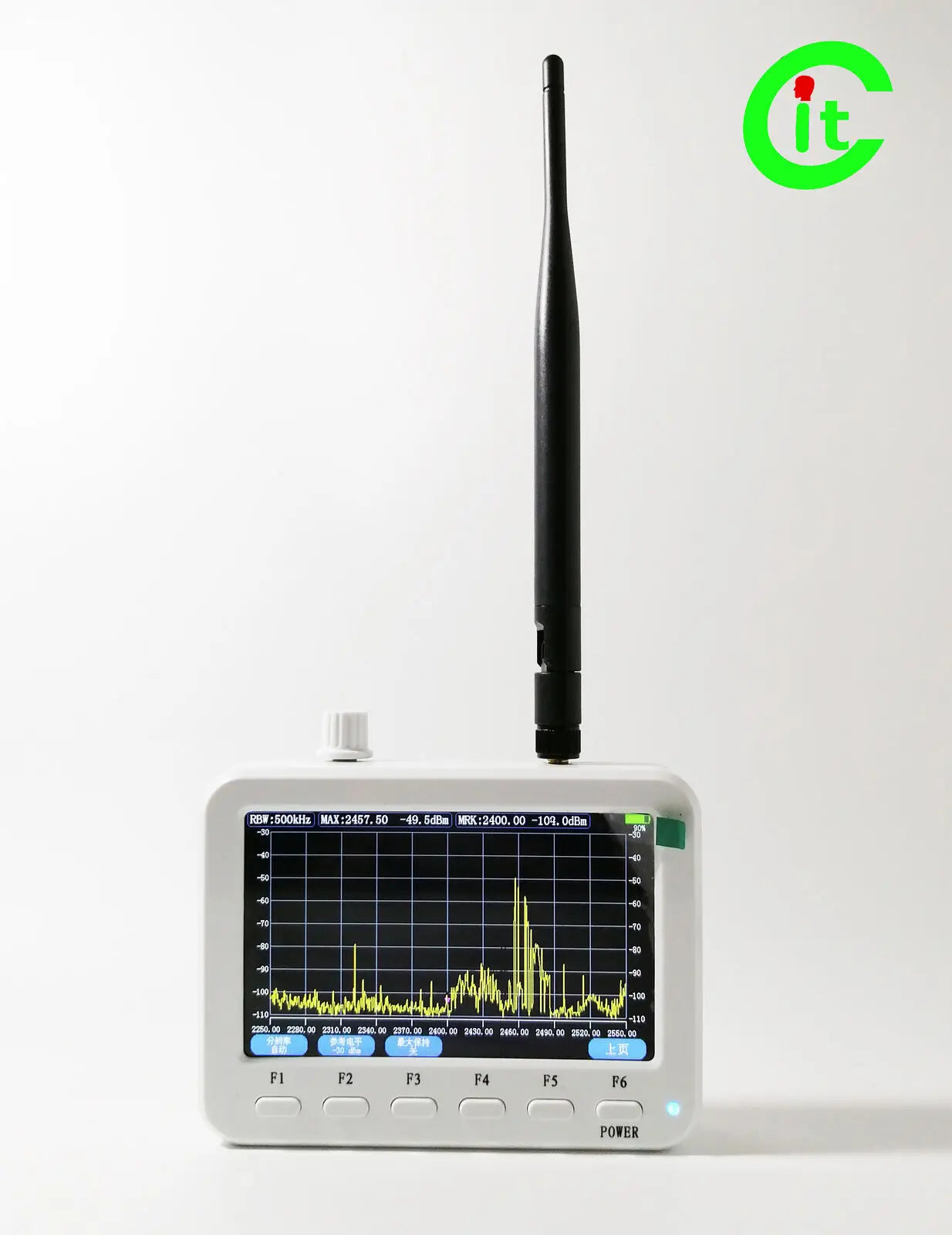

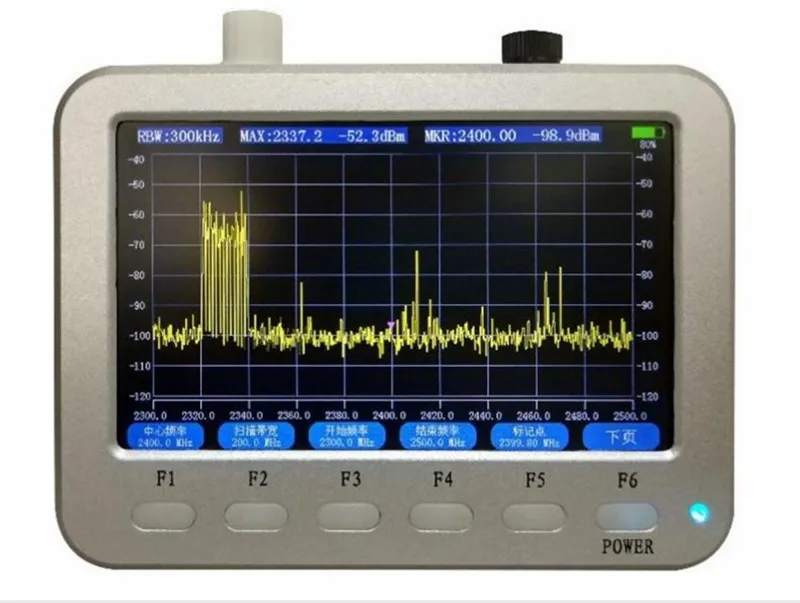

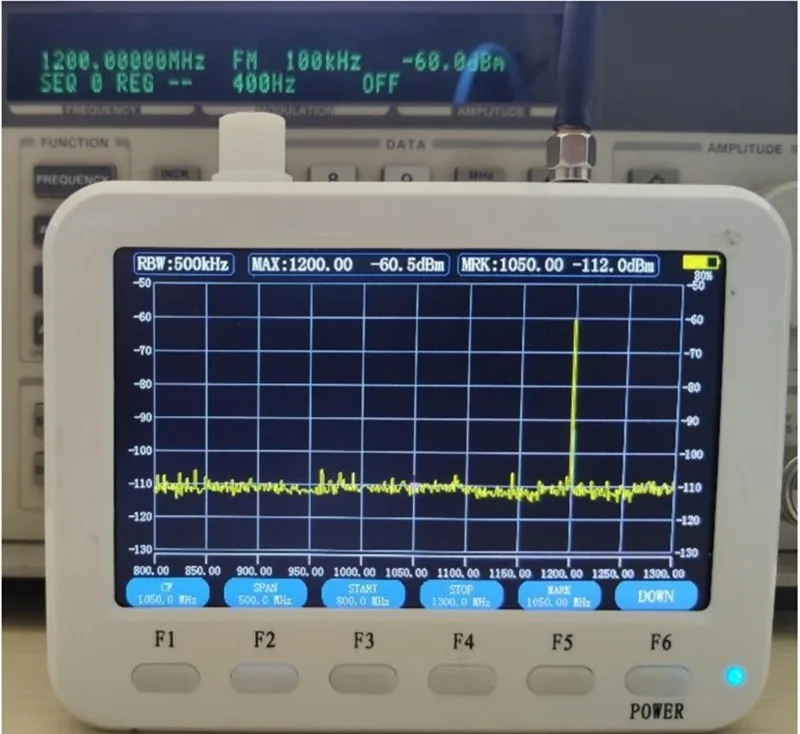

1. Real-time spectrum analysis mode: real-time spectrum curve scanning, which can set the function of SPAN (sweep) /RBW (resolution bandwidth) /CENT (central frequency) /MARKER (MARKER point), or set the start and end frequency, MAXHLOD (maximum maintenance) function, maximum/peakvalue automatic detection and identification, etc.

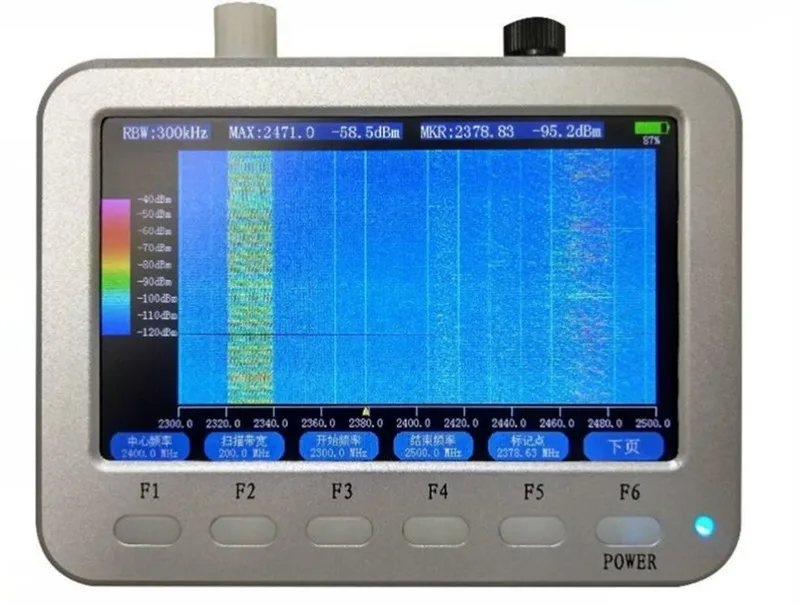

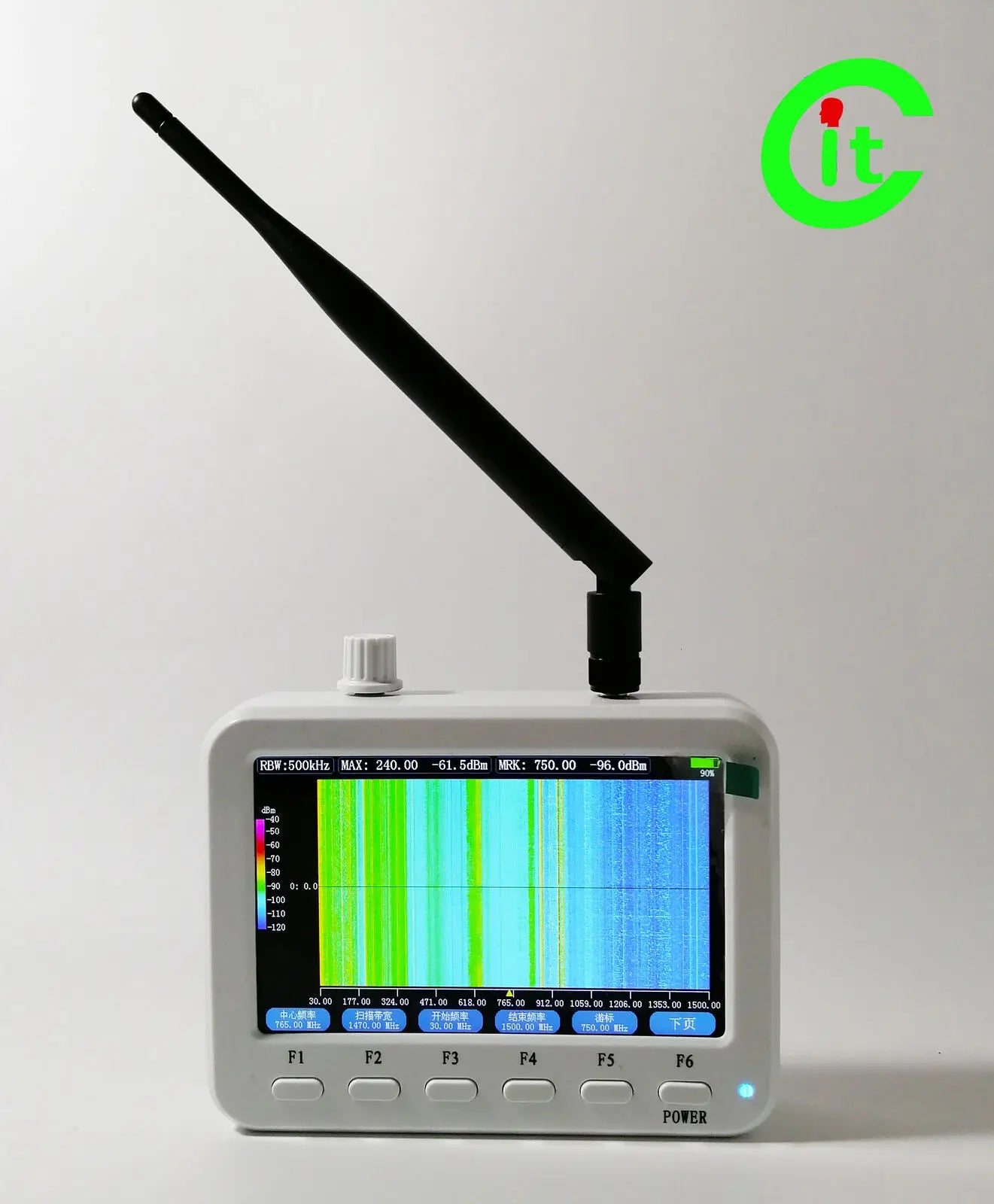

2. Waterfall spectrum graph mode: show a period of time (sweep the length and width as well as RBW related, the shortest a few seconds, the longest can amount to tens of minutes) changes over time within the spectrum distribution, to identify the signal relative strength by the color red, blue, like the waterfall spectrum distribution with time, the record for the frequency interference to or emission leakage and other problems.

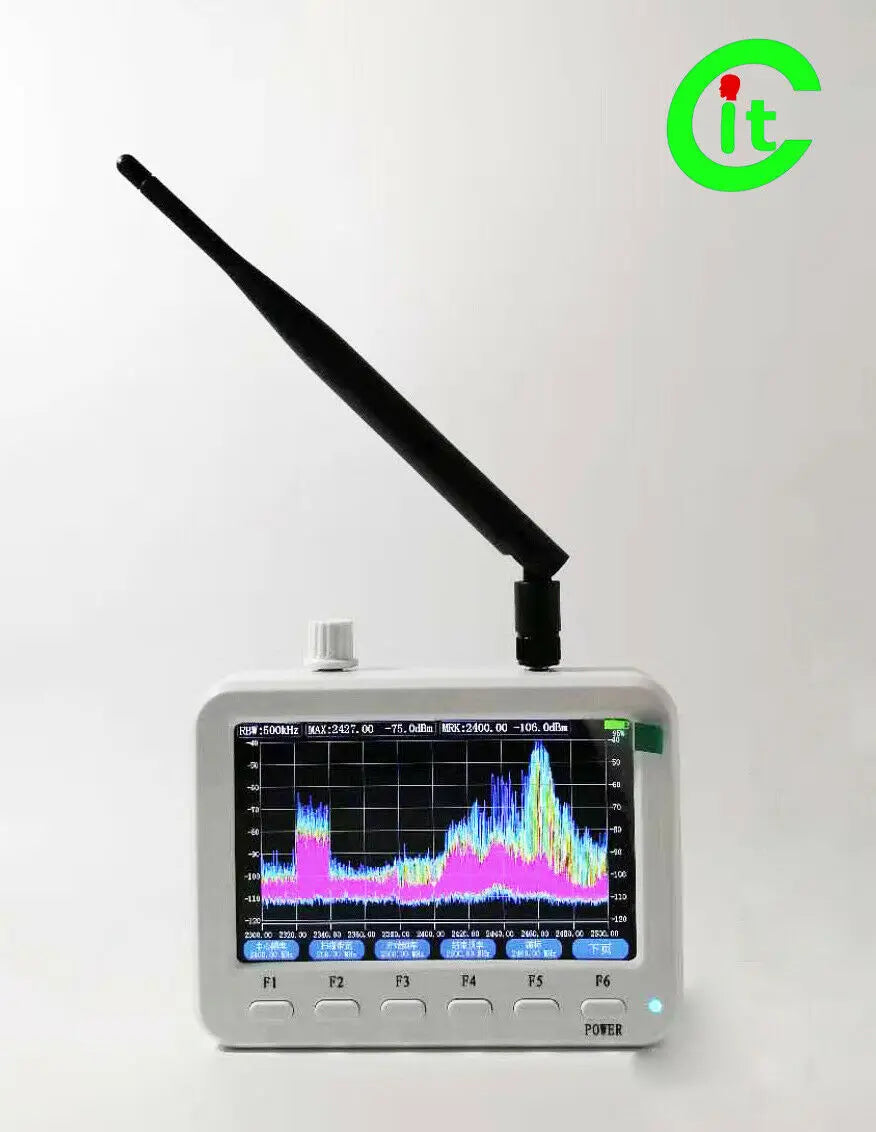

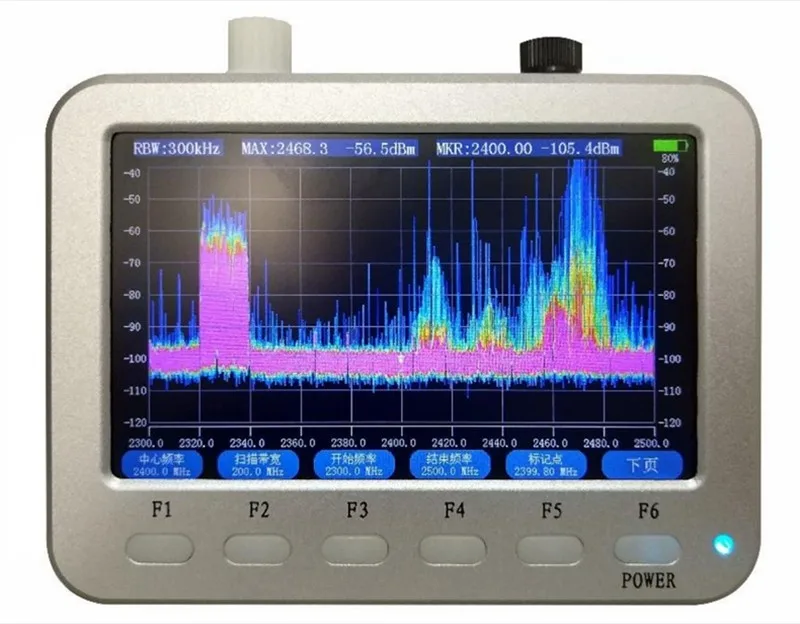

3. Spectrum thermodynamic diagram model: it shows the repeated density of the spectrum in a period of time, and the single occurrence is blue, and the more repeated times, the more red it tends to be, so as to facilitate the analysis of the statistical characteristics of the spectrum in a period of time.

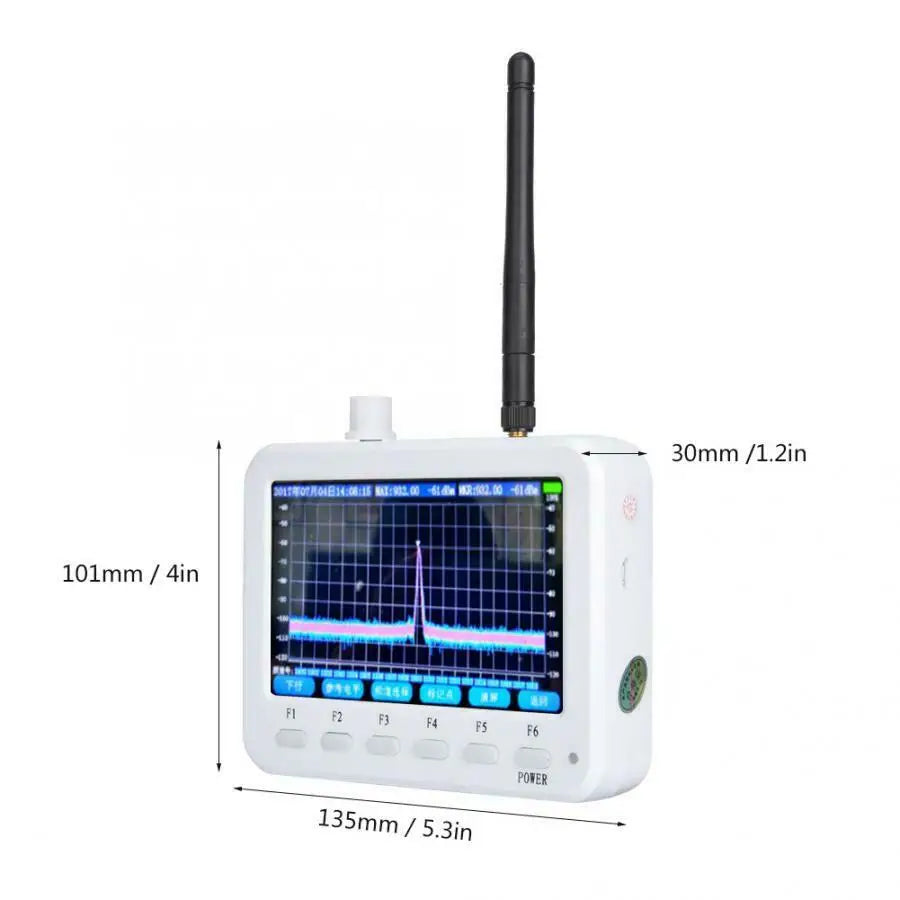

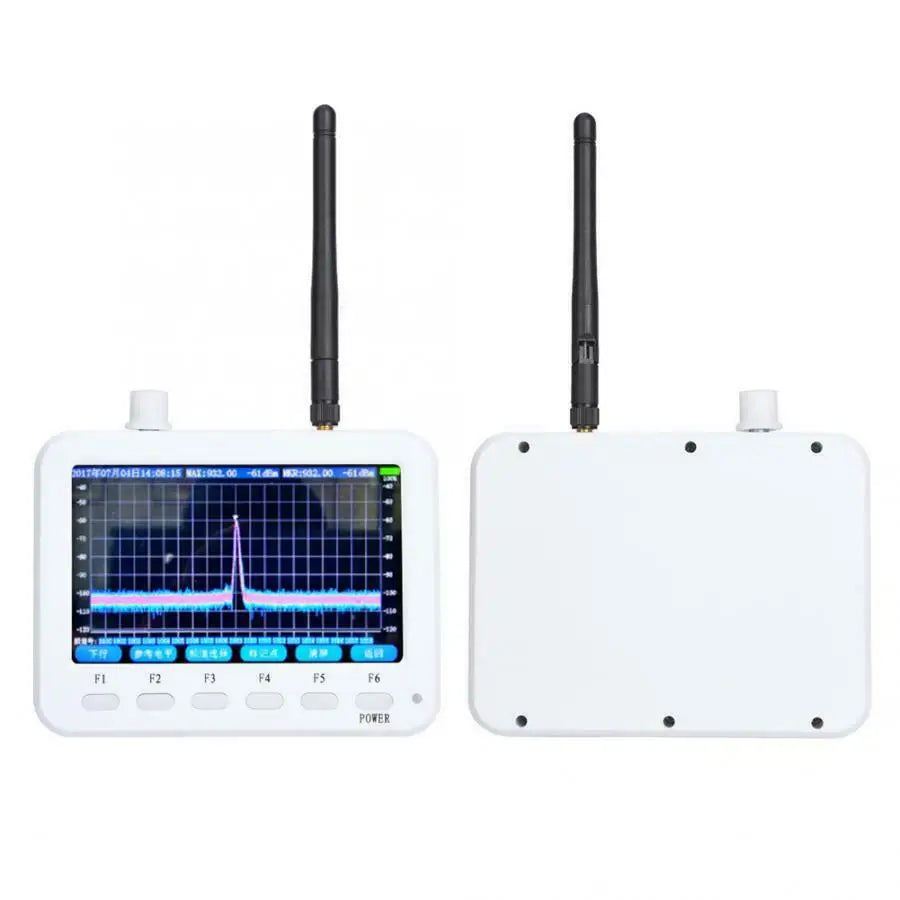

4. Portable spectrum analyzer, built-in battery and small size and lightweight, using the standard 5V charger can be charged, full charge can last about 9 hours.
5. It is widely used in operator application, military and policemen field, college application field, power grid application, civil aviation applicatio, radio and television application, rail transit field, Uav field, wireless sound field, the internet of things research and development, production, testing field, vehicle equipment field etc.

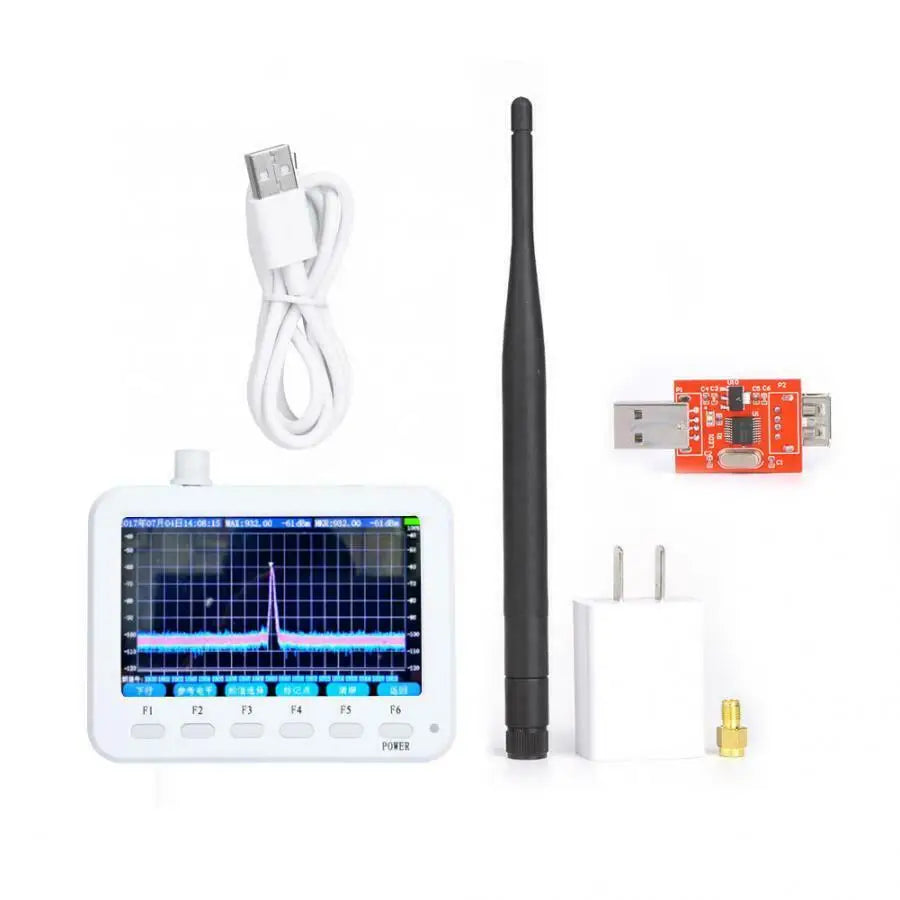

Package List:

1 x Spectrum Analyzer
1 x English Manual
1 x Data Cable
1 x Power Plug
1 x Antenna
1 x USB Serial Port Module
1 x Antenna Nut
