XT-127-AT 2700MHz Spectrum Analyzer Signal Frequency Meter Measuring Instrument 2.7G
XT-127-AT 2700MHz Spectrum Analyzer Signal Frequency Meter Measuring Instrument 2.7G
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
XT-127-AT Portable Spectrum Analyzer Signal Frequency Measuring Instrument 10-2700MHz 100-240V
please tell me your email for English manual
Feature:
1. This spectrum analyzer can be used in radio frequency testing, wireless optimization, on-site network layout, interference query and so on. It can be used to test the spectrum distribution of signals.
2. Small in size, light in weight, compact structure, easy to carry, suitable for field measurement.
3. Built-in lithium batteries can be charged by standard 5V charger of mobile phone. It can be used for about 9 hours at full power.
4. The detection frequency ranges from 10MHz to 2700MHz. It can detect real-time spectrum, frequency spectrum and thermodynamic spectrum in the frequency band. It is easy to use.
5. Real-time spectrum analysis function, real-time spectrum scanning, support for SPAN/RBW/CENT/MARKER function, MAXHLOD function, maximum power automatic detection.

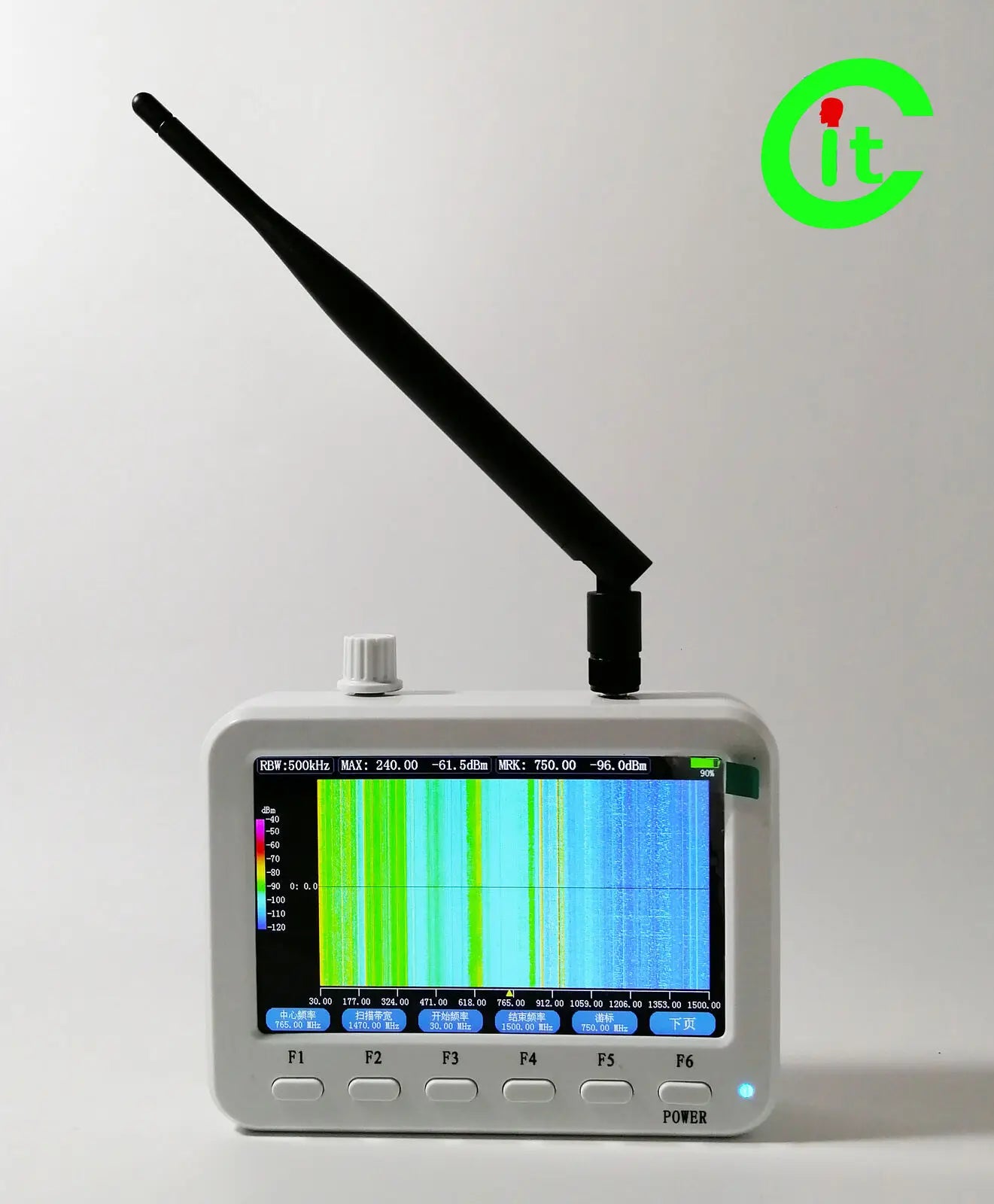

6. The function of frequency chromatogram shows the whole time and spectrum characteristics in a period of time. It can record all the spectrum distribution in 5 minutes, which is convenient for viewing the frequency interference or emission leakage.

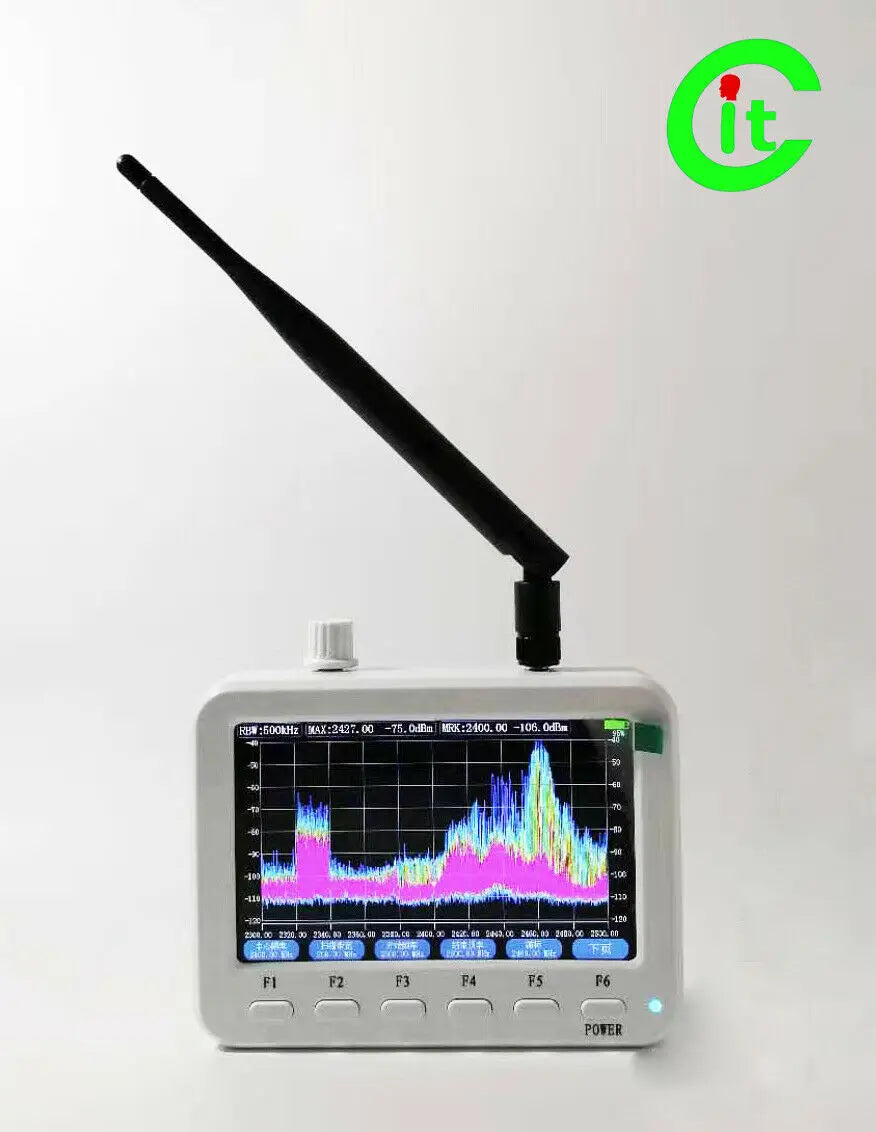

7. The function of spectrum thermograph shows the overlapping density of spectrum outline in a period of time, and the display of more repetition times tends to be red, which is convenient for analyzing the spectrum statistical characteristics in a period of time.
Specification:
Condition: 100% Brand New
Item Type: Spectrum Analyzer
Material: ABS
|
Item |
Parameter |
|
Model |
XT-127-AT |
|
S11 (Typical) |
-20dB |
|
Frequency Range (MHz) |
10-2700MHz |
|
In-Band Unevenness |
1dB (After Calibration) |
|
RBW (KHz) |
3, 5, 10, 20, 30, 50, 100, 200, 300, 500KHz |
|
DANL (Average Noise Floor) |
-110dBm (Typical) |
|
Amplitude Accuracy |
+-0.5dBm |
|
Scan Time |
200ms |
|
MAXHOLD Function |
Support |
|
Adjustable Reference Level |
Support |
|
Display Refresh Rate |
5Hz (5 Screens Per Second) |
|
LCD Resolution |
TFT 800x480 |
|
LCD Size |
5in |
|
RF Interface |
SMA-K |
|
Chromatogram |
Support |
|
Thermal Map |
Support |
|
AT Function |
Support |
|
Built-In RTC Clock |
Support |
|
Battery Capacity |
3300mAh (Typical) |
|
Type of Battery |
18650 Lithium Battery |
|
Charging Time |
4 - 5 Hours |
|
Charging Interface |
Micro USB Interface |
|
Battery Life |
9 Hours |
|
Size |

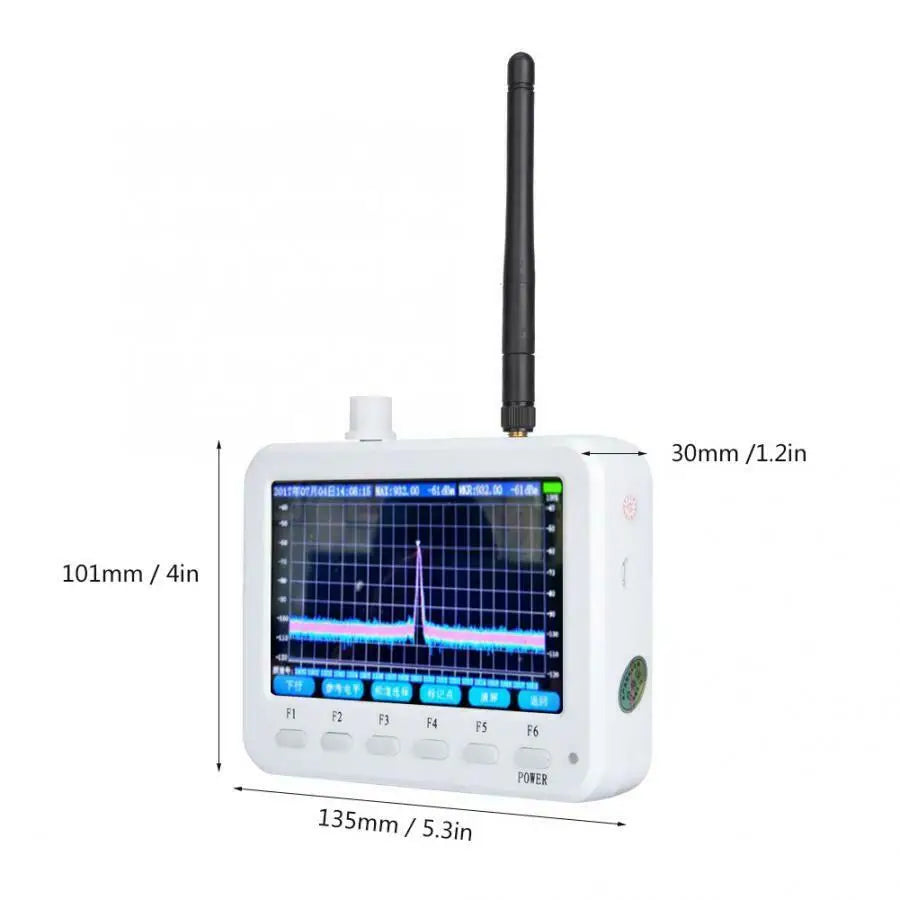

135x101x30mm / 5.3x4.0x1.2in (Excluding Knob and Antenna Height) |
|
Operating Temperature |
-20 - 45℃ |
|
Storage Temperature |
-20 - 70 ℃ |
|
Signal Measurement Range |
-100 - -10dBm |
|
(Large Signal Plus Attenuator Enters) |

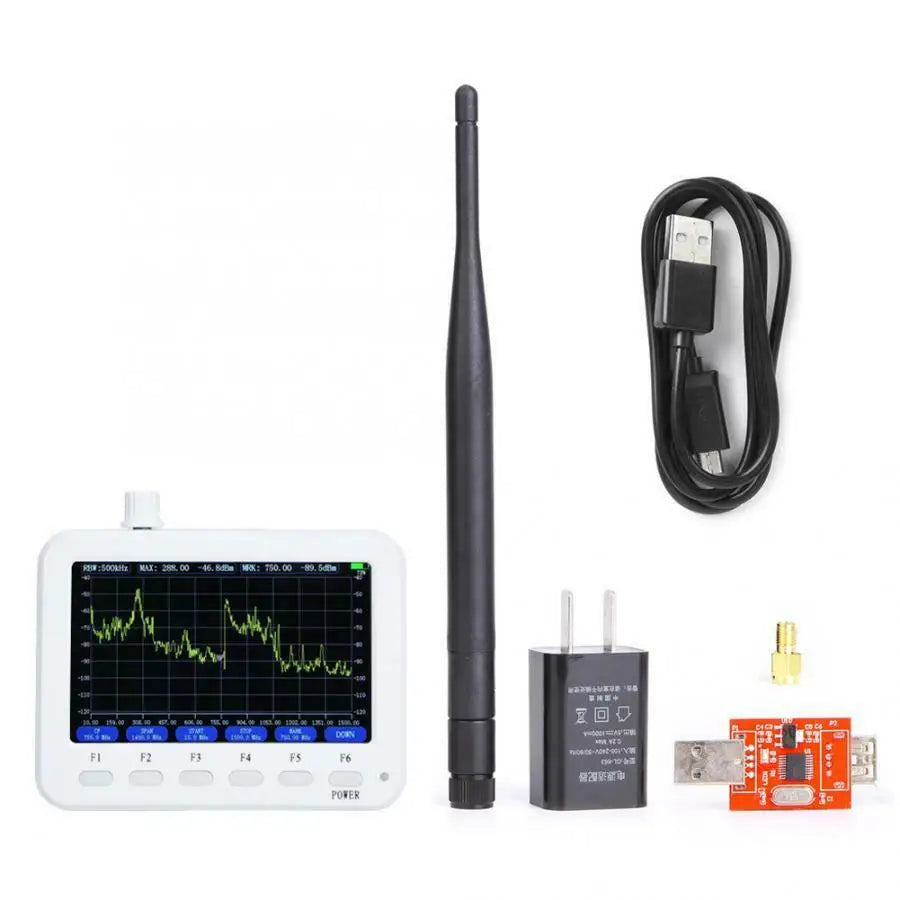

Package List:
INTRODUCTION TO THE BUTTONS, PORTS, AND FUNCTION

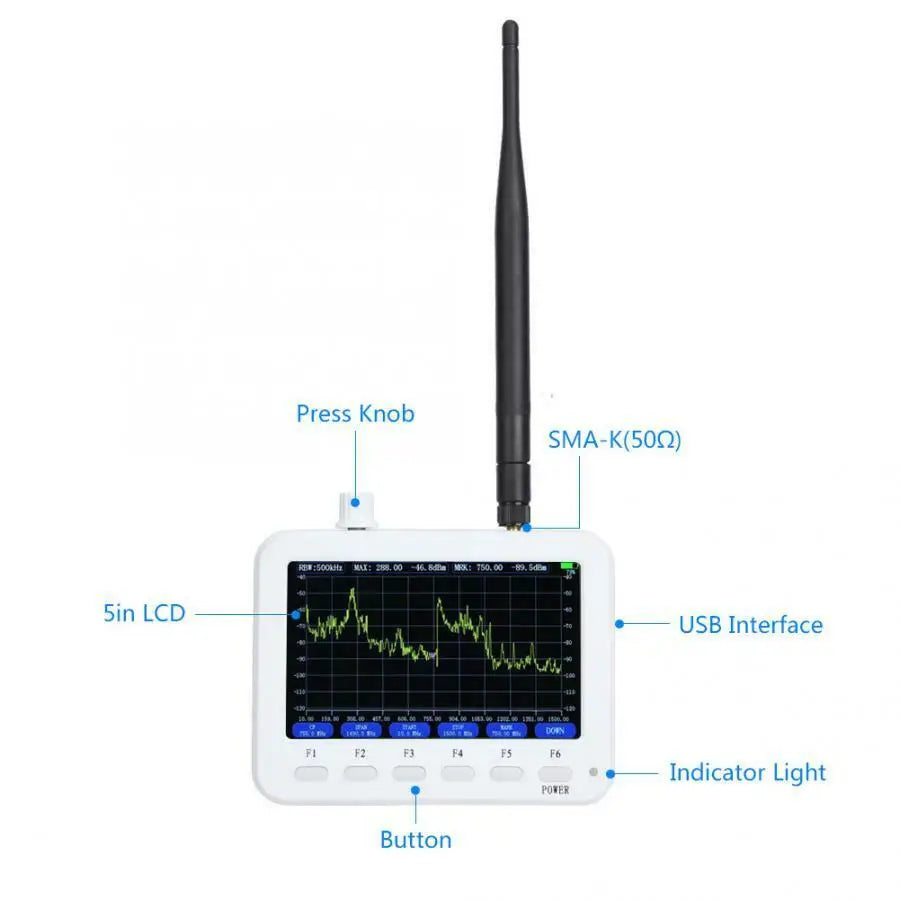

2.1 INTRODUCTION TO THE PORT AND INDICATOR LIGHTS
Light blue light in the normal boot, bright red when charging, the charging light green.
USB interface for Micro USB, the use of power is 5V / 1 A.
Antenna interface is the instrument for the standard SMA female head (SMA - K outside screw hole) should be with standard male head (SMA) - J internal screw needle. Note that SMA interface normal service life of about 1000 times (more than life, signal loss bigger or contact unstable), frequent replacement of antenna or using radio frequency cable, SMA connector should be used the original life of interface.
2.2 FUNCTION AND USE
KEYS FUNCTION GENERAL INTRODUCTION：
F1~F6 function keys (F1) with the LCD menu label one-to-one correspondence, select it and press respectively into the corresponding function;
POWER (F6) key is on/off key, long press the POWER (F6) key to turn it off. (note: shutdown operation under the return to the main interface is effective, other interface to return to the main interface operation).
2.2.1 REAL-TIME SPECTRUM FUNCTION
2.2.2 SPECTROGAM FUNCTION
2.2.3 THERMAL SPECTRUM FUNCTION
2.2.4 SET THE INTERFACE
3. TYPICAL APPLICATIONS
Can be used to test the single carrier, mobile, unicom 4 g 4 g signal, telecommunications, 4 g signals, WiFi, 2.5 ~ 2.7 GHz unmanned aerial vehicle (UAV), etc.
