VR-N7600 136-174MHz/400-480MHz U/V Dual Band Vehicle Radio Station 50W 10KM-50KM GPS Positioning
VR-N7600 136-174MHz/400-480MHz U/V Dual Band Vehicle Radio Station 50W 10KM-50KM GPS Positioning
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Specification:
- Model: VR-N7600
- Frequency range:
Transmitting: 136 - 174MHz; 400 - 480MHz
Receiving: 87 - 550MHz (including broadcasting and aviation)
- Transmitting power: 50W/25W/8W
- Channel number: 192 channels (32 x 6 group)
- Power supply voltage: DC13.8V±15%
- Current consumption: 0.5A (receiving); 9A (50W transmitting)
- Working temperature: -20℃ to 60℃
- Antenna interface: M female
- Antenna impedance: 50ohms

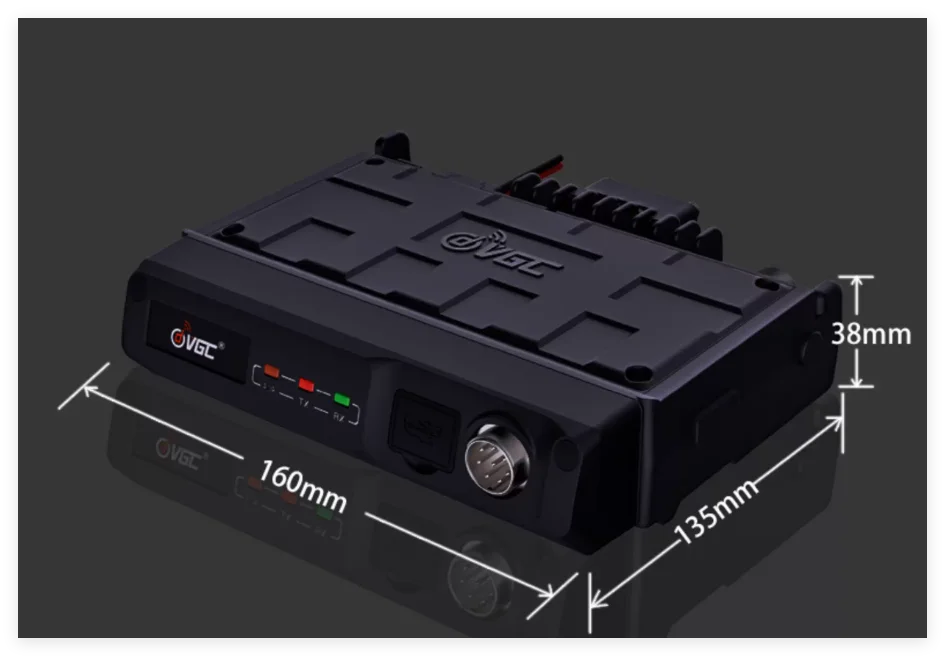

- Product size: 160 x 38 x 135mm
- Net weight: 1.2kg

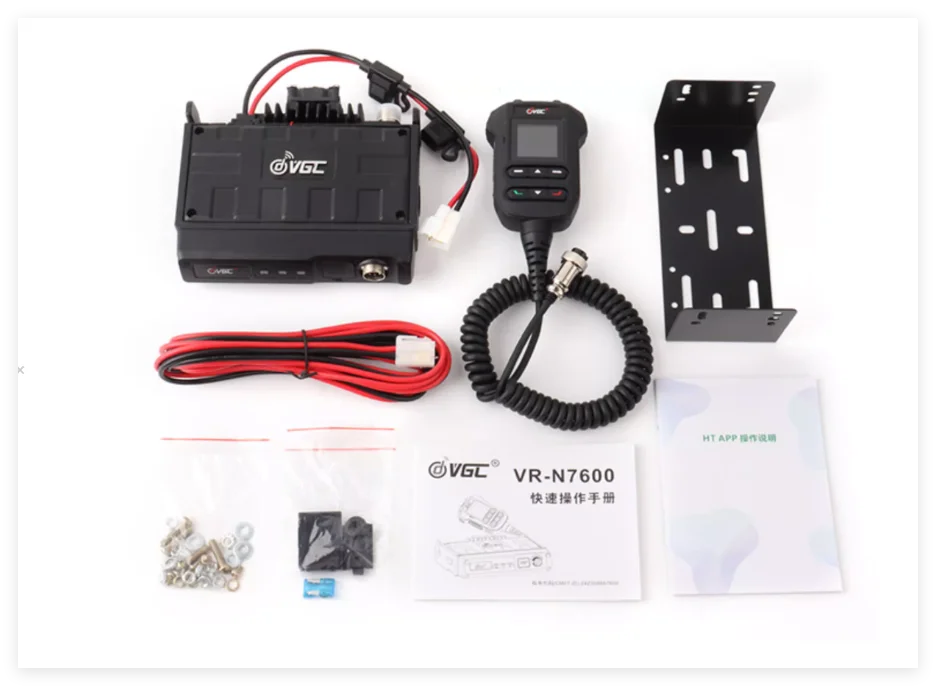

Package Included:
- 1 x Host
- 1 x Handheld Microphone
- 1 x Host Bracket
- 1 x Power Cable (3-Meter)
- 1 x Accessory Pack
- 1 x User Manual
Precaution:
- The VR-N7600 vehicle mounted radio station has passed the professional testing of the National Radio Testing Center and obtained the National Radio Transmission Equipment Model Approval Certificate, code 24Z358887600.
- Vehicle mounted radio station standard does not include accessories such as antennas, feeders, clamps, suckers, external
speakers, etc.
- Connect the radio station to a 12V battery for power, and it is not recommended to power it from the cigarette lighter or ACC. If it is a 24V battery for a truck, please be sure to use it in conjunction with a communication specific transformer. If used as a
fixed base station, you can prepare a 13.8V communication power supply by yourself.
