Vichy VC99+ 3 6/7 Auto Range Dmm AC DC Voltmeter Capacitance Resistance Digital Multimeter vs Fluke17B Multimeter

Save $1.55
CartoolshopSKU: VC99

Price:
$53.45 $55

Tax included Shipping calculated at checkout

Stock:
In stock

Description

Vichy VC99+ 3 6/7 Auto Range Dmm AC DC Voltmeter Capacitance Resistance Digital Multimeter vs Fluke17B Multimeter



Product Description

Features:
3.Strong antimagnetic and anti-jamming performance;
4.Full function protection,;
5.Unit symbol display, very easy to reading;
6.Relative value, frequency/duty cycle measuring, data hold.

Technical data:
Basic function Range Basic accuracy
DCV 600mV/6V/60V/600V/1000V ±(0.5%+4)
ACV 6V/60/600/1000V ±(0.8%+6) DCA 600uA/6000uA/60mA/600mA/6A/20A ±(0.8%+3)
ACA 600uA/6000uA/60mA/600mA/6A/20A ±(1.5%+10)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+5)
Capacitance 40nF/ 400nF/4uF/40uF/400uF/2000uF ±(3.5%+8)
Frequency 100Hz/1kHz/10kHz/100kHz/1MHz/60MHz ±(0.5%+4)
Centigrade temperature -40~1000°C ±(0.75%+3) 0~1832°F ±(1.2%+3)

Special function VC99
Diode test √
hFE test √
Continuity test Approx. less than 30Ω±10Ω
Low battery indication Approx less than 2.4V
Duty cycle measuring √
Data hold √
Auto power off Approx.15minutes Analog bar √
Function protect √
Input impendence 10MΩ
Sampling rate 3times/s
AC frequency response 40-400Hz
Operation way Manual or auto range
Max. display 6000
LCD size 65x41mm
Battery 3V AAA×2 (NOT BE INCLUDED in shipping because air pot regulation)
Power dissipation Quiescent current approx. 2mA
General characteristic Color Body: dark grey, holster: orange
Weight 290g
Meter size 185×93×35mm

2

5

8

6

3

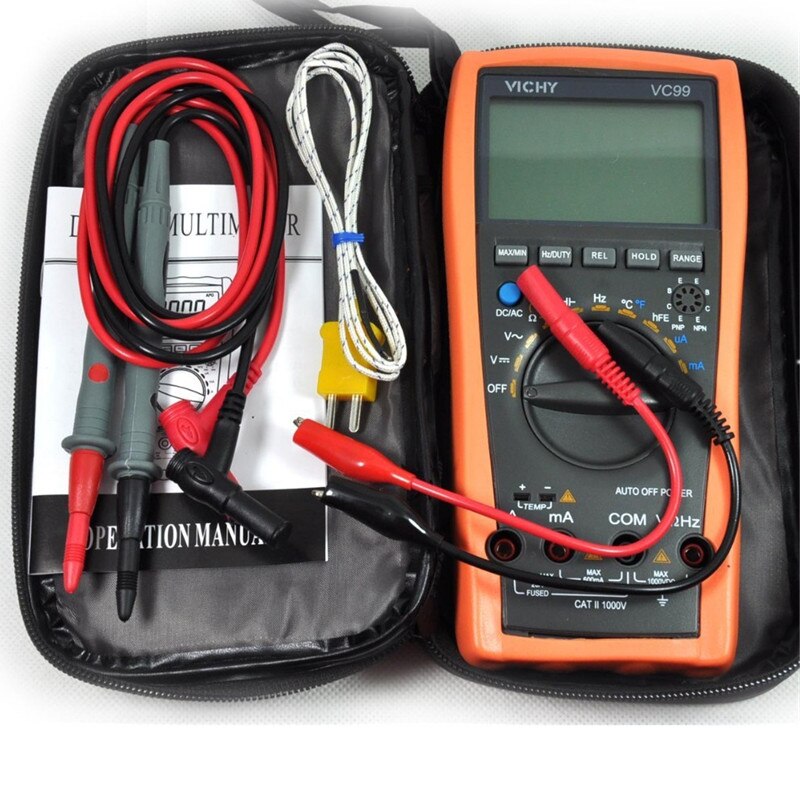

Package:
1*vc99 meter

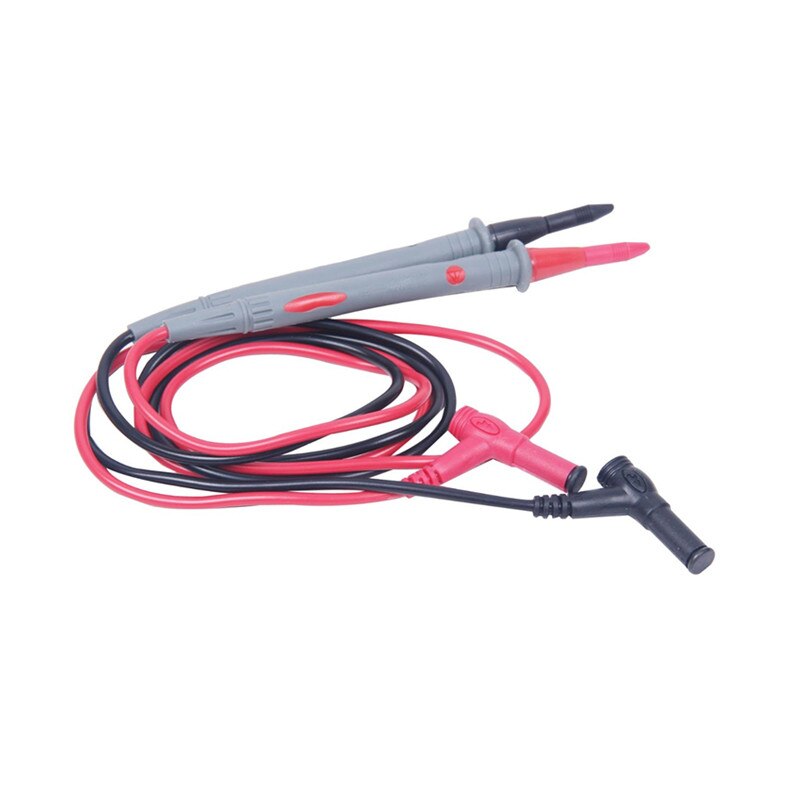

1set *Test probe
1set *alligator leads
1* manual
1set *temperature probe
1* Packing Bag
