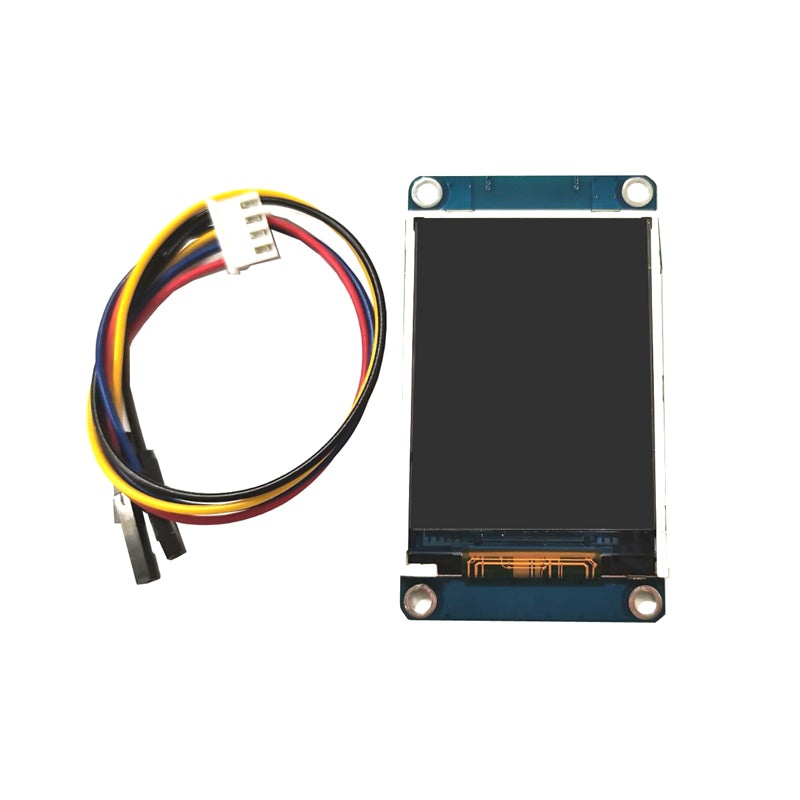

VHF UHF MMDVM Hotspot Pi-star Support P25 DMR YSF Module + 2.2inch TFT OLED for Raspberry Pi
VHF UHF MMDVM Hotspot Pi-star Support P25 DMR YSF Module + 2.2inch TFT OLED for Raspberry Pi
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
VHF UHF MMDVM Hotspot Pi-star Support P25 DMR YSF Module + 2.2inch TFT OLED for Raspberry Pi
Description:new pi4b need remove R1 Resistor.

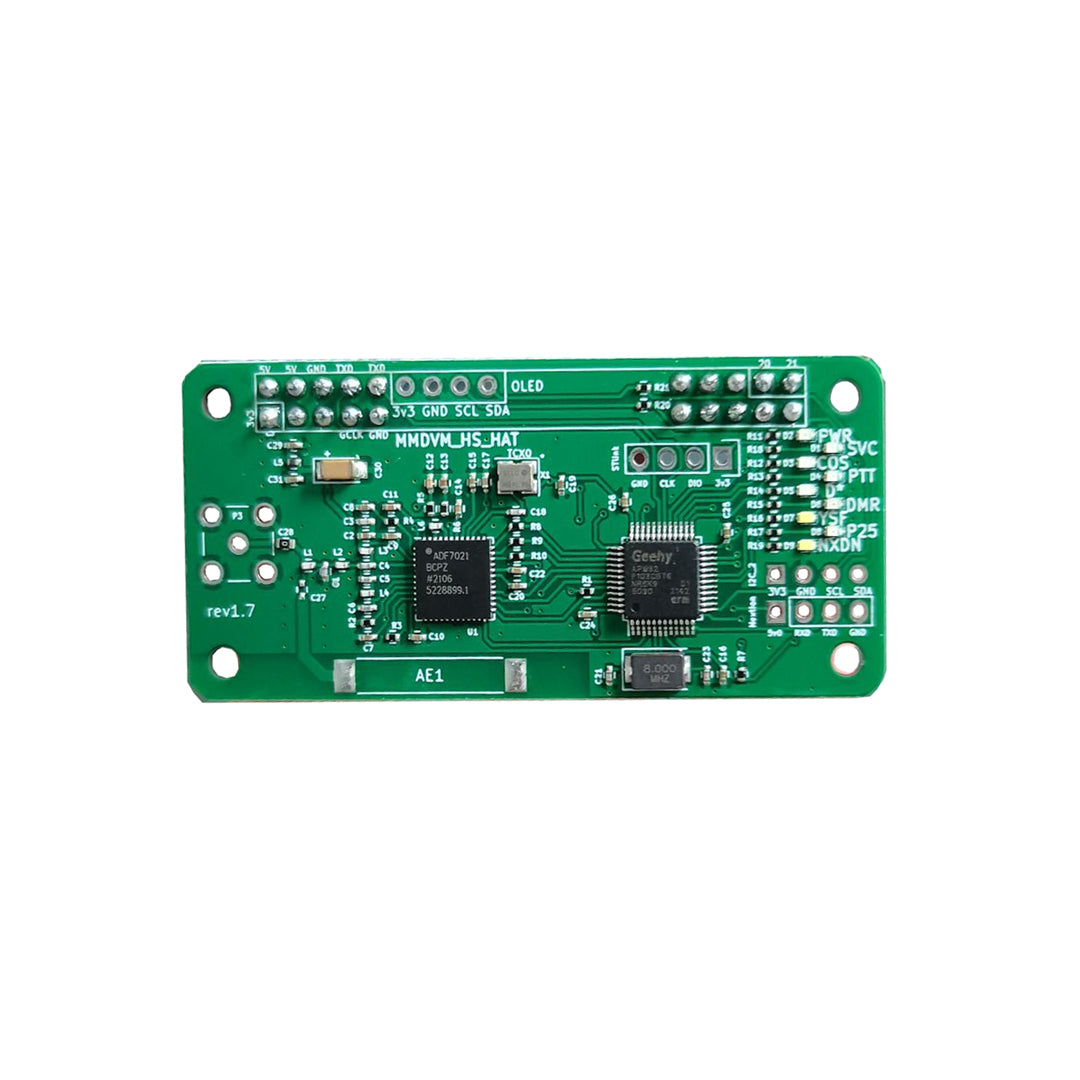

STM32_MMDVM_HS HAT Rev1.7 Guide
1.Hardware add (SDA,SCL)R20,R21 Connect stm32 i2c 2 bus to OLED,and raspi. oled message pwr on without RPI using mmdvm_hs custom fw,and i2c 2 bus.
2.Support i2c communition with raspi
Setting For Pi-star software and raspberry hardware (rpi 0-3) new pi4b need remove R1 Resistor.
Controller Mode:Simplex Node
Radio Frequency : Freq:144-148,219-225,(Main Band)420-475,842-950
Example:438.000000
Radio/Modem Type:STM32-DVM(GPIO)
14.7456 TCXO with RXOFFSET=0 TXOFFSET=0
Default Username: pi-star
Default Password: raspberry
to support i2c communication change MMDVM_HS code(by Andy Uribe CA6JAU)->Config.h
// Host communication selection:
//#define STM32_USART1_HOST
//#define STM32_USB_HOST
#define STM32_I2C_HOST
to disable i2c 2 to raspi and oled just remove R20,R21
update new FW: (pi-star / expert / ssh access / user :pi-star pass:raspberry)
sudo pistar-mmdvmhshatflash hs_hat
· Fully tested
· Supports DMR, P-25, D-Star and System Fusion
· Onboard LEDs to show status (Tx, Rx, PTT, Mode)
· Up to 10mW RF power

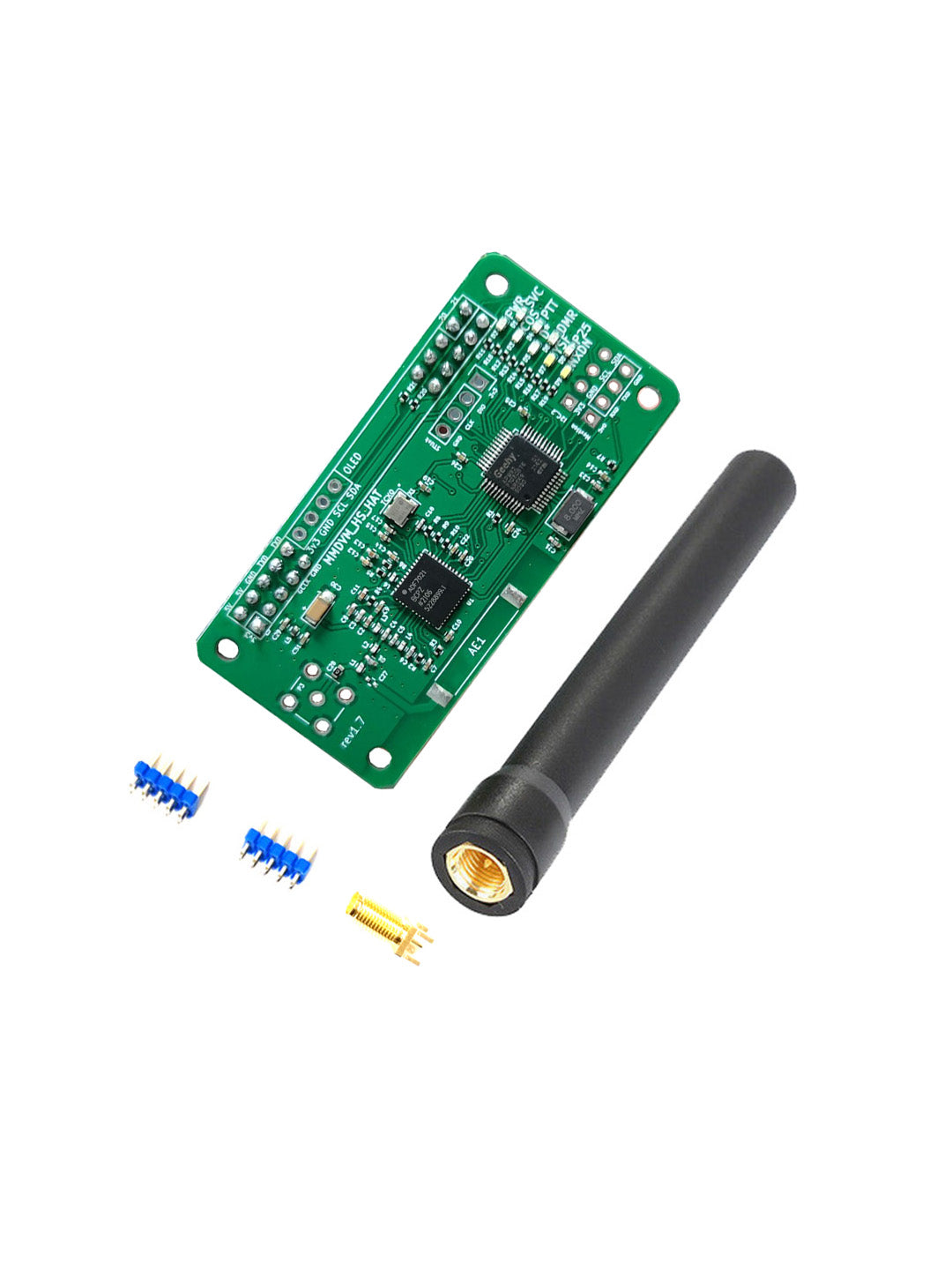

· SMA antenna connector, Antenna included
· Mounts cleanly on all current Raspberry Pi's including the Pi Zero
· The firmware is pre-loaded and is easily upgraded via software.
· Open source 3D printable case available
The latest firmware is pre-loaded
