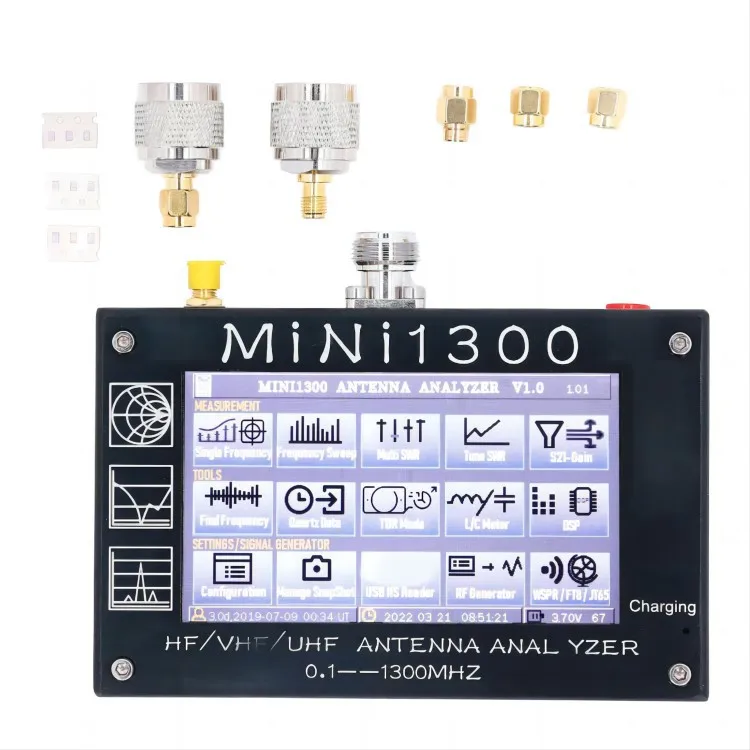

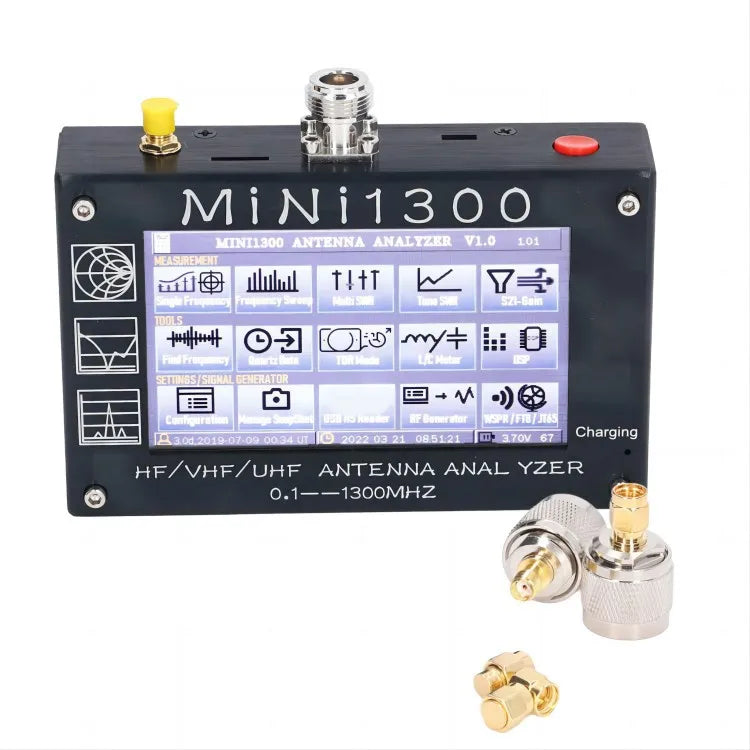

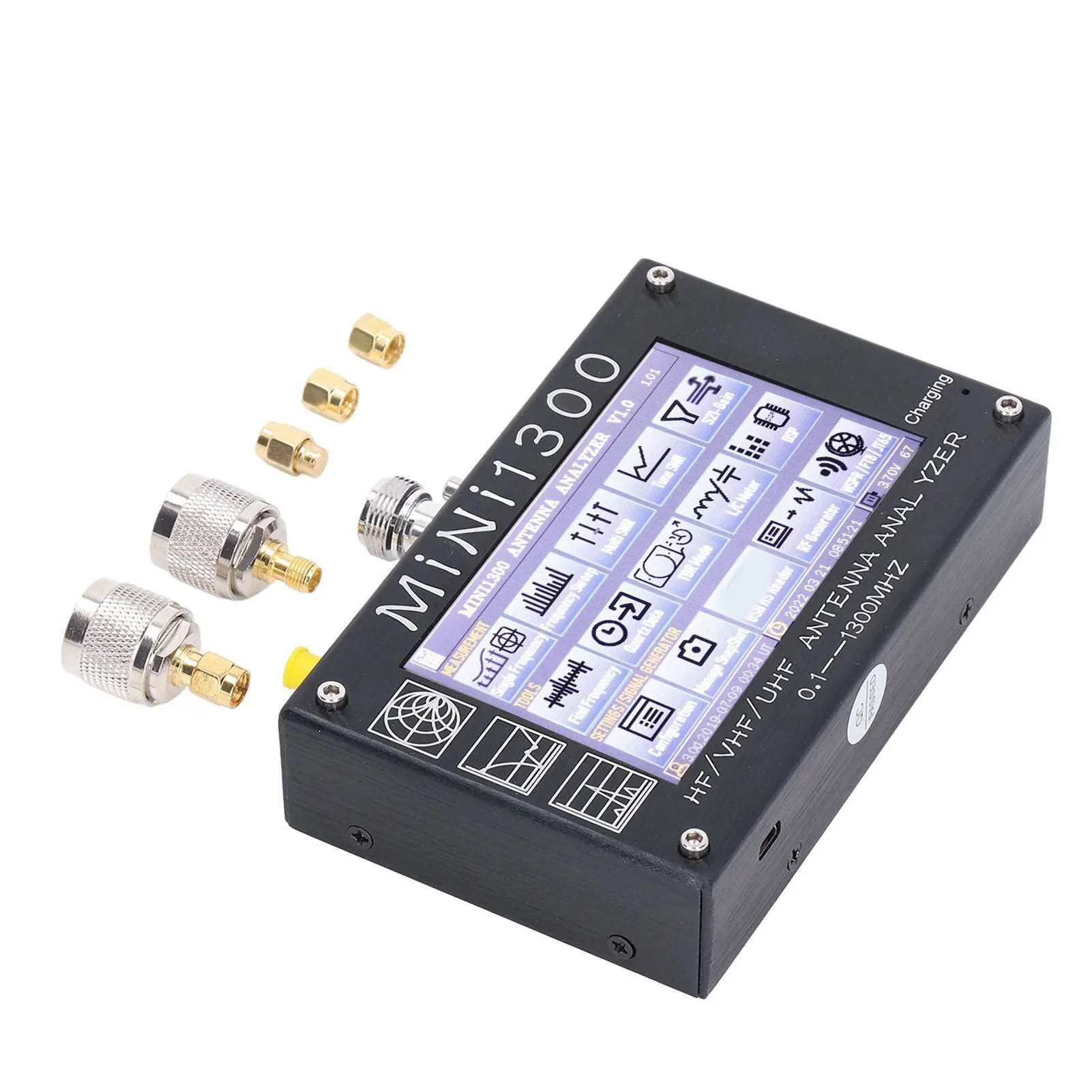

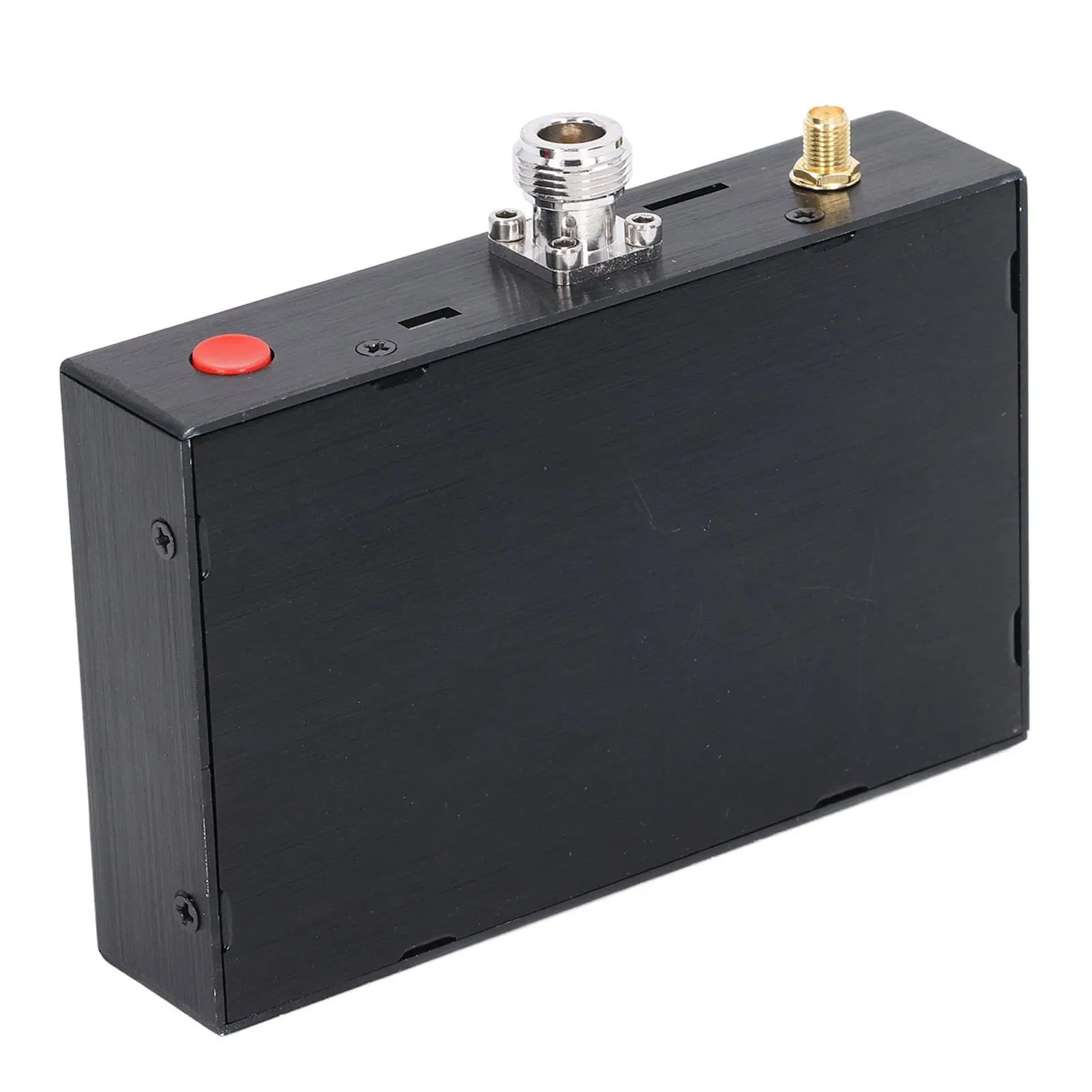

Upgraded Mini1300 Antenna Analyzer 0.1Mhz~1300MHz with SMA Calibration Kits Vector Network Analyzer Multitester
Upgraded Mini1300 Antenna Analyzer 0.1Mhz~1300MHz with SMA Calibration Kits Vector Network Analyzer Multitester
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Upgraded Mini 1300 Antenna Analyzer 4.3 Inch 0.1-1300MHz HF VHF UHF Antenna Analyzer with SMA Calibration Network Analyzer
Description:
-
HF/VHF/UHF Antenna Analyzer 0.1-1300MHz Mini1300 Antenna Analyzer Measuring S Parameters Frequency Analyzer Aluminum Alloy Shell
-
This antenna analyzer is lightweight, Input/Output Impedance: 50 ohms, maximum charging current: 5V/1.5A with 4.3inch TFT touch screen display make more accurate clear reading and easy to operate.
-
Built-in charging circuit and DC-DC booster, measurement parameters: SWR, R, +Jx, -Jx, |Z|, return loss; Measurement modes: single point measurement, sweep (frequency sweep) and TDR mode; SWR measurement range: 1.0-1999 (single point mode), 1.0-20.0 (sweep mode).
-
This vector network analyzer acts as an inexact signal source and frequency counter. Display mode: numerical display, curve display, analog chart. The aluminum shell is better RF performance than plastic shell.
-
SWR MeasureMent Range: 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode)
Frequency range: 0.1-1300MHz
HF / VHF / UHF continuous coverage
Input/output impedance: 50
Measurement parameters: SWR, R, + Jx, -Jx, Z, return loss
Measurement mode: single point measurement, sweep (frequency sweep) and TDR mode
SWR measurement range: 1.0-1999 (single point mode), 1.0-20.0 (scan mode)
Display mode: numerical display, curve display, simulation diagram
Connector type: UHF N type connector
VNA: SMA
SMA short-circuit load calibration kit x 1
LCD size: 480x272 4.3 inch TFT LCD display
Touch screen type: capacitive
Power supply: USB or built-in lithium ion
Built-in lithium-ion charging circuit and DC-DC booster
Maximum charging current: 5V / 1.5A
External storage method: TF card
Size: 133·85·29 mm, not include connector
Weight: 550g
