Upgrade Mini1300 4.3inch TFT LCD 0.1-1300MHz HF VHF UHF ANT SWR Antenna Analyzer Inner Battery Meter 5V/1.5A
Upgrade Mini1300 4.3inch TFT LCD 0.1-1300MHz HF VHF UHF ANT SWR Antenna Analyzer Inner Battery Meter 5V/1.5A
Sale
Sold out
Pre-order
Regular price
$182.99 USD
Regular price
$279.99 USD
Sale price
$182.99 USD
Unit price
per
Tax included.
Shipping calculated at checkout.
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Add $299.99 more to get FREE SHIPPING!
$0.00
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Specifications:
Frequency Range: 0.1-1300MHz
HF/VHF/UHF contiunous coverage
In/Out Impedance: 50
Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss
Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode
SWR MeasureMent Range: 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode)
Display Modes: Numerical display, curve display, simith chart
Connector Type: UHF N-type connector
VNA:SMA
SMA OPEN-SHORT-LOAD Calibration Kit x 1
LCD size: 480x272 4.3" TFT LCD display
Touch Screen Type: Capacitive
All capacitive touchscreen on the display – no buttons are needed
Power Source: USB or Internal Li-ion
Built-in Li-ion charging circuitry and DC-DC booster
Maximum charging current: 5V/1.5A
External Storage Method: TF card

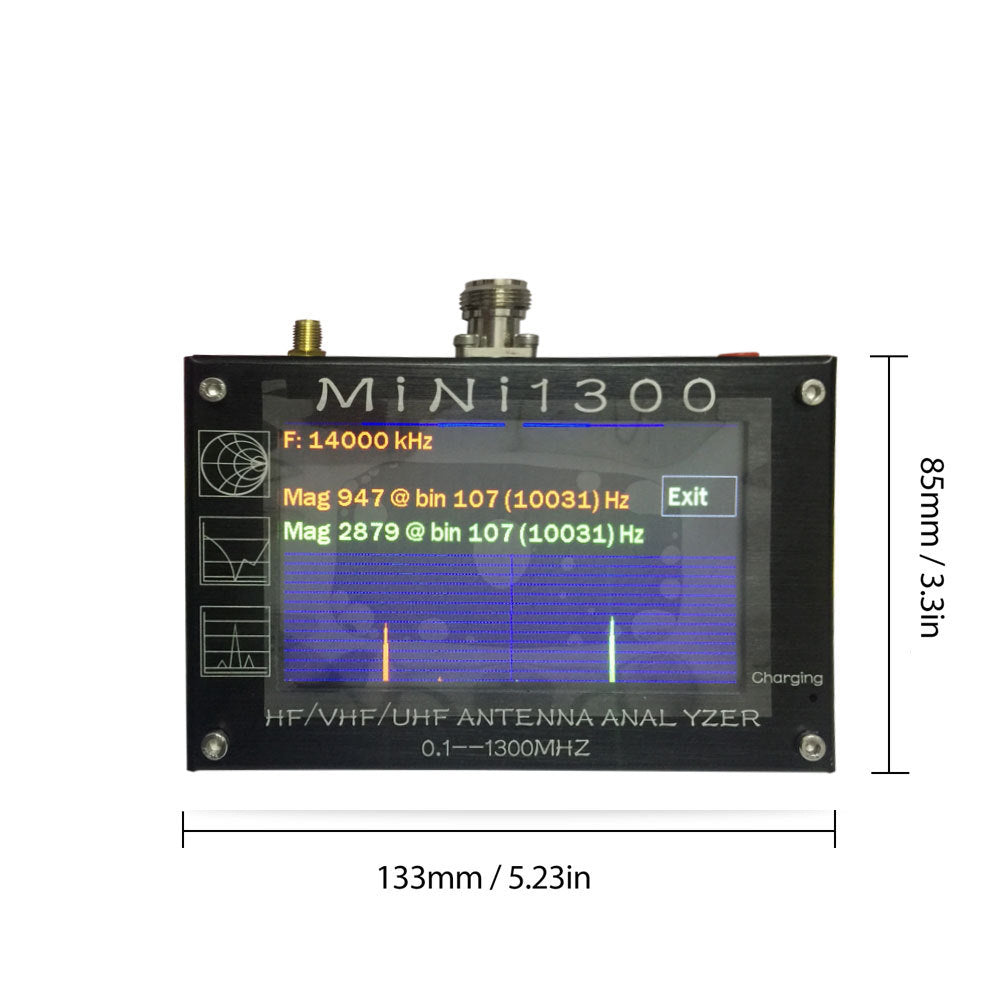

Dimensions: 133·85·29 mm Does not contain prominent ports.
Weight: 550g
Warning: if the product has parameter changes, the actual test will prevail.

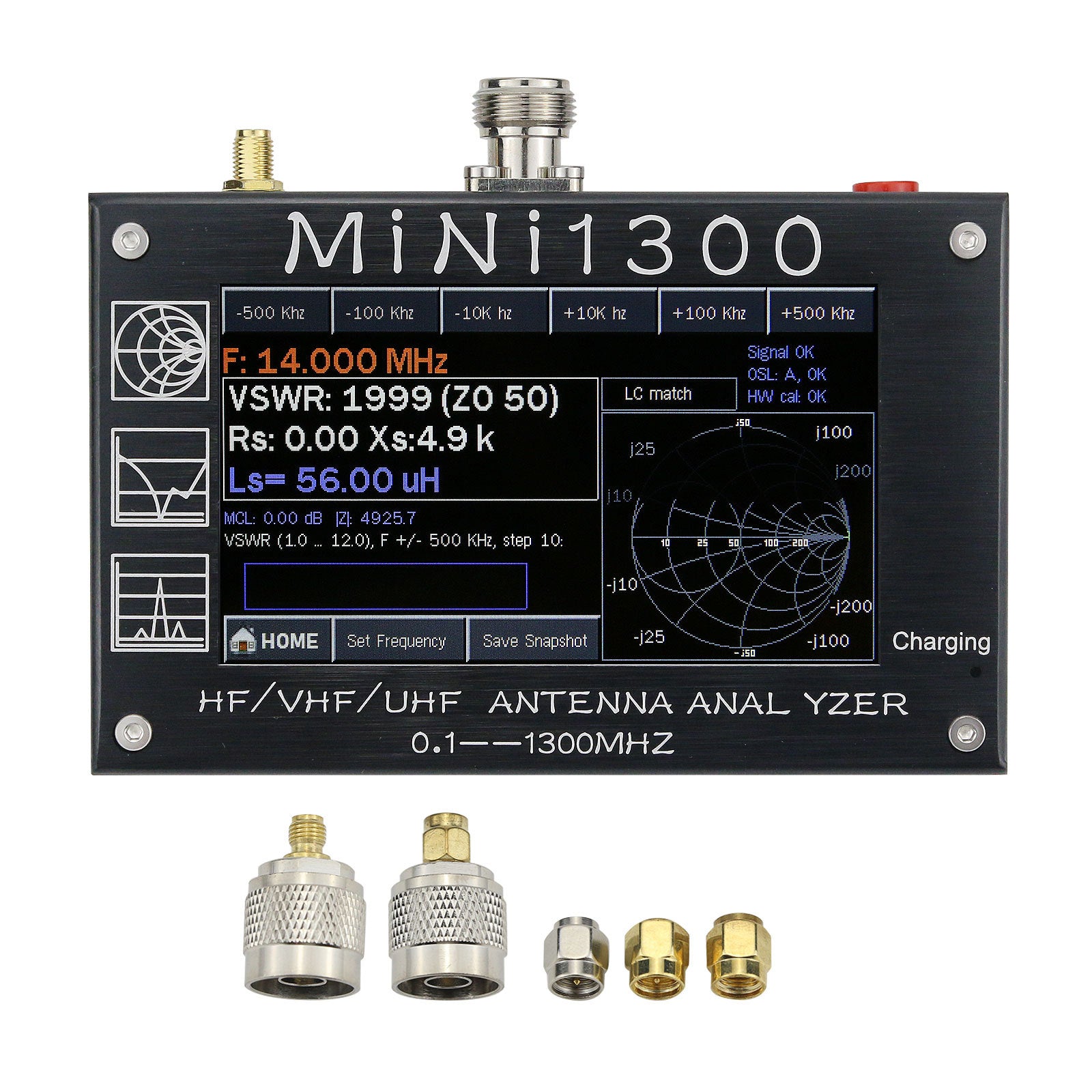

Package Included:
Package Included:
1 x Mini1300 HF VHF UHF Antenna Analyzer 0.1-1300MHz
1 x Short
1 x Open
1 x Load
2 x N to SMA Head
Details Pictures:
Details Pictures:
Description
Description
Specifications:
Frequency Range: 0.1-1300MHz
HF/VHF/UHF contiunous coverage
In/Out Impedance: 50
Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss
Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode
SWR MeasureMent Range: 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode)
Display Modes: Numerical display, curve display, simith chart
Connector Type: UHF N-type connector
VNA:SMA
SMA OPEN-SHORT-LOAD Calibration Kit x 1
LCD size: 480x272 4.3" TFT LCD display
Touch Screen Type: Capacitive
All capacitive touchscreen on the display – no buttons are needed
Power Source: USB or Internal Li-ion
Built-in Li-ion charging circuitry and DC-DC booster
Maximum charging current: 5V/1.5A
External Storage Method: TF card
Dimensions: 133·85·29 mm Does not contain prominent ports.
Weight: 550g
Warning: if the product has parameter changes, the actual test will prevail.
Package Included:
Package Included:
1 x Mini1300 HF VHF UHF Antenna Analyzer 0.1-1300MHz
1 x Short
1 x Open
1 x Load
2 x N to SMA Head
Details Pictures:
Details Pictures:
Item Specifics
Item Specifics
