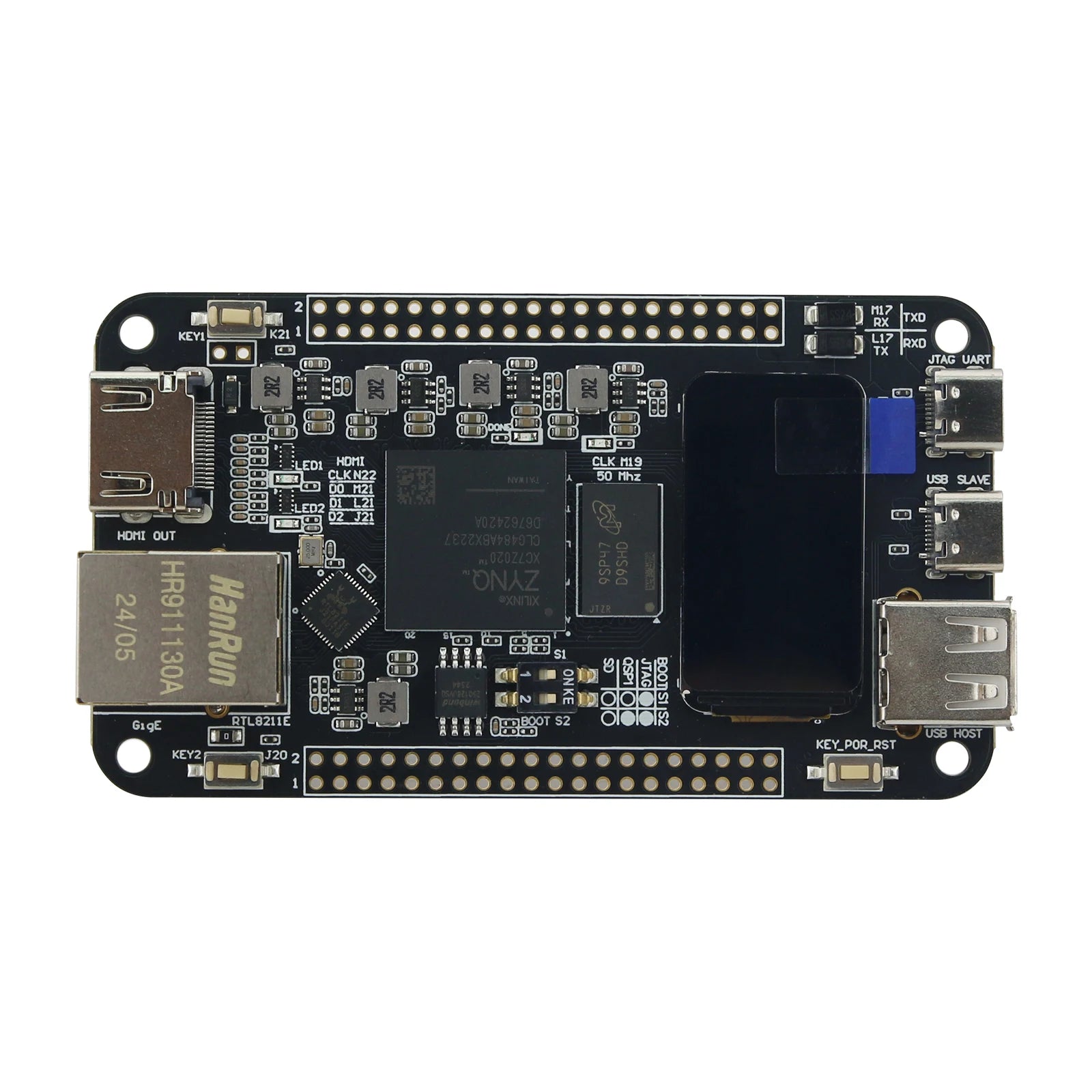

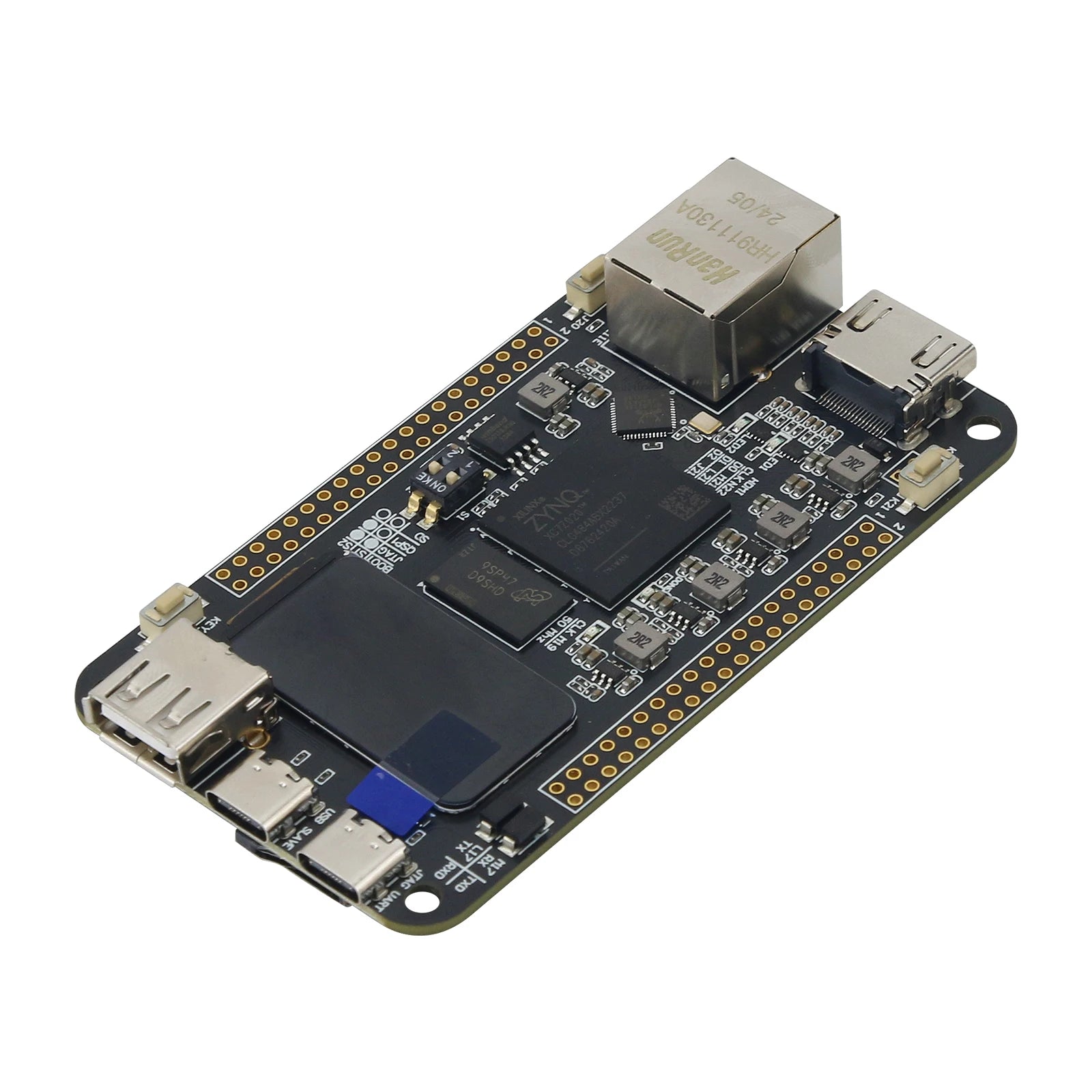

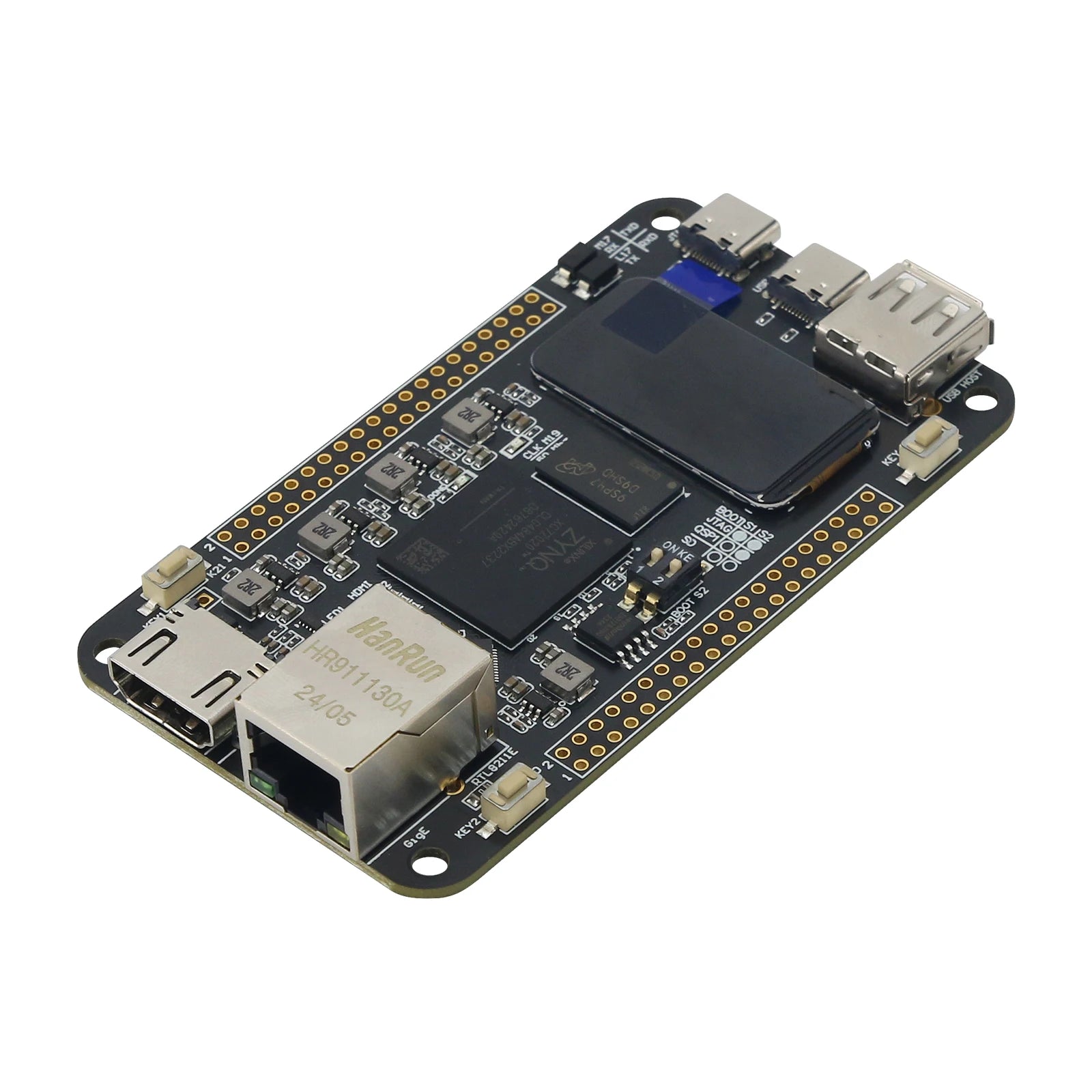

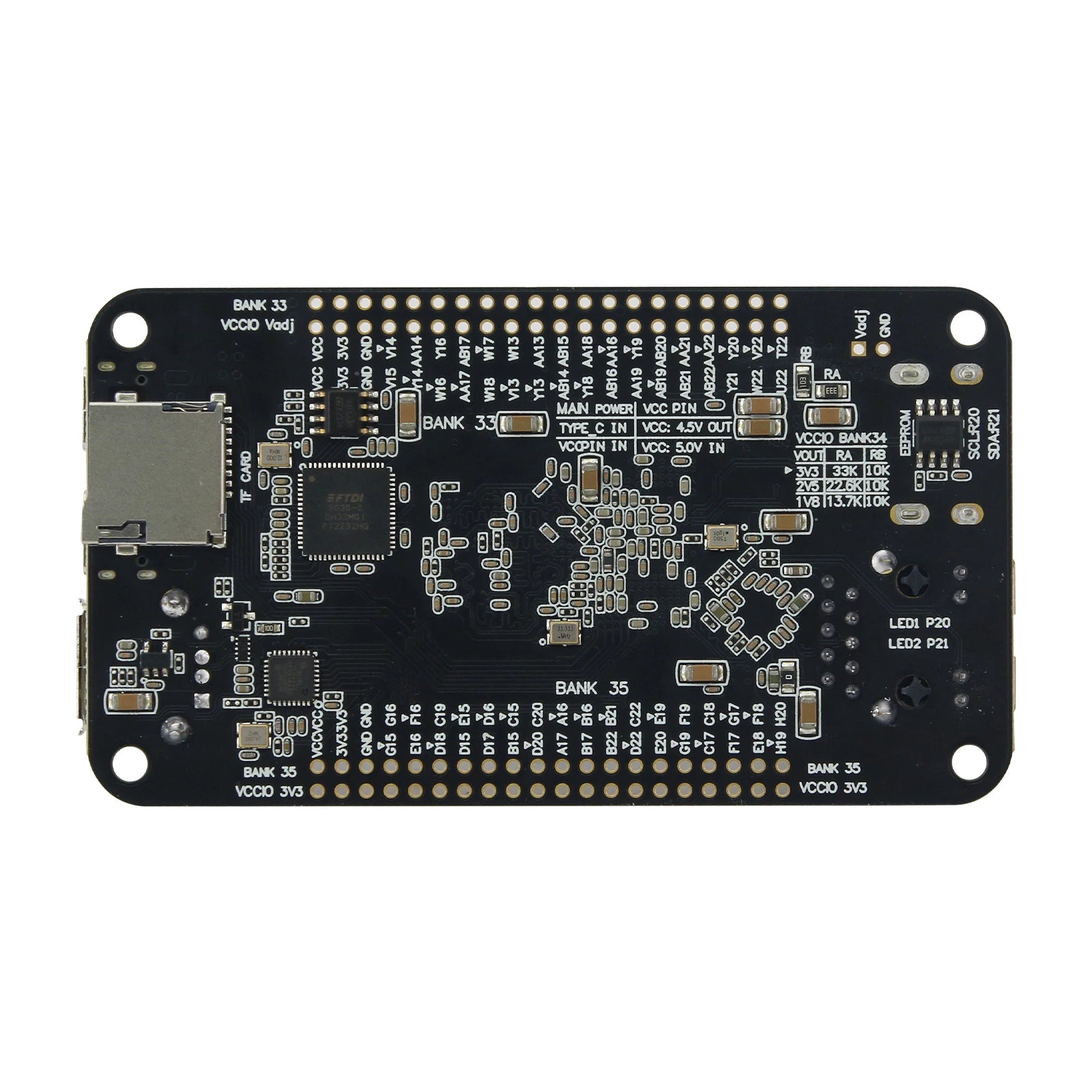

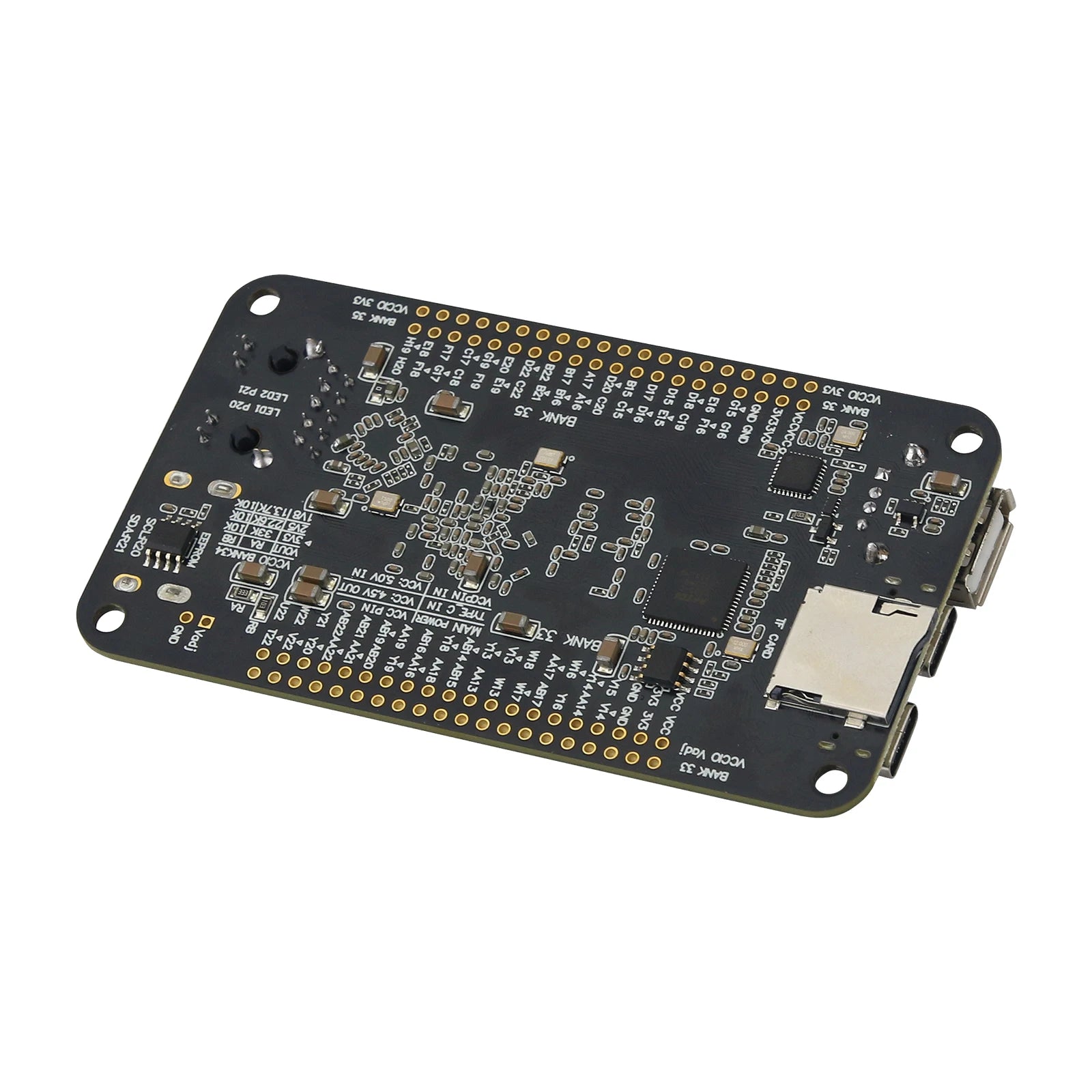

Unwelded New SP Version 7020 FPGA Minimum System Development Board (Downward Welding) Core Board Onboard Downloader for Xilinx
Board Instruction:
- Main chip 7020 (new industrial grade chip)
- 512MB DDR3
- TF card slot
- 16MB QSPI FLASH (can be responsible for startup)
- EEPROM 2KB(PL)
- Two channel LED (PL)
- Two buttons (PL)+one POR reset button
- One channel UART (PL)
- Onboard downloader for Xilinx
- One channel USB can be used as USB SLAVE or USB HOST
- Lead out 68 channel GPIO (all led out from PL port) (34 groups), all connected in pairs using differential lines, with equal length inside the differential lines
- The BANK on one side is independently powered, and the BANK voltage can be adjusted through a resistor
- Gigabit Ethernet (connected to the PL port)
- HDMI output interface
- 1.47 inch colored LCD display screen: 172 x 320 (connected to PL port)
- The PL is connected to a 50M active crystal oscillator; HDMI and USB, and the downloader is connected to an ESD electrostatic protection device layer

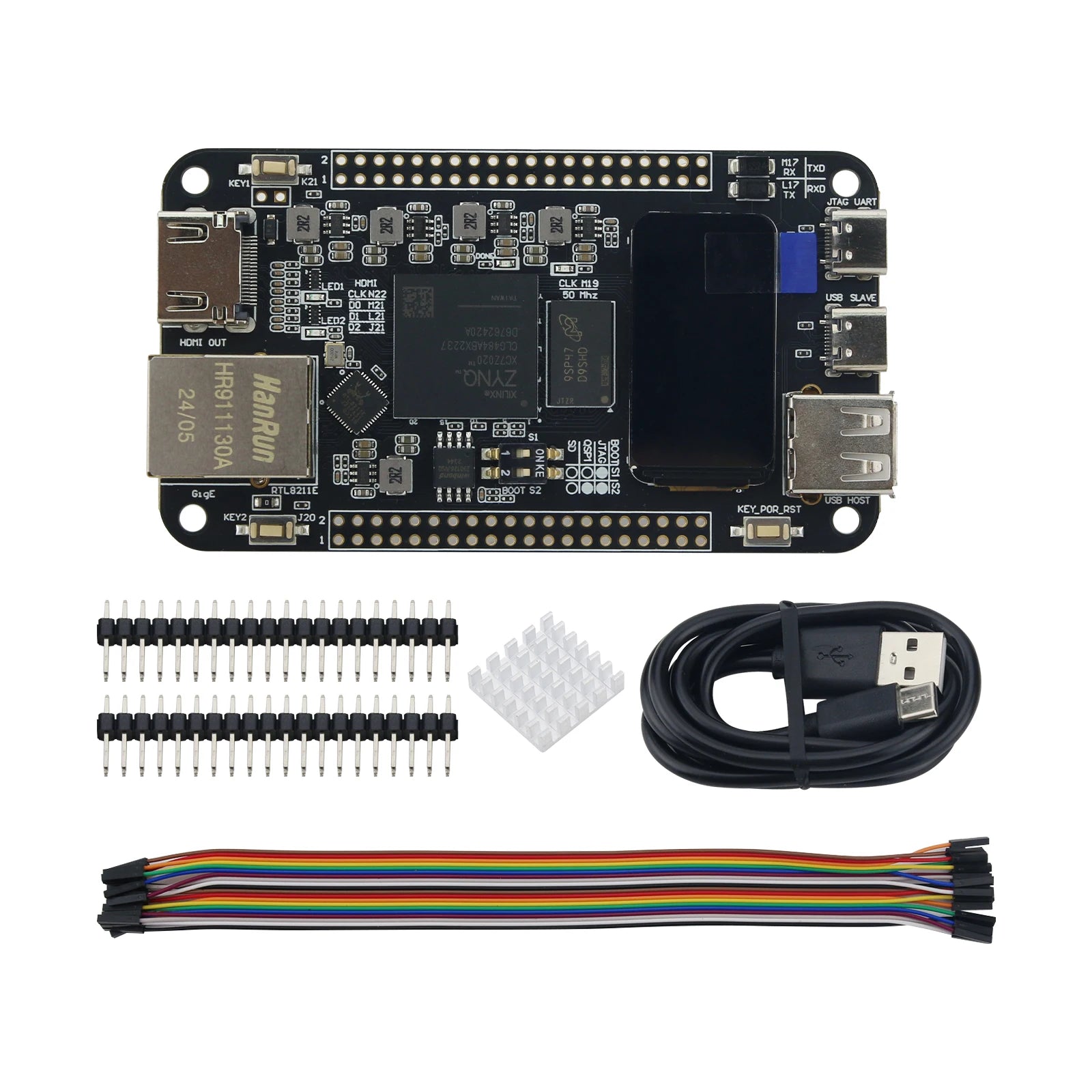

Package Included:
- 1 x Development Board
Note:
- The pins are not welded, you need to weld by yourself.
