Unlimited EU Red KTAG V7.020 4 LED 2.25 SW Online KESS V5.017 K-TAG 7.020 Master KESS 5.017 V2.80 OBD2 Tuning ECU Programmer

Sale Sold out Pre-order

$69.32 USD

~~$138.64 USD~~ $69.32 USD

Tax included. Shipping calculated at checkout.

In stock

Ask a question

All orders are dispatched the next 3 business days!
We will beat any price. We back all products with a 1 year guarantee.

Add $299.99 more to get FREE SHIPPING!

$0.00

Order in the next 0 hours 0 minutes to get it by /07/2026

Color: KESS

Guaranteed Safe Checkout

Description

Item Specifics

Purchase Note: As CD is fragile, it's easy to broken during shipping. To avoid any inconvenience to you, You can contact download it from the following link

Ke-ss V2.80 download link

https://mega.nz/file/SRhWxYoC#-2Yjk8IuMV74tqhR39JaJAmUIWiF11HcfOXlKYxCV0E

KT-AG 2.25 download link

https://mega.nz/folder/OcR2TI7B#BMuhxwYaKsmjqvmRPhkP_g

This is Ke-ss , Kt-ag install video

https://mega.nz/file/jcxihBCI#tSPpB1w9jClYwkN8B_DZ4iA1rZUtKE3adMxZutA8HVw

2.KE-SS/K-TAG does not have the Murata filter

Please Note:

the newest KSUITE V2.80 for V5.017

V2.80 is update of V2.47. V2.80 add newer year for some cars

Newest K-Suite V2.25 software released For V7.020 Firmware. works with newest V2.25 and V2.23.

Note Tips:

Please DON'T update the online, it will damage the Unit and can not use any more .

Please Close anti-virus program when run software.

What differences between 5.017 and 7.020?

If you mainly want to work for 24V truck and tractor, V7.020 is more suitable for you !

1. Different Connection Way :

For V5.017,it can read and write ECU via OBD2 Cable Directly for most vehicles,easy to operate.

For V7.020,it read and write ECU via TRICORE or BDM Or Other Mode with special cable, the software will guide you how to operate.

2. Different Vehicle Coverage :

For example: 5.017 and v7.020 all can work For Most for Toyota Denso ECU Protocol,But just 7.020 can work For Toyota Hilux kun26 very well !

V7.020 can support much more truck/tractor/motorcycle than V5.017 !

For Some cars. V5.017 just can read it. But V7.020 can read and write it.

V2 HW5.017 New Added Features:

1.5.017 With Newest K-Suite 2.80 with exactly 7400 Vehicles added. supports More 140 Protocols. 5.017 support bike/car/truck/tractor!

2.Online Version V2 Firmware V5.017Support Online Service by interent connectionand and it will not damage the hardware.No worry locked any more.

3. No Token Limitation,no worry about tokens, you can use V5.017 for lifetime

4.Cover all major brands and protocols including Line, KAN, EDC17 and MED17 and for Ford J1850.

5.Support cars/trucks/tractors/bikes! V2 supports vehicles accroding to engine. So V5.017 V2 can support new vehicles!

6.V2 V5.017can read and write ECU via OBD2 port directly, no need to disassemble ECU from the car, easy to use.

7.V5.017 software is very easy to install, just follow the tips to click "Next Step", then it will work fine!

8.No need activate ,install&works directly

9.Works on Win XP Win7 32bit Win 8 etc.

10.No Checksum Error

11.Multi-language available: English, German, Spanish, Italian, Portuguese, French.

12.it can easily read and write ECU via obd2 cable for most cars, means do not need to remove ecu from car. but for some car, also can work via tricore , means need to remove ecu from car.

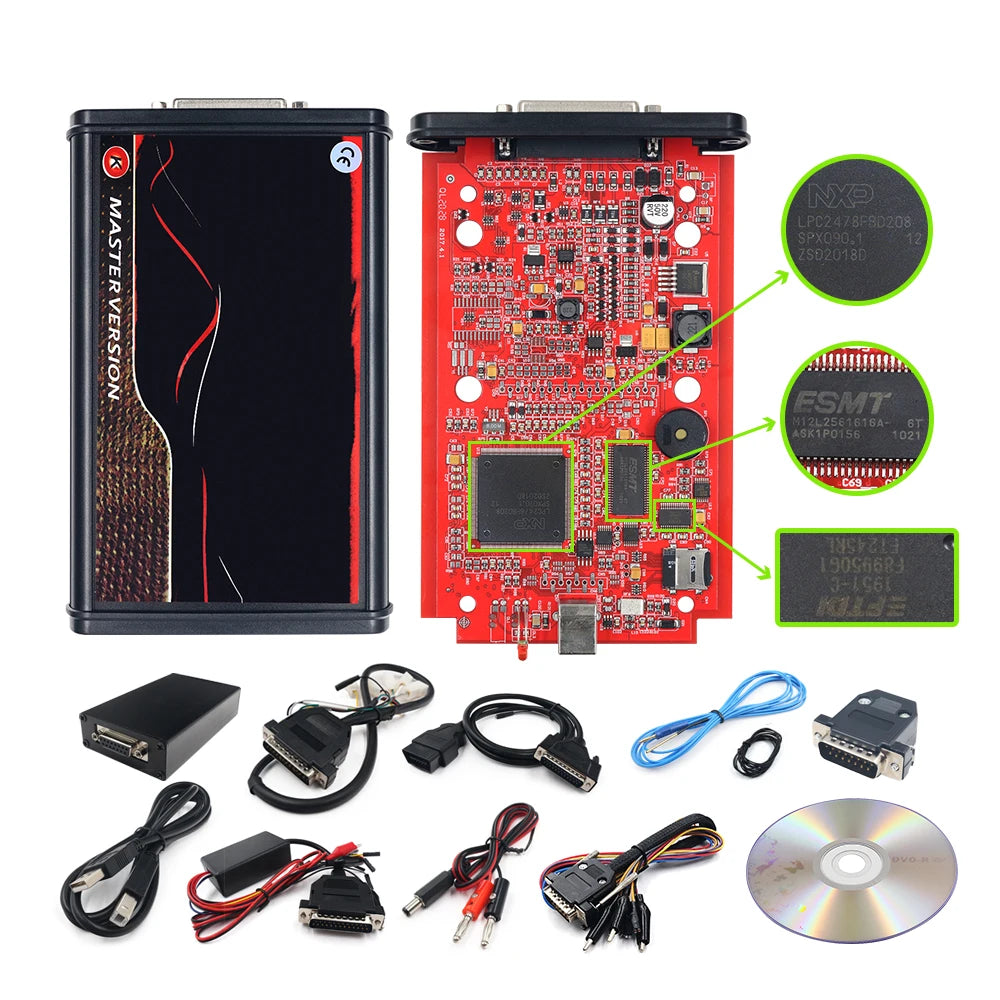

EU Version Red PCB Board Advantage:

1. The left upper corner and the lower right corner notch size is not the same

2. More than buzzer

3. WFs = Infineon, BCR112 NPN Digital Transistor

4. 27E = ON Semiconductor NUP2105LT1G

5. 6DW = NXP BC817,215 NPN Bipolar Transistor

6. A6c =MMUN2113LT1G / MMUN2113LT3G

7. K5B = BC807-25-7-F PNP Bipolar Transistor

8. Using imported Japanese Murata filter NFE61PT472C1H9L

What is different between V2.47 and V2.23?

1.V2.23 works with V2.47 only works with red.

2.V2.47 add much more car models and ecu protocols than V2.23 Ksuite, V2.47 supports some vehicles until 2017.

V2 has several built in features and safeguards including:

1. Check of the battery voltage in real-time

2. Full Recovery function in case of problems

3. Automatic correction of the Checksum, (where available)

4. Boot-Loader mode supported

5. Management of the programming counters

6. ScanTool function to remove DTC

7. Several options of reading/ writing speed

8. Option to write full file Section of the map

9. Full integration with ECM Titanium,which means it can work with ECM Titanium perfectly

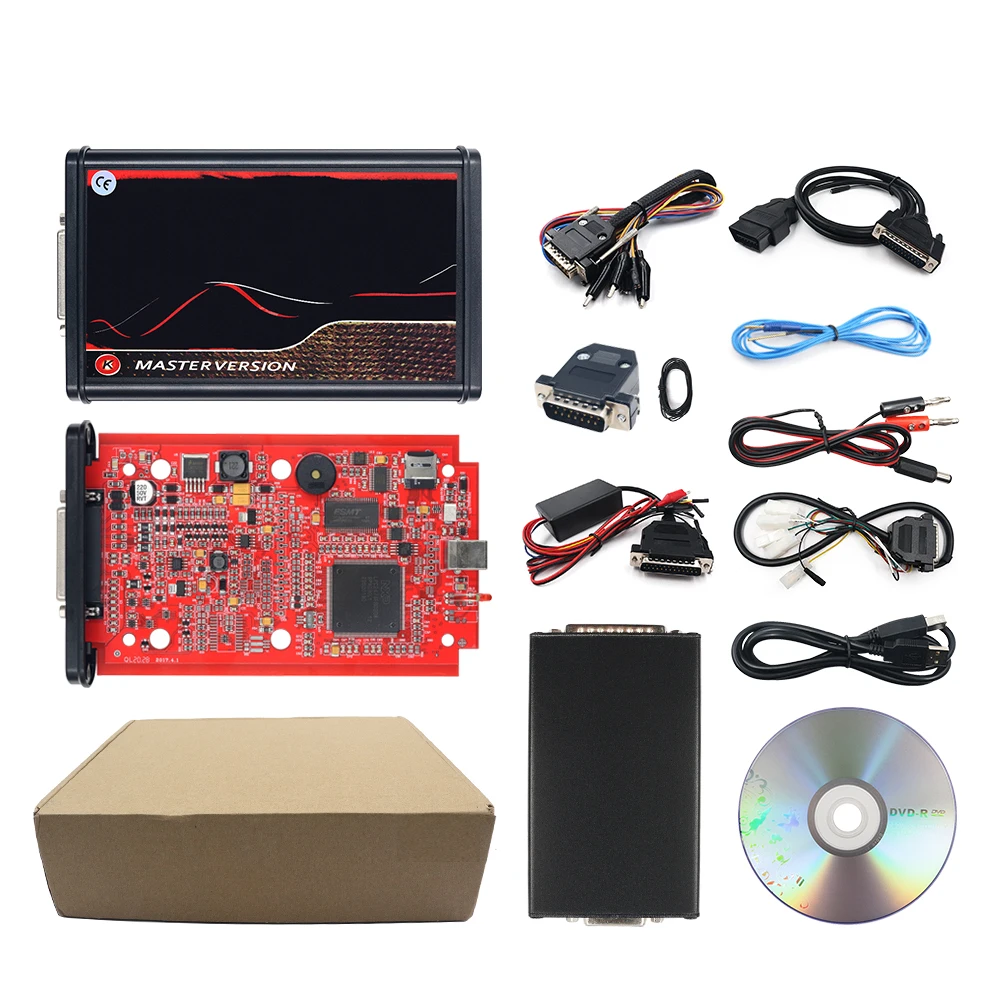

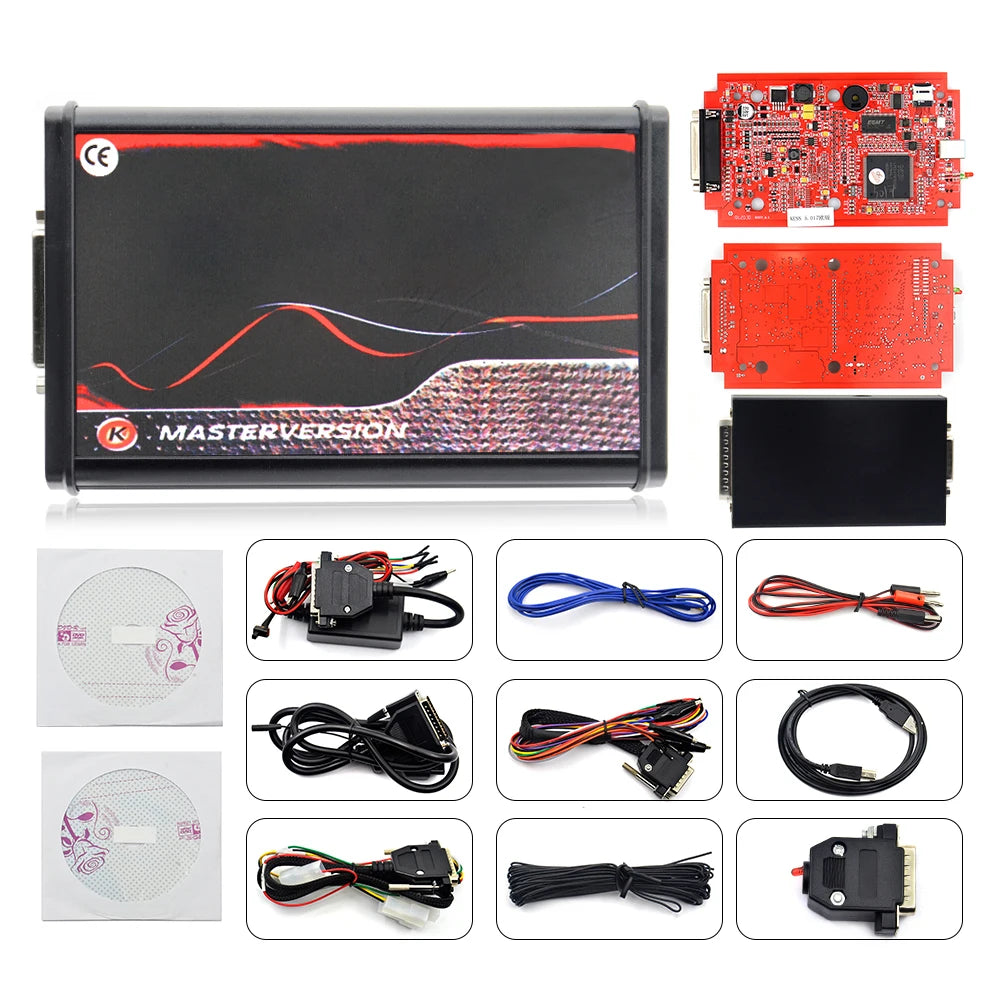

V5.017 Package List:

1 x Main Unit

1 x Tricore Module

1 x TRICORE CABLE

1 x OBD2 standard Cable

1 x 144300KCAN

1 x K4 Cable

1 x 14P600KCK4

1 x UNIVERSAL Cable

1 x 144300K201

1 x USB Cable

1 x CD

V7.020 New Added Features:

1. Hardware version: V7.020 Software version: V2.25, Master Version ECU Programming Chip Tuning Tool

2. No Tokens Limited, Unlimited Version

3. Online Version,no need disconnect internet ,no worry locked

4. Multi-Language available: Italian Deutsch English French Portuguese Spanish

5. Computer requirements:XP/WIN7/WIN8/WIN10

6. Update:By CD or Download link only

7. Can do all the functions for V7.003

8. V7.020 can support much more truck/tractor/motorcycle than V5.017 !

9. For Some cars. V5.017 just can read it. But V7.020 can read and write it.

10. V7.020 add a GPT cable with GPT Functions.

( GPT is new password algo cryptography that is implemented in new Tricore microcontrollers. our V7.020 can easily read and decrypt the secret password and it automatically unlocks/unprotects the Tricore sectors so it can read and write both Flash and Eeprom )

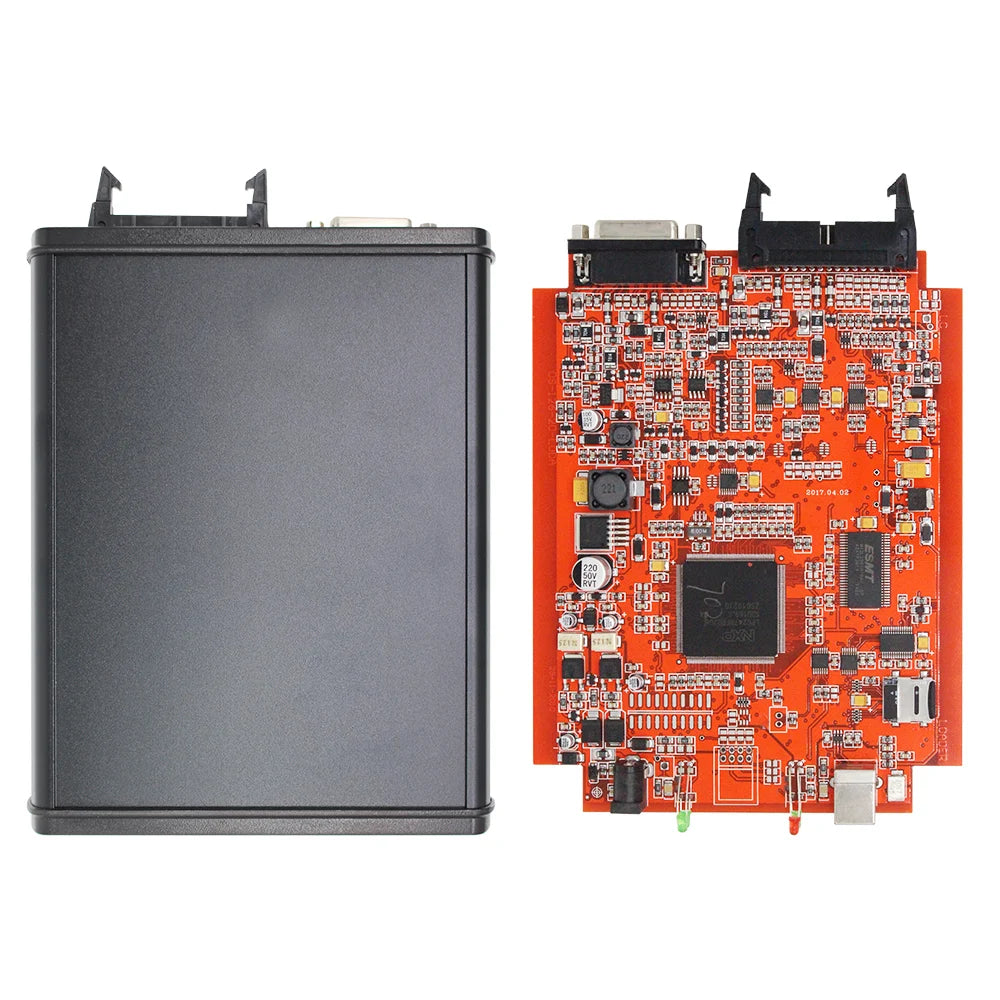

Red PCB EU Online Version With NEW 4LED:

1. use of imported Japanese Murata NFE61PT472C1H9L filters

2. 2.8x WFs = Infineon, BCR112 NPN Digital Transistor

3. 3.7x 27E = ON Semiconductor NUP2105LT1G

4. 4.8x 6DW = NXP BC817215 NPN Bipolar Transistor

5. 5.3x A6c = MMUN2113LT1G / MMUN2113LT3G check your PCB may already have 3 x A6c

6. 6.2x K5B = BC807-25-7-F PNP Bipolar Transistor

What is the advantage of V7.020 over than other EUC Chip Tuning Tools in the market?

There are lot ECU that need to disassemble from the car and open and this is the case for all the ECU that need to be programmed with Jtag, BDM and Boot protocols, so is needed,as the new generation master, 7.020 is the best choice.

V7.020 New Features:

Many encrypted new car models works I.E for Toyota 76FXXX, for PSA 17.4.4, for Ford E83, for VW 17.5.5 (1766), for Mercede 276ECU, for Toyota 76F, etc.

100+ ECU types added

Support BDM Function Well, no checksum error, available Protocols BDM MOTOROLA MPC5xx

Support both Car, Motorcyle and Truck ECU Programming

Add New File type (FENDT/JCB/VALTRA TRACTOR BOSCH EDC17CV41 SISU ENGINE CAN

Works Very Well On DENSO, GPT, NEC Protocols

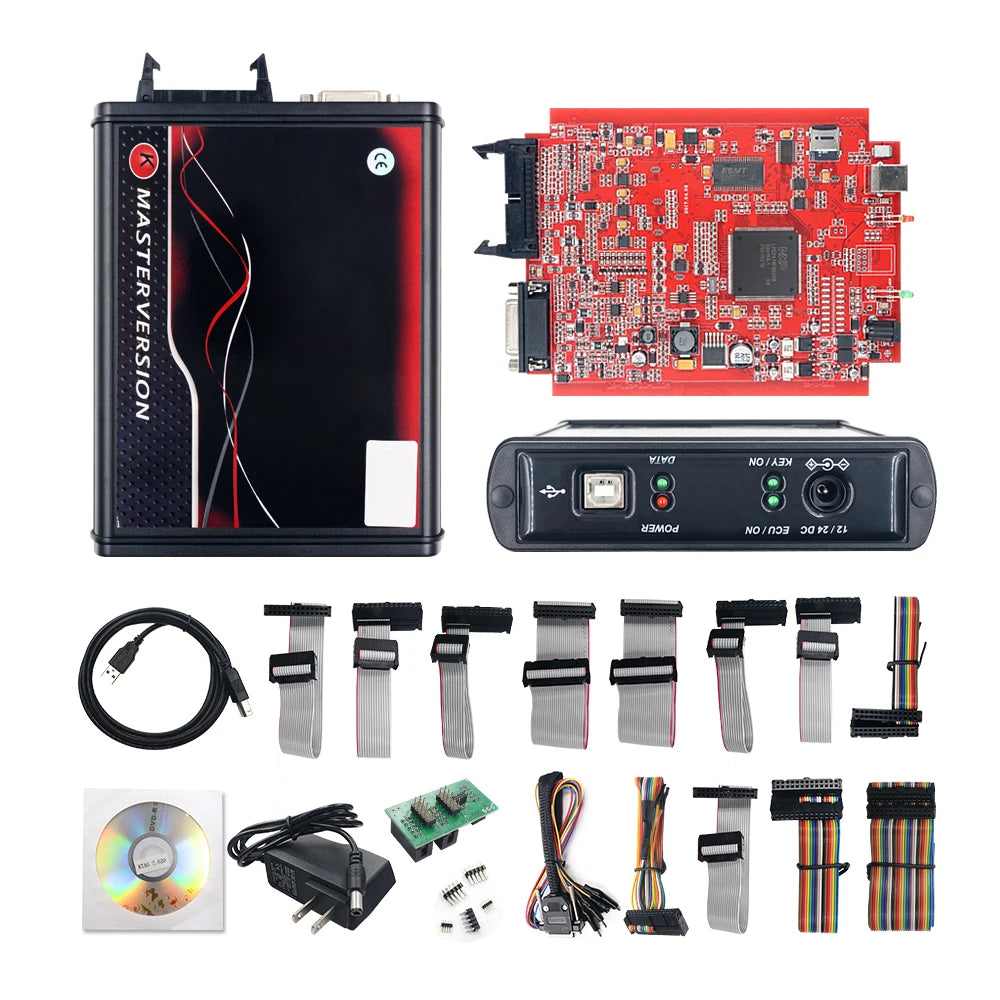

V7.020 Package List:

1 x Main Unit

1 x GPT Cable

1 x 144300T 104

1 x 144300T 103

1 x 144300T 101

1 x 144300T 106

1 x 144300T 102

1 x 144300T 105

1 x 144300T 100

3 x Chips Inside

1 x Multi-Color Cable

1 x USB Cable

1 x 12V DC Power Adapter US Plug

1 x CD

What is the different between New HW5.017 and HW 4.036:

1. About Supports Vehicle List:

For V5.017,it supports Car/Truck/Tractor/Bike. 5.017 supports 12V and 24V vehicles.It can supports more new vehicles . V5.017 can support newer vehicle,supports vehicle accroding to Engine
For V4.036,it works 12V and only works for cars .V4.036 support cars only untill 2014

2. About Tokens:

For V5.017,100% real no tokens limited for all compatible vehicles.No worry tokens any more ,can be free use at any time.

For V4.036,for some car it has tokens limited.

3. About Protocols:

For V5.017,it isfully open to all protocols such as EDC17/k-line/DSG/DQ200 DQ250 DQ500 Gearbox/ST10, No Grey protocols anymore. It Added More 140 Protocols.

For V4.036, some car can not supports ,shows have gray protocols.

Please check software display commpare 5.017 with 4.036 Protocols:

It shows 5.017 All protocols fully open and all supported .

Otherwise 4.036 shows gray protocols.

About KE-SS and KT-AG differences：

Q: What is the difference Between KE-SS and KT-AG?

A: KE-SS has OBD function, but Kt-ag has no.

Q: How to do checksum for KE-SS? Does the KE-SS automatically re-write it?

A: After reading the software, the device will automatically do checksums.

Q: "Connections not established”?

A: Please check whether you install the KE-SS driver well in device manager

Q: After I open "KSuite.exe" and try to run KE-SS, all of the following icons are gray and locked, I can't do any thing

A: Please check whether you install the KE-SS driver well in device manager

Q: checksum error?

A1: please search the software" microsoft visual C++ 2005, 2008, 2010" on google, then install it on your computer, then it can solve this problem.

A2: Contact seller to get updated DLL file to replace dll files in installation file.

Q: Wake up error?

A: It may be a gasoline car, and the customer chooses a diesel car.

please check the connection with ECU and power supply.

And also try to uninstall the software and install it again.

If all is ok and still same error, please try a new KE-SS sd card.

Q: external exception EEFFACE?

Please use our device and software only. if you use other software with this device or use other device with our software, it may cause this problem.

A: Please uninstall and delete software.

Paste the software to computer C:\ then run it.

View the full product details

✲
