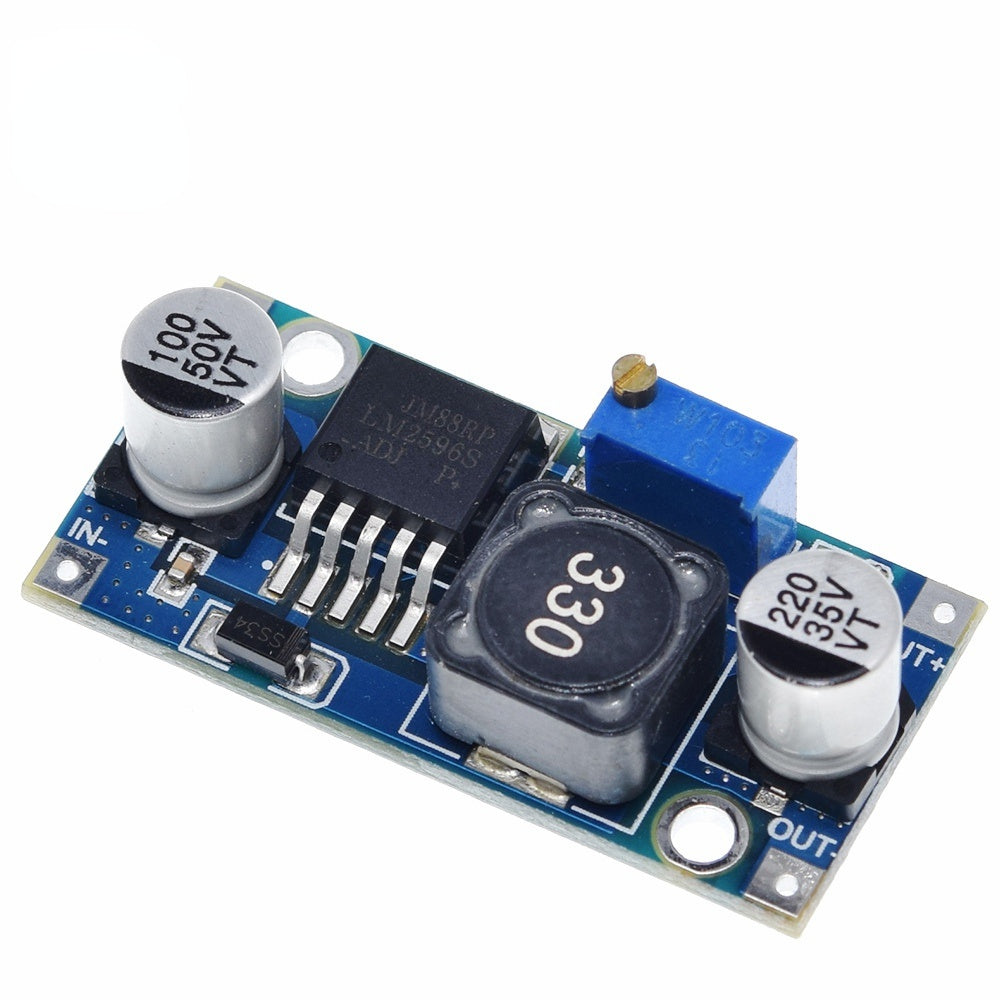

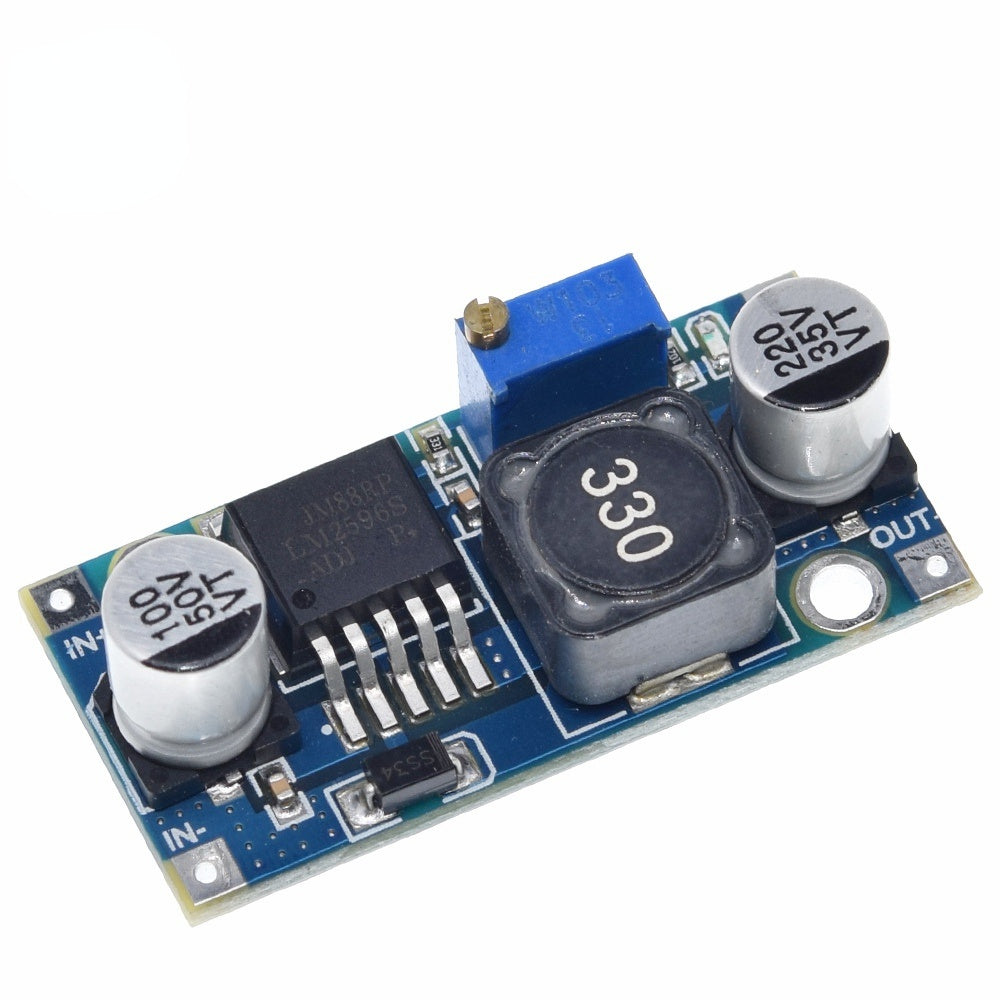

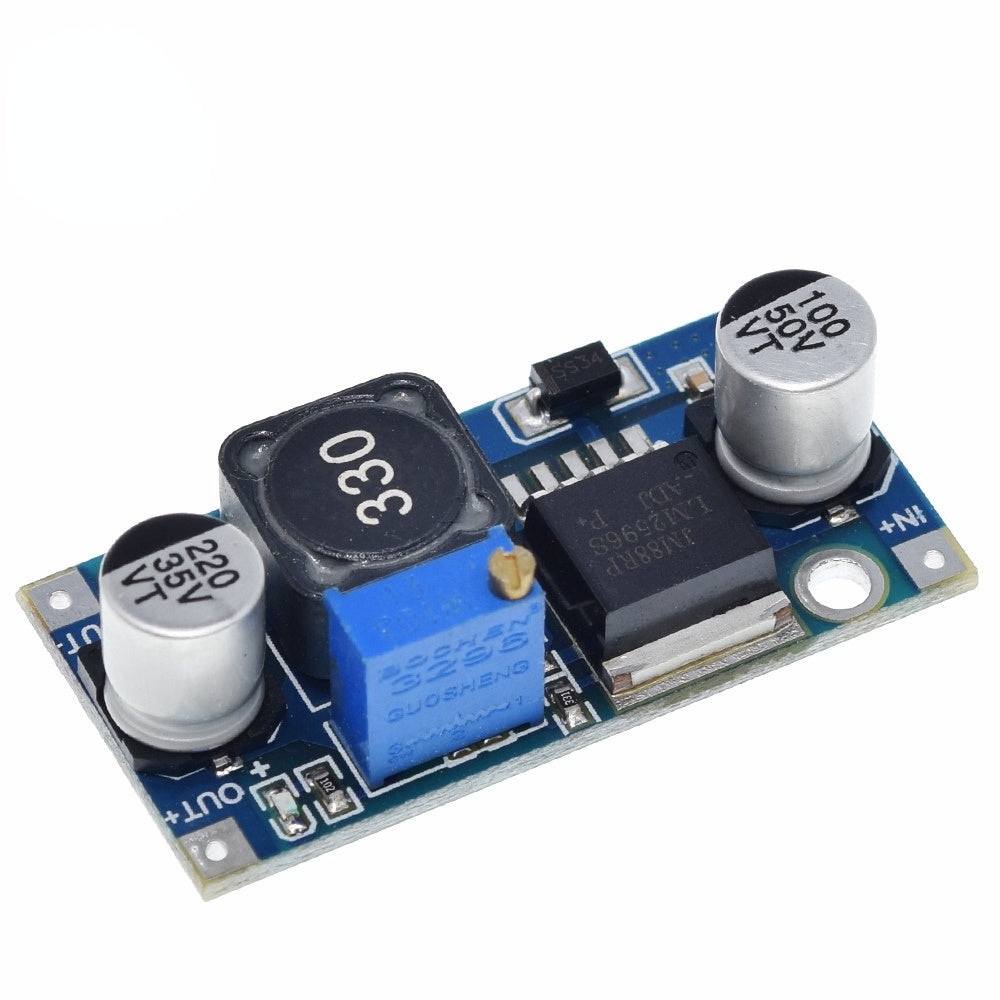

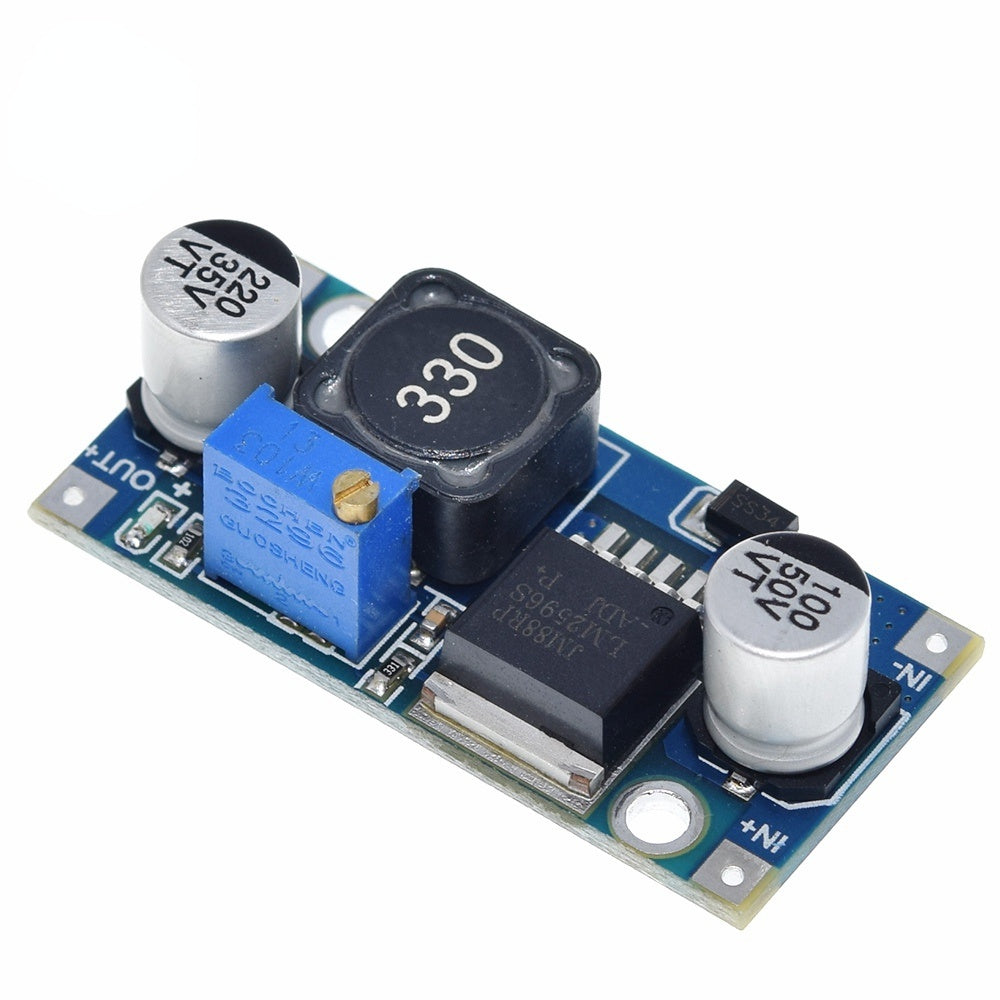

1PCS Ultra-small LM2596 Power Supply Module DC DC BUCK 3A Adjustable Buck Module Regulator Ultra LM2596S 24V Switch 12V 5V 3V

2. the range ofoutput voltage: 1.25 V dc to 35 V voltage adjustable,high efficiency (92%)largest maximum output current is 3A.

Instructions:

1. Power (3-40V), power indicator light, the module is working properly.

2. Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage.

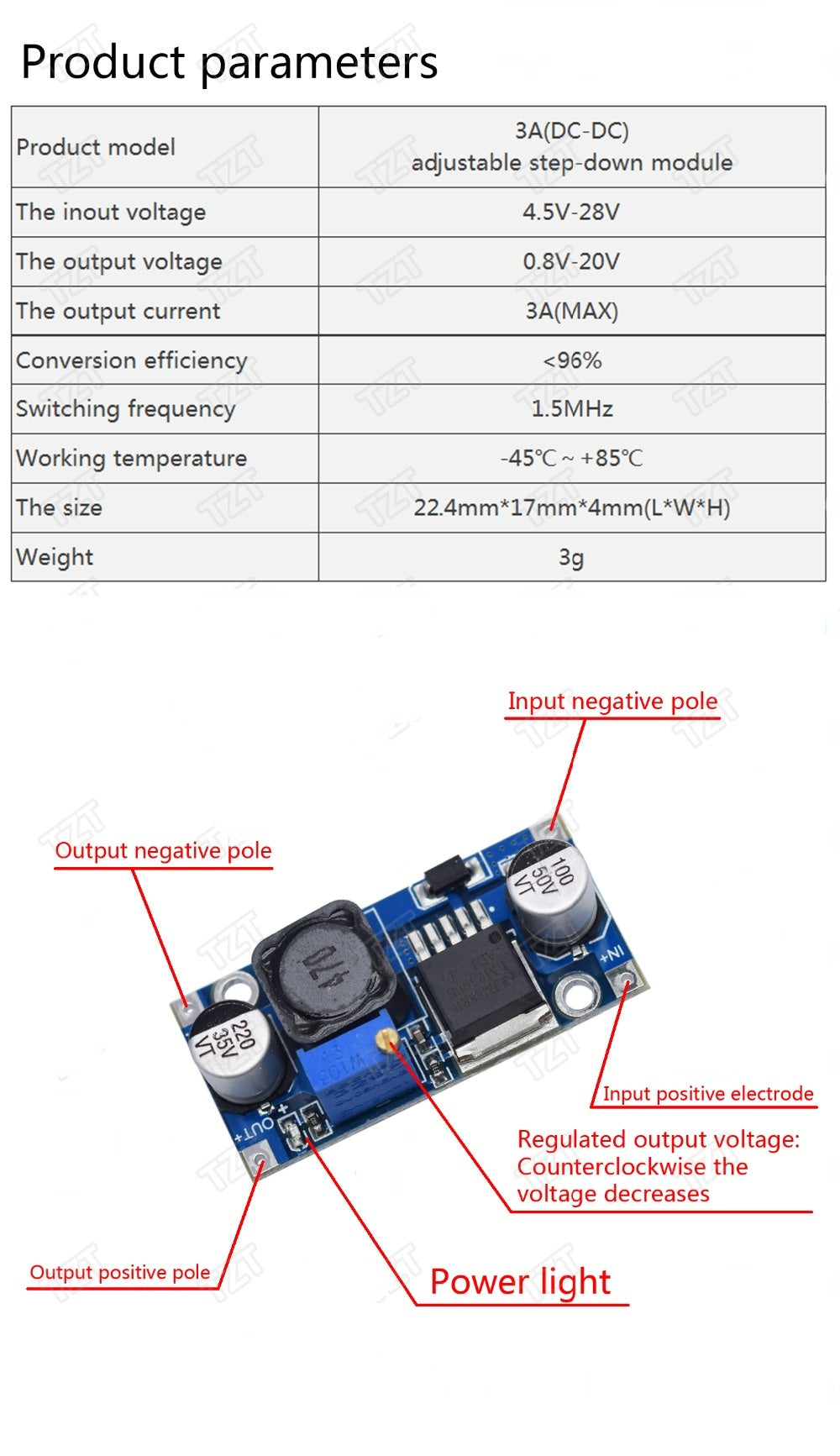

• Name : LM2596 DC-DC Buck module

• Input voltage :4V ~ 35V

• The output voltage : 1.23V ~ 30V

• Output Current :3A( Max)

• Conversion efficiency:92%( MAX )

• Output ripple: <30mV

• Switching frequency: 150KHz

• Working temperature: -forty Five~ +85

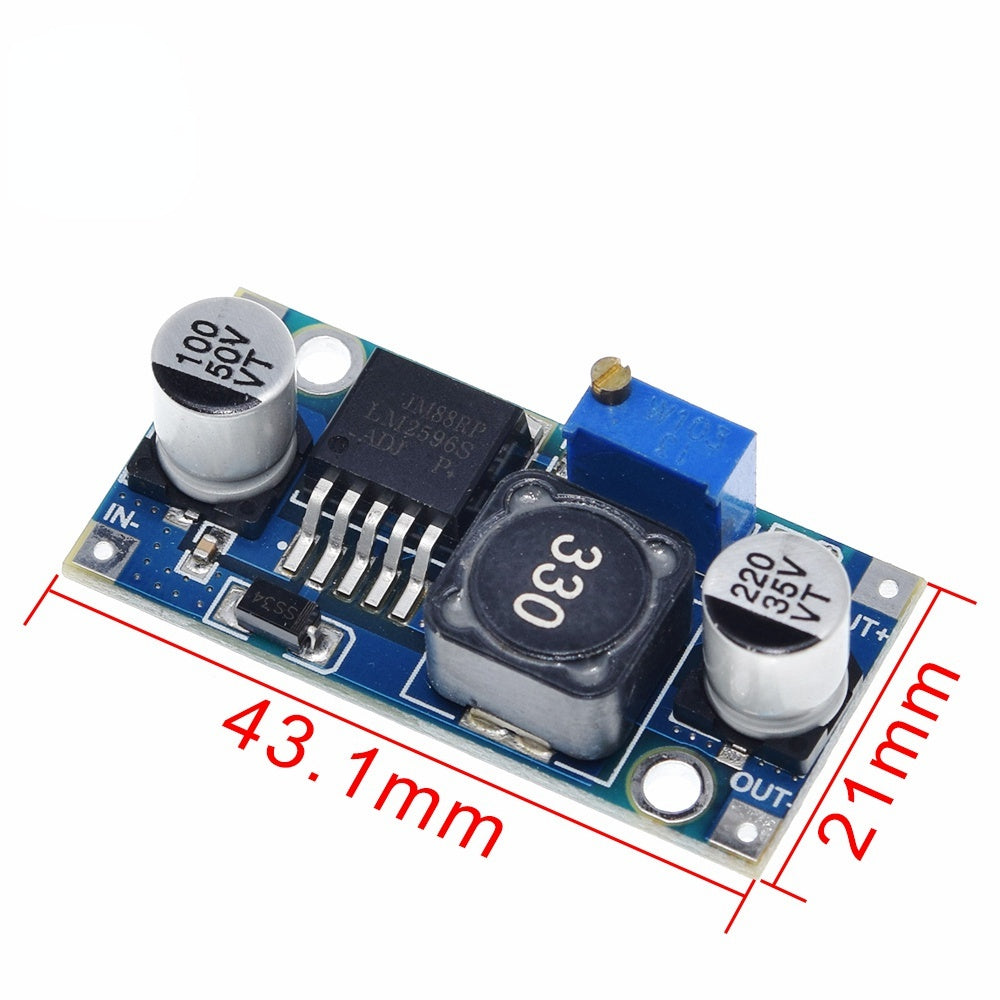

• Size :43mm * 21mm * 14mm(Long*Width*Hight)

  Features:

  1. the range ofinput voltage: 3.2 V to 40 V dc(input voltage must be higher than to the output voltage of 1.5 V above. Can't booster)

  2. the range ofoutput voltage: 1.25 V dc to 35 V voltage adjustable,high efficiency (92%)largest maximum output current is 3A.

  Instructions:

  1. Power (3-40V), power indicator light, the module is working properly.

  2. Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage.

  Note:

  Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above),because it is the step-down module, in order to ensure stable output Set,please keep the minimum 1.5V differential.





•
