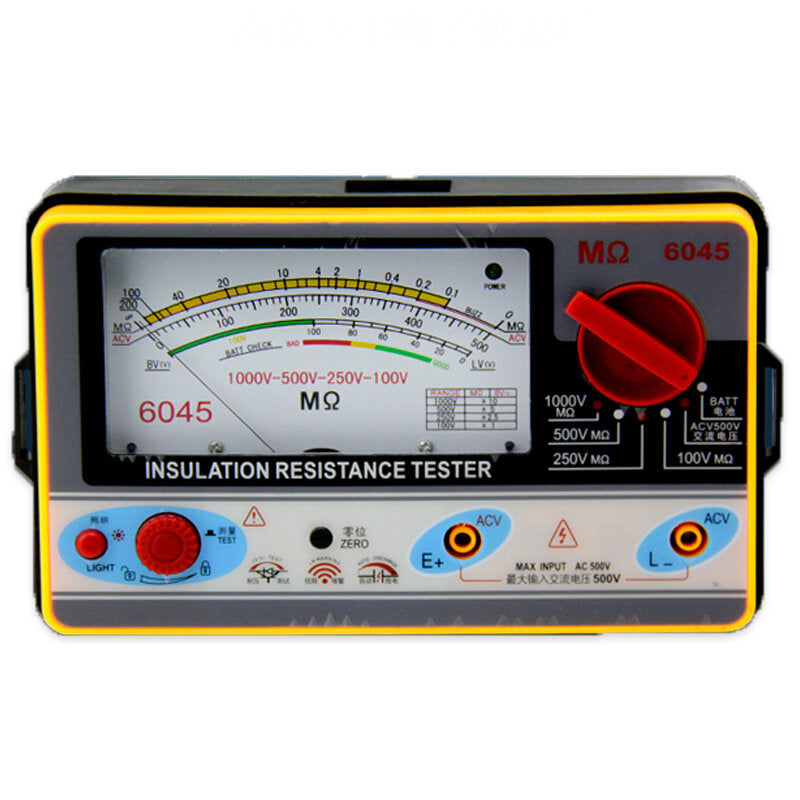

TY6045 Resistance Tester 100V-250V-500V-1000V Insulation Pointer Resistance Meter Analog Insulation Tester 0.5-2000M Resistance
Features:
Dial lighting instructions
Transistors pressure test
Low resistance buzzer alarm
Linear AC voltmeter
Automatic discharge circuit
Strong output load capacity
Specifications:
Rated operating voltage: 1000-500-250-100V
ACV Measuring range: 0-500V
Output voltage: Nominal test voltage 90% -120%
ACV accuracy: ± 5% full scale arc
Output short circuit current: 500μA
Power: R6AA 5 # battery 6
Measuring range: 0.5-2000MΩ
Measurement Accuracy: 10-1000MΩ ± 10% arc
Pressure: ACV movement between circuit and case 4000V / min
Pressure Measurement: 1000V / 0.5mA
Insulation: ≥50MΩ movement between the circuit and the chassis
Discharge resistance: About 5M
Dimensions: 176 × 110 × 70mm
Automatic alarm: ≤2M
Net Weight: about 508g

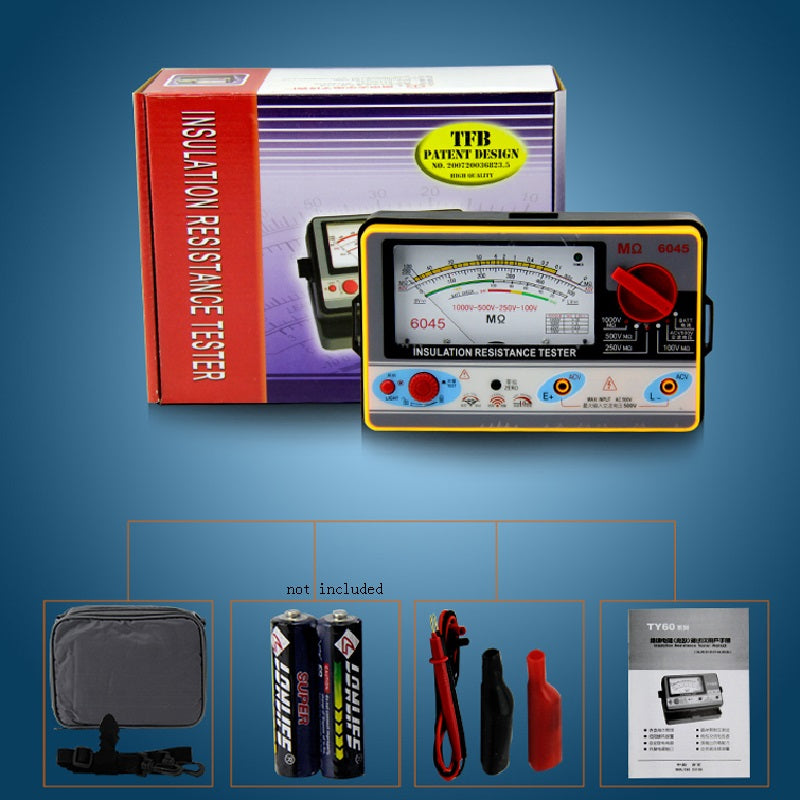

Package Includes:
1 x Resistance Tester(batteries are not included)
1 x Test Leads
1 x Storage Bag
1 x Manual
Details Pictures:
