TRX-DUO SDR Receiver Dual 16bit ADC ZYNQ7010 2TX & 2RX DDC DUC Compatible with Red Pitaya HDSDR SDR# PowerSDR TRXUNO
TRX-DUO SDR Receiver Dual 16bit ADC ZYNQ7010 2TX & 2RX DDC DUC Compatible with Red Pitaya HDSDR SDR# PowerSDR TRXUNO
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
Software and manal download:
https://drive.google.com/file/d/1_PL2uzQUZsRnVVM2YfEZz9fLbAYRF3bT/view?usp=sharing
Video:
https://m.youtube.com/watch?v=teks8v3u8F0

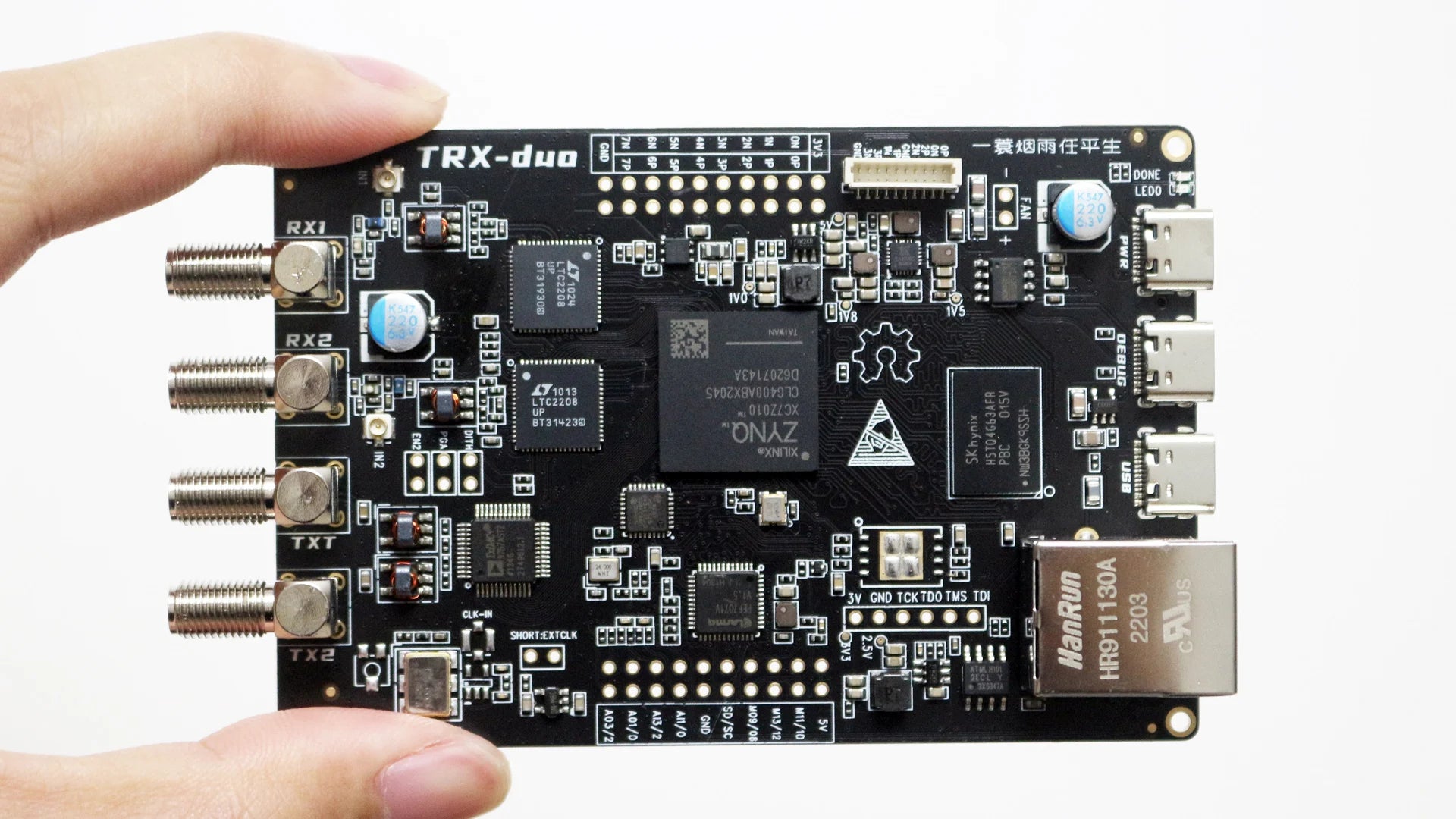

TRX-duo is an SDR device that supports dual-channel physical reception and transmission. It uses 2x16bit ADC LTC2208 to realize direct sampling reception of 10KHz-60MHz. It has the advantages of high dynamic range, high sensitivity, and convenient remote deployment. Using 14bit DAC to achieve dual transmission. The software can be compatible with the famous Red Pitaya SDR, and can be easily used with HDSDR SDR# PowerSDR SDRConsole (V3) and other software
SPECIFICATIONS：
· BASIC
o Processor Dual Core Arm Cortex A9
o FPGA Xilinx Zynq 7010 SoC
o RAM 512MB

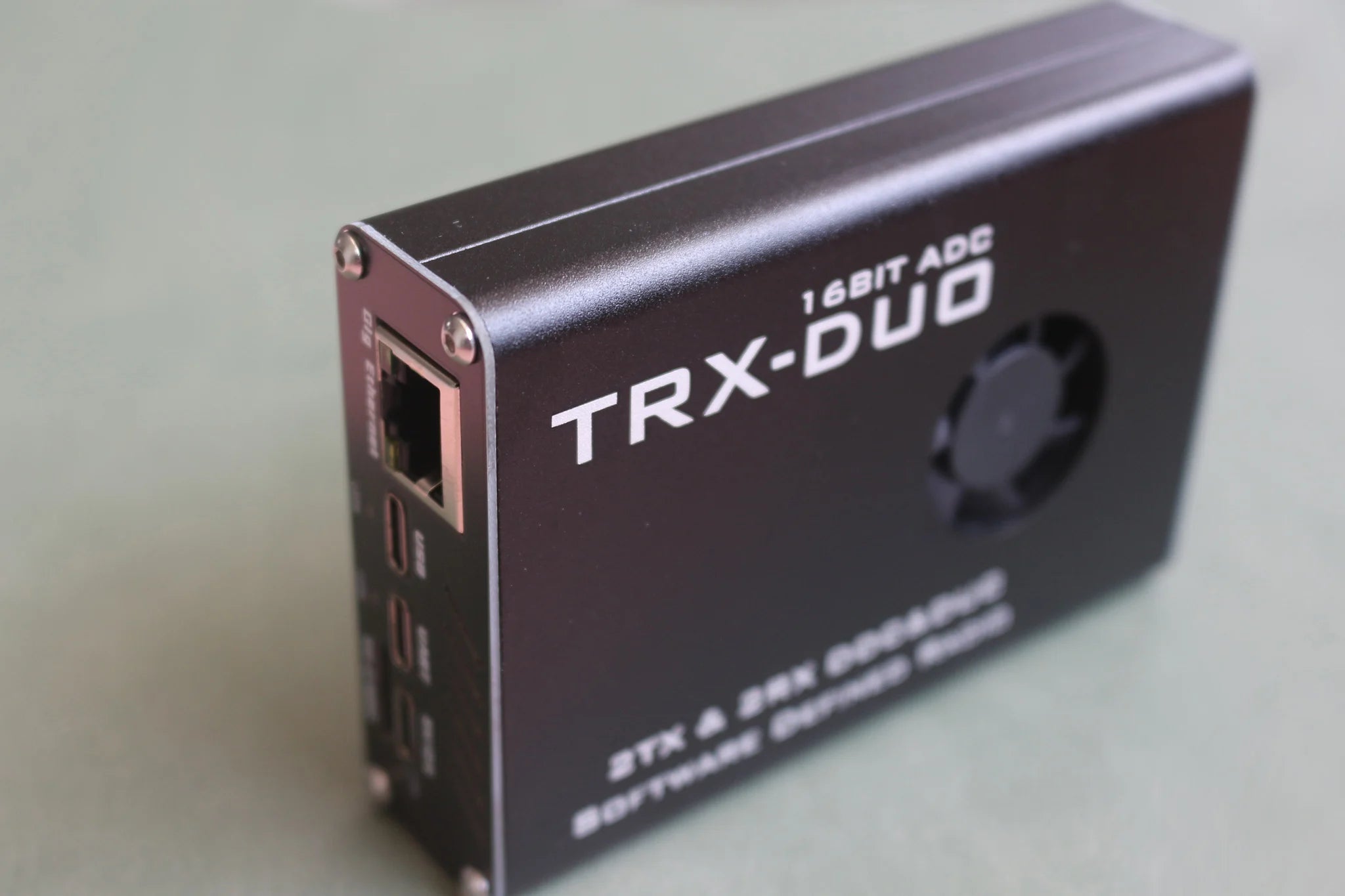

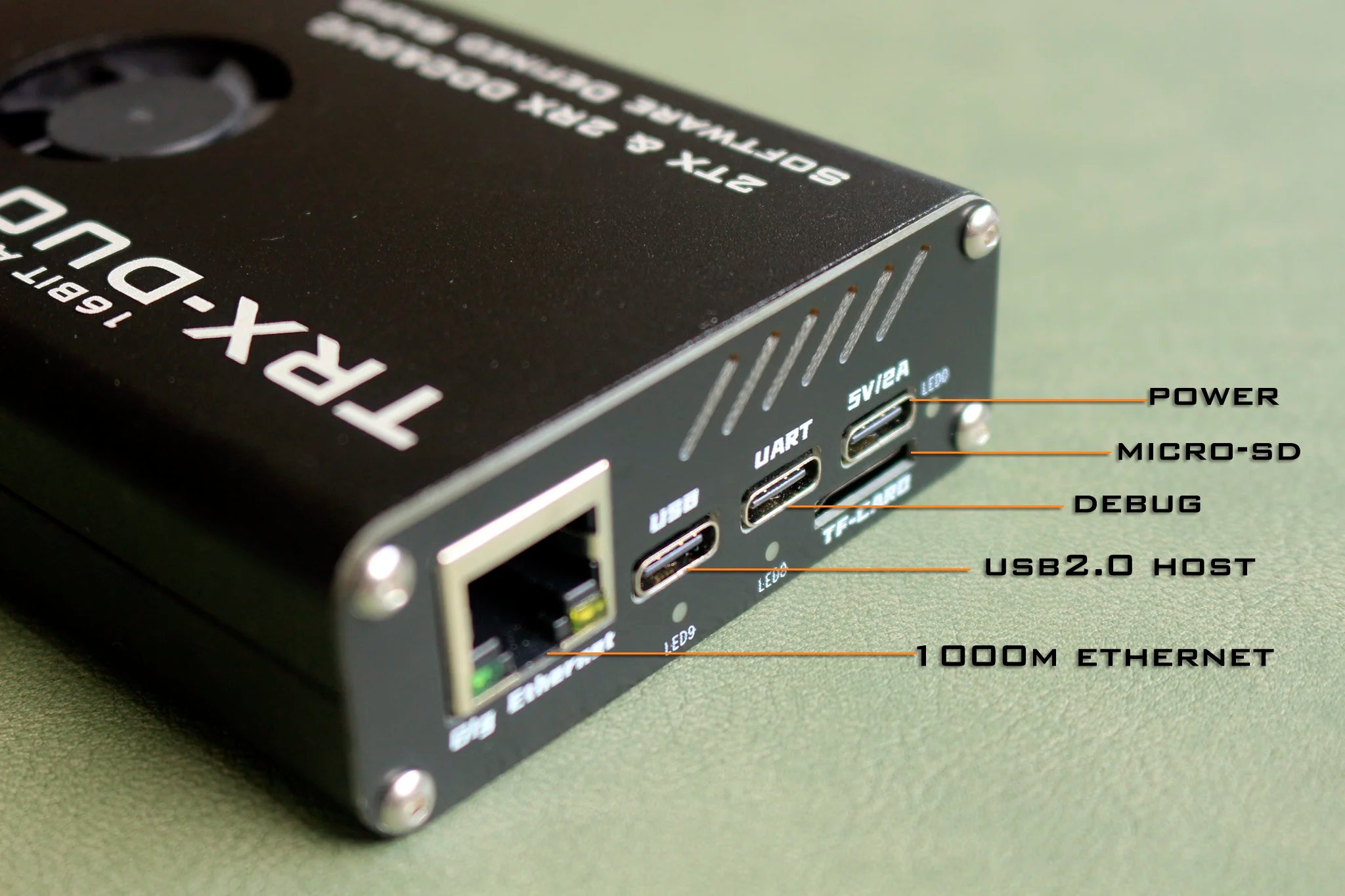

· CONNECTIVITY
o Ethernet 1Gbit
o TYPE-C USB 2.0
o Wi-Fi requires Wi-Fi dongle (not included)

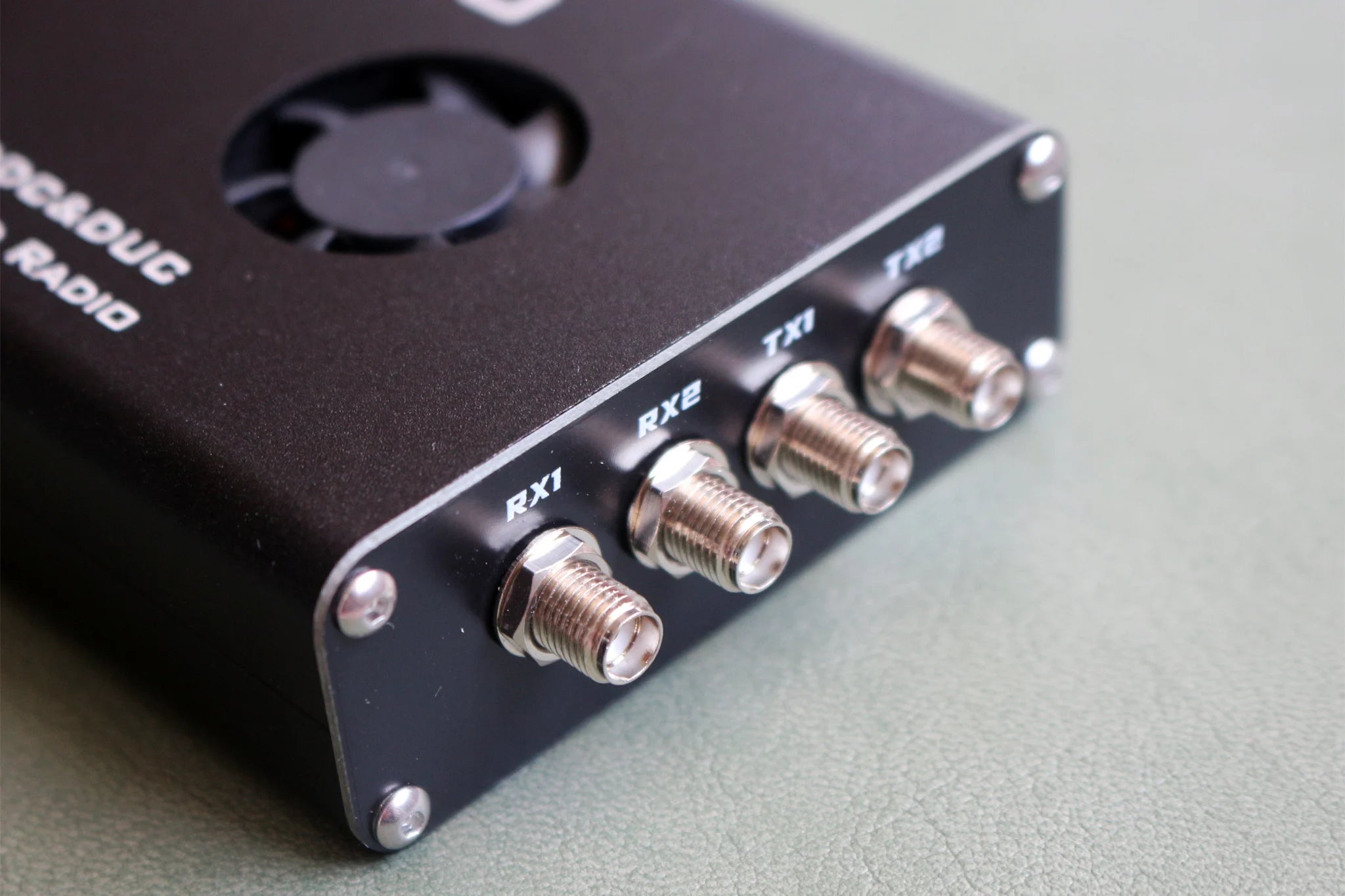

· RF INPUTS
o Channels 2, SMA connectors
o Sample rate 125MS/s
o ADC resolution 16-bit
o Full-scale voltage range 0.5Vpp /-2dBm
o Absolute Max. Input voltage range DC max 50V (AC-coupled), 1Vpp for RF
o Input protection RF transformer & AC-coupled
· RF OUTPUTS
o Channels 2
o Sample rate 125MS/s
o DAC resolution 14 bit
o Voltage range 1Vpp / +4dBm
o Load Impedance 50ohm
· EXTENSION CONNECTOR
o Digital l/O pins 16
o Analog inputs 4
o Analog inputs voltage range 0-3.3V
o Sample rate 100kS/s
o Resolution 12-bit
o Analog outputs 4
o Analog outputs voltage range 0 -1.8V
o Communication interfaces I 2 C, UART, SPI
o Available voltages+ 3,3V
