Features:
- It is a 200W digital power standing wave meter and HF shortwave power meter.
- Upgraded hardware, 200w measurement range and 1.29-inch large OLED display screen.
- Improved firmware, new fitting algorithm and multi-point correction algorithm. Its display modes include normal mode and peak hold mode. Multi-interface display mode all adds dynamic analog display bar, and the power status is more intuitive under SSB.
- Fitting algorithm (according to the characteristics of detection diode) + multi-point correction algorithm + dual reference segment detection make the accuracy better than 5% over the entire power range of 0.5W to 200W.
- There are 5 interface display methods.
- High-speed average detection mode and real-time efficiency display.

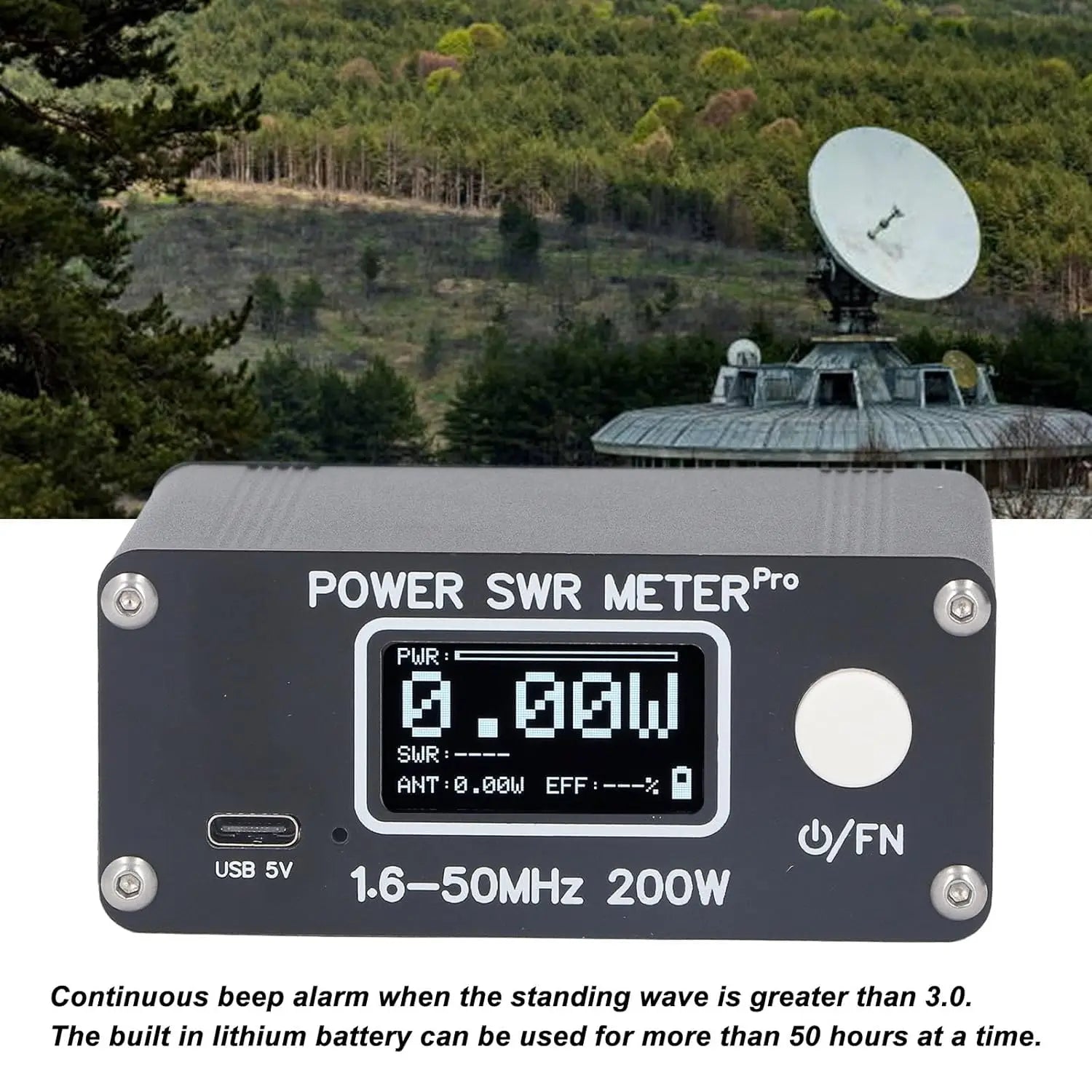

- When standing wave ≥ 2.0, it will enable intermittent beep alarm. When standing wave ≥ 3.0, it will trigger continuous beep alarm.
- With built-in lithium battery, it can be used for more than 50 hours on a single charge.
- Multi-function button makes use more fun and adds one more way to interact for functions in the future.
Specifications:
- Frequency range: 1.6-50MHz
- Power measurement range: 0.5W-200W
- Standing wave measurement range: 1.0-99.9
- Insertion loss: < 0.12dB
- Insertion of standing waves: ≤ 1.02 at 1.6-30MHz; ≤ 1.05 at 30-50MHz
- Measurement accuracy: better than ±5%
- Impedance: 50Ω
- Standing wave alarm: when standing wave ≥ 2.0, it will enable intermittent beep alarm. When standing wave ≥ 3.0, it will trigger continuous beep alarm. The alarm can be turned off

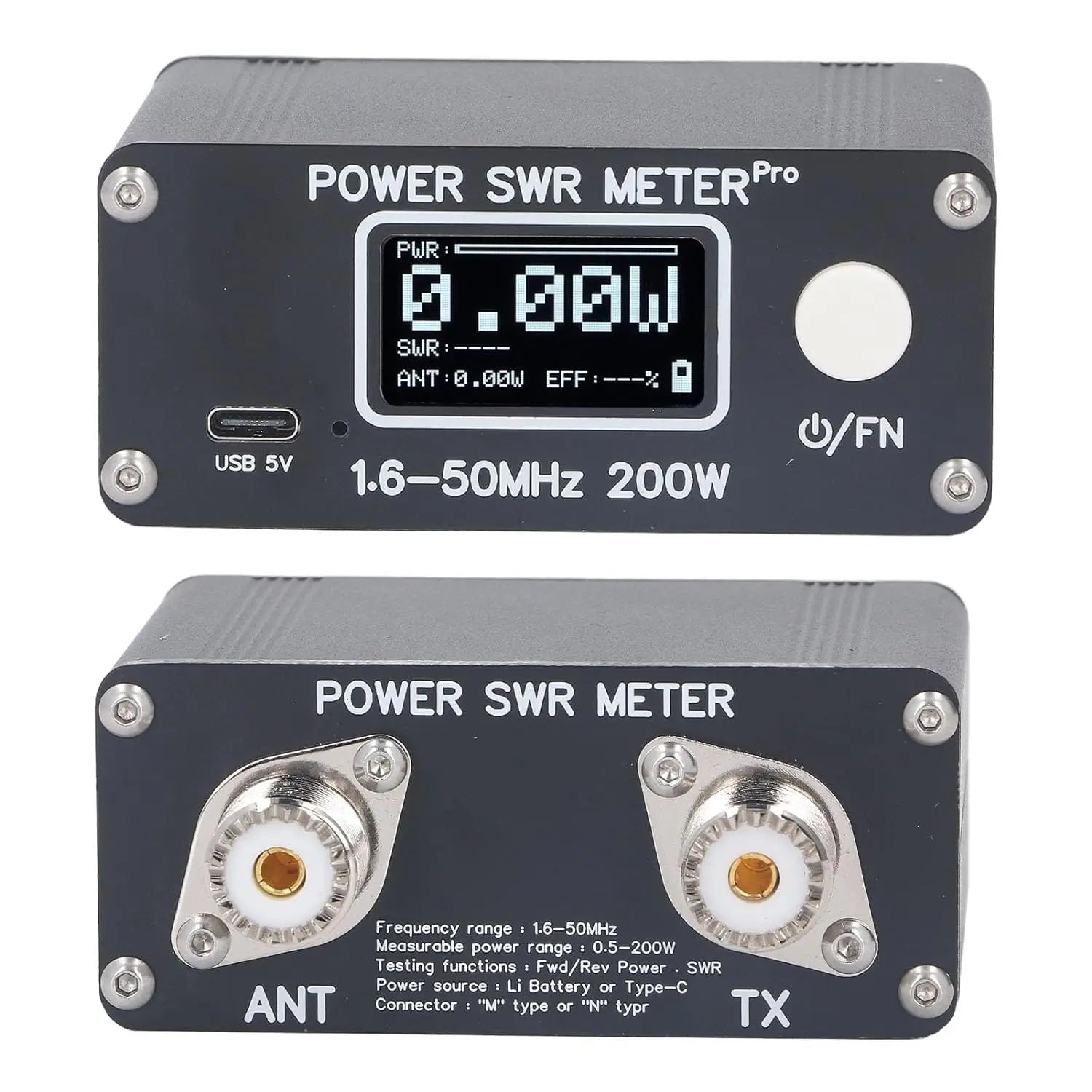

- RF interface type: so239
- Display content: forward power, standing wave, antenna-end power and efficiency
- Power supply: built-in rechargeable lithium battery or USB type-c
- Power consumption: < 0.1uA
- Screen size: 1.29 inches
- Screen type: OLED
- Data communication: USB type-c
- Firmware upgrade: Support

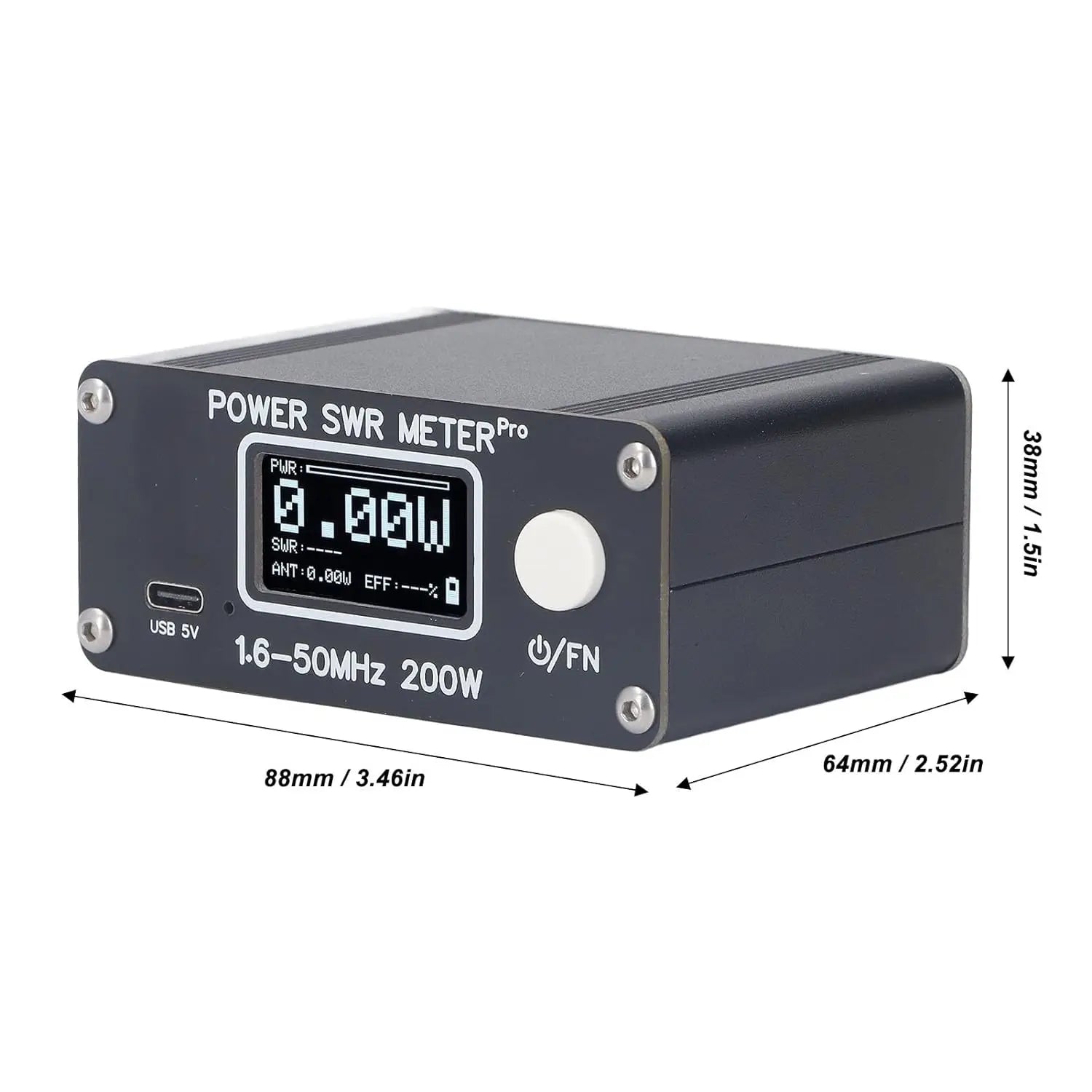

- Dimensions: 88 x 38 x 64mm/3.5 x 1.5 x 2.5" (excluding protrusions)
Attention:
- The above parameters are measured by professional instruments and are true and effective. It can be used continuously for 200W detection for a long time. More than 500W will damage the detection components.
Package Included:
- 1 x Power SWR Meter
How to Use?
- Long press its switch to turn it on and off. Short press the button to switch display interfaces. Double clicks to switch standing wave alarm. Three clicks to switch between normal mode and peak hold mode.
- There are 5 display interfaces which can be automatically saved. They can be automatically recalled next time when it is turned on.
- Red light is on when the meter is charging. The light will go out when the meter is fully charged.
