NAME:spectrum analyzer low frequency conversion

TYPE: SA-LF-CONV
POWER: DC11.7-12.9V/0.3A

LF input:impedance:50OHM
         frequency range:1Hz-2MHz
         max input power:+13dBm

RF OUT:  impedance:50OHM
         frequency range:10M-12M
         max output power:+13dBm


10M INPUT:impedance:50OHM
          input range:0.2-5Vpp

SIZE:L*W*H=138*25*65mm(INCLUDE BNC CONNECT)

 include accessory weight:less than 0.5KG

ACCESSORY:AC110/220-DC12V ADAPTER 1PCS,N-SMA ADAPTER 1PCS,BNC-SMA ADAPTER 1PCS,SMA CABLE 2PCS.

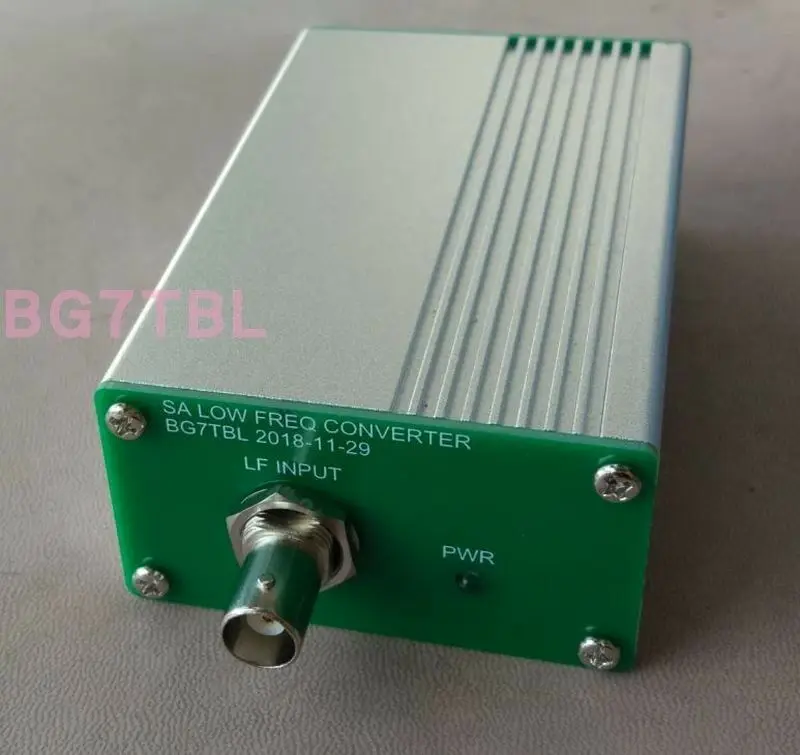

front panel:LF INPUT:LF frequency input
            PWR:power indicator

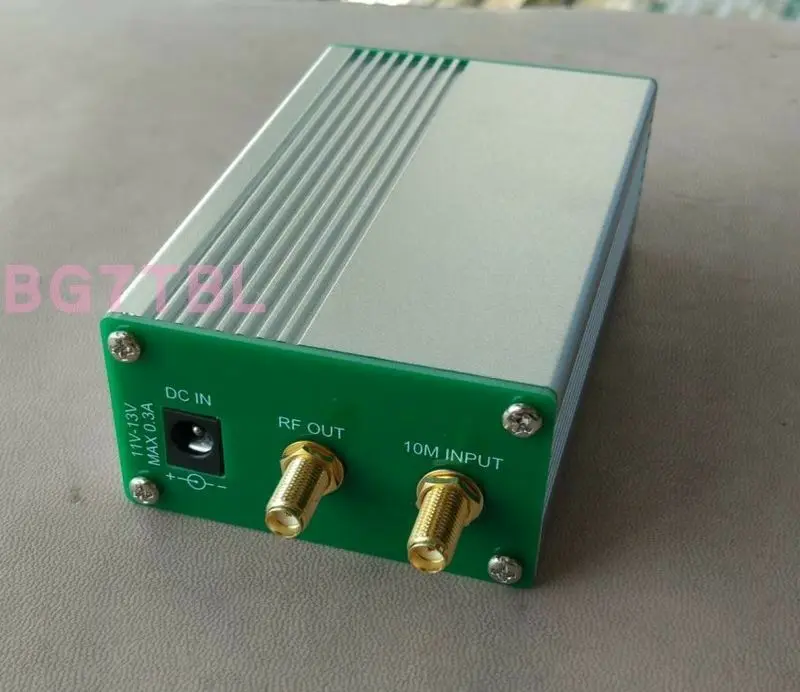

rear panel:    DC IN:power input
            RF OUT:conversion frequency output
            10M INPUT:10M standard frequency input,accuary same with spectrum analyzer.

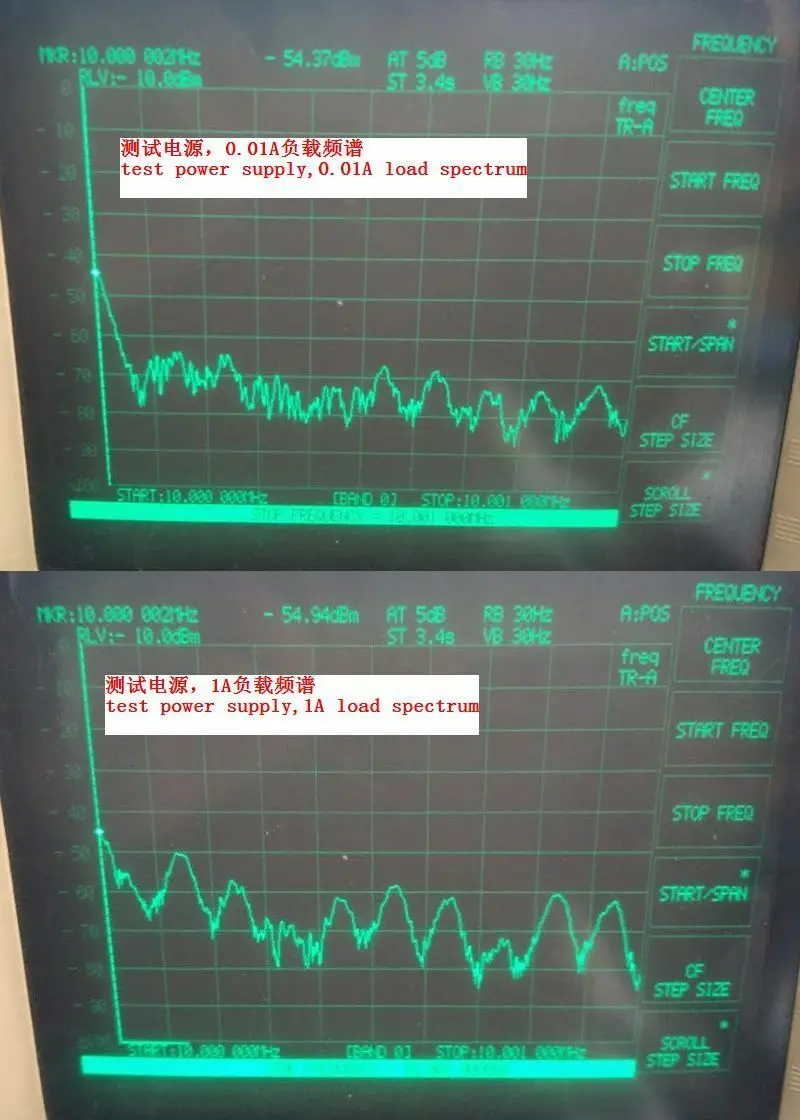

usage method:spectrum analyzer setting star 10M,end 10M+.the reading frequency sub 10M is input frequency.
spectrun analyzer display amplifiler is same with input signal amplifiler.

atten:Input the 10M reference of the spectrum into the machine, set the center frequency to 10M, and reduce the SPAN from 4M to the smallest SPAN.
The spectrum amplitude is always in the center. If some SPANs are not in the center, they are not very convenient to used.
