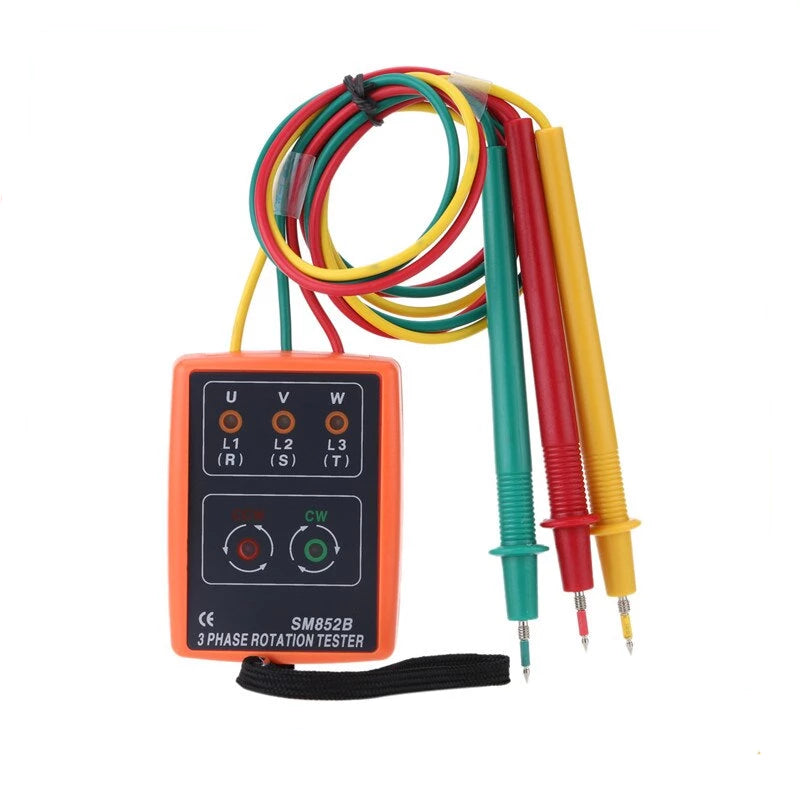

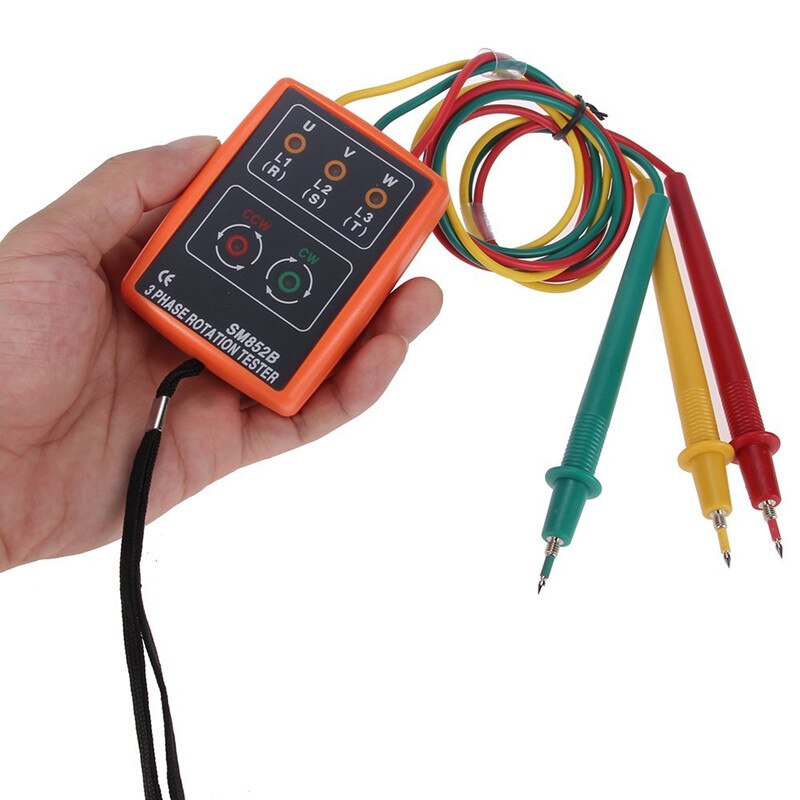

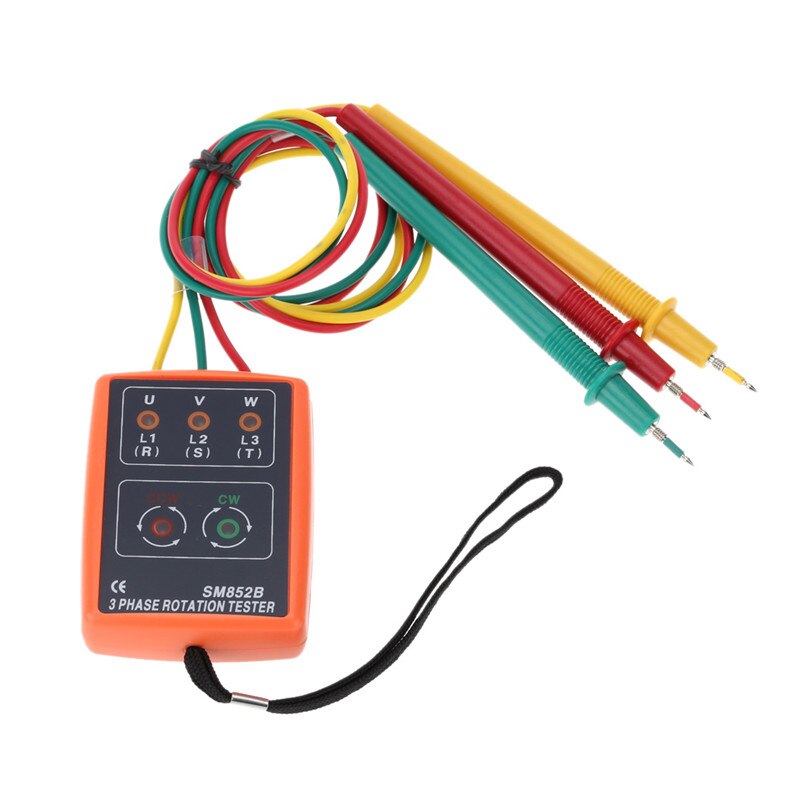

SM852B 3 Phase Sequence Rotation Indicator Tester Phase Indicator Detector Checker Meter Diagnostic Tool with LED + Buzzer

  • $25.00
    Unit price per
  • Save $4
Tax included. Shipping calculated at checkout.


SM852B 3 Phase Sequence Rotation Indicator Tester Phase Indicator Detector Checker Meter Diagnostic Tool with LED + Buzzer

Features:

  • It is used to measure the opening phase condition and order through LED and Buzzer
  • One Unit with 2 Functions: Open phase indication and phase rotation indication
  • Fast and accurate measurement, efficient, effective, reliable, easy and safe to use
  • Frequency range : 20Hz to 400Hz, red, green, yellow light indicates the buzzer
  • Size: 83 x 63 x 25mm/3.26 x 2.48 x 0.98 inch
  • Test leads: Red corresponds U (R) phase (L1, R); yellow corresponds to V (Y) phase (L2, S); green correspond to W (B) phase (L3, T).

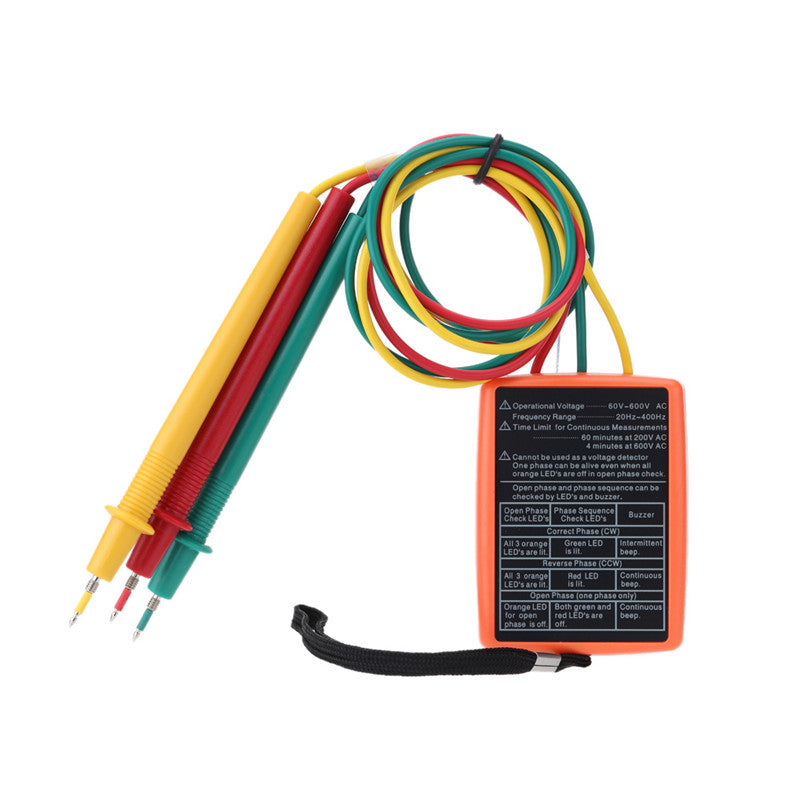

Specifications:
Operational voltage: 60 to 600V (3 phases AC)
Limit support voltage: 2000V/minute (impulse voltage 4000V)
Measuring frequency range: 20Hz to 400Hz
Time limit for continuous measurement:
Less than 60minutes at 200V AC
Less than 4minutes at 600V AC
Meter size: 85*64*23mm (excluding the measuring lead)

4

6

7

9

3

2

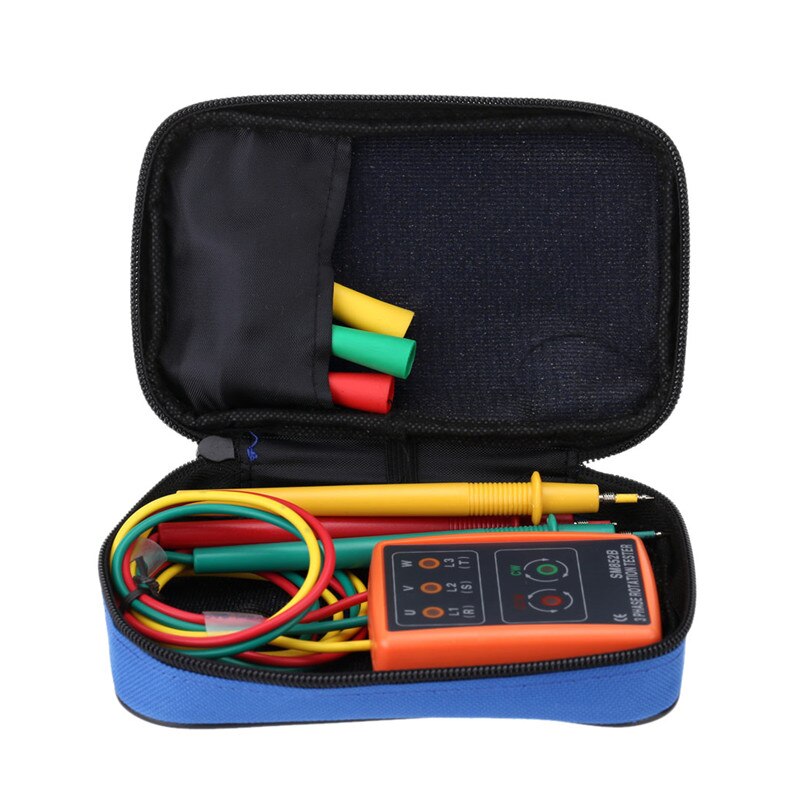

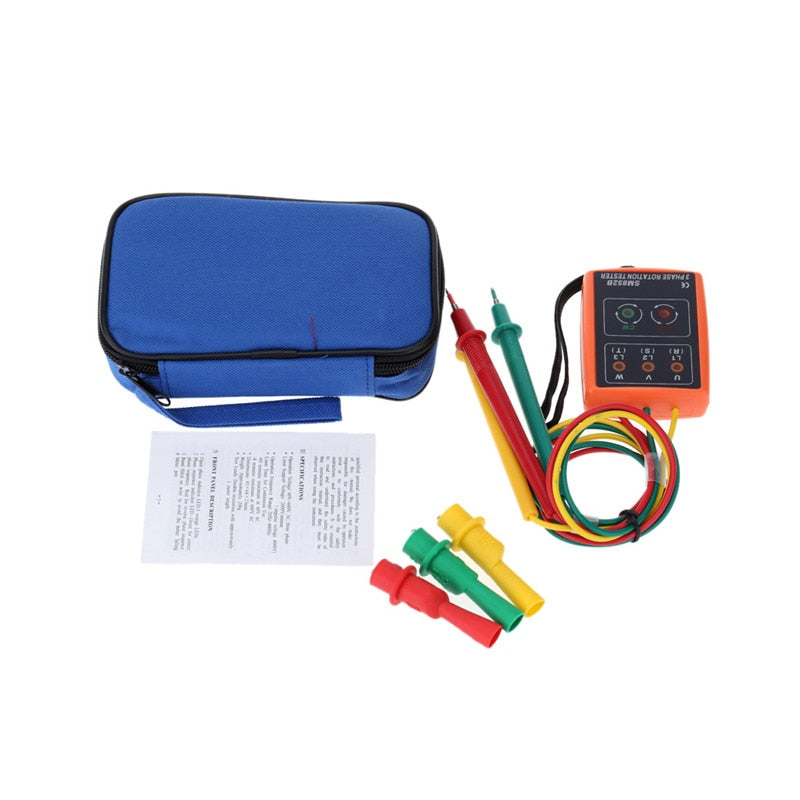

Package includes:
1 * SM852B Phase Meter
1 * User Manual
