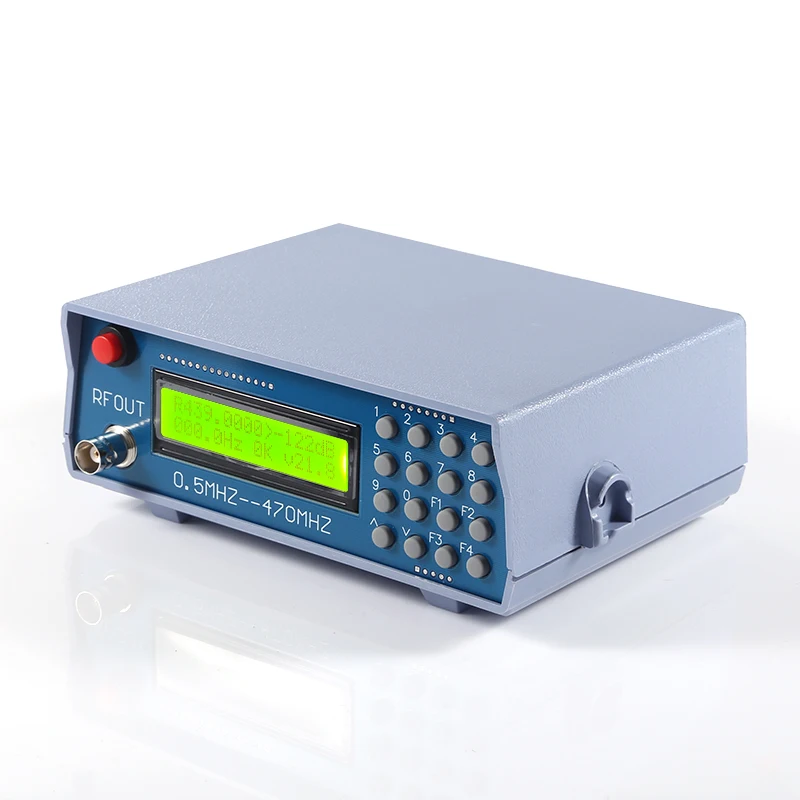

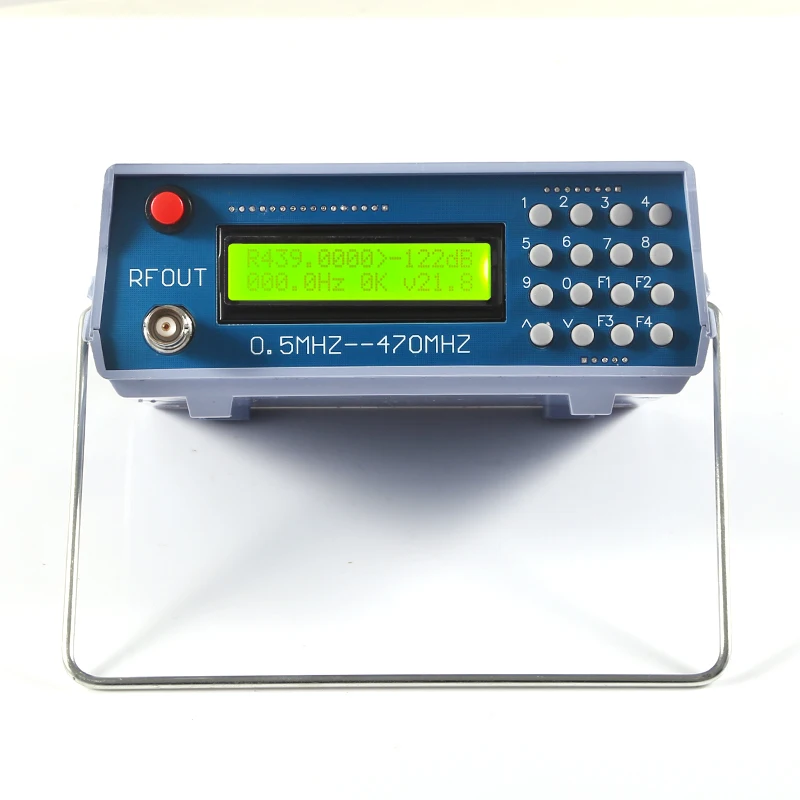

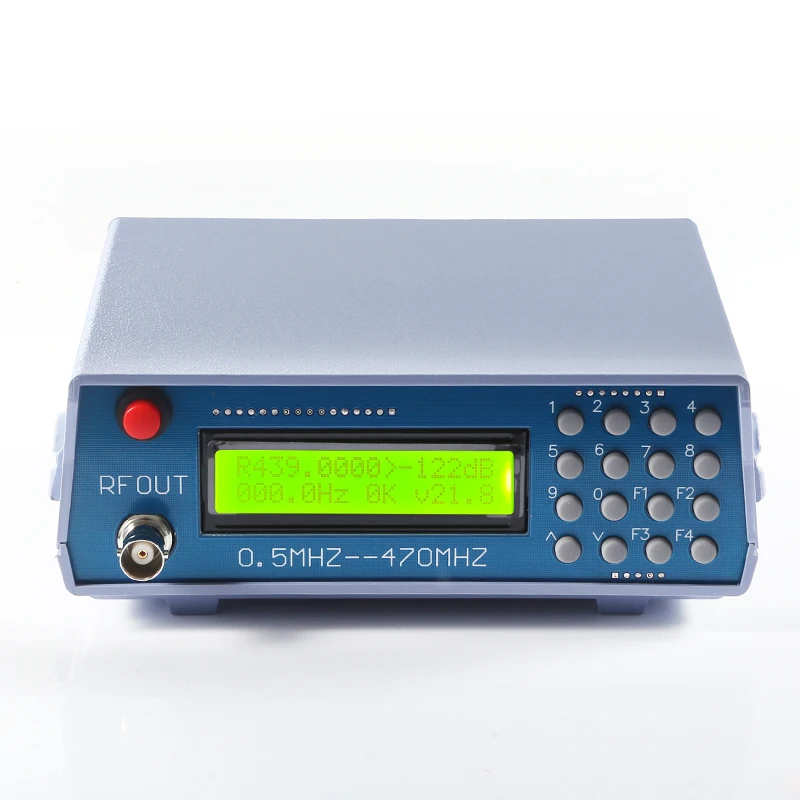

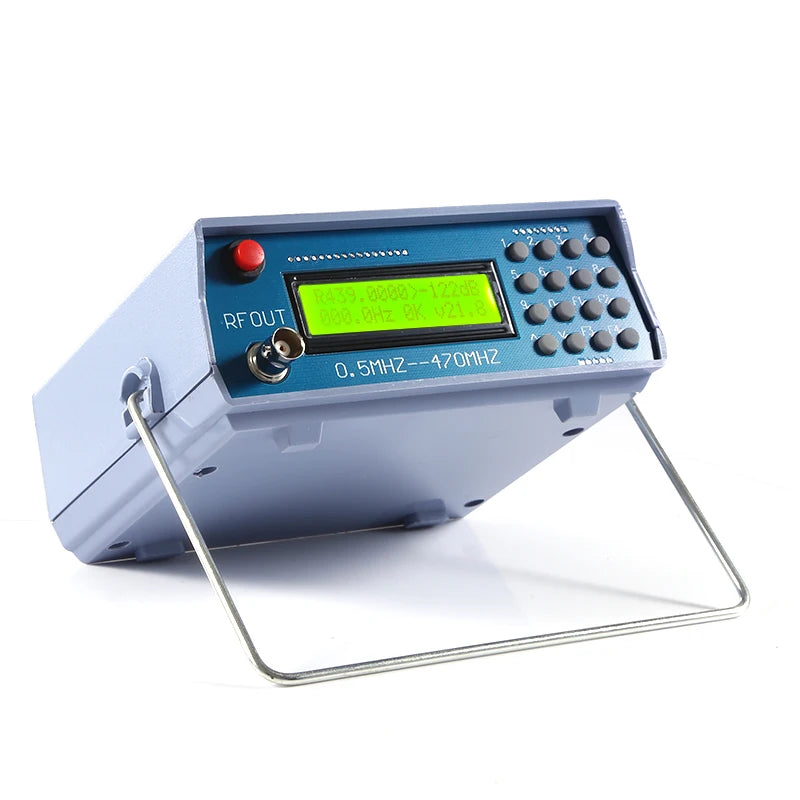

Signal Generator 0.5MHz-470MHz RF Signal Generator Meter Tester for FM Radio Walkie-talkie Debug Digital CTCSS Singal Output
Signal Generator 0.5MHz-470MHz RF Signal Generator Meter Tester for FM Radio Walkie-talkie Debug Digital CTCSS Singal Output
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /12/2025
Couldn't load pickup availability
Guaranteed Safe Checkout
The accuracy comparison between this signal source and professional comprehensive measurement is basically the same. The accuracy is very high. Can test the actual receiving sensitivity of the walkie-talkie.
Features:
Suitable for FM walkie-talkie debugging.
Built-in 800Hz audio modulation, with the analog digital CTCSS function.
The unit is DBM. General hand sensitivity is -120DBM to -130DBM.
The greater the sensitivity to a negative number, the higher the sensitivity.
The signal source cannot input power.
It is absolutely forbidden to press the intercom button to transmit when testing. (self-matching power supply 8V-12V power supply polarity is positive and negative)
Specifications:
Material: ABS
Color: blue
Frequency: 0.5MHz-470MHz
Signal strength: -70-132dBm
Built-in 800Hz audio modulation
Add the analog digital CTCSS function

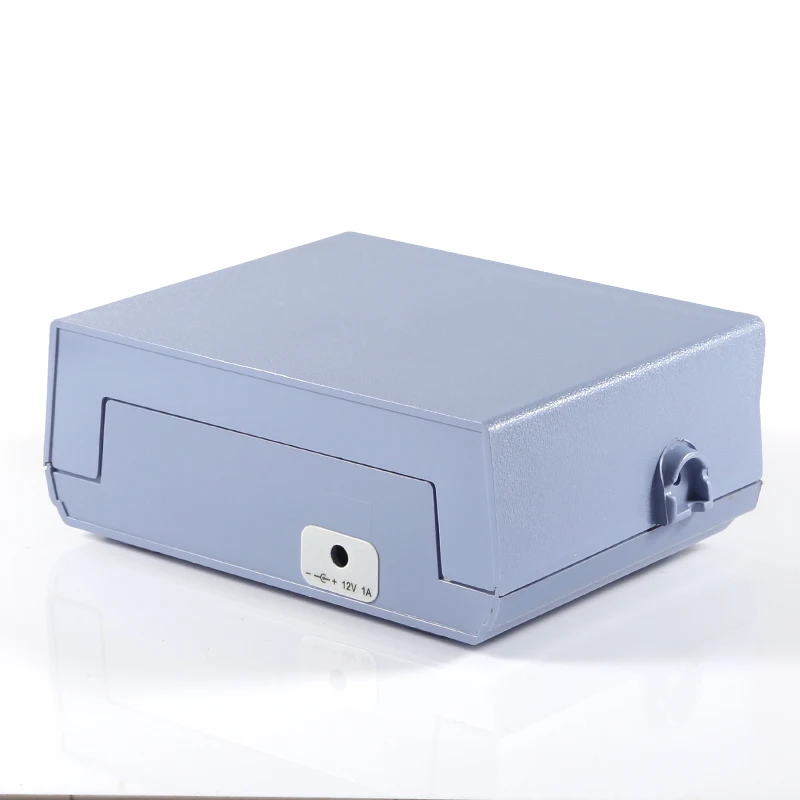

Use 8-12V DC power supply, frequency 7 digits
For example: 439.6000MHz shows 4396000KHz
Signal strength -70-132dBm valid, other values are invalid.
Audio modulation is only about 800Hz, other values are invalid.
Item size: 155 * 120 * 63mm / 6.1 * 4.7 * 2.5in
Item weight: 271g / 9.6ounce
Package size: 210 * 160 * 70mm / 8.3 * 6.3 * 2.8in
Package weight: 303g / 10.7ounce
Test methods:
During the test, the frequency of the signal source input transceiver is first set to -100DB or any value. The intercom has audio output and then reduces the output strength of the source. For example, the -120DB just heard the intercom audio signal but there was noise. The audio signal just hears that the -120DB value of this output is the receiving sensitivity of the radio.
Package list:
1 * 0.5MHz-470MHz RF Signal Generator for FM Radio
