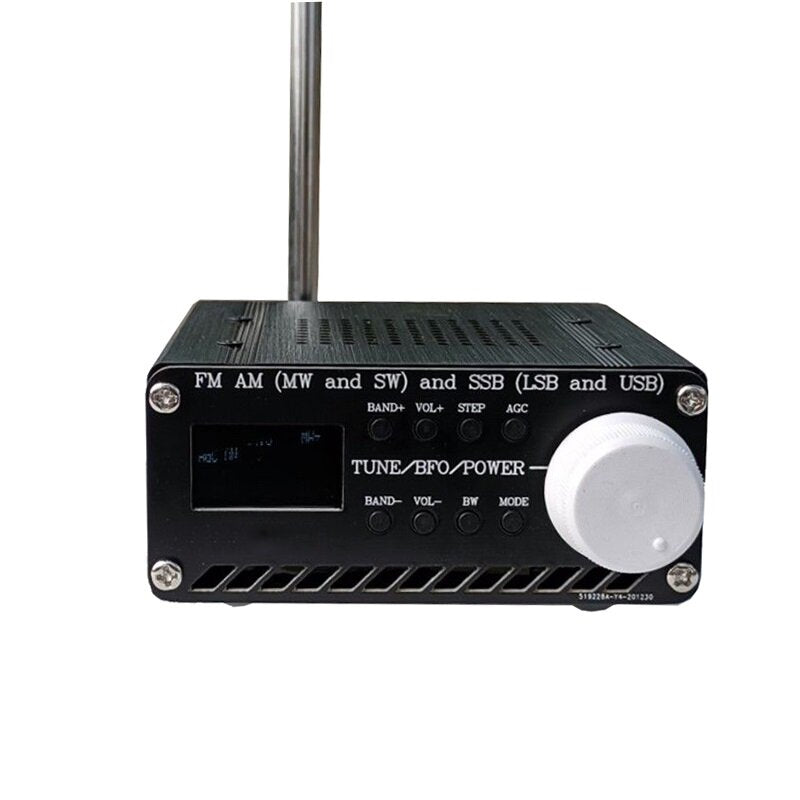

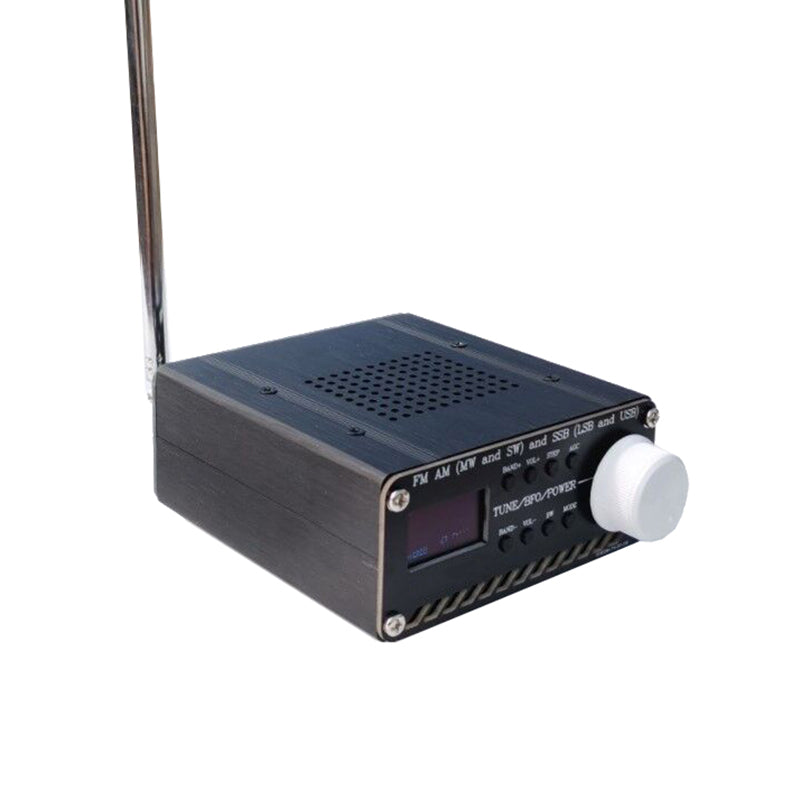

SI4732 All Band Radio FM AM (MW and SW) and SSB (LSB and USB) with Antenna Lithium Battery Speaker

Save $33
CartoolshopSKU: Host with Shell+Antenna

Type: Host with Shell+Antenna
Price:
$75.99 $108.99

Tax included Shipping calculated at checkout

Stock:
In stock

Description

Features:

1) FM, AM (MW and SW) and SSB (LSB and USB);
2) Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz;
3) 22 commercial and ham radio bands pre configured;
4) BFO Control; and
5) Frequency step switch (1, 5 and 10KHz);

Specification:

Use a 3.6V lithium battery 1000MA(only for Assembled version)
Support USB charging
Audio output supports headset 3.5MM
Support 8 ohm speaker 1.5W output
FM supports earphone antenna

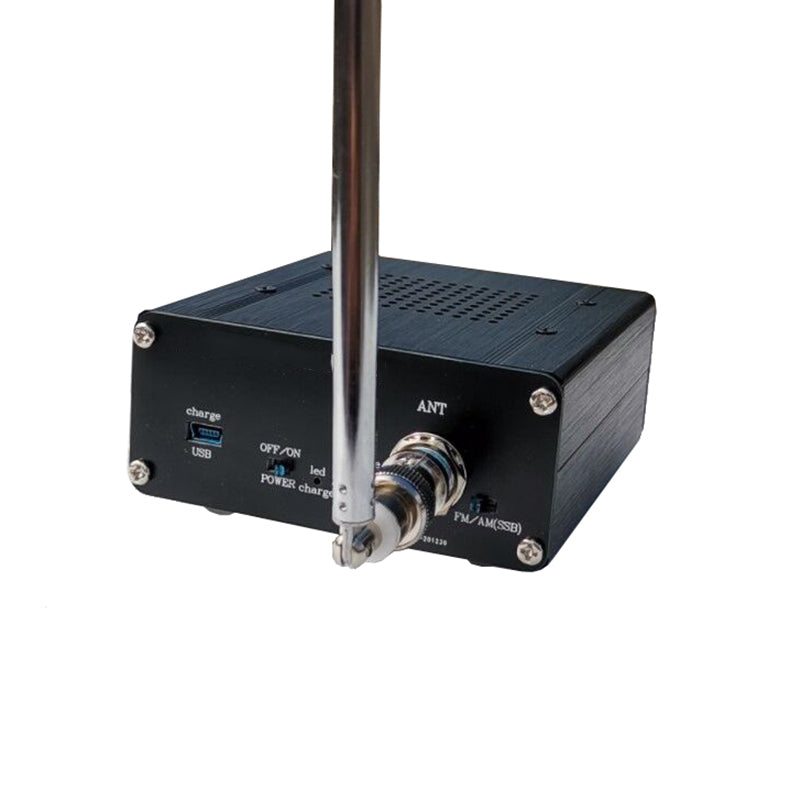

Antenna interface uses BNC

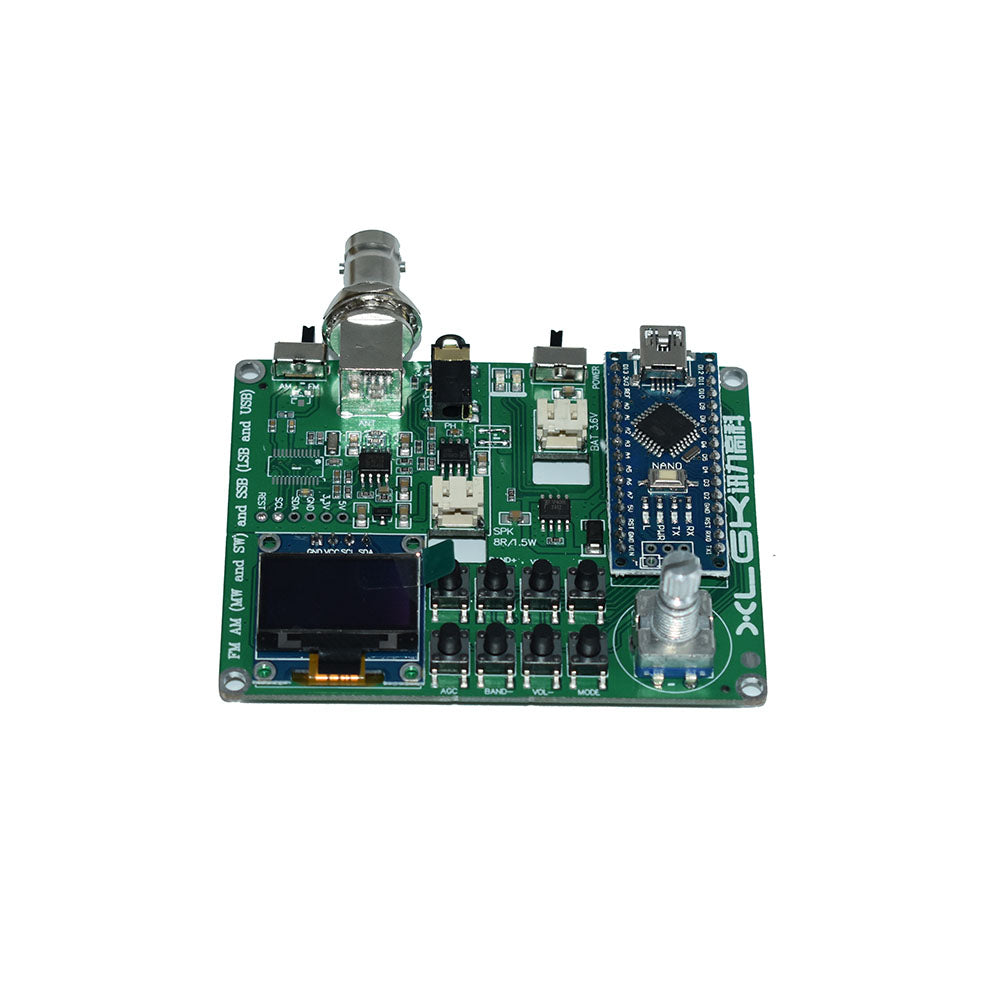

The PCB retains the SI4735 package, users can replace the chip by themselves, and the software is compatible


Band band[] = {
{FM_BAND_TYPE, 8400, 10800, 10430, 10},
{LW_BAND_TYPE, 100, 510, 300, 1},
{MW_BAND_TYPE, 520, 1720, 810, 10},
{SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters
{SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters
{SW_BAND_TYPE, 4500, 5500, 4850, 5},
{SW_BAND_TYPE, 5500, 6300, 6000, 5},
{SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters
{SW_BAND_TYPE, 7800, 10000, 9600, 5},
{SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters
{SW_BAND_TYPE, 11000, 12500, 11940, 5},
{SW_BAND_TYPE, 12500, 13900, 13600, 5},
{SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters
{SW_BAND_TYPE, 14500, 15900, 15300, 5},
{SW_BAND_TYPE, 15900, 17900, 17600, 5},
{SW_BAND_TYPE, 17900, 18300, 18100, 1},  // 17 meters
{SW_BAND_TYPE, 18300, 21900, 21200, 1},  // 15 mters
{SW_BAND_TYPE, 21900, 26200, 24940, 1},  // 12 meters
{SW_BAND_TYPE, 26200, 27900, 27500, 1},  // CB band (11 meters)
{SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10 meters


Package includes:

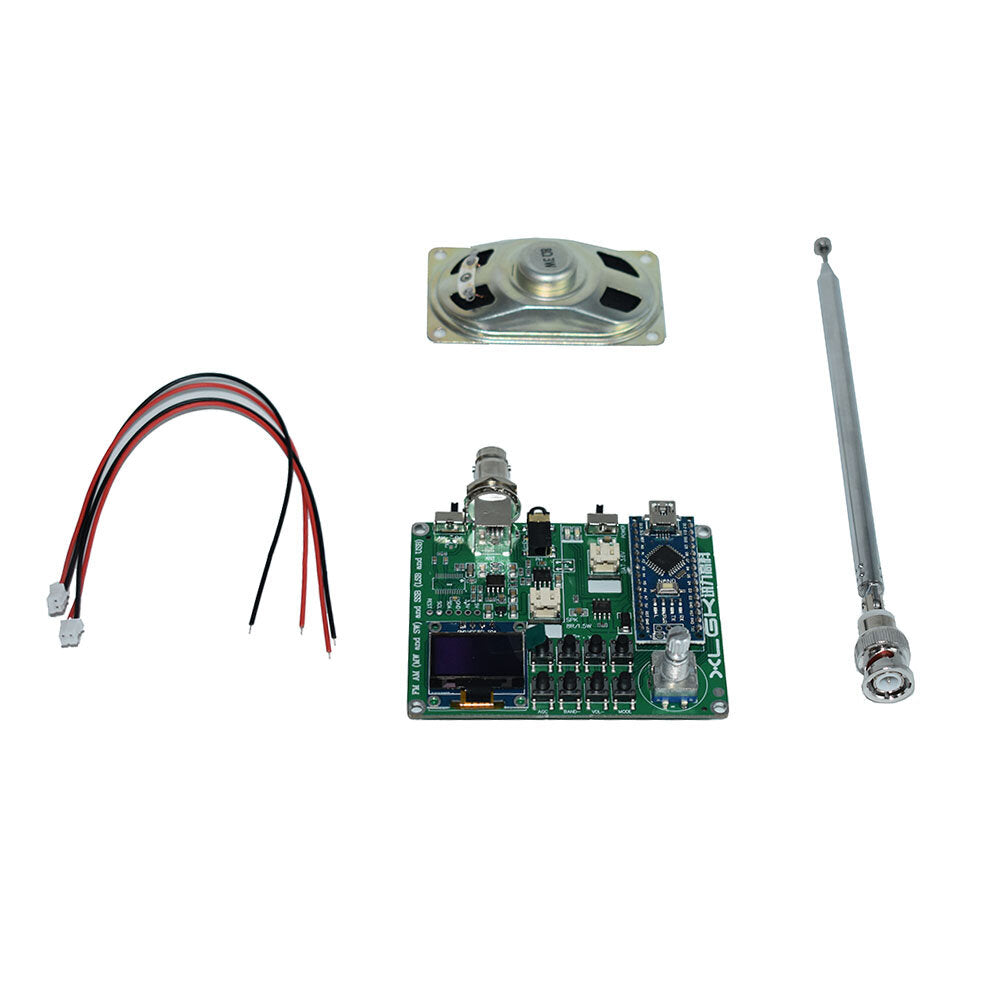

1 x Host with shell+Antenna (Battery included)

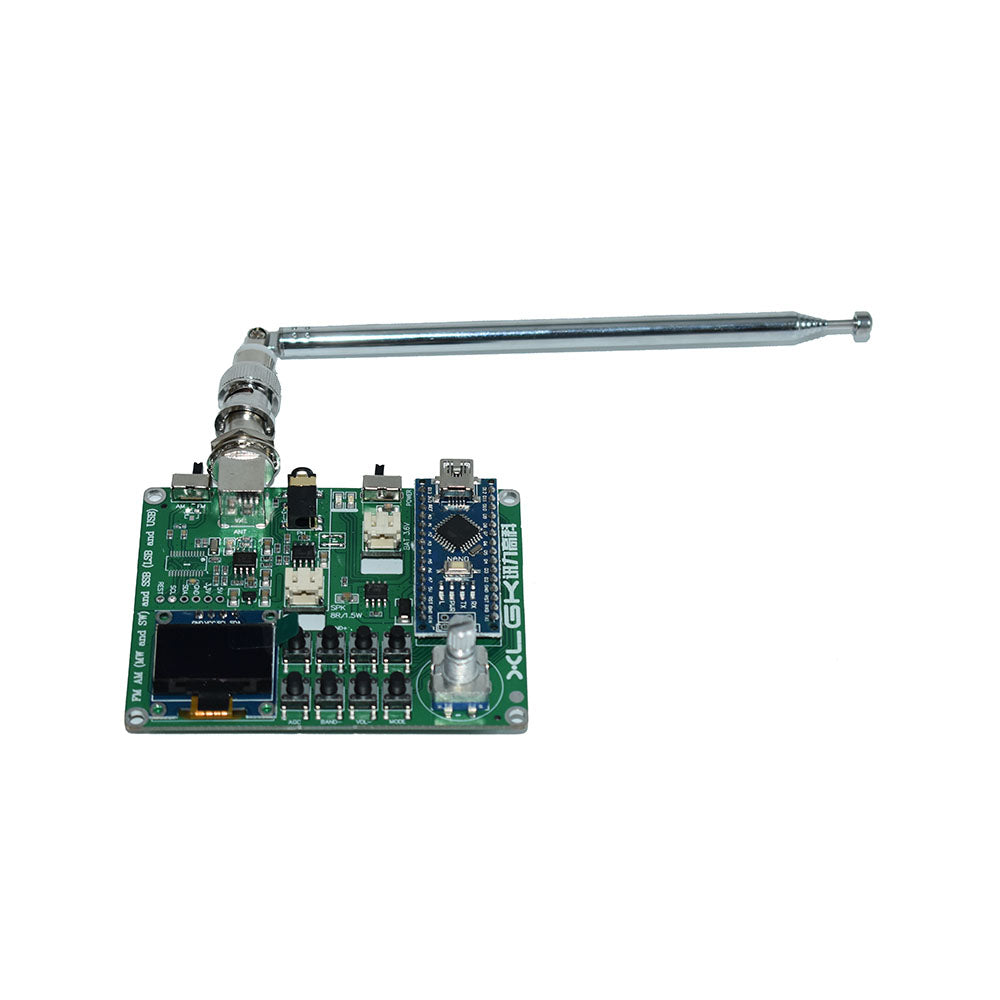

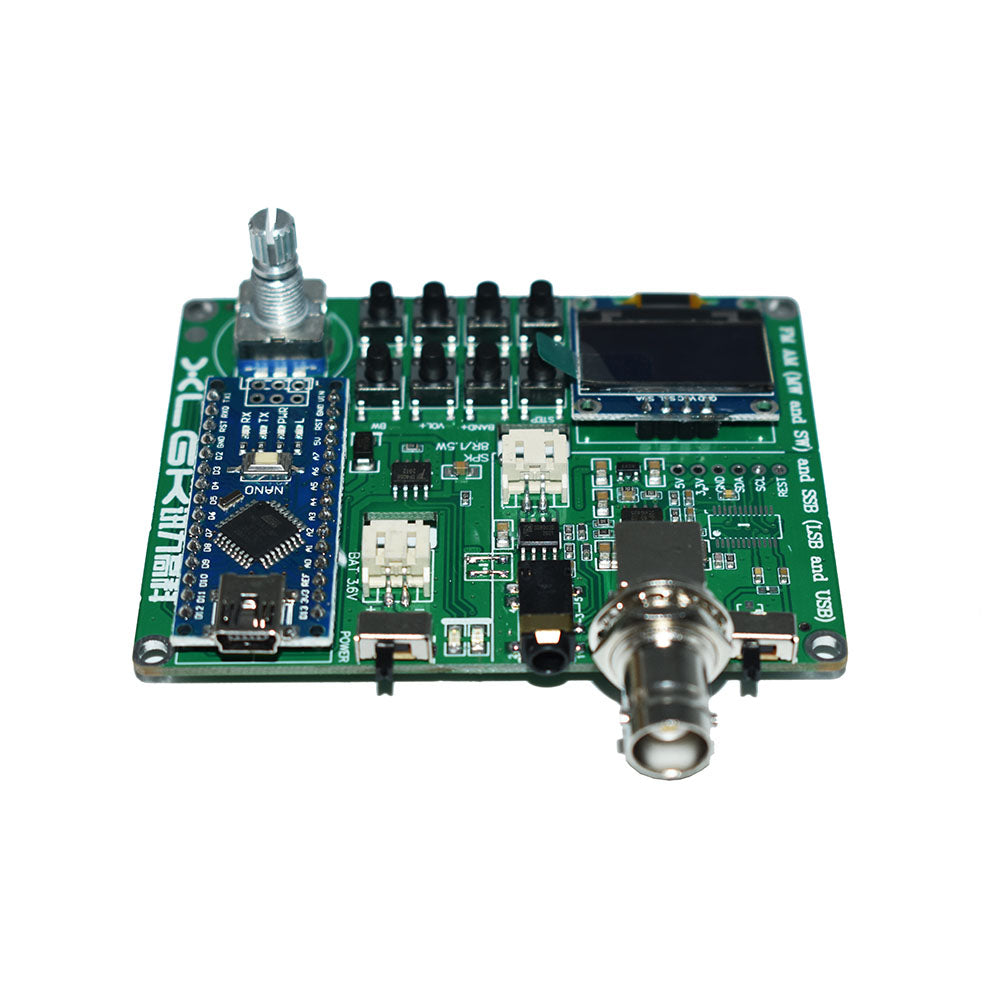

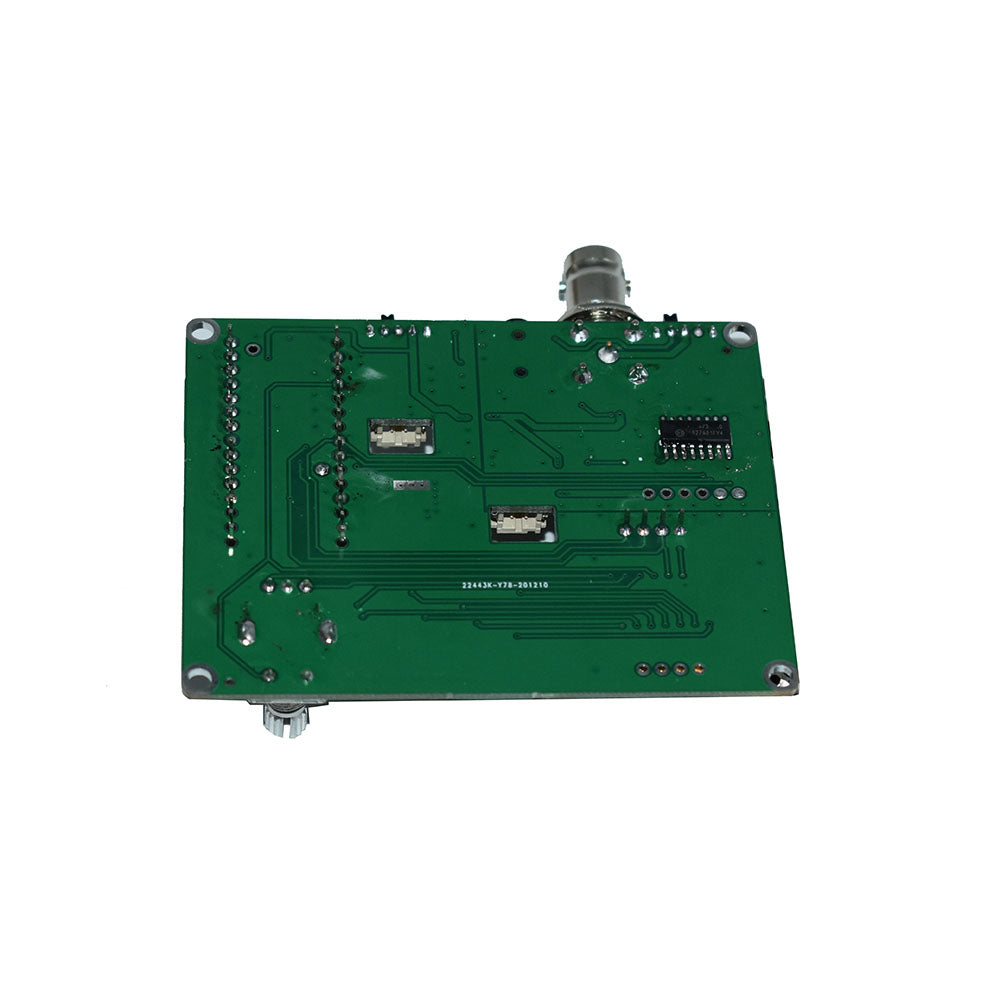

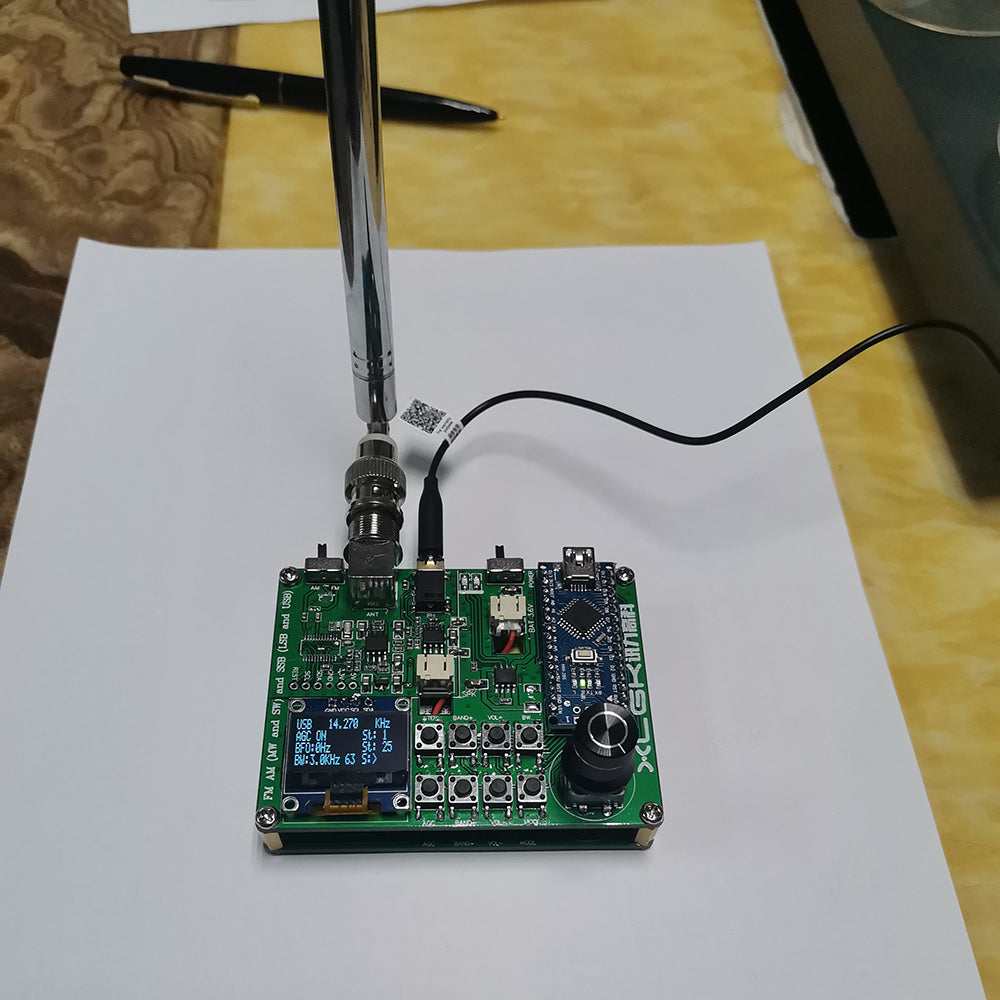

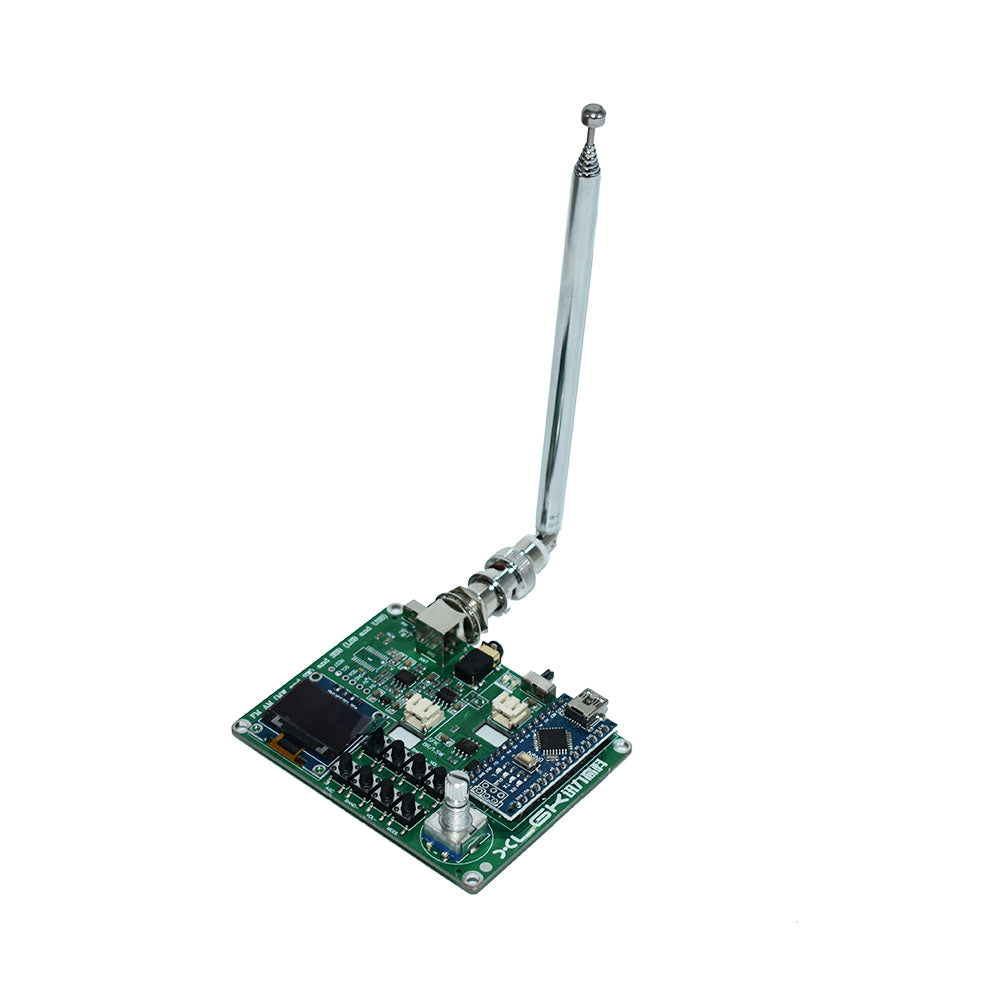

Details picture:
