SeeSii Spectrum Analyze TinySA Ultra+ ZS406 4 Inch 100kHz to 5.4GHz Handheld Tiny Frequency Analyzer Signal Generator 32Gb Card
SeeSii Spectrum Analyze TinySA Ultra+ ZS406 4 Inch 100kHz to 5.4GHz Handheld Tiny Frequency Analyzer Signal Generator 32Gb Card
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
.
-

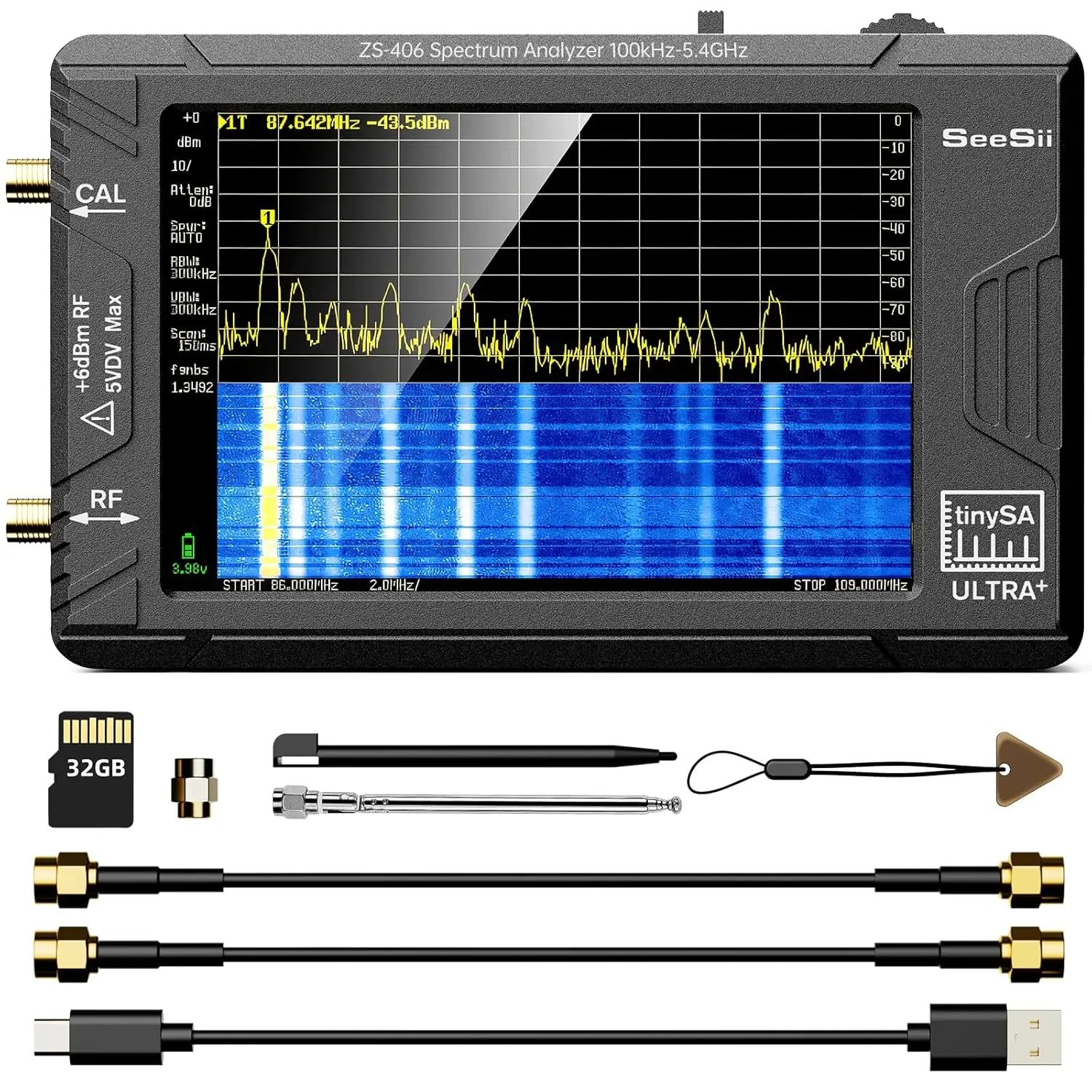

Upgraded ZS406 TinySA Ultra+:This New Version V0.4.6.1 Spectrum Analyzer is developed by Hugen, with 4.0 inch 480 x 320 large touchscreen display, 100kHz to 5.3GHz widely measure range, with the new ESD protection function, the product has a higher anti-static lAevel and a longer service life, and built-in 32Gb micro SD card, can directly record data to the card ,which is convenient for your data sharing and storage
-

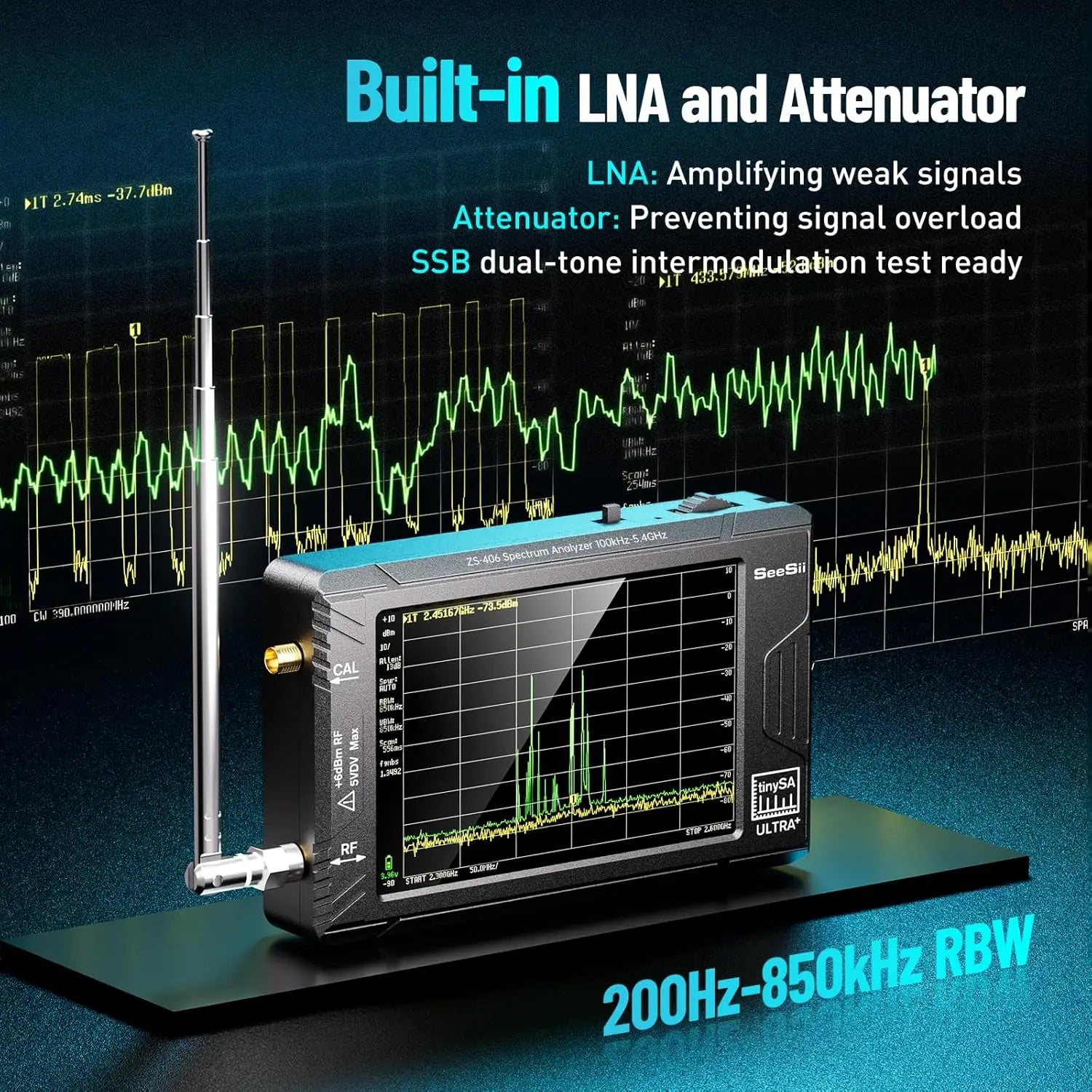

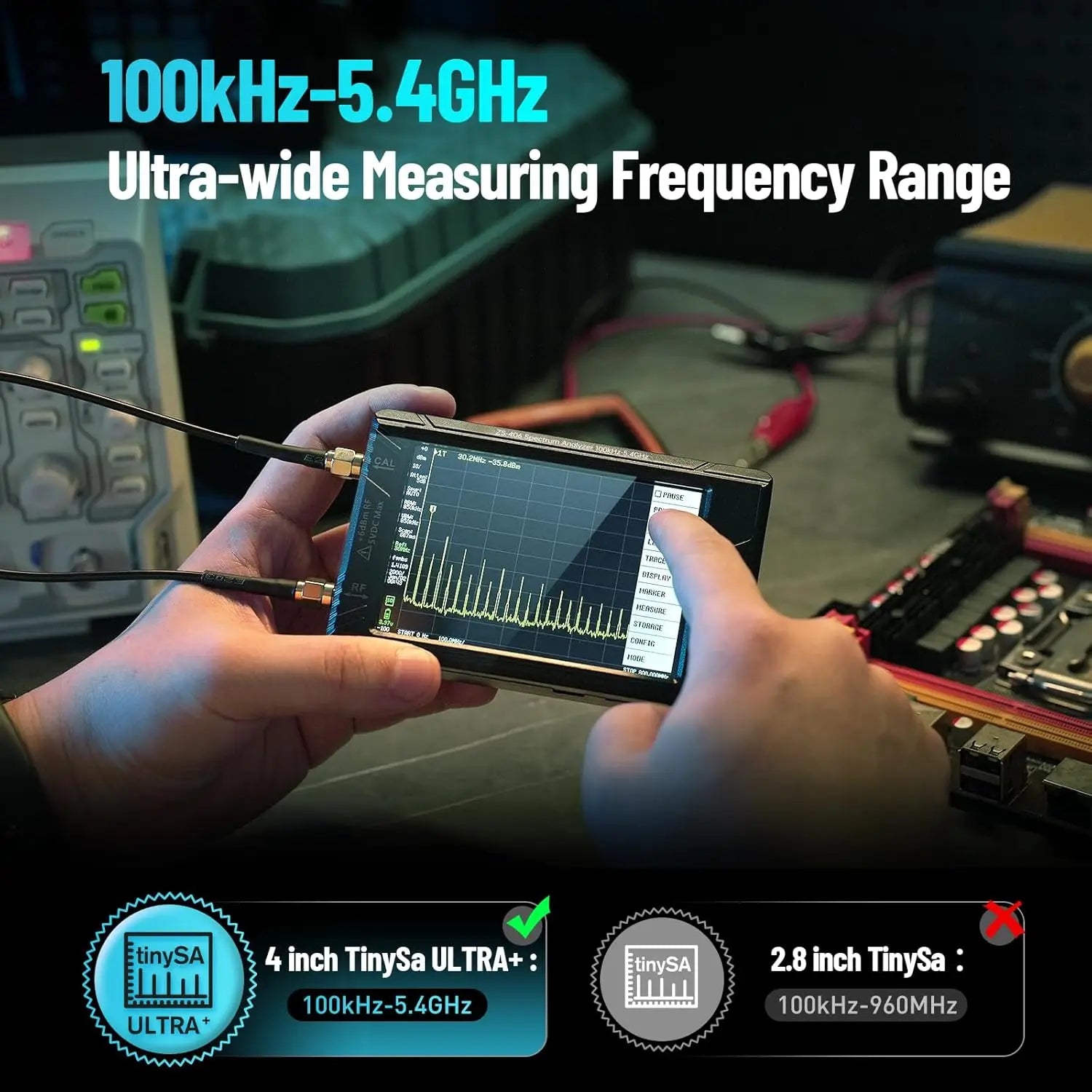

Frequency Range: Compared to the tinysa (100kHz to 960MHz), the upgraded tinysa ULTRA+ has 100kHz to 5.3GHz ultra-wide measuring frequency range, spectrum analyzer for 0.1-800MHz, with Ultra mode up to 0.1MHz-6GHz.Switchable resolution band pass filters for both ranges between 200Hz to 850kHz. Color display showing 450 scan points covering up to the full low or high frequency range. Faster and more accurate measurement performance, you can easily cope with measurement testes in various fields
-

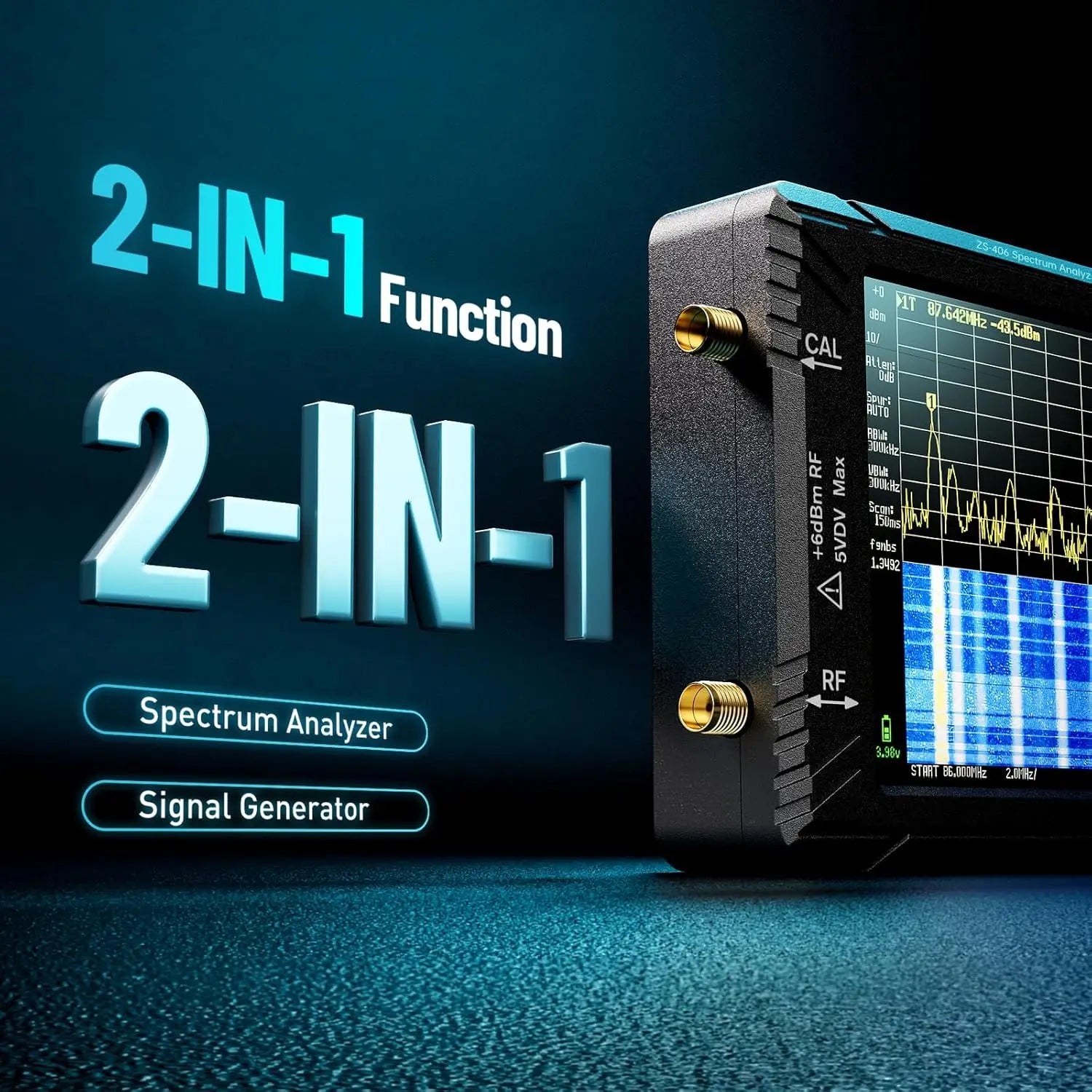

2 in 1 Multifunctional Frequency Analyzer & Signal Generator:When not used as Spectrum Analyzer it can be used as Signal Generator,with sine wave output between 0.1-800MHz or square wave or dual tone output up to 4.4GHz.Built-in calibration signal generator that is used for automatic self test and low input calibration
-
PC Control: Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer or Signal Generator.Tinysa-APP transfers data directly to the computer.The USB interface implements CDC protocol and there is a large set of commands that can be invoked over the serial interface. These command can be used to perform measurements or update internal settings. The driver for Windows will install automatically after connecting to a Windows PC. The driver for Linux is built into the kernel.
-
Ultra-long Battery Life: The upgraded tinysa analyzer built-in 3000m-ah rechargeable battery,with type-C charging cable and LED charging indicator,it can be fully charged within 3 hours,no need to charge frequently
For Case Option----you need to choose correct option if you need the Case
Description
Description
.
-
Upgraded ZS406 TinySA Ultra+:This New Version V0.4.6.1 Spectrum Analyzer is developed by Hugen, with 4.0 inch 480 x 320 large touchscreen display, 100kHz to 5.3GHz widely measure range, with the new ESD protection function, the product has a higher anti-static lAevel and a longer service life, and built-in 32Gb micro SD card, can directly record data to the card ,which is convenient for your data sharing and storage
-
Frequency Range: Compared to the tinysa (100kHz to 960MHz), the upgraded tinysa ULTRA+ has 100kHz to 5.3GHz ultra-wide measuring frequency range, spectrum analyzer for 0.1-800MHz, with Ultra mode up to 0.1MHz-6GHz.Switchable resolution band pass filters for both ranges between 200Hz to 850kHz. Color display showing 450 scan points covering up to the full low or high frequency range. Faster and more accurate measurement performance, you can easily cope with measurement testes in various fields
-
2 in 1 Multifunctional Frequency Analyzer & Signal Generator:When not used as Spectrum Analyzer it can be used as Signal Generator,with sine wave output between 0.1-800MHz or square wave or dual tone output up to 4.4GHz.Built-in calibration signal generator that is used for automatic self test and low input calibration
-
PC Control: Connected to a PC via USB it becomes a PC controlled Spectrum Analyzer or Signal Generator.Tinysa-APP transfers data directly to the computer.The USB interface implements CDC protocol and there is a large set of commands that can be invoked over the serial interface. These command can be used to perform measurements or update internal settings. The driver for Windows will install automatically after connecting to a Windows PC. The driver for Linux is built into the kernel.
-
Ultra-long Battery Life: The upgraded tinysa analyzer built-in 3000m-ah rechargeable battery,with type-C charging cable and LED charging indicator,it can be fully charged within 3 hours,no need to charge frequently
For Case Option----you need to choose correct option if you need the Case
