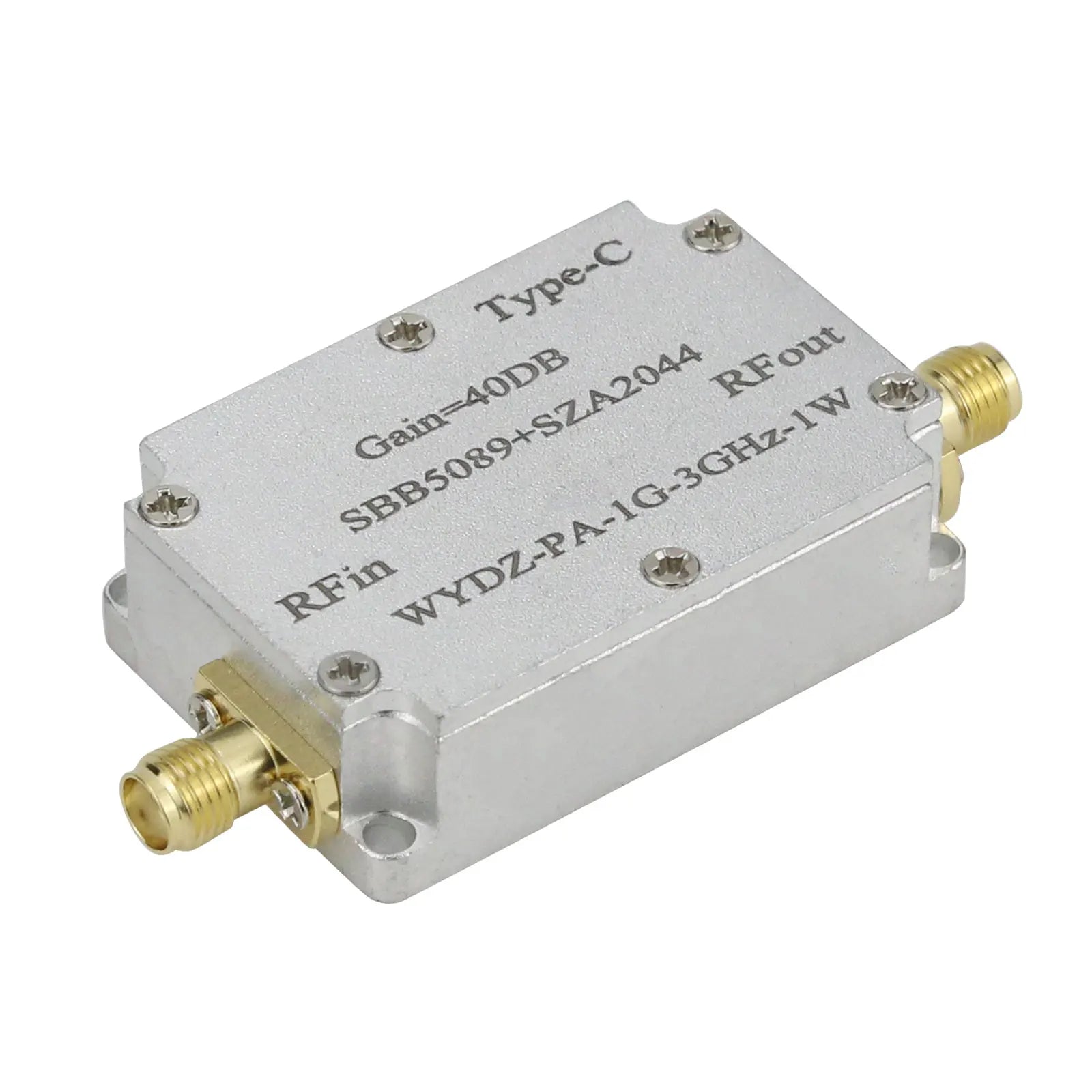

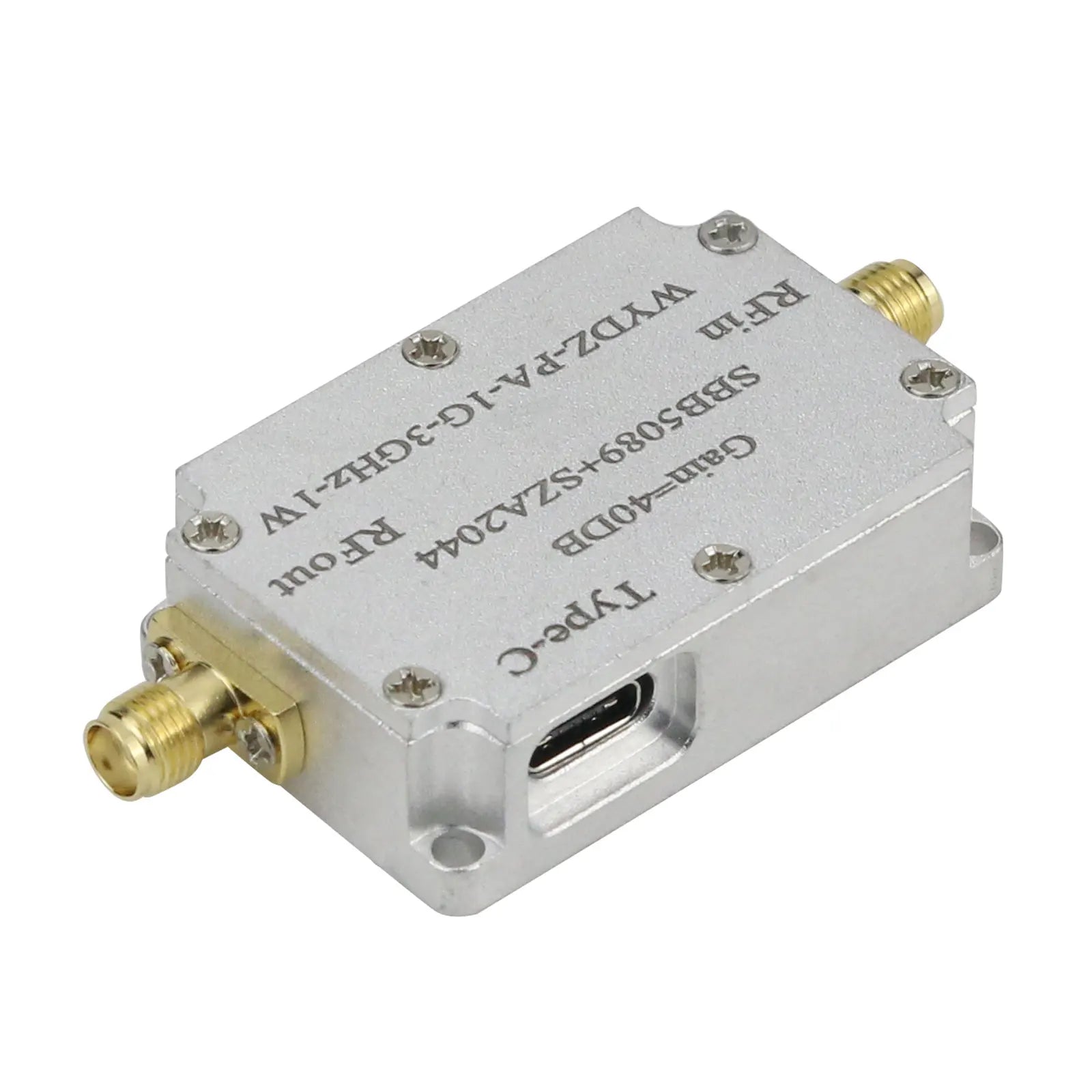

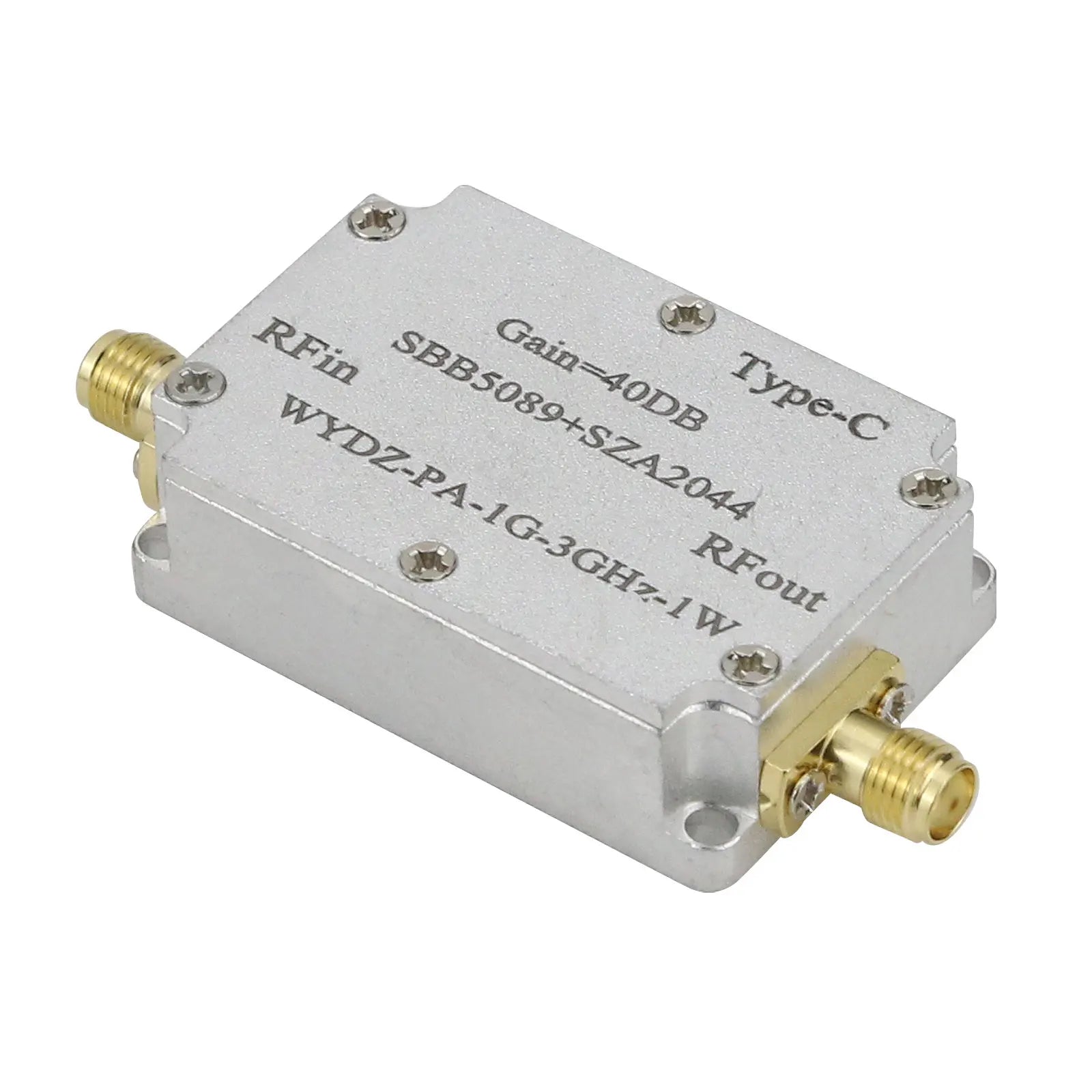

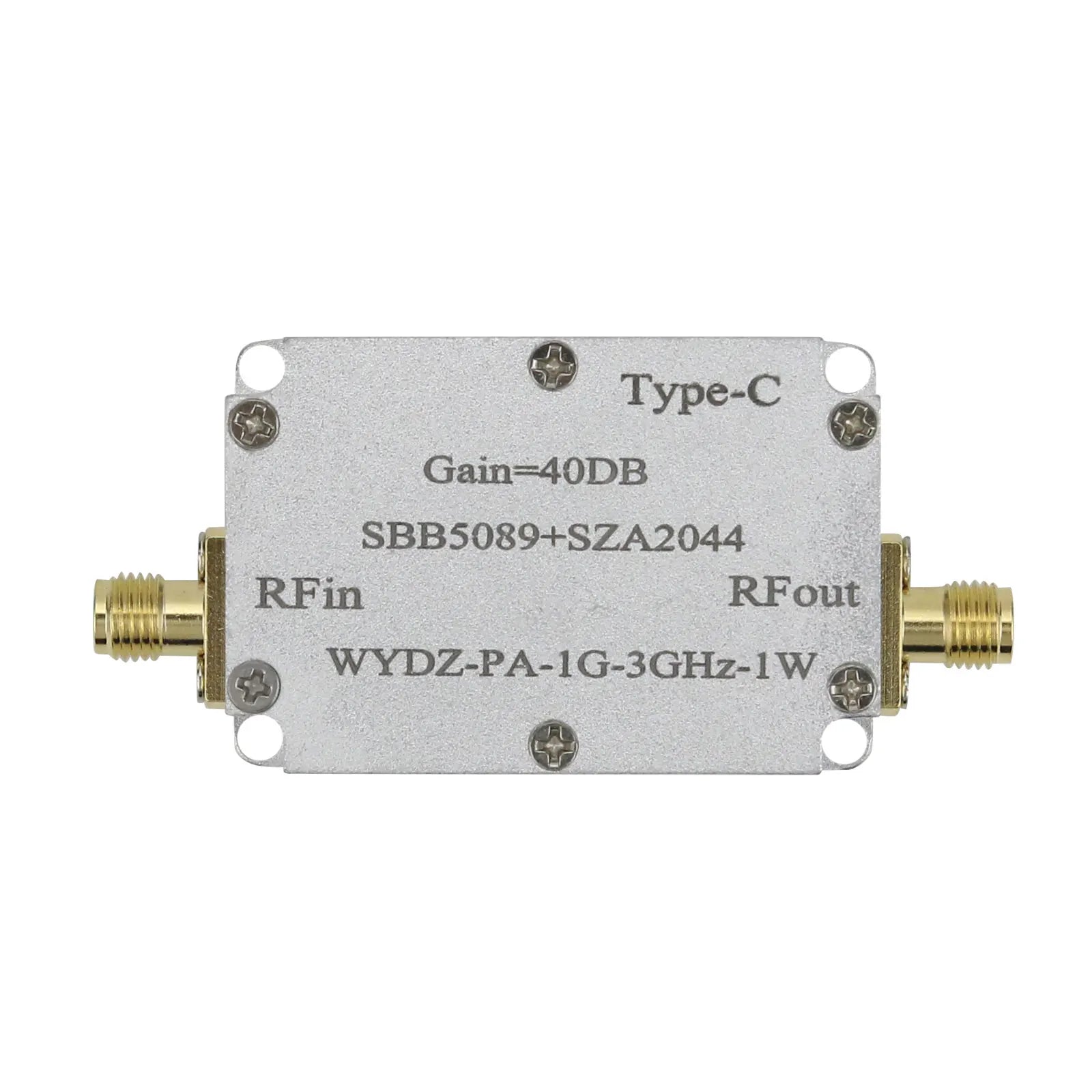

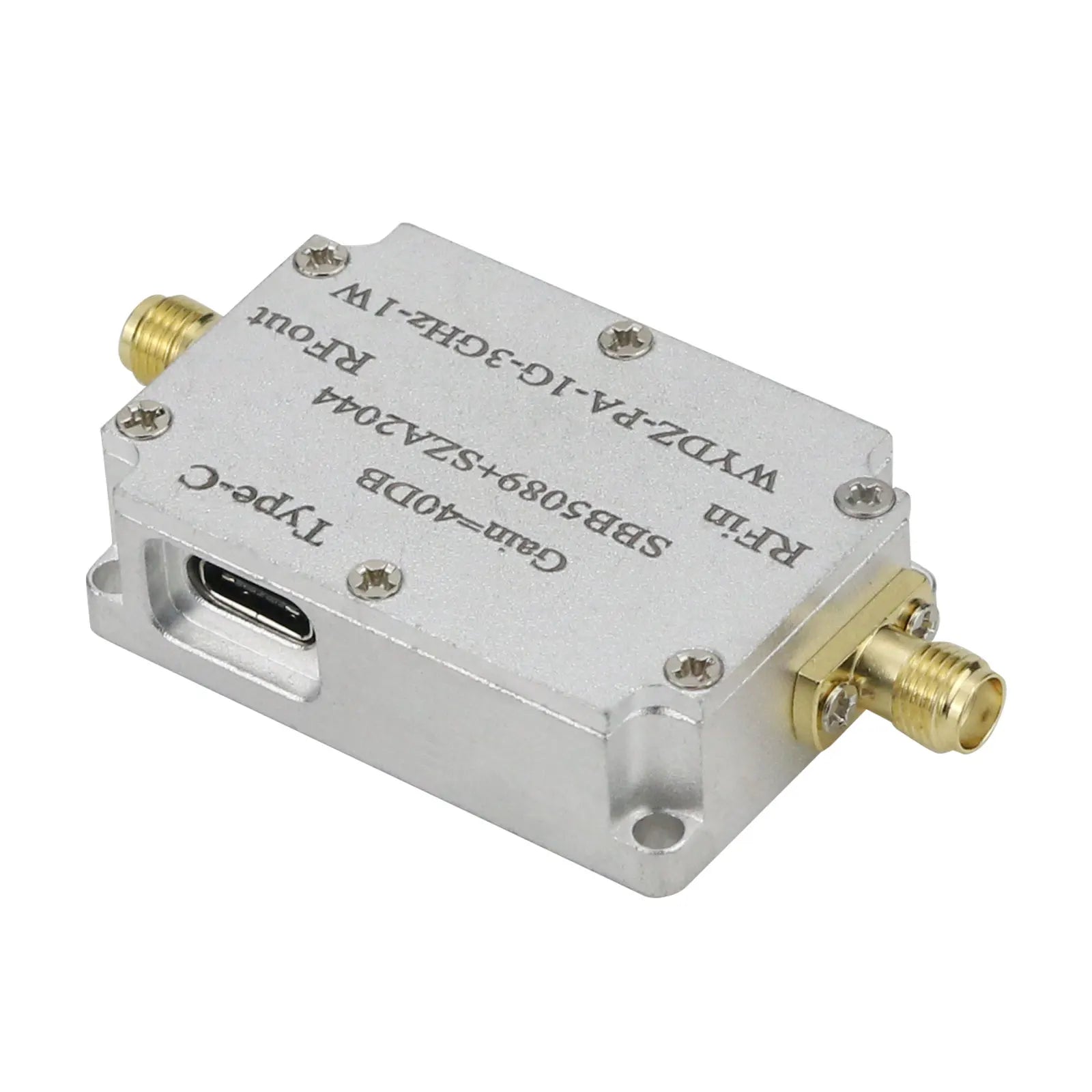

SBB5089+SZA2044 One-Way Microwave Power Amplifier RF Power Amplifier Module 40DB WYDZ-PA-1G-3GHz-1W
Application Scenarios:
1. 2.4G video transmission, interference unit power amplifier
2. WIFI transmitting, Bluetooth transmitting, data transmission module transmitting
3. Electromagnetic compatibility transmitting system
4. Software radio transmitter
Index Parameters:
1. Power supply: TYPE-C cable
2. Module frequency range: 1G-3GHz (wideband power amplifier)
3. Gain: 40DB (refer to the measured curve for different frequencies)
4. Volume: 4.5*3*1.4cm (without sizes of protruding SMA)
5. Net Weight: 66g (including host + TYPE-C cable)
6. Current: 2A (5V/2A power adapter is recommended)
7. P1dB=30dBm at 2GHz (1W)
8. Output interface: SMA female, input and output impedance: 50 ohms

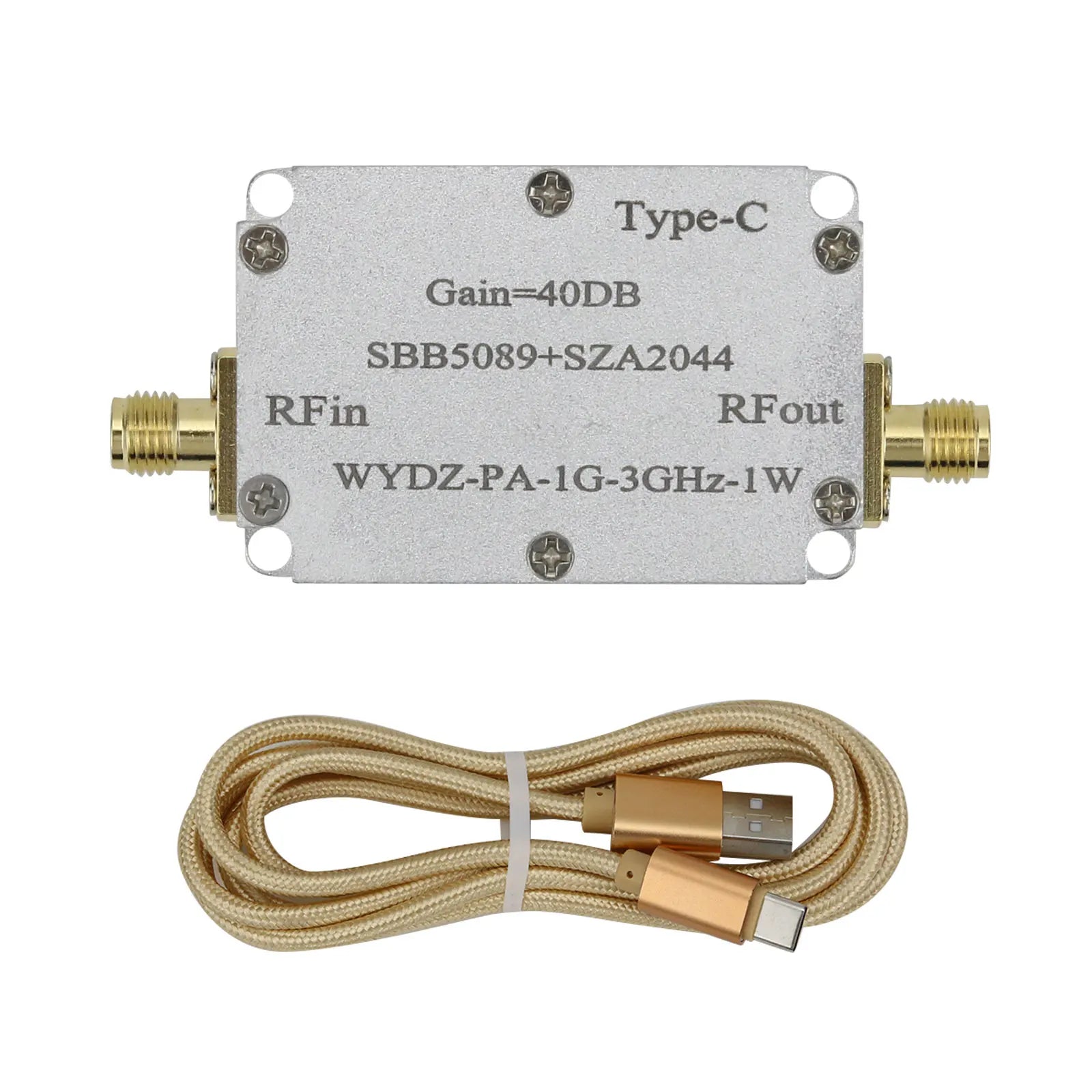

Package Included:
- 1 x Aluminum Alloy RF Power Amplifier
- 1 x Type-C Cable
Measured S Parameter Curve:
