SA6 Portable 6Ghz Spectrum Analyzer Signal Generator TO, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS,Beidou GPR
Description:

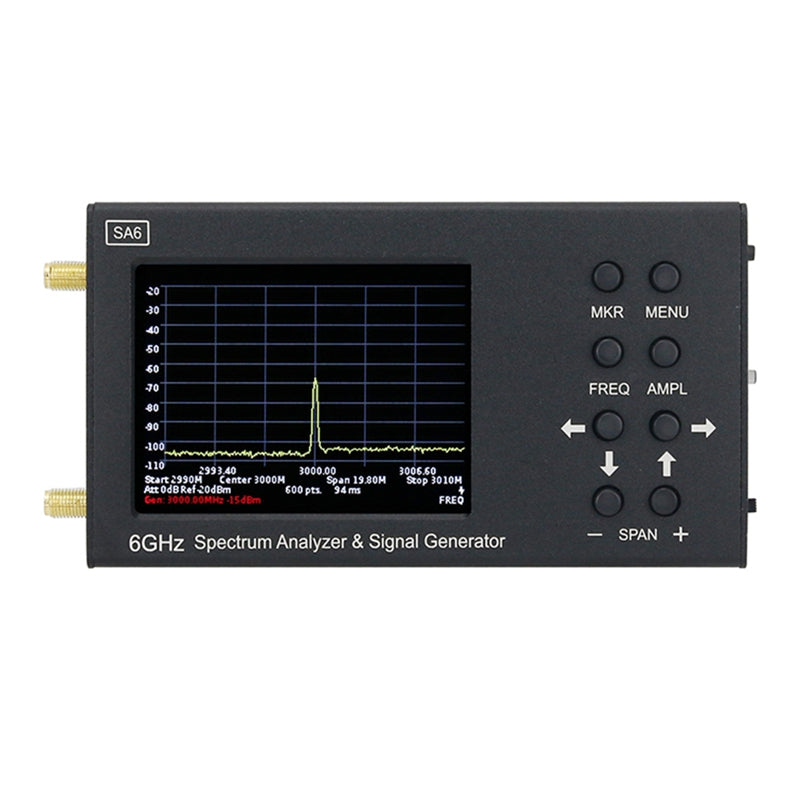

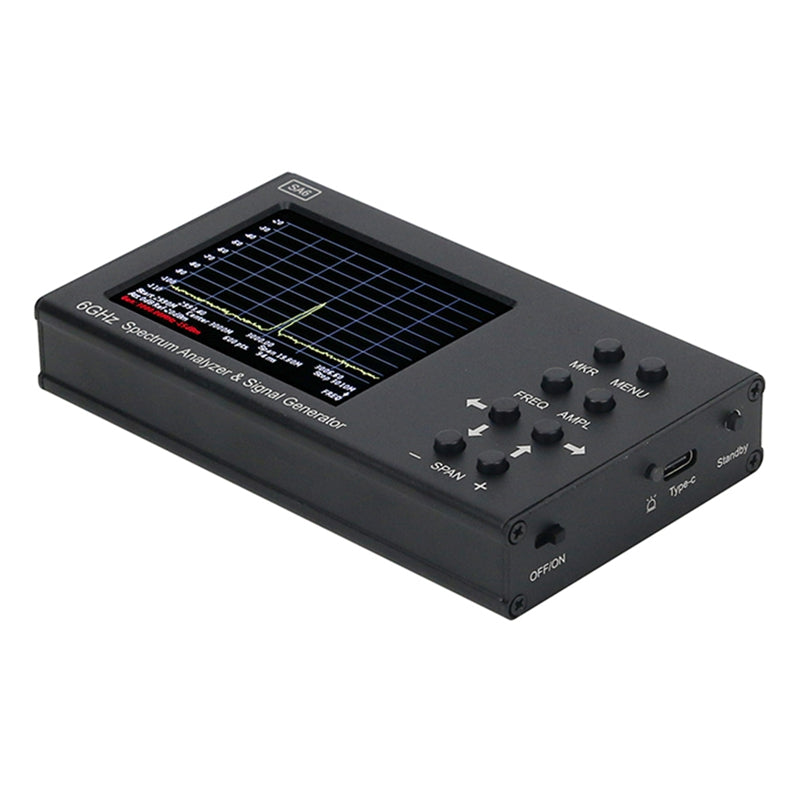

SA6 is a simple portable spectrum analyzer and signal source designed to display the signal spectrum from 35 to 6200 MHz. The analyzer finds the amplitude and frequency of the spectral components of the analyzed process. The spectrum analyzer can process signals from all widely used technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc.
SA6 is a simple portable spectrum analyzer and signal source designed to display the signal spectrum from 35 to 6200 MHz. The analyzer finds the amplitude and frequency of the spectral components of the analyzed process. The spectrum analyzer can process signals from all widely used technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc.
Another important feature is its tracking generator, which makes it possible to measure the frequency response of passive or active devices (such as filters or amplifiers). The software allows measurement of SWR and return loss modules. This requires an external directional coupler and a set of calibration measures.
SA6 is mainly used for on-site operation. The equipment is sturdy and durable, light in weight, and low in energy consumption. It enables service centers and maintenance teams to perform on-site HF analysis for commissioning and repair work. In addition, the spectrum analyzer is the perfect solution for repair shops and radio enthusiasts.
For example, you can use the device to do the following: Place the external antenna on the base station; Quick analysis of the RF environment; Check the correct operation of the relay cell; Repair and adjustment of repeaters, generators, filters, etc. Measuring SWR when using an external directional coupler
It can be controlled through the buttons on the device or the touch screen. Data transmission between analyzer and PC via USB cable. All measurement data are displayed on the screen of the device or PC in real time. Display frequency range: 35-6200 MHz;Measuring frequency range: 35-4500 MHz;Dynamic range of 35-3000 MHz: 75 dB;Dynamic range of 3000-4500 MHz: 70 dB
Maximum span: 6165 MHz
Bandwidth: 200 kHz, fixed
View the scanning speed of the frequency band above 100MHz: 700MHz/sec
100 MHz: less than 0.25 seconds
Noise floor up to 3000 MHz: less than -90dBm
Noise floor 3000-4500 MHz: less than -85dBm
Noise floor 4500-6200 MHz: less than -80dBm
Wave impedance: 50 ohms
Standing wave ratio in the working frequency range: less than 1.5
Internal attenuator: 0-30 dB
Error at attenuation up to 10 dB: 2 dB
10 to 20 dB attenuation error: 5 dB
20 to 30 dB attenuation error: 8 dB
Tracking generator output power: -15 to -25 dBm
Accuracy in dynamic range: 2.0 dB
The maximum input power of the attenuator at 0 dB: 10 dBm
Maximum input power when attenuation is greater than 20dB: +20dBm

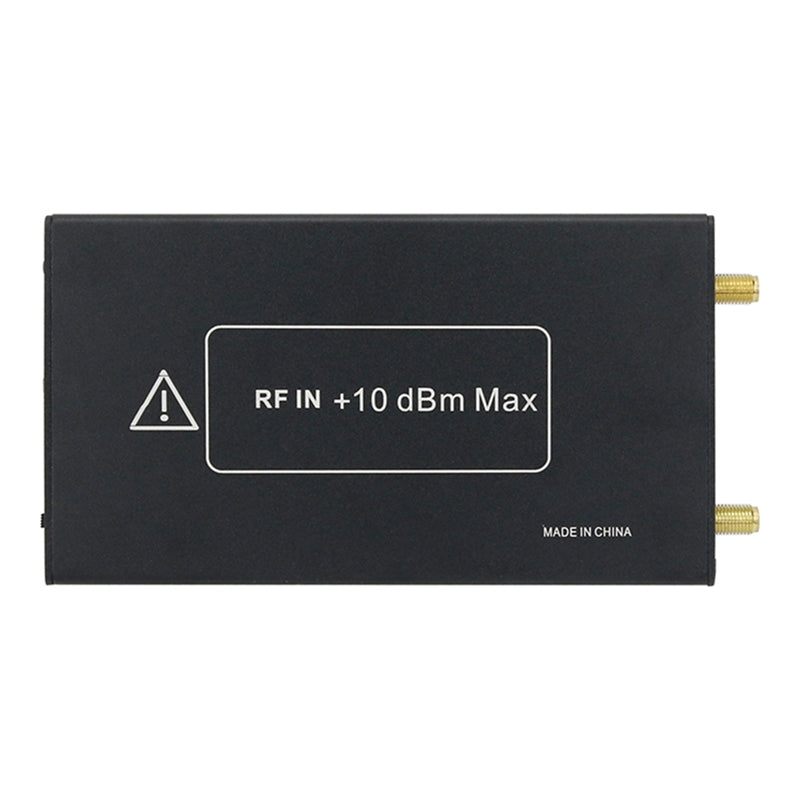

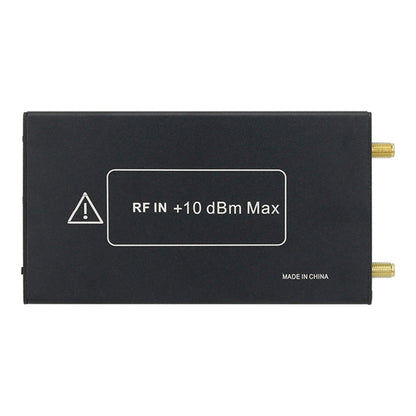

Maximum input measurement signal: +10 dBm
Maximum input DC voltage: 25V
Maximum current consumption when running on battery: 450 mA
Maximum current consumption when running from USB: 500 mA (when charging)
Battery: 2500 mAh
Duration time: 3 hours
Battery charging time: ~ 5 hours
Colour: black
Material: metal + plastic

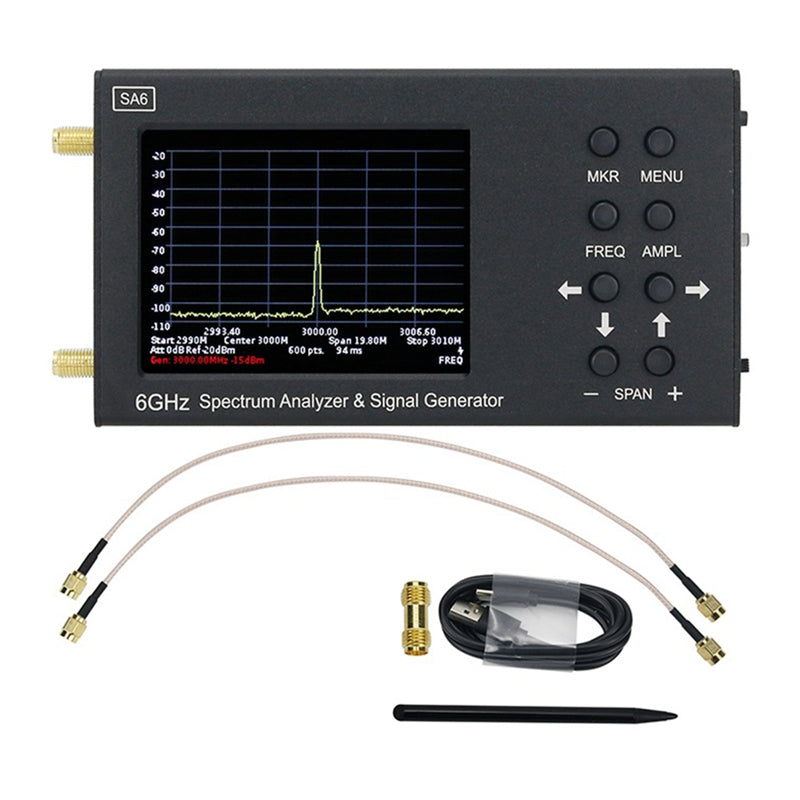

Package Contents:
1 x Spectrum Analyzer SA6
2 x SMA-SMA RG316 30cm extension cable
1 x Typc-USB 1M data cable
1 x Stylus
1 x SMA-kkpassed connector (standard version)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
