RTL.SDR USB Receiver RTL2832U R820T2 100KHz-1.7GHz UHF UV HF
RTL.SDR USB Receiver RTL2832U R820T2 100KHz-1.7GHz UHF UV HF
Low stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Features:
Made of aluminum shell material, durable and use life long.
Portable size board, lightweight.
RTL.SDR RTL2832U R820T2 100KHz-1.7GHz Tuner Receiver
Aluminum enclosure screened panels
HF Q branch direct sampling
Fully assembled and ready to use
Uses RTL2832U R820T2chip set
100KHz to 1766MHz, operating frequency
Covers all HF amateur bands
Covers VHF & UHF bands from 24-1766MHz
Up to 3.2 M Sample rate. (~2.8 MHz stable)
Description:
Receiver modes AM, NFM, FM, DSB, USB, LSB and CW
50 Ohm input impedance
Double SMA golden antenna connectors
Freeware software
Independent antenna inputs for Shortwave and VHF

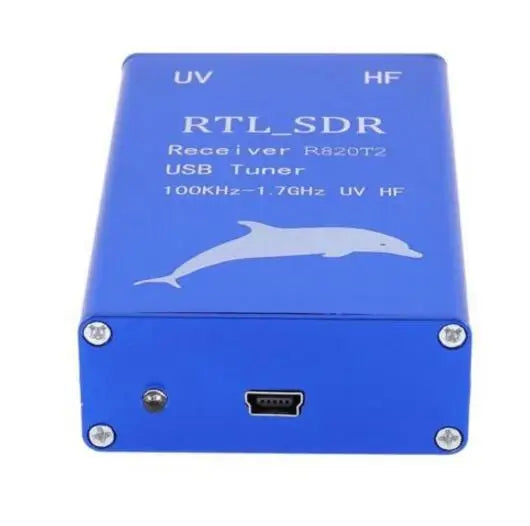

USB computer connection ( mini usb) Powered by common USB • All specifications subject to change without notice
It can be used to test signal receiving UV band, the resonant frequency is GSM band, to receive the effect of UV is not the best.
It is an very cheap software defined radio which is based on DVB-T TV (Digital HD TV) USB receiver dongles that have the RTL2832U chip in them.
Note:
Depends upon the SDR software used with the receiver • 8-bit ADC giving ~50 dB dynamic range
Specification:
Material: aluminum
Color: blue

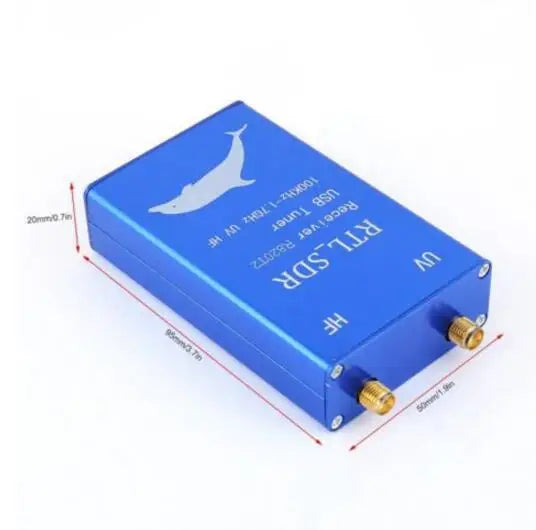

Size: 95*50*20mm
Net weight: 140g

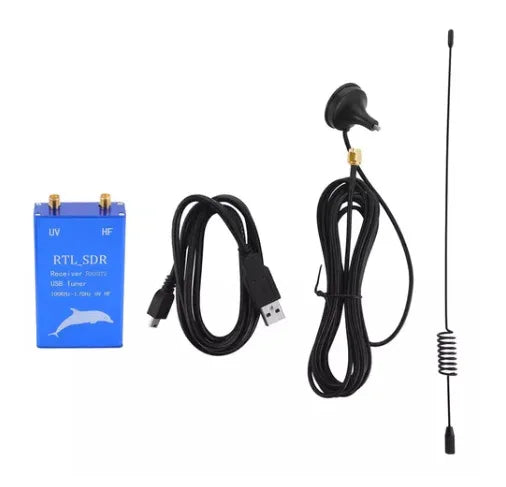

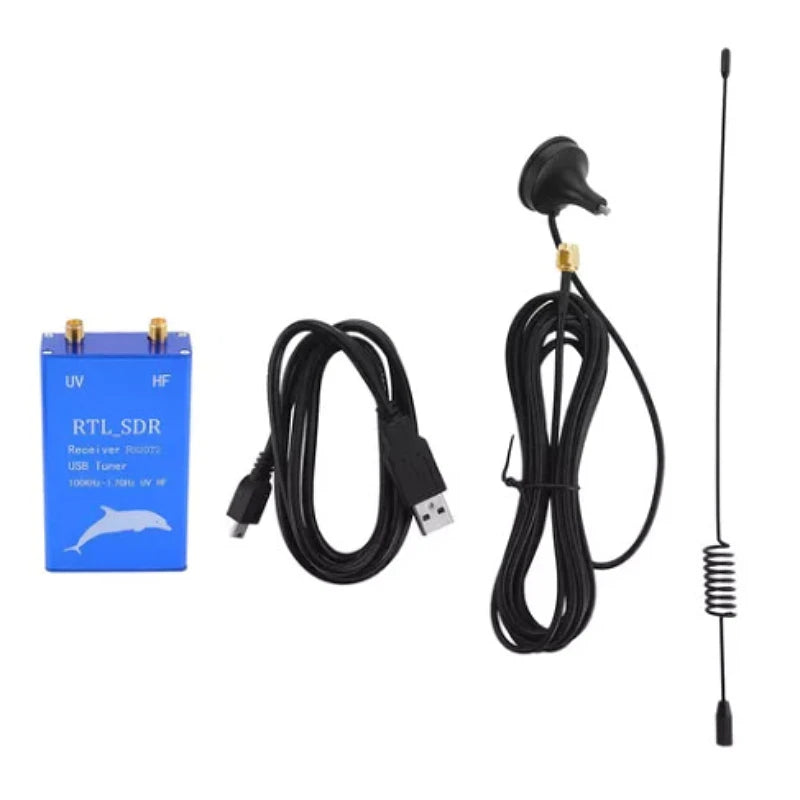

Package Included:
1x100KHz-1.7GHz UV HF RTL SDR USB Tuner Receiver R820T Radio
1 x Testing Telescopic Aerial
1 x USB cable
