Rod Rain Audio RNHP Headphone Amplifier Uses Replacement For Rupert Neve RNHP with power supply

Rod Rain Audio RNHP Precision Headphone Amplifier Professional Uses Replacement For Rupert Neve RNHP

Features:
- Professional monitor amp, referring to the design for Rupert Neve RNHP headphone amplifier. Its sound is 99% similar to the original version
- Three input modes including XLR input, RCA input and 3.5mm input

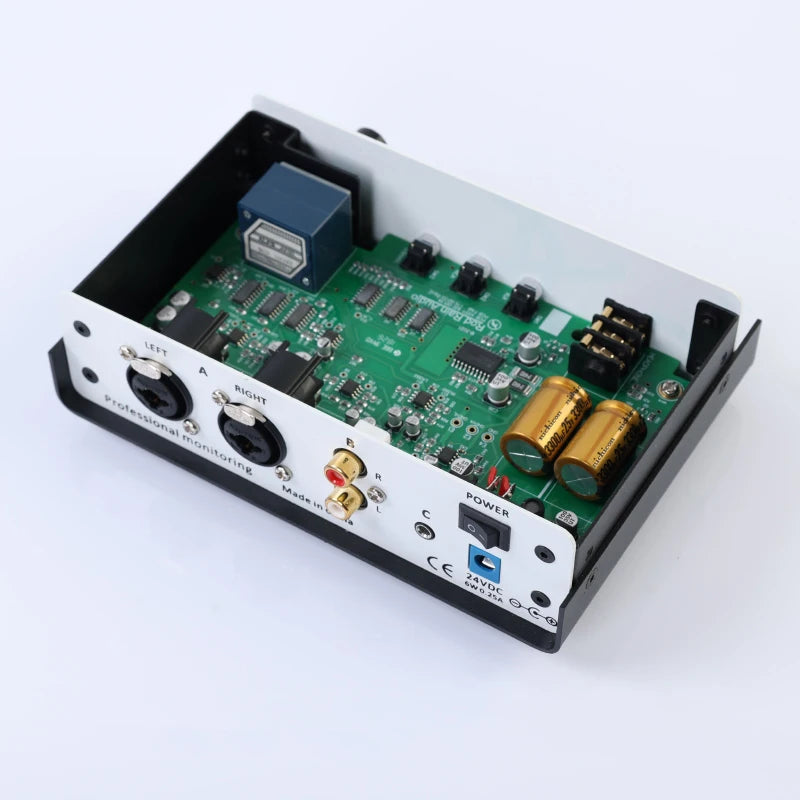

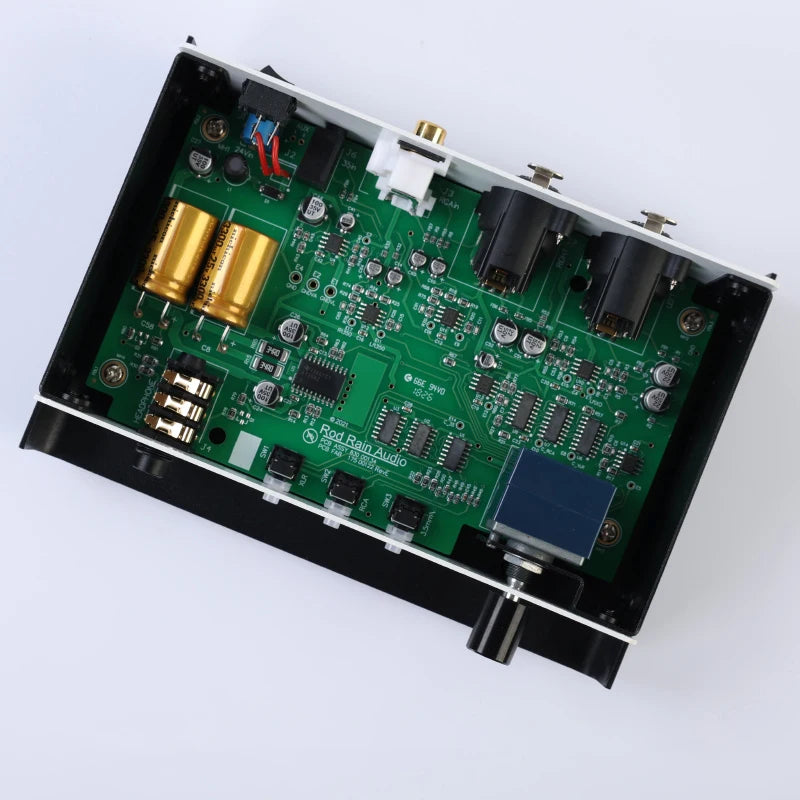

- Professional design and full patch structure
- More details of music itself can be heard

Specifications:
- Stereo input / output headphone amp
- 2 XLR and 1/4" mixed input
- 2 RCA (left/right) input
- 1 1/8" TRS input

Large Input Levels:
"A" XLR I/P: +22.8 dBu at 1kHz
"B" RCA I/P: +14.7 dBu at 1kHz
"C" 3.5mm I/P: +3.3 dBu at 1kHz

Output Power (Normal load):
Z=44Ω: 3.617 VAC RMS at 1kHz=300mW RMS
Z=16Ω: 1.933 VAC RMS at 1kHz=230mW RMS
Z=150Ω: 5.108 VAC RMS at 1kHz=175mW RMS

Other Parameters:
- Frequency response (10Hz to 120kHz): +/- 2dB
- Output impedance: 0.08Ω (at 1KHz, 16-150Ω load, 0dBu input)
- Noise (Z=44Ω, BW 22Hz-22kHz): "A" XLR input: -101.9dBV; "B" RCA input: -100.9dBV; "C" 3.5mm input: -88.8dBV
- Power supply: 24VDC at 0.25Amp
- Size: 6.5 x 4.6 x 1.9" (WxDxH)

Package Included:
- 1 x Set of Headphone Amp
