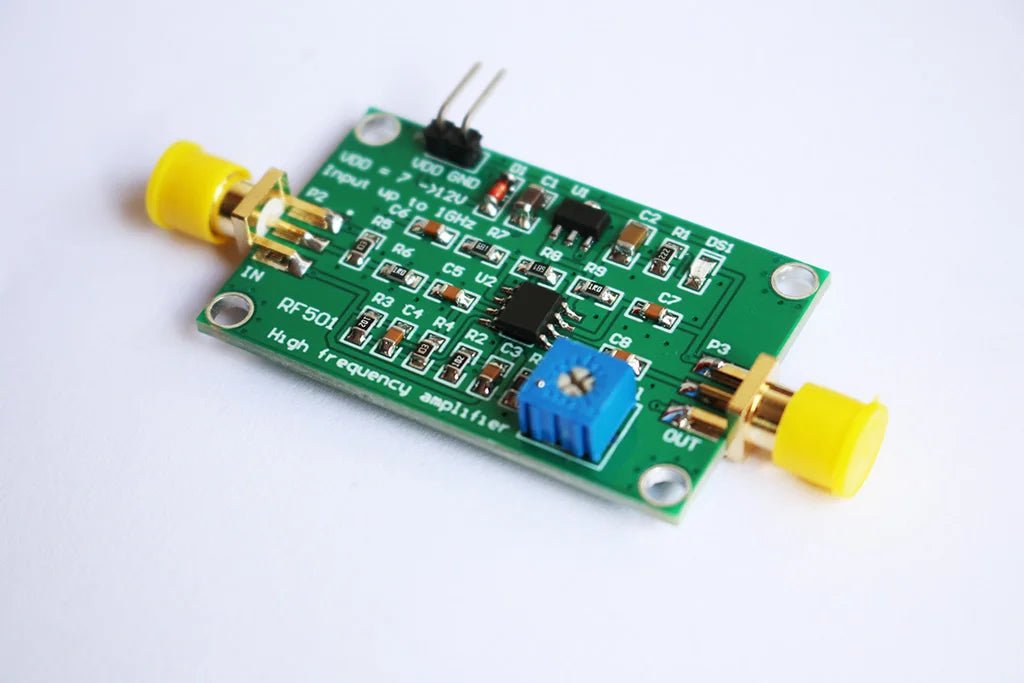

RF501 1KHz~1GHz linear signal amplifier module
RF501 1KHz~1GHz linear signal amplifier module
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
RF501 1KHz~1GHz linear signal amplifier module
1.1 Module parameters
Parameter unit
Input frequency range 0~1000 MHz
Maximum input voltage 5 V
Maximum output amplitude 5 V
Working voltage 7~12 V
Size 45*27 mm
2.0 P3 interface: VDD: positive power supply;
GND: negative pole of power supply;
P1 interface: input signal. (RP SMA KE KHD outer screw inner needle inner hole)
P2 interface: output signal.
RW1 is to adjust the gain multiple
Description
Description
RF501 1KHz~1GHz linear signal amplifier module
1.1 Module parameters
Parameter unit
Input frequency range 0~1000 MHz
Maximum input voltage 5 V
Maximum output amplitude 5 V
Working voltage 7~12 V
Size 45*27 mm
2.0 P3 interface: VDD: positive power supply;
GND: negative pole of power supply;
P1 interface: input signal. (RP SMA KE KHD outer screw inner needle inner hole)
P2 interface: output signal.
RW1 is to adjust the gain multiple
