- Frequency-range: 50KHz to 250MHz, 400MHz〜2GHz can up to 2GHz because it had been registered.

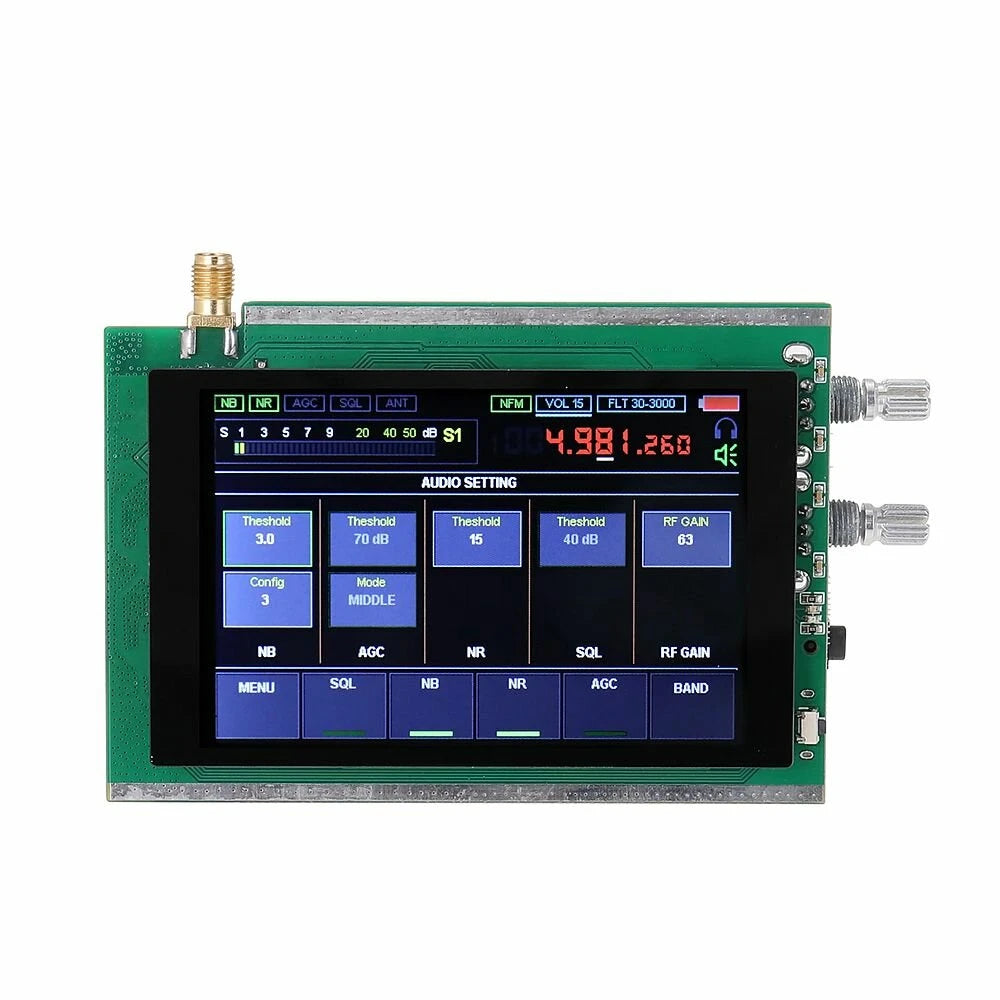

- With 3.5 inch touching LCD screen.
- The radio is built on the principle of SDR - the function is determined by the loaded software.
- All types of analog-modulation: AM, SSB, NFM, WFM.
- Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, noise blanker, AGC, equalizer.

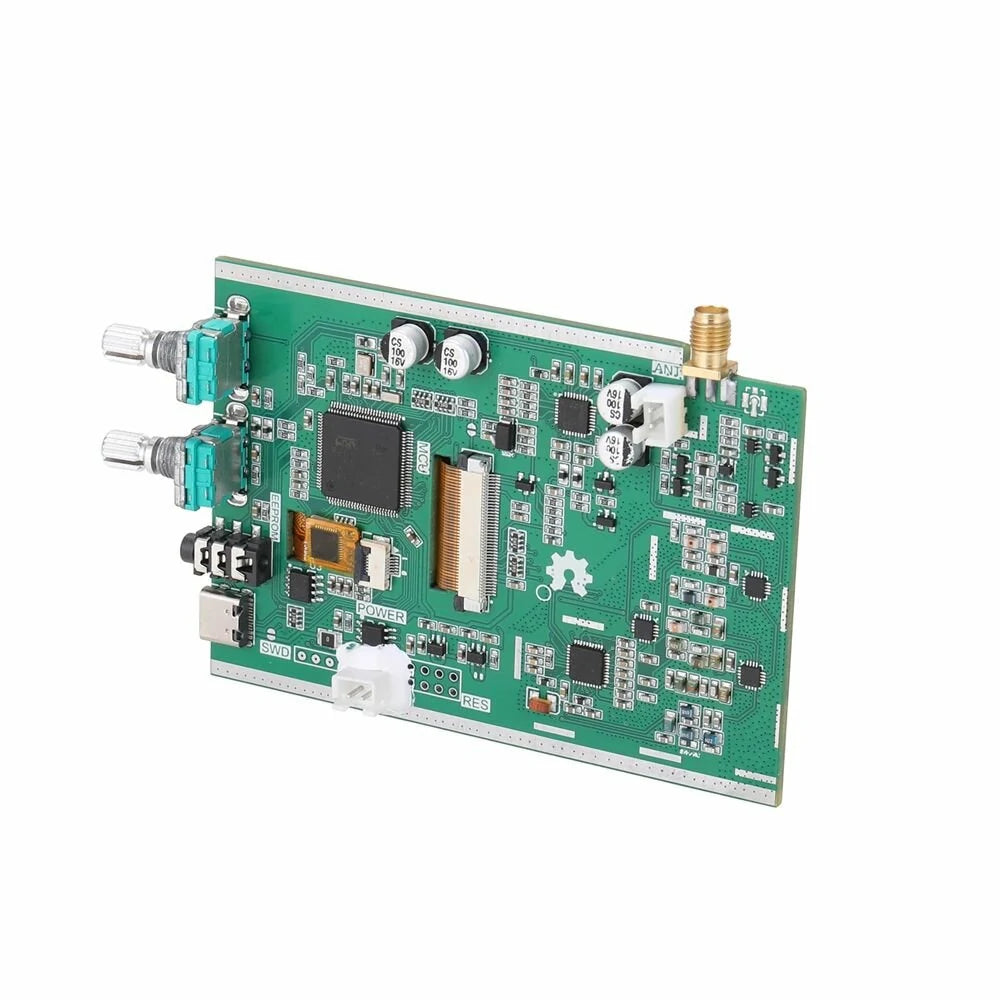

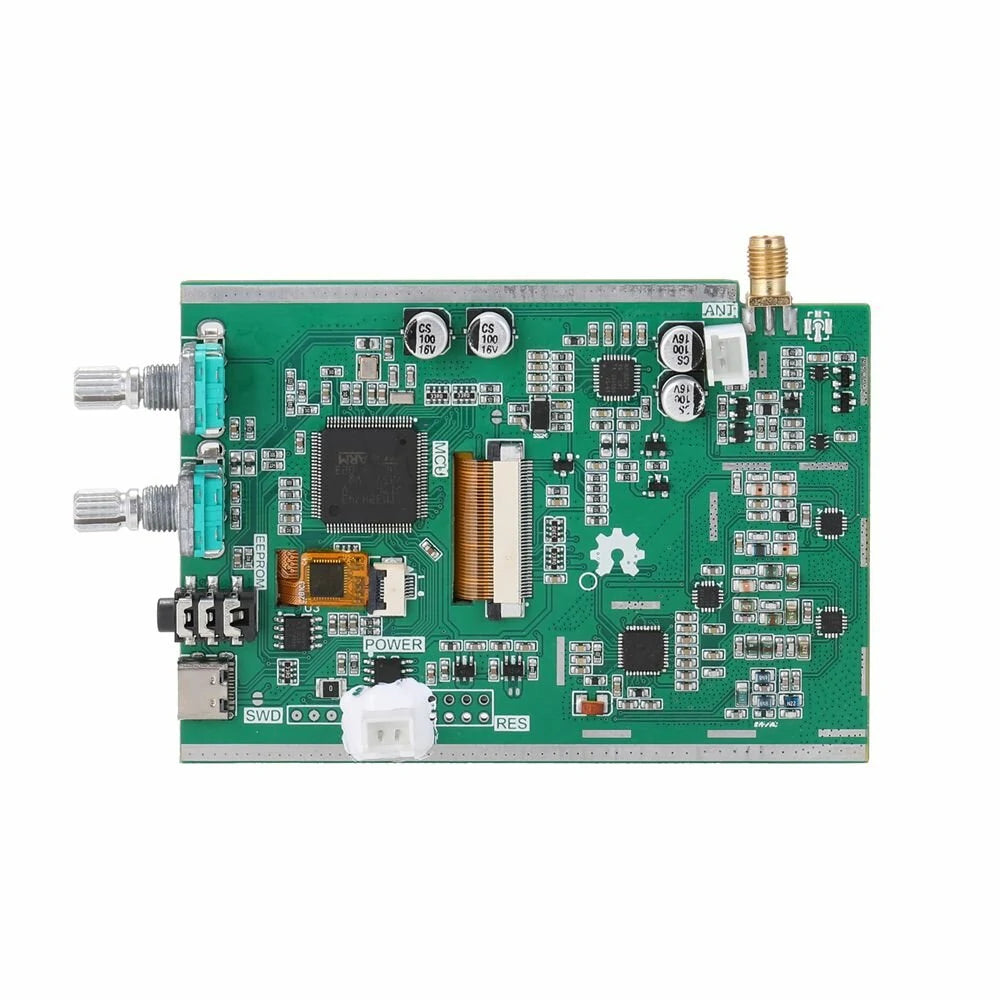

- Use the fully functional chip msi001.
- The powerful stm32h743 with clock frequency of 480MHz is applied.
- 2 encoders with buttons and touching screen.
- 300mA when listening to headphones.
- In order to improve HF reception on the telescope antenna, an additional board with a source follower is developed. The board will be built into the standard receiver design.
- Connecting to the computer via USB, you can transfer cat, IQ and audio.
- 160KHz span, expandable.
- Sensitivity - 0.3 μv = 10dB at S / w up to 250MHz, no measurement was carried out due to lack of measuring equipment.
- Dynamic blocking range is about 85dB due to the characteristics of msi001 chip used.
- Backlight control, SMA antenna socket.

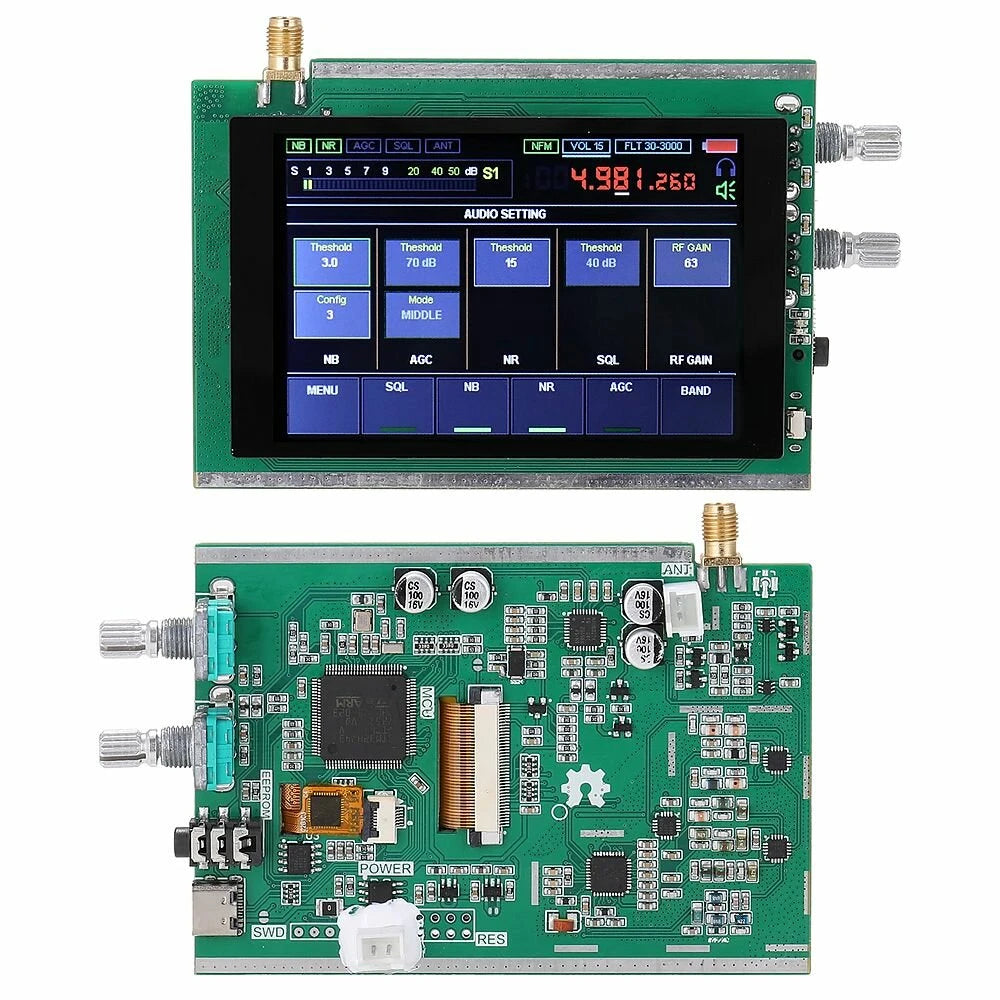

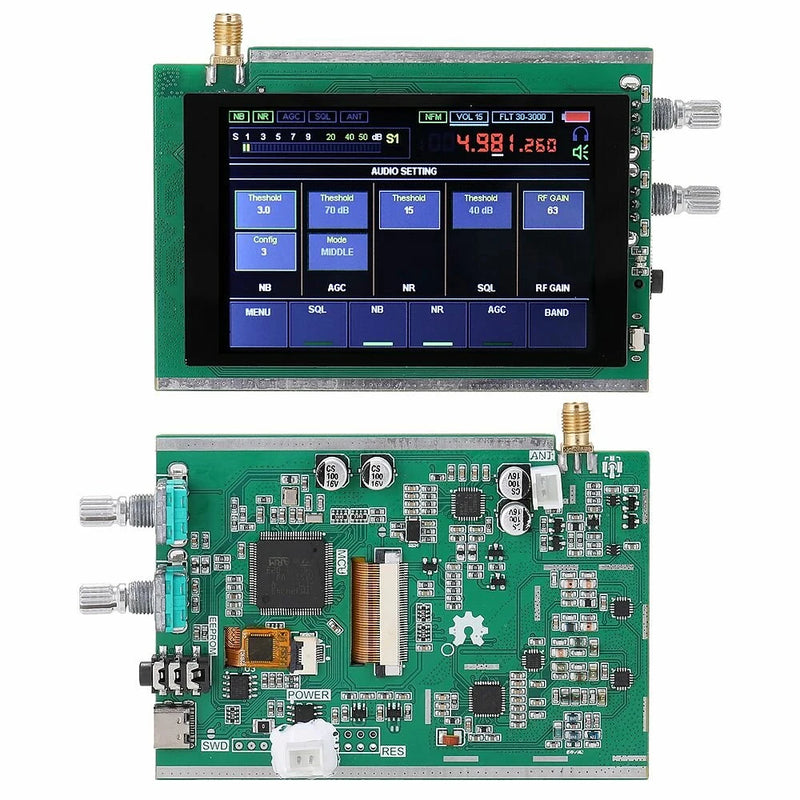

Main material: PCB

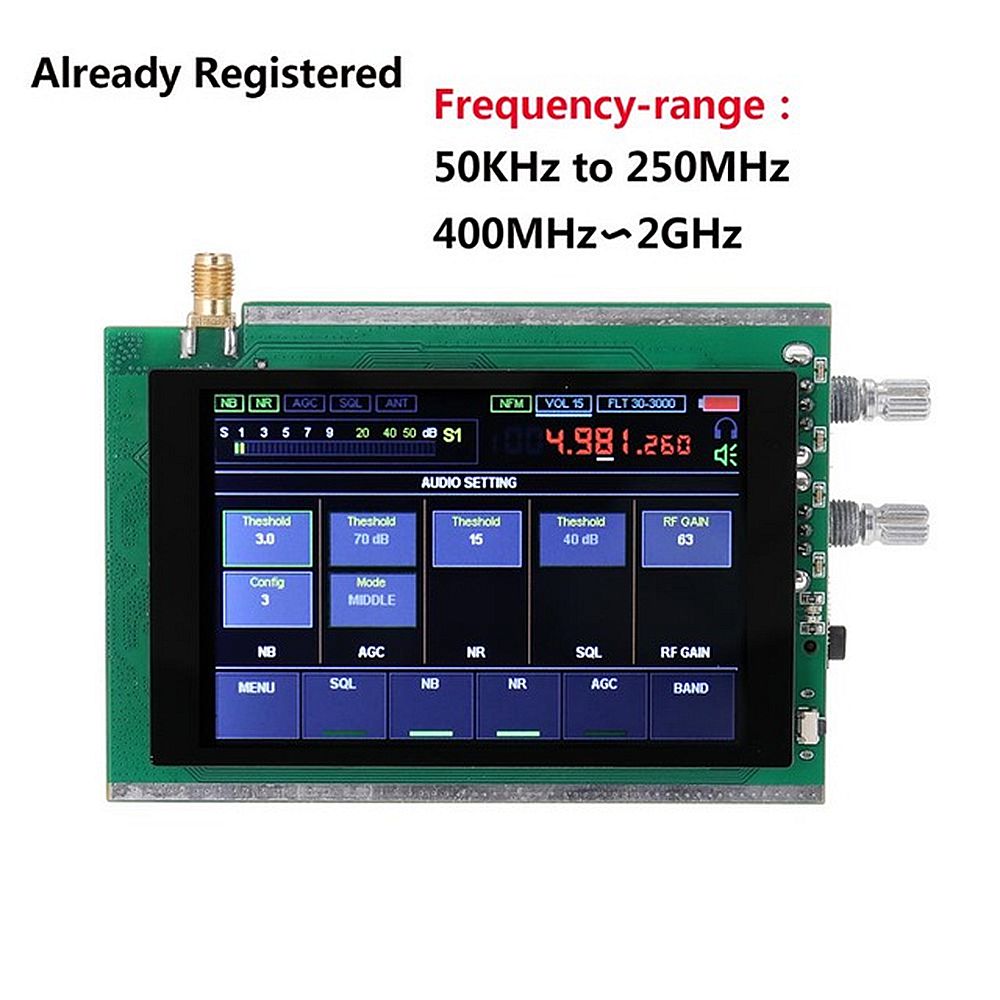

Frequency-range: 50KHz~250MHz, 400MHz〜2GHz

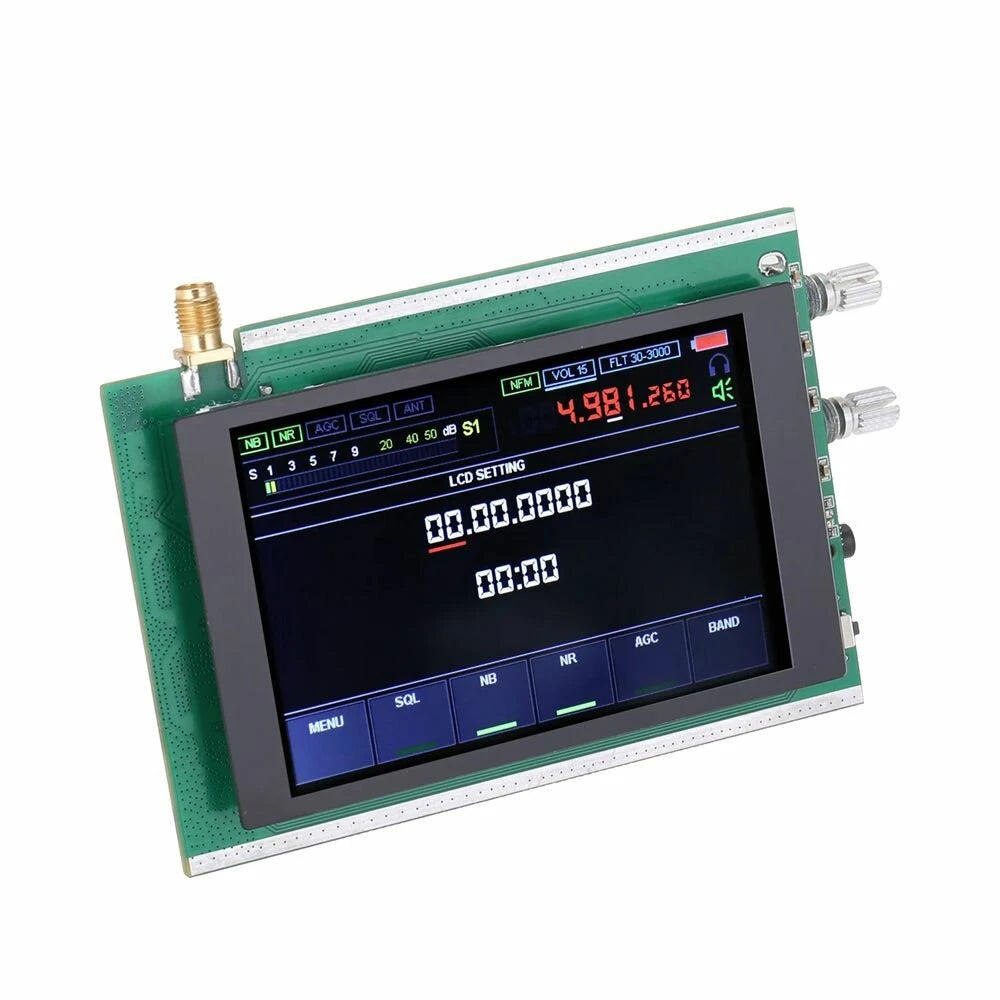

Screen: 3.5 inch touching LCD screen

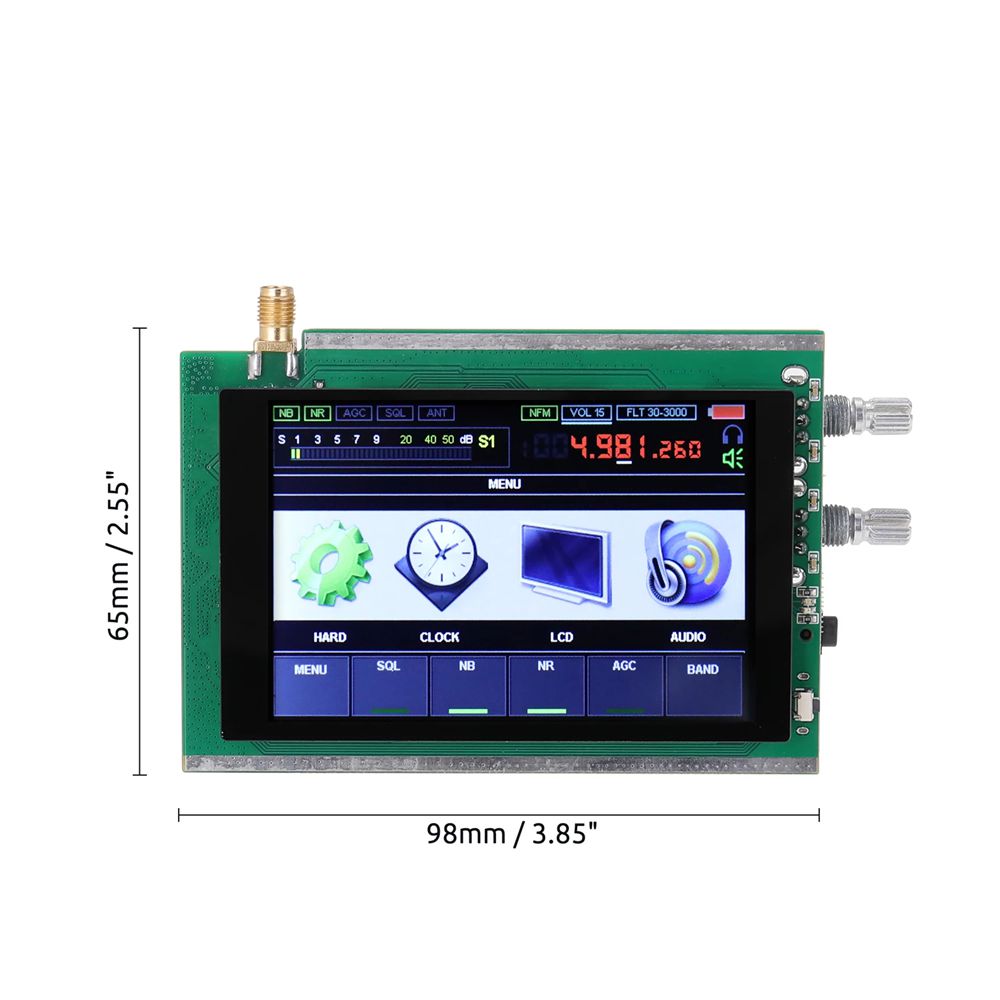

Item size: 120 * 88 * 39mm / 4.7 * 3.5 * 1.5in
Package size: 125 * 90 * 42mm / 4.9 * 3.5 * 1.7in
Package weight: 160g / 5.6ounce
1 x Registered Version 50KHz~250MHz 400MHz〜2GHz Malachite SDR Radio Malahit Transceiver
