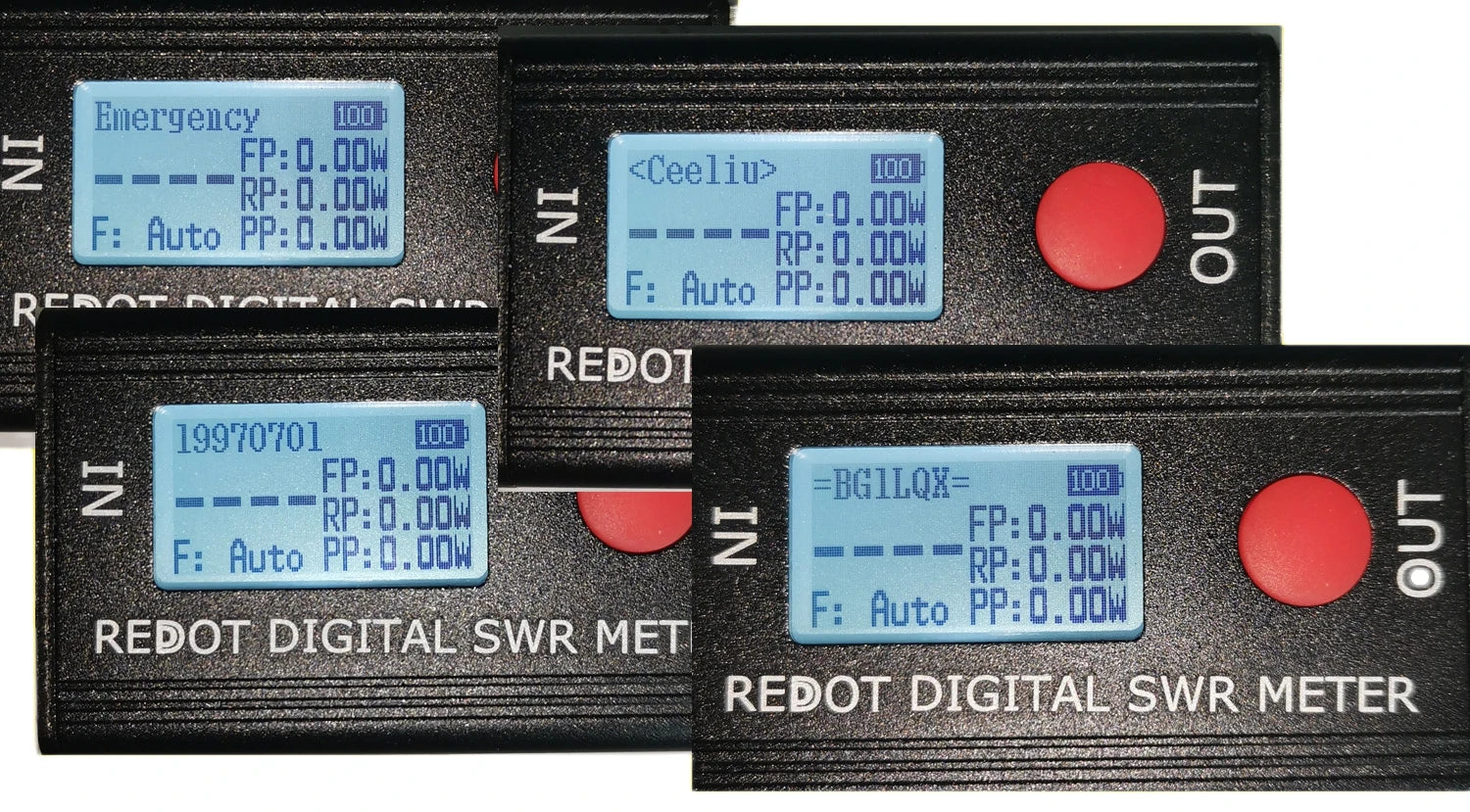

REDOT RD106P Digital SWR Meter SWR&Power Meter 120W FMB VHF UHF80-999MHz Standing-wave Ratio 1.00-99.9 Support DMR Walkie Talkie
REDOT RD106P Digital SWR Meter SWR&Power Meter 120W FMB VHF UHF80-999MHz Standing-wave Ratio 1.00-99.9 Support DMR Walkie Talkie
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /04/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Specification
Frequency range: 80MHz~999MHz
VSWR display: 1.00~99.9
Maximum power: 120W
Power error: <10%
Continuous sampling: 100 times/second
Burst sampling: The leading edge of the signal triggers sampling, and the burst/continuous sampling is automatically converted.
Frequency Compensation: Automatically measure the signal frequency and perform frequency compensation for power conversion.
Sleep and wake up: Sleep after 3 minutes without any operation, and can be woken up by radio frequency or manually.
Display: 128 X 64 LCD screen
Key operation: single key.
RF Interface: N-KF (50 ohms)
TYPEC interface: USB cable charging, 200mA;
Li-ion battery: 3.7V/350mAh
Dimensions: 95X35X26 (mm)
Net weight of single machine: about 120g
Package include
RD106P:
1 x RD106P SWR meter
1 x USB cable
1 x Bag
RD106P kit:
1 x RD106P SWR meter
1 x USB cable
1 x Bag
1 x 5V 1A power adapter
1 x N/M-JK converter
1 x N/M-JJ converter
1 x N/SMA-JK converter
1 x N/SMA-JJ converter
Description
Description
Specification
Frequency range: 80MHz~999MHz
VSWR display: 1.00~99.9
Maximum power: 120W
Power error: <10%
Continuous sampling: 100 times/second
Burst sampling: The leading edge of the signal triggers sampling, and the burst/continuous sampling is automatically converted.
Frequency Compensation: Automatically measure the signal frequency and perform frequency compensation for power conversion.
Sleep and wake up: Sleep after 3 minutes without any operation, and can be woken up by radio frequency or manually.
Display: 128 X 64 LCD screen
Key operation: single key.
RF Interface: N-KF (50 ohms)
TYPEC interface: USB cable charging, 200mA;
Li-ion battery: 3.7V/350mAh
Dimensions: 95X35X26 (mm)
Net weight of single machine: about 120g
Package include
RD106P:
1 x RD106P SWR meter
1 x USB cable
1 x Bag
RD106P kit:
1 x RD106P SWR meter
1 x USB cable
1 x Bag
1 x 5V 1A power adapter
1 x N/M-JK converter
1 x N/M-JJ converter
1 x N/SMA-JK converter
1 x N/SMA-JJ converter
