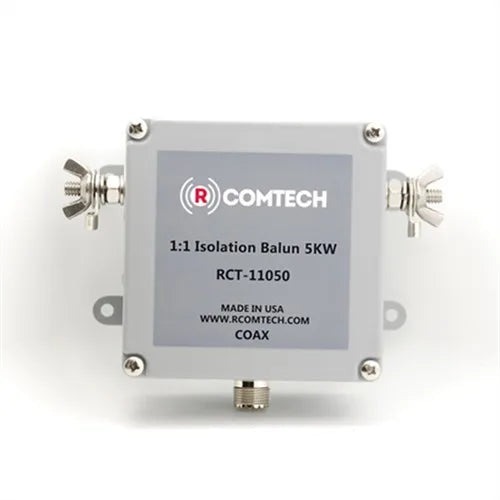

RCOMTECH Balun RCT-11050 1:1 5kW HF Shortwave Current Antenna Balun 1.8-54MHz
RCOMTECH Balun RCT-11050 1:1 5kW HF Shortwave Current Antenna Balun 1.8-54MHz
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
RCOMTECH High-Power Baluns and Transmission Line Transformers let your antenna perform to its fullest potential and reduce the stresses on your equipment. RCOMTECH baluns will deliver the power to your antenna with minimum loss and perform a perfect transition from balanced to unbalanced. This will result in the strongest signal that your antenna is capable of producing consistently with the lowest SWR under given conditions. This results in less stress on your transmitter so that components will last longer and operate better. RCOMTCH baluns exhibit far wider bandwidths than conventional baluns because more of the flux is confined to the immediate vicinity of the core, so much more energy goes to your antenna. Extremely high efficiency is achieved over the entire frequency range.
|
Part Number : |
RCT-11050 |
|

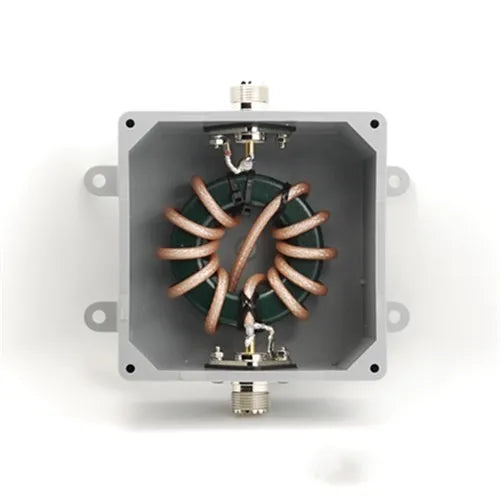

Core Type : |
Outstanding low permeability ferrite mix coated toroid core with special design for maximum bandwidth by Fair-Rite Product |
|
Winding Type : |
Single core/Coaxial |
|
Winding Material : |
Coaxial MIL Spec Cable to MIL-C-17 50 ohm coax including Silver center conductor, PTFE dielectric, Maximum attenuation, and VSWR levels |
|
Ratio : |
1:1 |
|
Power Handling(CW/SSB) : |
5kW / 5kW |
|
Frequency Range : |
1 to 54 MHz |
|
Band of Operation : |
160M - 6M |
|

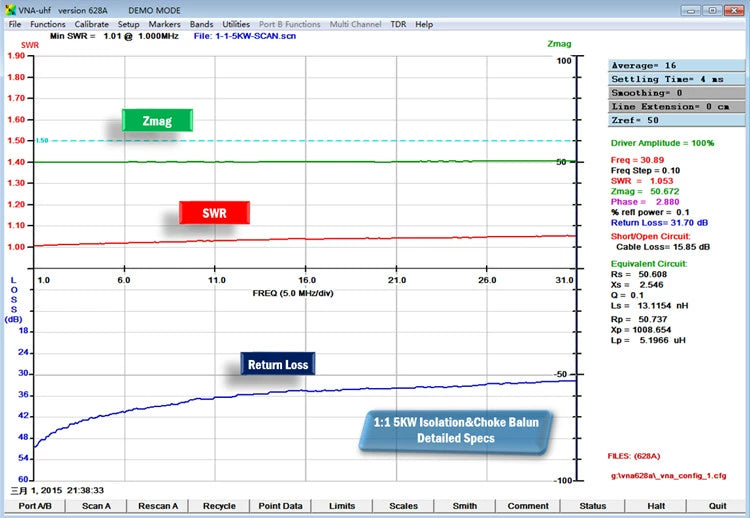

Insertion Loss : |
Less than 0.02db |
|
Termination Impedance : |
50 Ohms |
|
Termination Type : |
1/4-20 Studs/Hex nuts/Wing nuts/Eyebolts |
|
Connectors : |
Gasketed SO-239 connectors are nickel-plated with Teflon insulation (option X silver plated) |
|
Hardware : |
All Stainless Steel |
|
Enclosure Type : |
NEMA rated 4x junction box provide sturdy weatherproof and an additional level of protection against corrosion |
|
Dimensions : |
4 in. x 4 in. x 2 in. |
|
Additional : |
Very high efficiency (98-99%) |
|
Mounting Type : |
Antenna Mounting Options are available in the Accessories section |
|
Warranty : |
Lifetime |
Description
Description
RCOMTECH High-Power Baluns and Transmission Line Transformers let your antenna perform to its fullest potential and reduce the stresses on your equipment. RCOMTECH baluns will deliver the power to your antenna with minimum loss and perform a perfect transition from balanced to unbalanced. This will result in the strongest signal that your antenna is capable of producing consistently with the lowest SWR under given conditions. This results in less stress on your transmitter so that components will last longer and operate better. RCOMTCH baluns exhibit far wider bandwidths than conventional baluns because more of the flux is confined to the immediate vicinity of the core, so much more energy goes to your antenna. Extremely high efficiency is achieved over the entire frequency range.
|
Part Number : |
RCT-11050 |
|
Core Type : |
Outstanding low permeability ferrite mix coated toroid core with special design for maximum bandwidth by Fair-Rite Product |
|
Winding Type : |
Single core/Coaxial |
|
Winding Material : |
Coaxial MIL Spec Cable to MIL-C-17 50 ohm coax including Silver center conductor, PTFE dielectric, Maximum attenuation, and VSWR levels |
|
Ratio : |
1:1 |
|
Power Handling(CW/SSB) : |
5kW / 5kW |
|
Frequency Range : |
1 to 54 MHz |
|
Band of Operation : |
160M - 6M |
|
Insertion Loss : |
Less than 0.02db |
|
Termination Impedance : |
50 Ohms |
|
Termination Type : |
1/4-20 Studs/Hex nuts/Wing nuts/Eyebolts |
|
Connectors : |
Gasketed SO-239 connectors are nickel-plated with Teflon insulation (option X silver plated) |
|
Hardware : |
All Stainless Steel |
|
Enclosure Type : |
NEMA rated 4x junction box provide sturdy weatherproof and an additional level of protection against corrosion |
|
Dimensions : |
4 in. x 4 in. x 2 in. |
|
Additional : |
Very high efficiency (98-99%) |
|
Mounting Type : |
Antenna Mounting Options are available in the Accessories section |
|
Warranty : |
Lifetime |
