RC3563 Battery Internal Resistance Tester Internal Resistance Detector True Four-wire AC Lithium Nickel Chrome Battery Tester
RC3563 Battery Internal Resistance Tester Internal Resistance Detector True Four-wire AC Lithium Nickel Chrome Battery Tester
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
RC3563 battery internal resistance tester, true four-wire AC internal resistance sorter Lead-acid lithium battery UPS test.It supports serial ports and computer software. If you need to connect to a computer, please contact us to get the software.
Features
The battery internal resistance tester can measure the internal resistance and voltage of the battery at the same time. It adopts a Kelvin four-wire test clip, which can better avoid the influence of contact resistance and wire resistance, and can perform more accurate measurements.
This product adopts intelligent control, LCD display, and implanted Kalman filter mathematical algorithm. It has the advantages of high precision, high efficiency, low cost, light weight, energy saving and environmental protection. Built-in 1000mAh lithium battery, 5V charging, Android mobile phone charger can be used, very convenient.

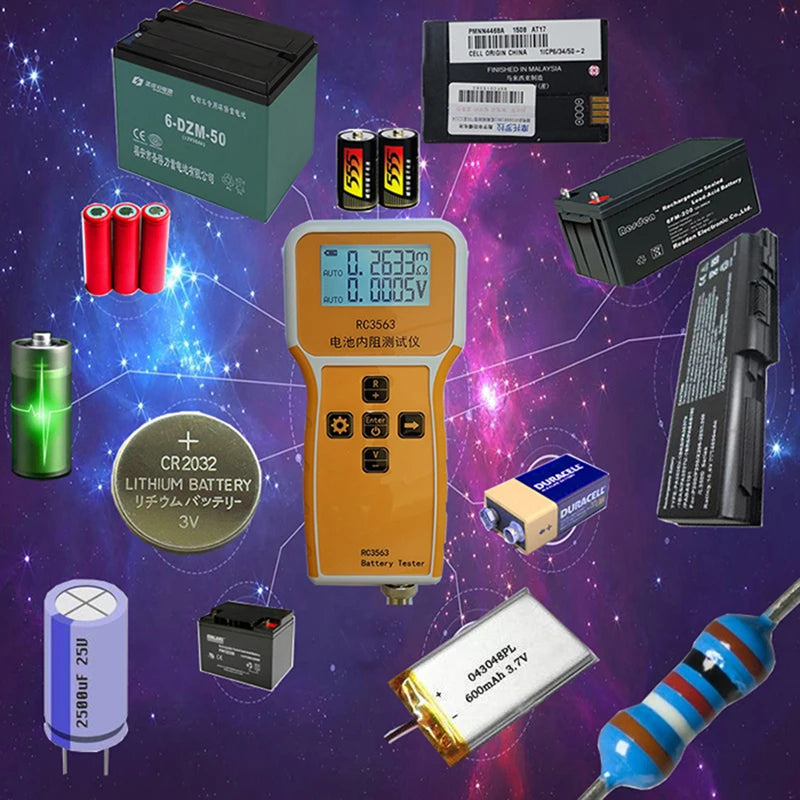

This product is widely used in various battery production, maintenance, testing, scientific research laboratories and other occasions. It can also be used to measure the AC resistance of capacitors and low-resistance high-precision resistance.
Parameters
Test parameters:AC resistance, DC voltage
Measurement accuracy:
Resistance:0.5%
Voltage:0.5%
Measuring range:
Resistance:0.001mΩ ~ 200Ω
Voltage:0.001V ~ ±100VDC
Signal source;
Frequency: AC 1kHz
Current: 2mΩ/20mΩ range 50mA; 200mΩ/2Ω range 5mA; 20Ω/200Ω range 0.5mA
Range:
6 ranges automatic and manual
3 ranges automatic and manual
Test speed:5 times/sec
Correction:
Resistance: each range is individually and manually calibrated without affecting each other
Voltage: each range is individually calibrated manually, and does not affect each other
Factory settings:
Save the factory information, one key can restore the factory state
Energy saving settings:
about 10 minutes delay, automatic shutdown without any operation
Applicable scope:
Cell phone, computer, electric vehicle and other battery maintenance, battery factory inspection and testing

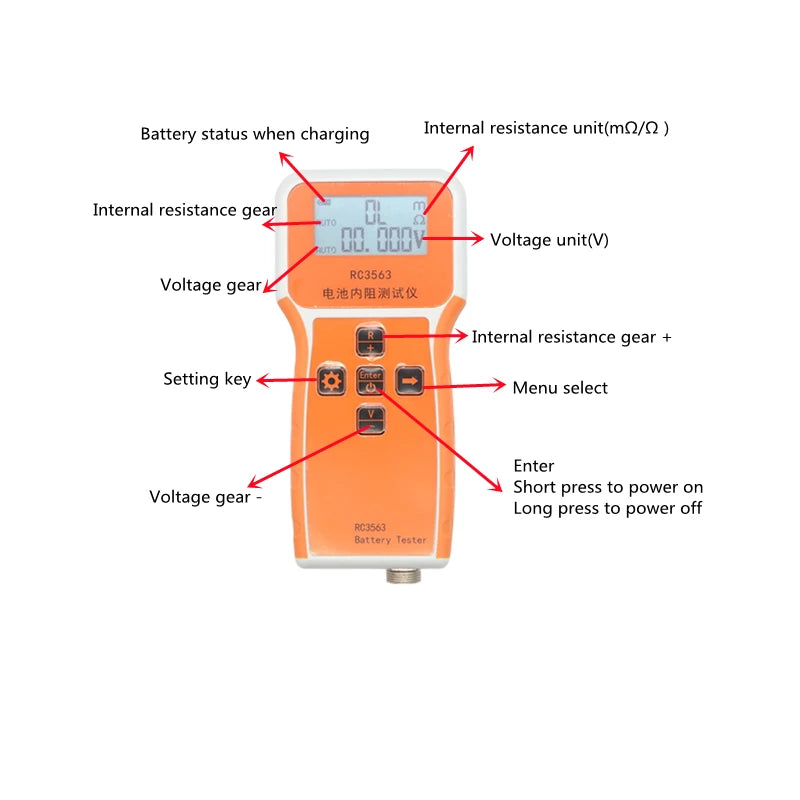

Show results:LCD display
Power supply:Built-in lithium battery, using 5V/1A charger

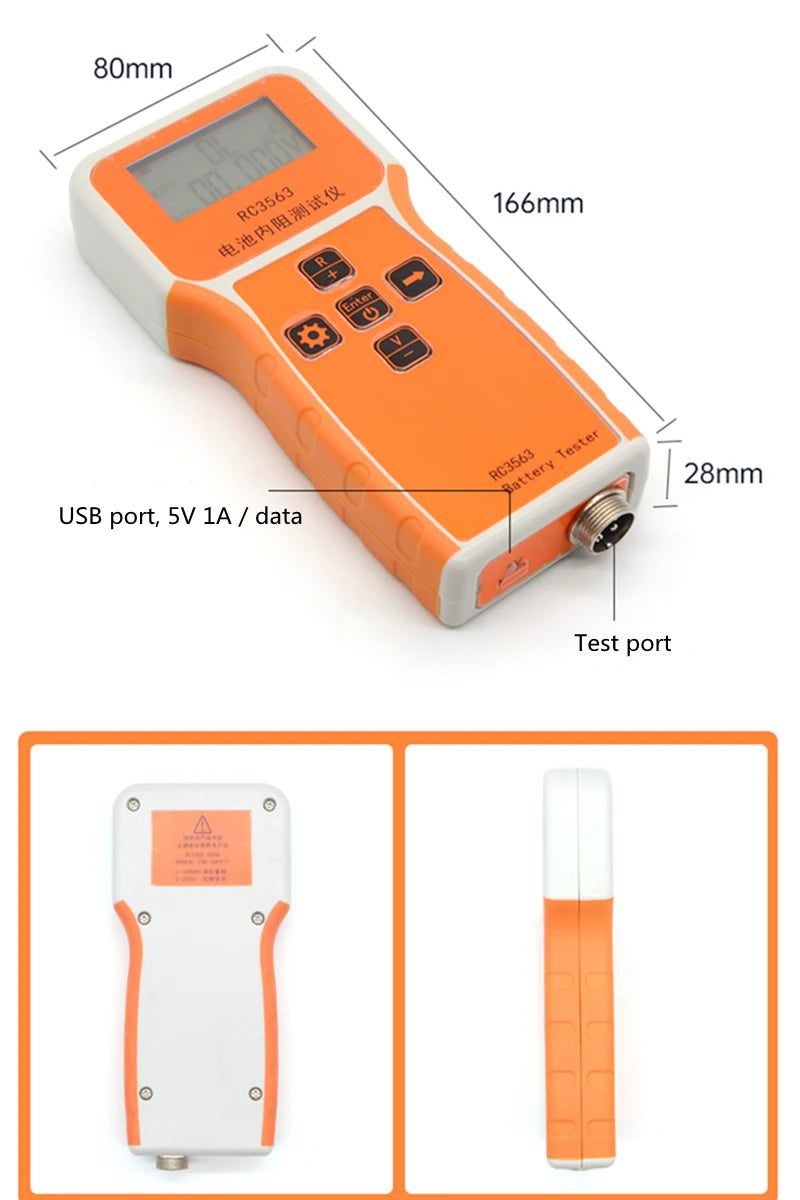

Size:166*80*28mm(L*W*H)
Language:English/Chinese
Interface of PC software

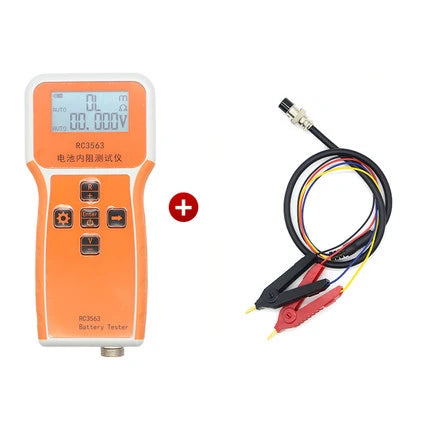

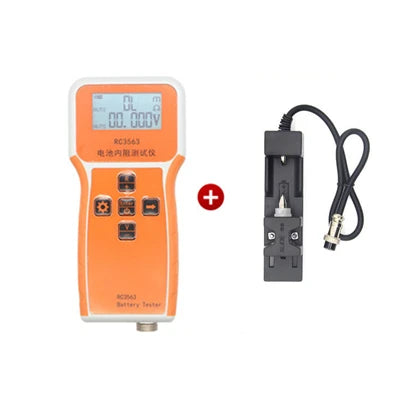

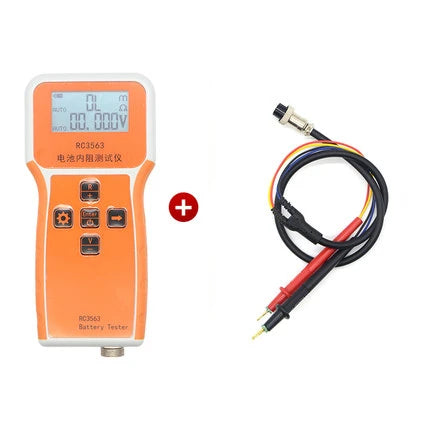

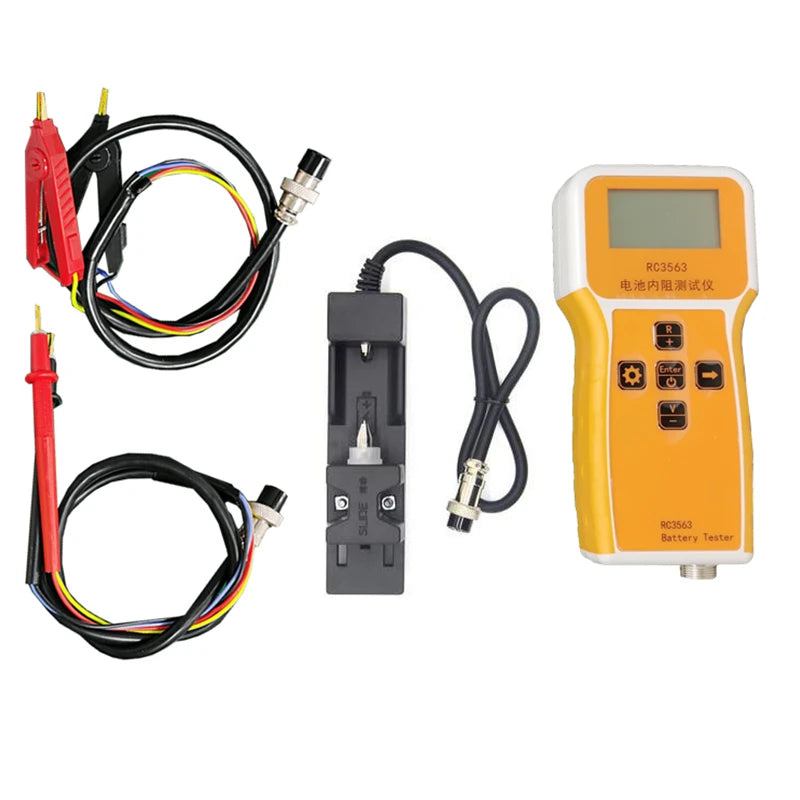

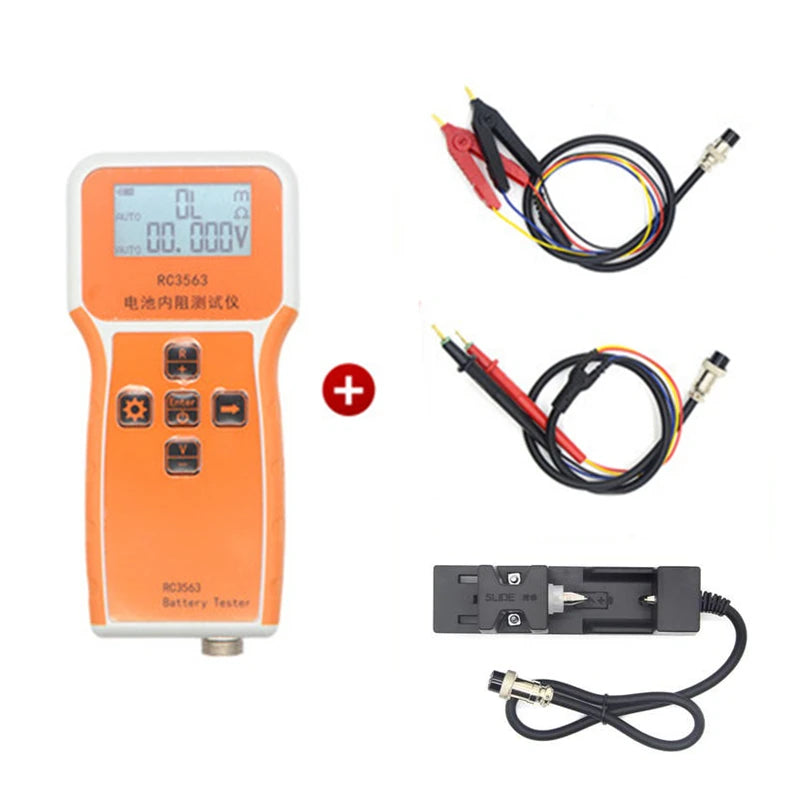

The different of 4 options is the test lead, you will get the lead as you choose. Option 4 include all of the 3pcs leads.

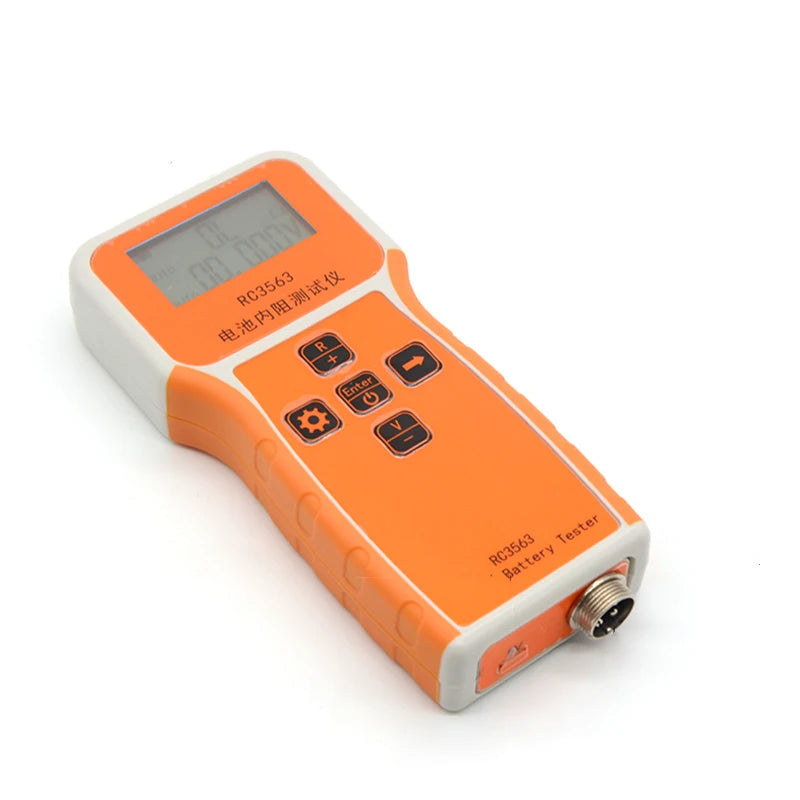

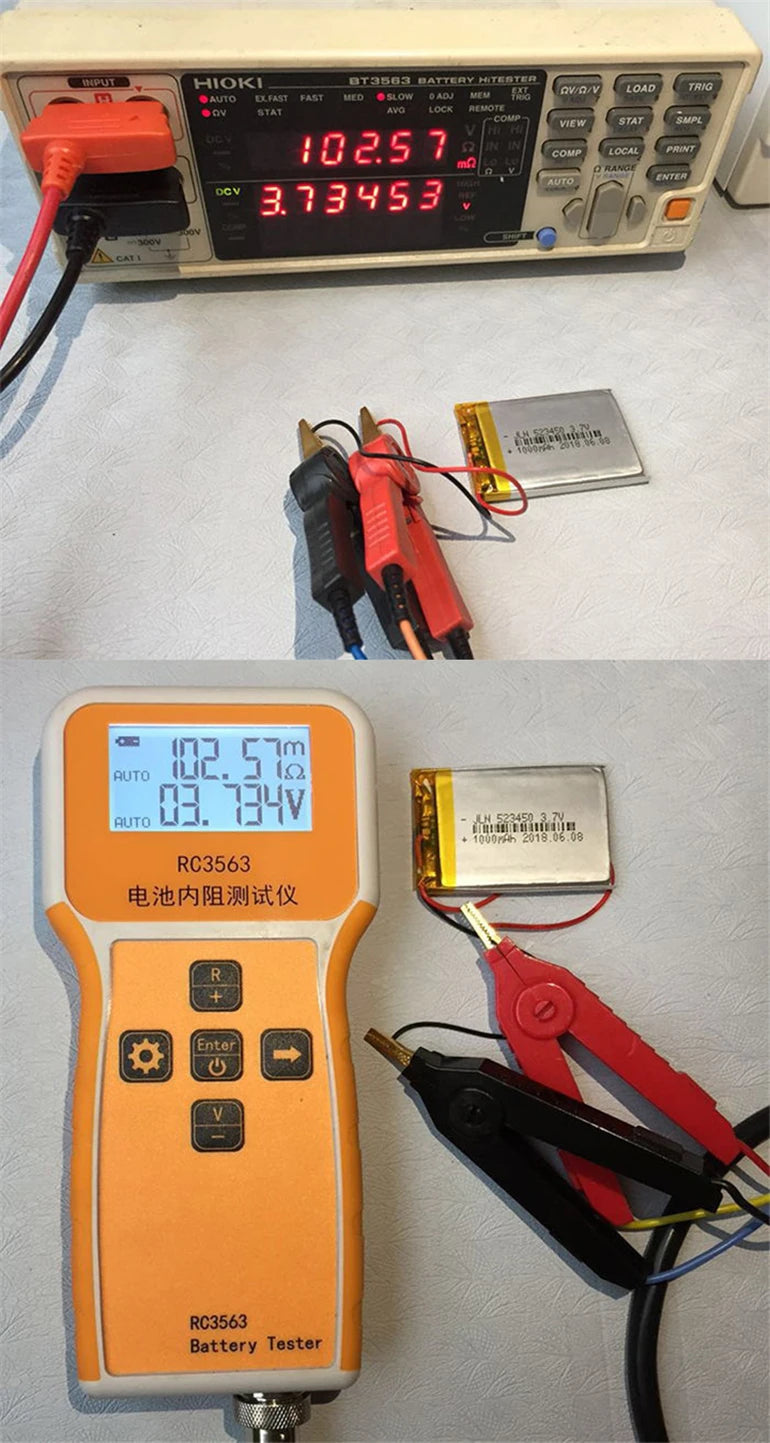

More pictures
Package include
1 x RC3563 tester
1 x USB cable
1 x Test lead( Option D 3x leads)
