Radioberry V2.0 Software Defined Radio Devices AD9866 + 10CL016 For Raspberry PI4B RPI4
Radioberry V2.0 Software Defined Radio Devices AD9866 + 10CL016 For Raspberry PI4B RPI4
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /04/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Test video:
https://www.youtube.com/watch?v=kt7jA0T12E8

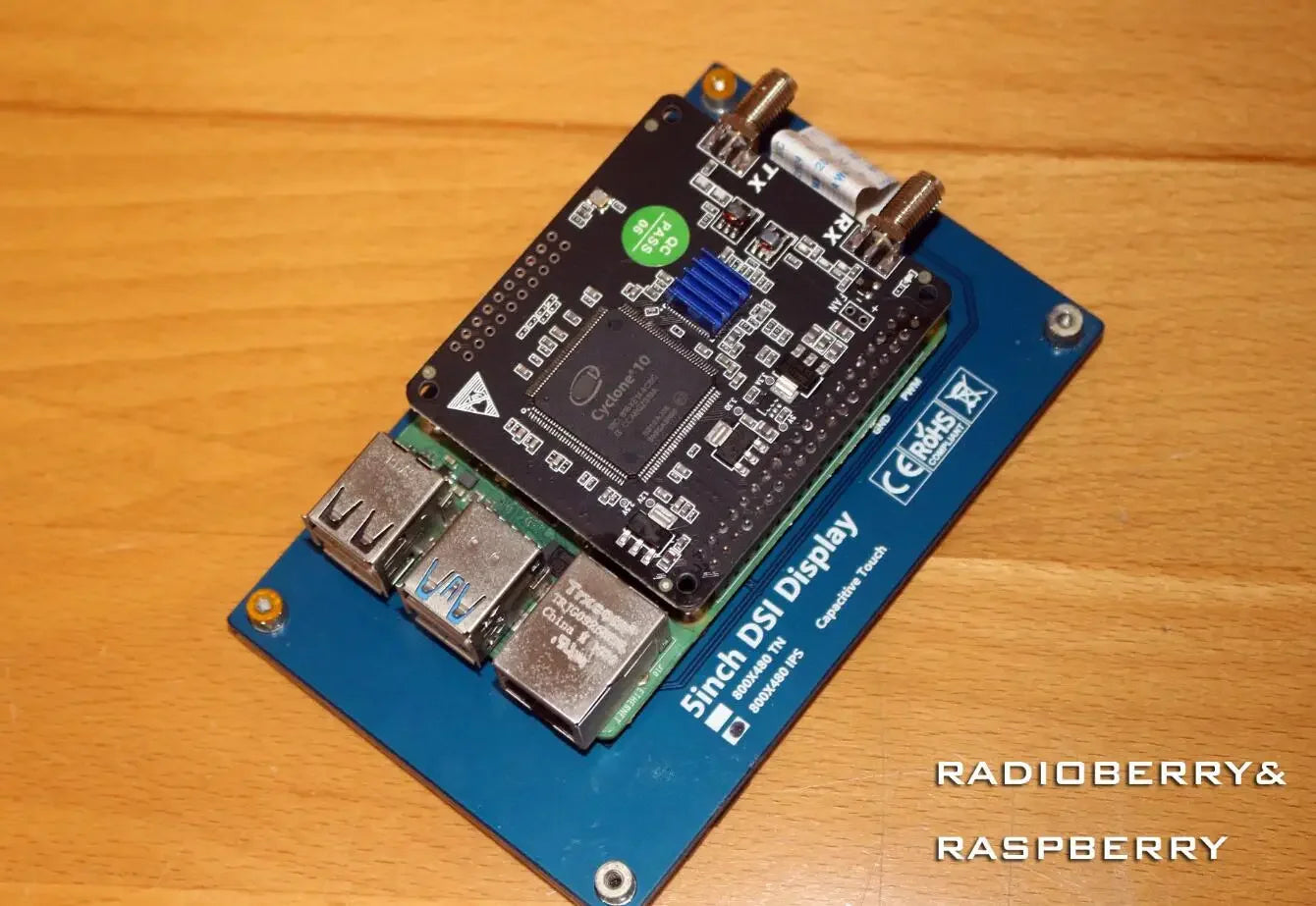

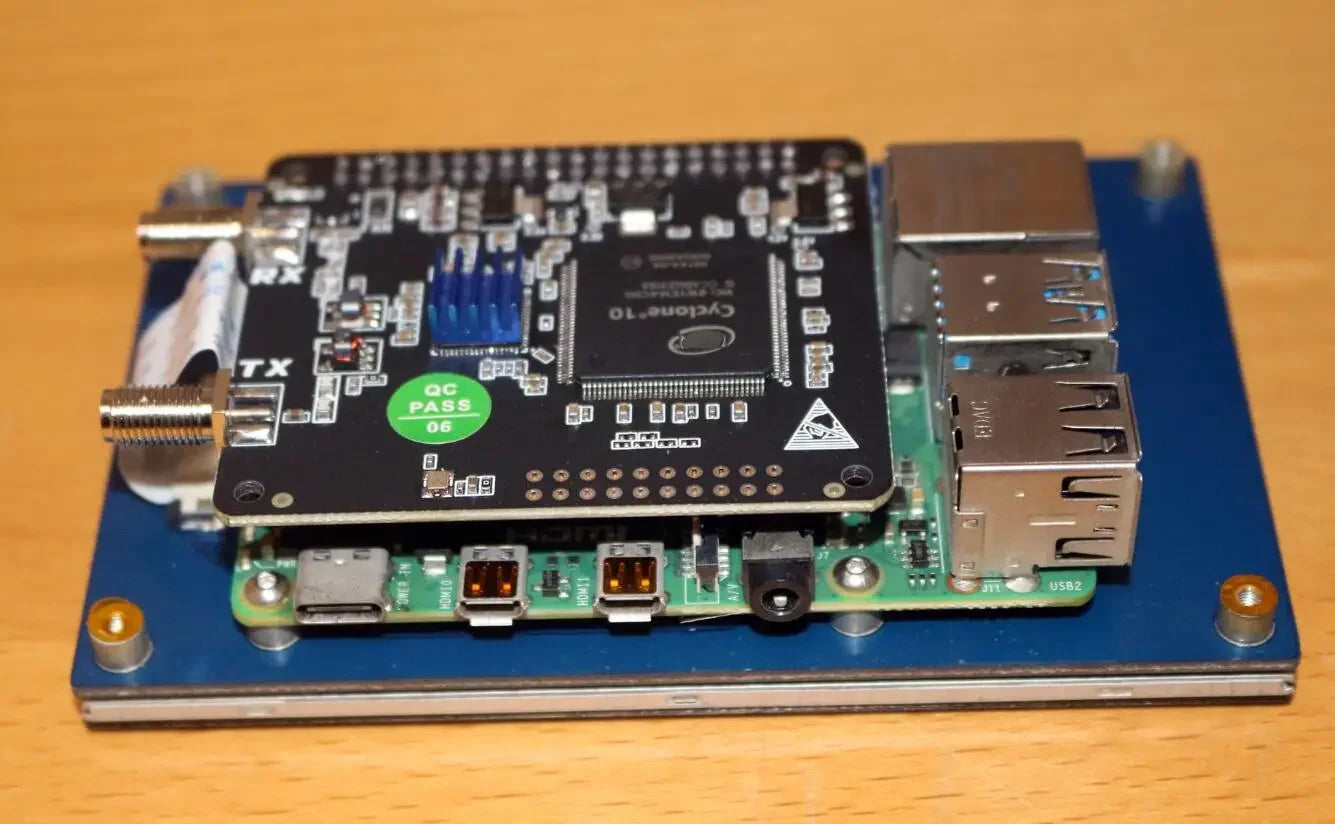

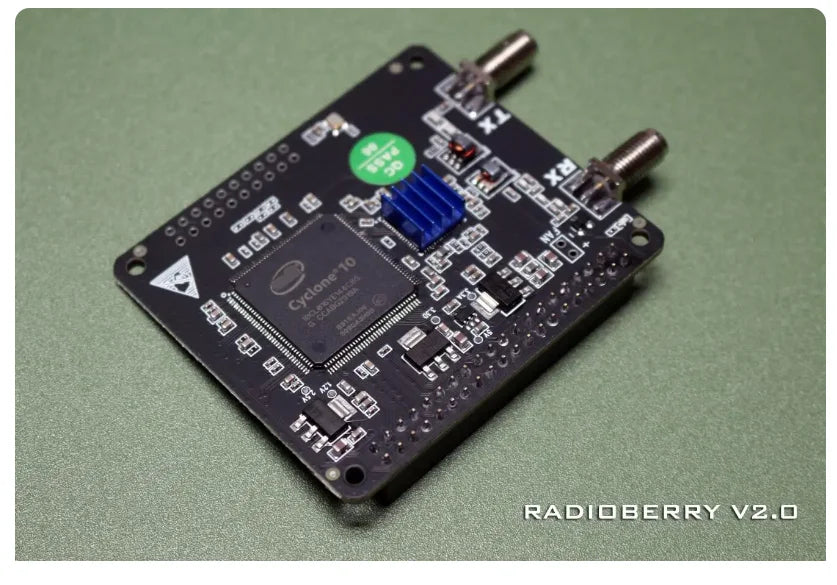

The radioberry is actual a radio card (raspberry pi hat), which can be plugged into a raspberry pi, forming a Software Defined Radio (SDR).
The radio card uses an Analog Devices AD9866 which is a 12-bit broadband modem mixed signal front end that has been repurposed as a direct down conversion (DDC) and direct up conversion (DUC) SDR transceiver covering 0-30 MHz

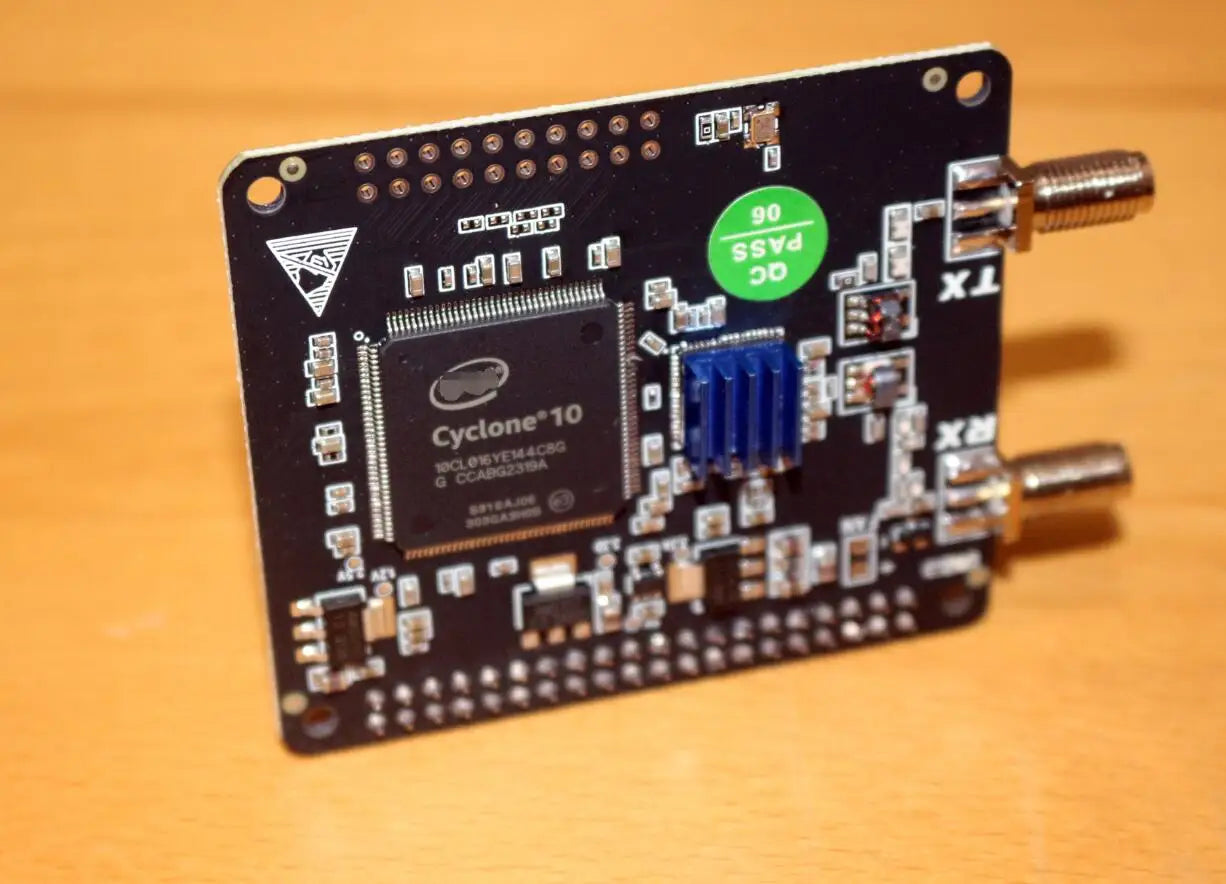

The radio card uses an Intel Cyclone 10CL016 FPGA. The firmware will be loaded via the raspberry pi.
Power supply for the radio card is provided by the raspberry pi.
Note: just one Radioberry Board, without the Raspbery pi and LCD
Description
Description
Test video:
https://www.youtube.com/watch?v=kt7jA0T12E8
The radioberry is actual a radio card (raspberry pi hat), which can be plugged into a raspberry pi, forming a Software Defined Radio (SDR).
The radio card uses an Analog Devices AD9866 which is a 12-bit broadband modem mixed signal front end that has been repurposed as a direct down conversion (DDC) and direct up conversion (DUC) SDR transceiver covering 0-30 MHz
The radio card uses an Intel Cyclone 10CL016 FPGA. The firmware will be loaded via the raspberry pi.
Power supply for the radio card is provided by the raspberry pi.
Note: just one Radioberry Board, without the Raspbery pi and LCD
