product description:

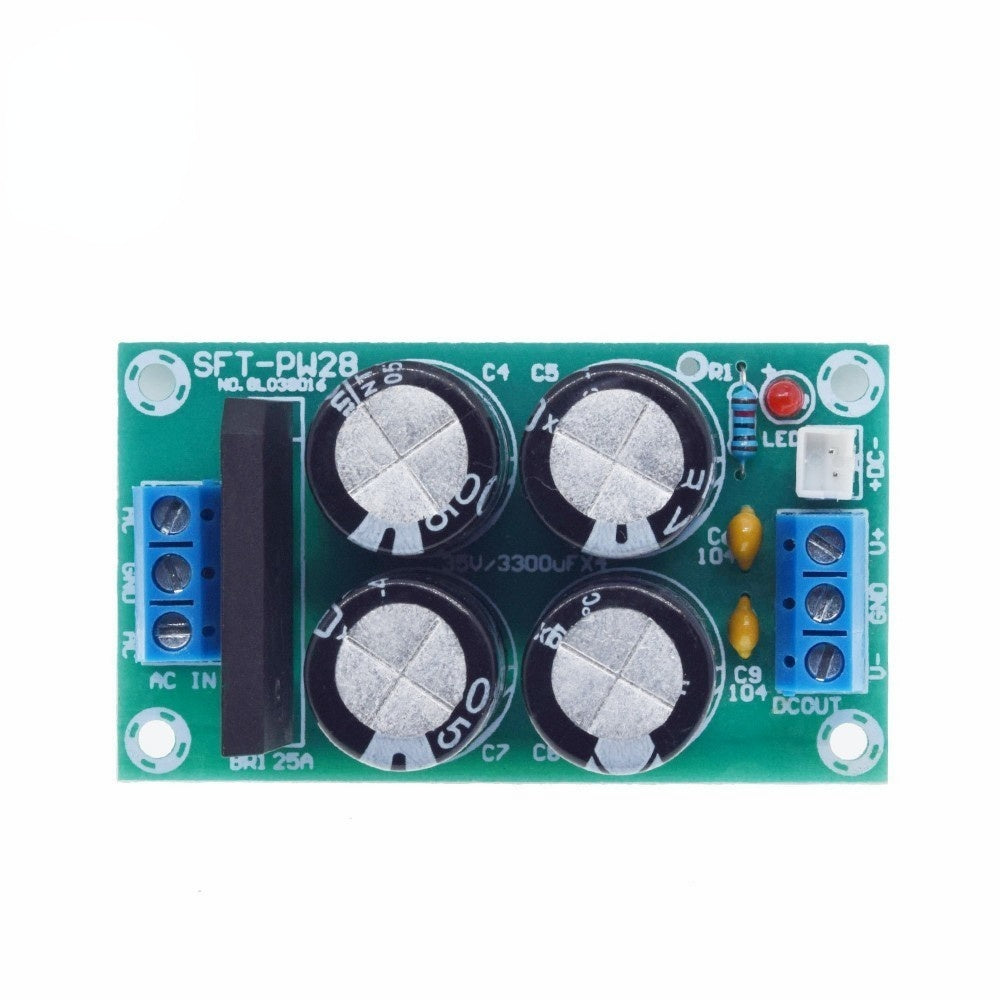

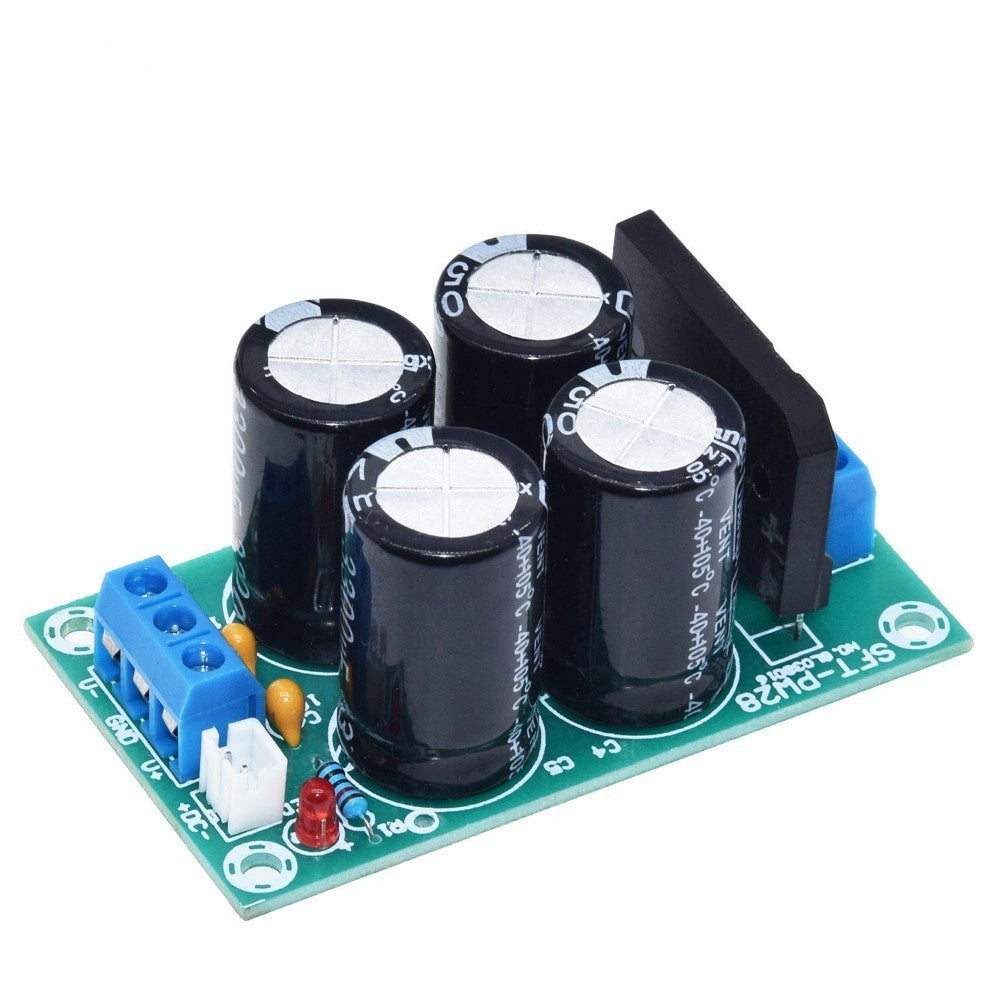

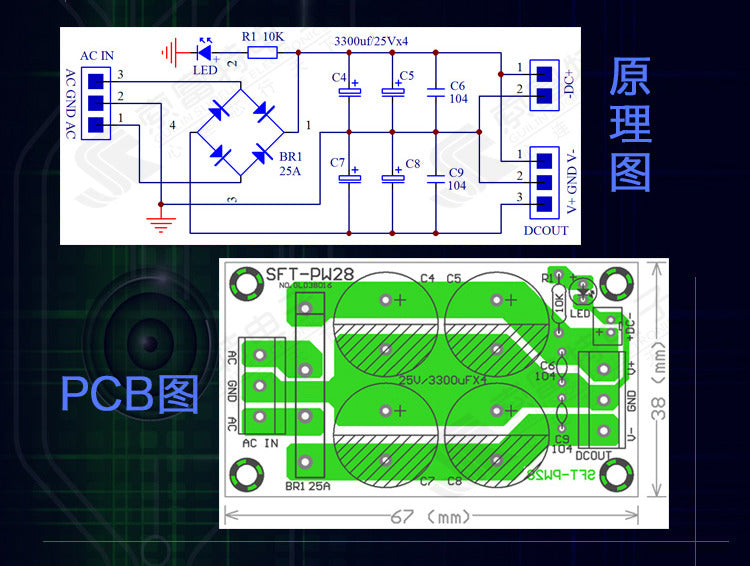

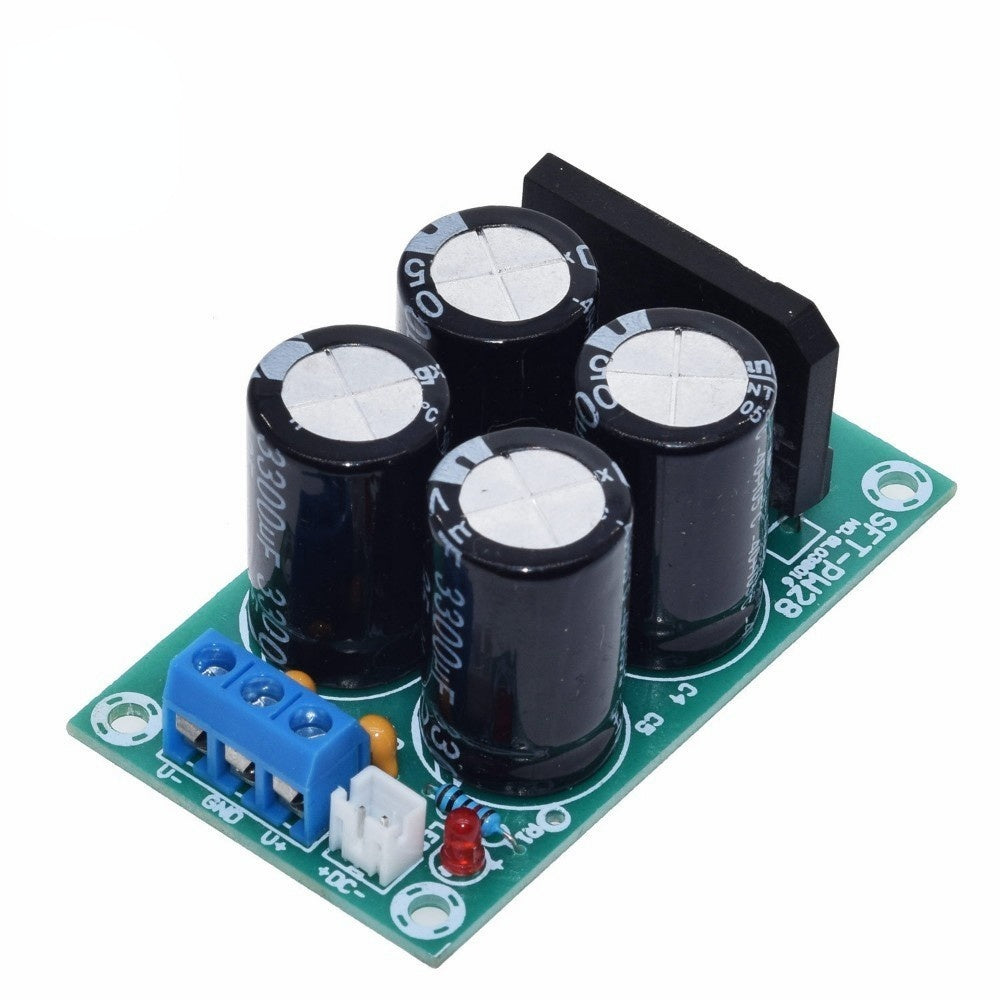

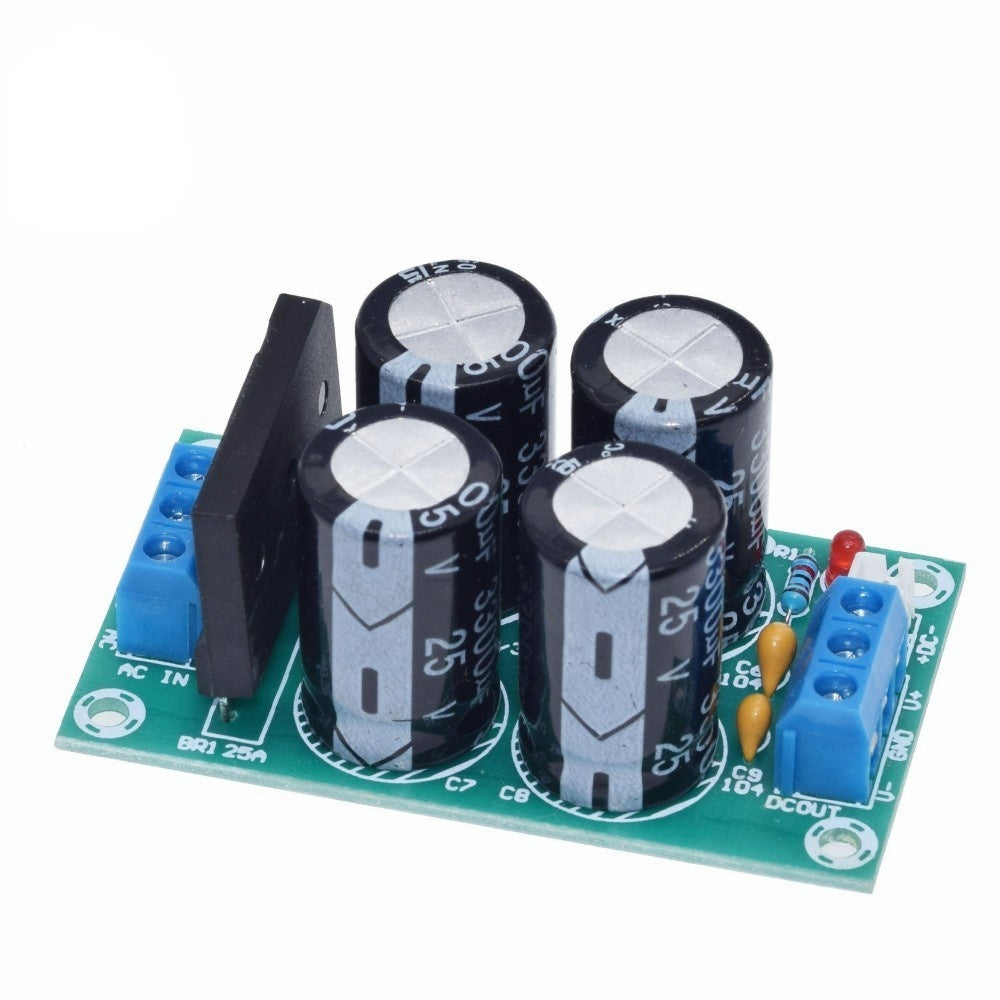

The rectifier filter board using ultra-high current 25A rectifier bridge,
the two-way AC full-wave rectifier into dual direct current, using four
3300uf / 25V large capacitor to do filtering, 104 monolithic capacitors
do decoupling, effectively suppress the AC clutter, Of the DC is
more pure, as a dual power amplifier, can be used for LM1875,
TDA2030, TDA7294, LM3886 and other low-power amplifier.
Input voltage: Dual AC AC9-17V
Output voltage: double DC DC ± 12V-24V
Flat bridge parameters: 25A

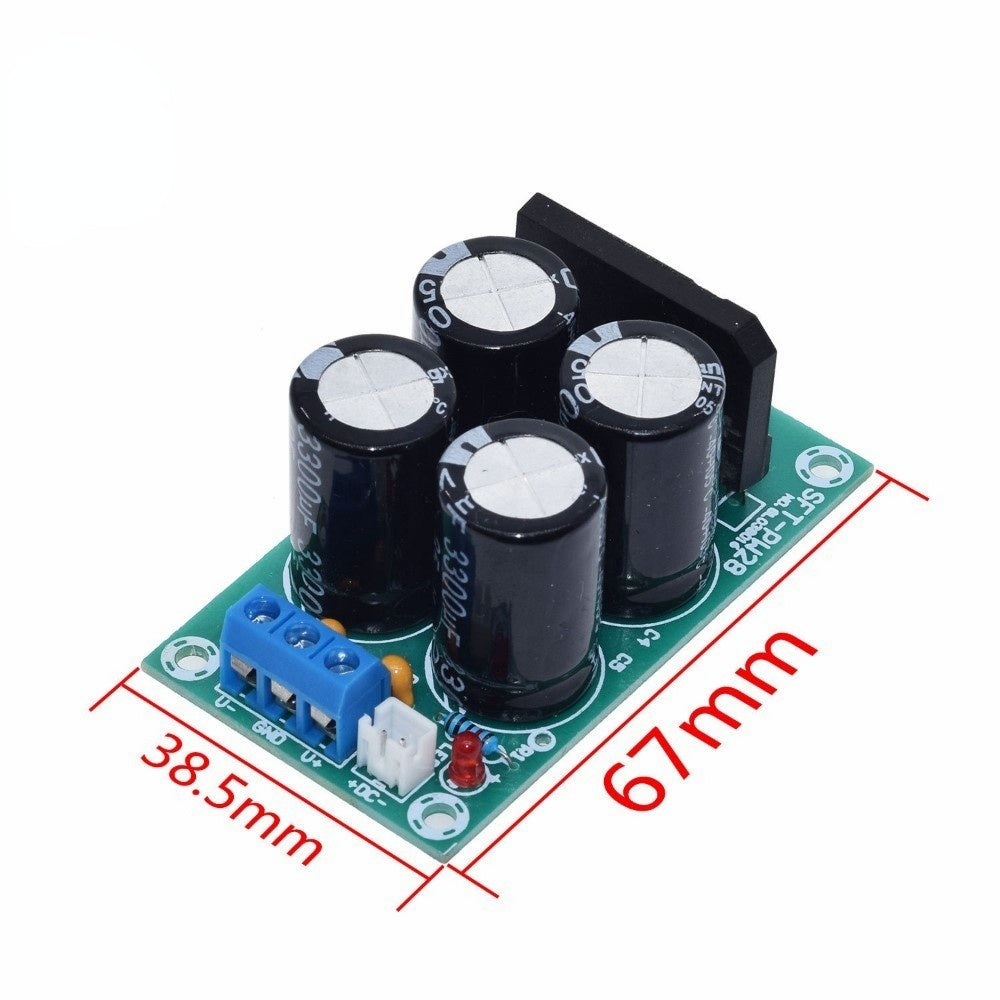

Size: 67 * 38 * 28MM
