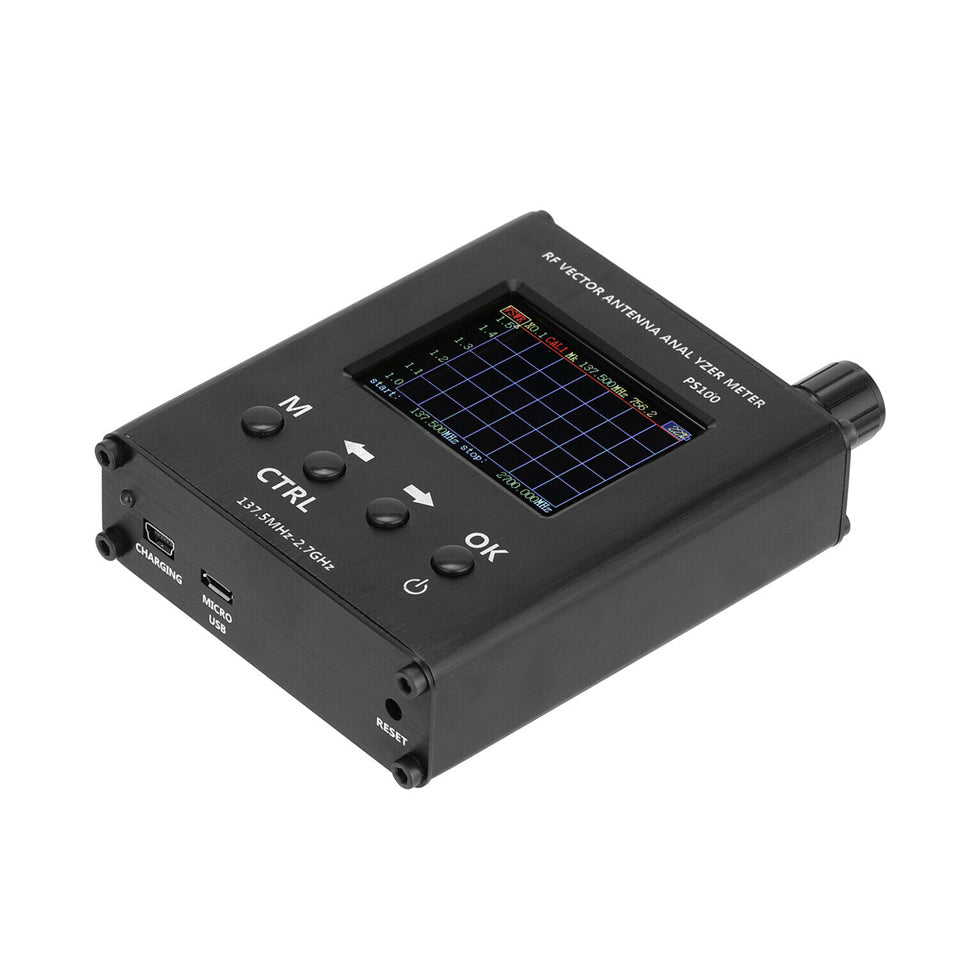

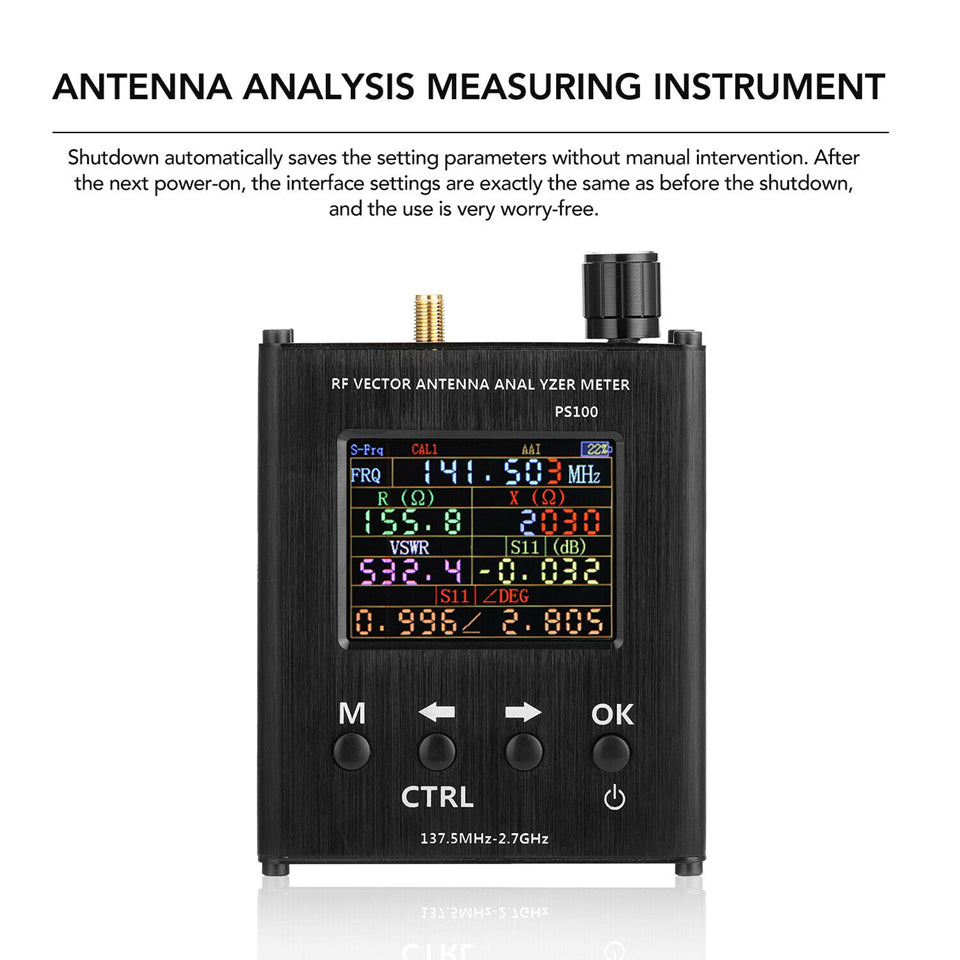

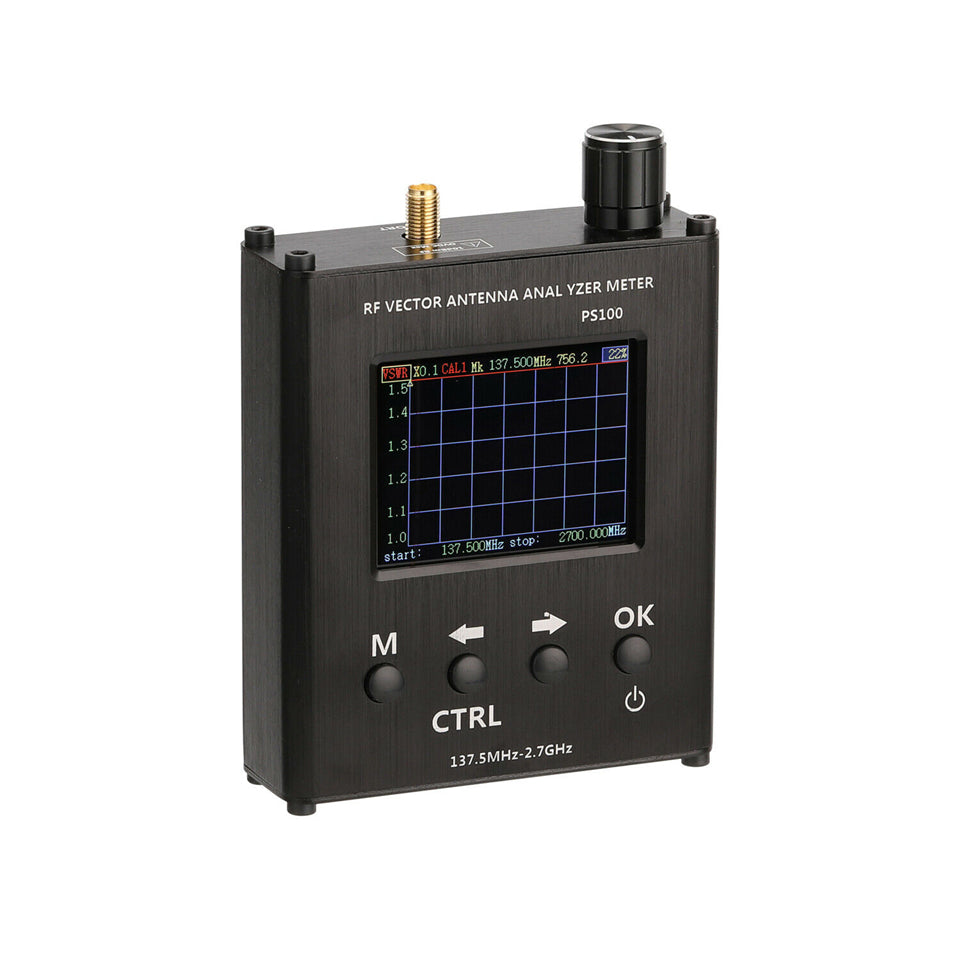

New Verison PS100 140MHz-2.7GHz UV RF Vector Impedance ANT SWR with Inner Battery Antenna Analyzer Tester
New Verison PS100 140MHz-2.7GHz UV RF Vector Impedance ANT SWR with Inner Battery Antenna Analyzer Tester
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /07/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
PS100 137.5MHz-2.7GHz UV RF Vector Impedance ANT SWR Antenna Analyzer Meter Tester
Description:
- Measured Parameters: Impedance, reactance, SWR and S11
- Resolution: 4-digit readings
- Frequency Accuracy: <±10ppm
- Connector: SMA-K
- Impedance Measurement Range: 1Ω~1000Ω @frequency < 1300MHz; 1Ω~300Ω @frequency >1300MHz (Impedance Absolute Value)
- Standing Wave Measurement Range: 1~65 @frequency < 1300MHz; 1~10 @frequency >1300MHz
- S11(dB)Measurement Range: 0dB to -50dB
- Error (Single-point measurement): For Impedance: < Impedance absolute value x 5%±0.1Ω (Z<200Ω, <1.5GHz) For Standing Wave: < Effective readings x 10%±0.1 For S11: 0.1dB/5° (0dB to -10dB) For (dB/°): 1dB/10° (-10dB to -20dB); 5dB/20° (-20dB to -40dB)
- Directivity: < 35dB (140MHz to 2GHz after calibration); < 30dB (2GHz to 2.7GHz)
- Scanning Points: 280
- Output Level: -18dBm
- Working Temperature: 0℃ to 40℃
- Atmospheric Pressure: 860hPa~1060hPa

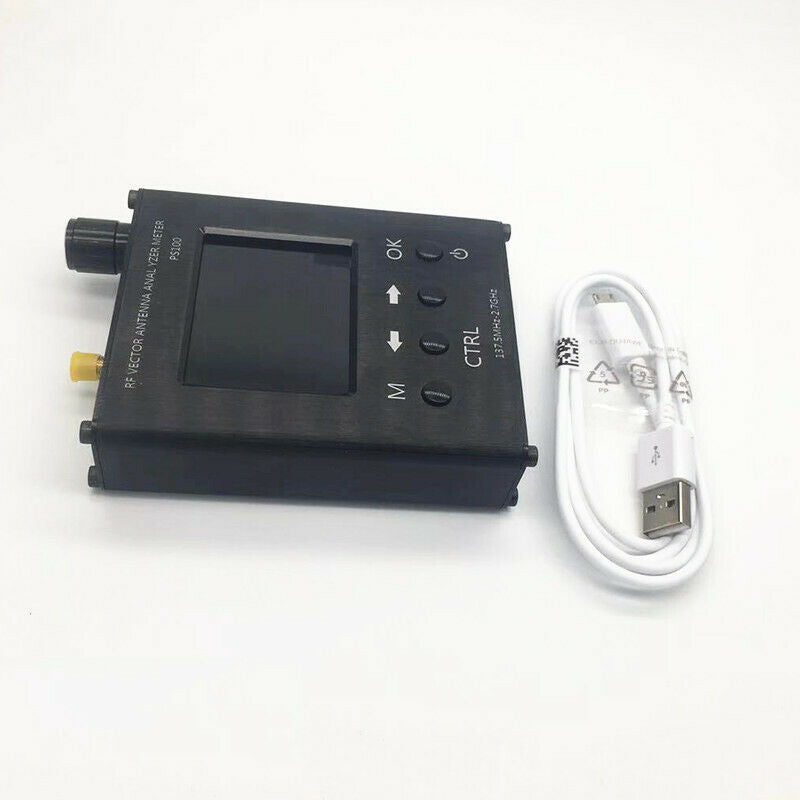

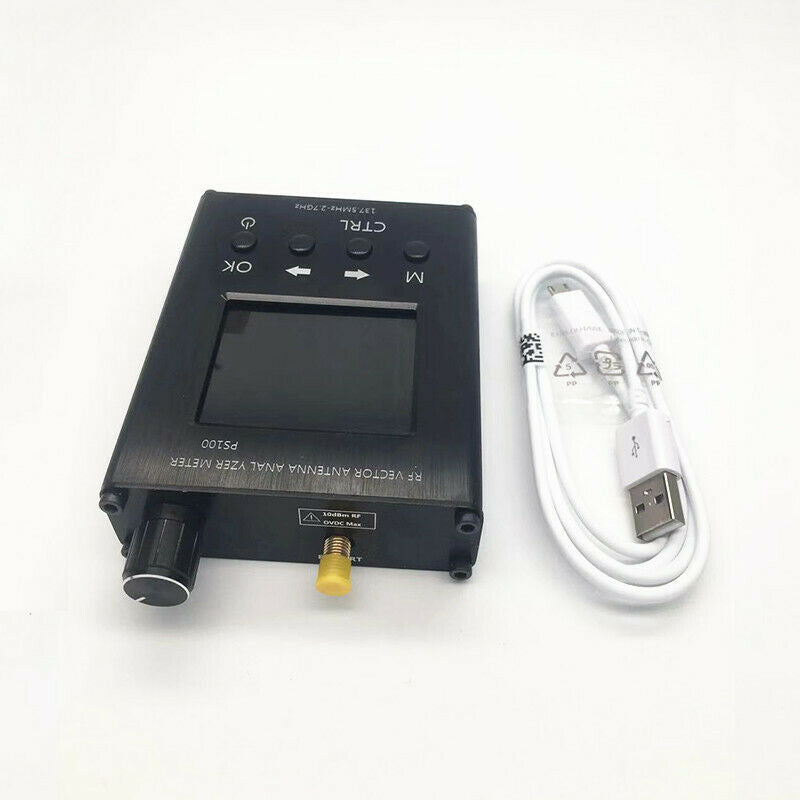

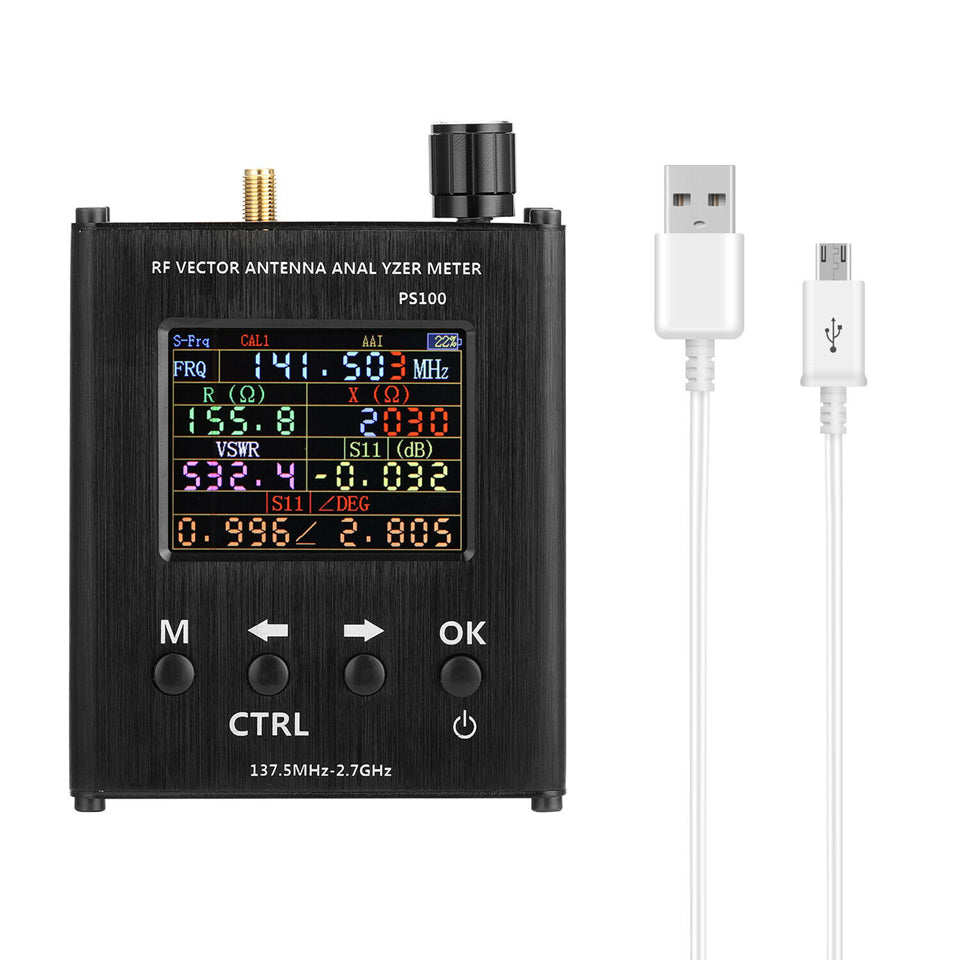

Shipping List :
PS100 X 1
Cable X 1
English manual X 1
Description
Description
PS100 137.5MHz-2.7GHz UV RF Vector Impedance ANT SWR Antenna Analyzer Meter Tester
Description:
- Measured Parameters: Impedance, reactance, SWR and S11
- Resolution: 4-digit readings
- Frequency Accuracy: <±10ppm
- Connector: SMA-K
- Impedance Measurement Range: 1Ω~1000Ω @frequency < 1300MHz; 1Ω~300Ω @frequency >1300MHz (Impedance Absolute Value)
- Standing Wave Measurement Range: 1~65 @frequency < 1300MHz; 1~10 @frequency >1300MHz
- S11(dB)Measurement Range: 0dB to -50dB
- Error (Single-point measurement): For Impedance: < Impedance absolute value x 5%±0.1Ω (Z<200Ω, <1.5GHz) For Standing Wave: < Effective readings x 10%±0.1 For S11: 0.1dB/5° (0dB to -10dB) For (dB/°): 1dB/10° (-10dB to -20dB); 5dB/20° (-20dB to -40dB)
- Directivity: < 35dB (140MHz to 2GHz after calibration); < 30dB (2GHz to 2.7GHz)
- Scanning Points: 280
- Output Level: -18dBm
- Working Temperature: 0℃ to 40℃
- Atmospheric Pressure: 860hPa~1060hPa
Shipping List :
PS100 X 1
Cable X 1
English manual X 1
