PCB Antenna 1.5GHz Inmarsat Antenna 1550MHz
Description:
l Brand new and high quality

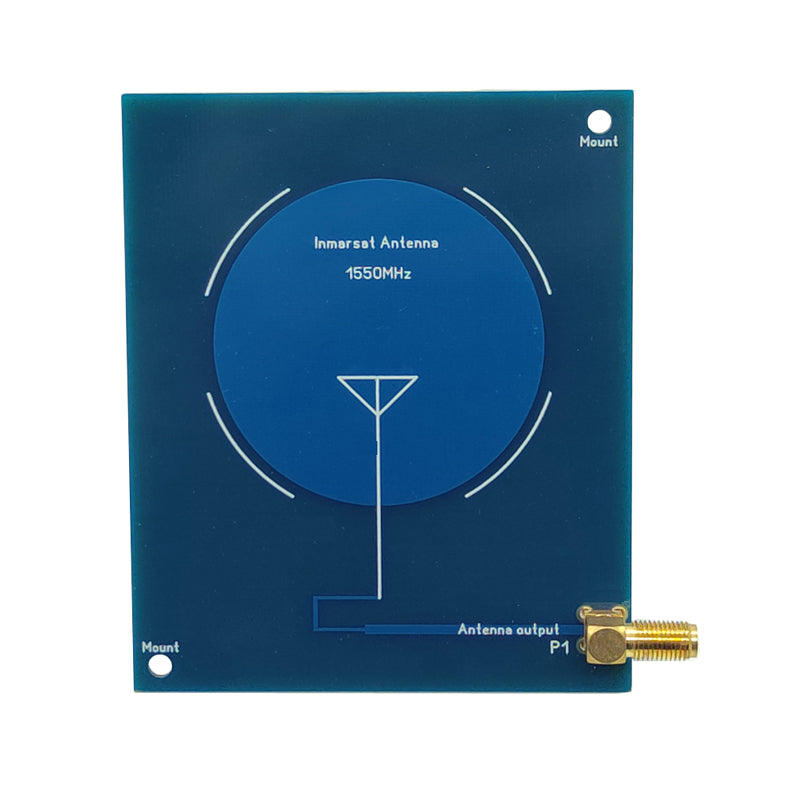

l PCB Patch antenna for Inmarsat L-band application (Inmarsat AERO / STD-C) and satellites on 1550 Mhz.
l The antenna is delivered with female SMA connector soldered on the PCB.
l The antenna works equally well for right circular polarization (RHCP) and linear signals, over the entire frequency range of Inmarsat.

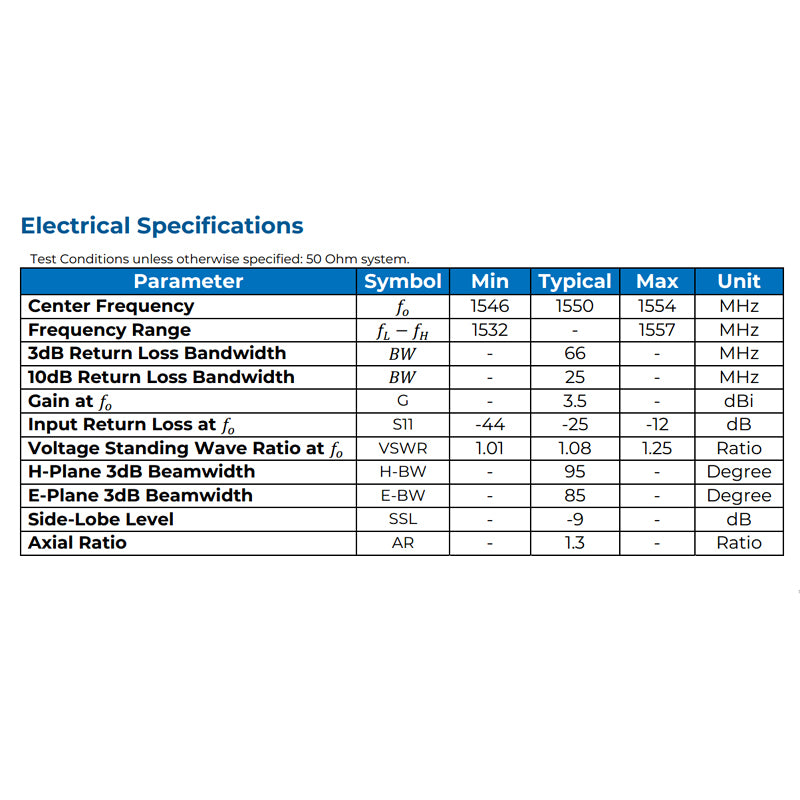

Specification:
l Connector: SMA female
l Center frequency: 1550 MHz
l Bandwidth: 66 MHz
l Type: Patch Gain: 3.5dBi
l Impedance: 50 ohms
l Dimensions: approx. 95mm x 79mm
l Weight: 20g
Package:
l 1x PCB Antenna 1.5GHz Inmarsat_antenna 1550MHz
Description
Description
PCB Antenna 1.5GHz Inmarsat Antenna 1550MHz
Description:
l Brand new and high quality
l PCB Patch antenna for Inmarsat L-band application (Inmarsat AERO / STD-C) and satellites on 1550 Mhz.
l The antenna is delivered with female SMA connector soldered on the PCB.
l The antenna works equally well for right circular polarization (RHCP) and linear signals, over the entire frequency range of Inmarsat.
Specification:
l Connector: SMA female
l Center frequency: 1550 MHz
l Bandwidth: 66 MHz
l Type: Patch Gain: 3.5dBi
l Impedance: 50 ohms
l Dimensions: approx. 95mm x 79mm
l Weight: 20g
Package:
l 1x PCB Antenna 1.5GHz Inmarsat_antenna 1550MHz
