PAX100 RF Power Amplifier 100W AMP Portable For Xiegu G90 G90S X5105 PTT ICOM IC-705

PAX100 is a mini RF power amplifier DIY kit using MOSFETS and is specially designed for Xiegu G90 and X5105 radios. It can achieve 100W power output with an input power under 10W. The design is extremely compact and light-weight. Nothing like it is available in its power vs. size rating.

What's New?

• Upgraded red PCB board & protective case

• Upgraded fuse box for the power cord

• Better soldering design

New Available Accessories:

• 1. Radioddity LPFX7 low pass filter (plug and play | full-band low pass filter)

• 2. Radioddity LPMX2-1 & LPMX2-2 filter model DIY kits (need to be soldered by yourself)

Up to 100W Power Output This amp is capable of up to 100W output on 20 meters and below. 70 watts is typical in the higher bands. The amplifier connects to the G90 or X5105 to perform RX/TX switching. It uses two inexpensive 55-watt IRF 350’s as the final amplifier devices.	Specially Built for Xiegu G90 & X5105 Radioddity PAX100 is specially designed for Xiegu G90 & Xiegu X5105. It covers the 3 MHz～30MHz frequency range and modes including A1A (CW), J3E (SSB), A3E (AM), F3E (FM), F7M (C4FM), F1B (FSK).	Solid Material & Accessories The PCB uses a double-layer immersion gold finish providing long and stable operational life.  It comes with an XT60 power supply connector which can easily handle its max current draw. Any type of power connector can be mated to it. Since it uses gold-plated SMA connectors, it comes with input and output adapter cables to male and female PL-259/PL-239 connectors. We also provide the PTT trigger cable. It can be used with ours and many other QRP radios.

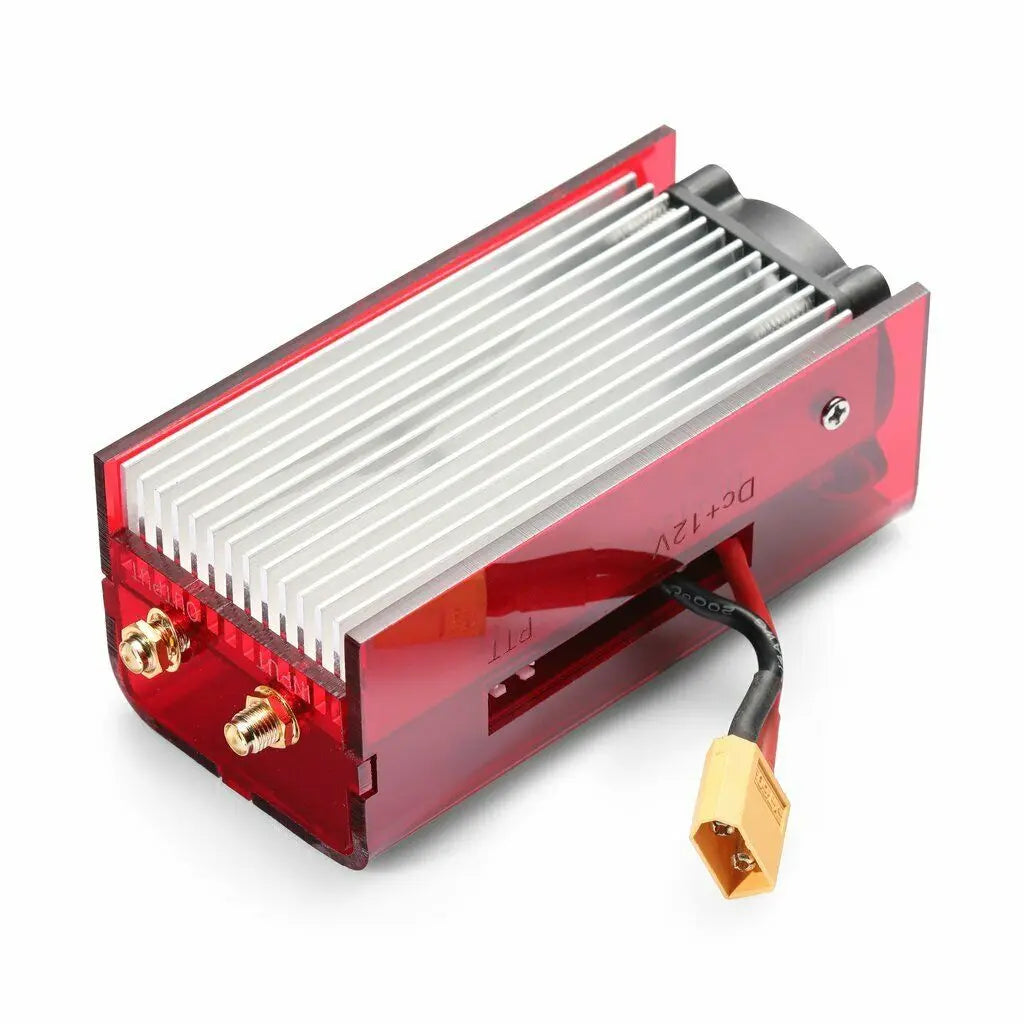

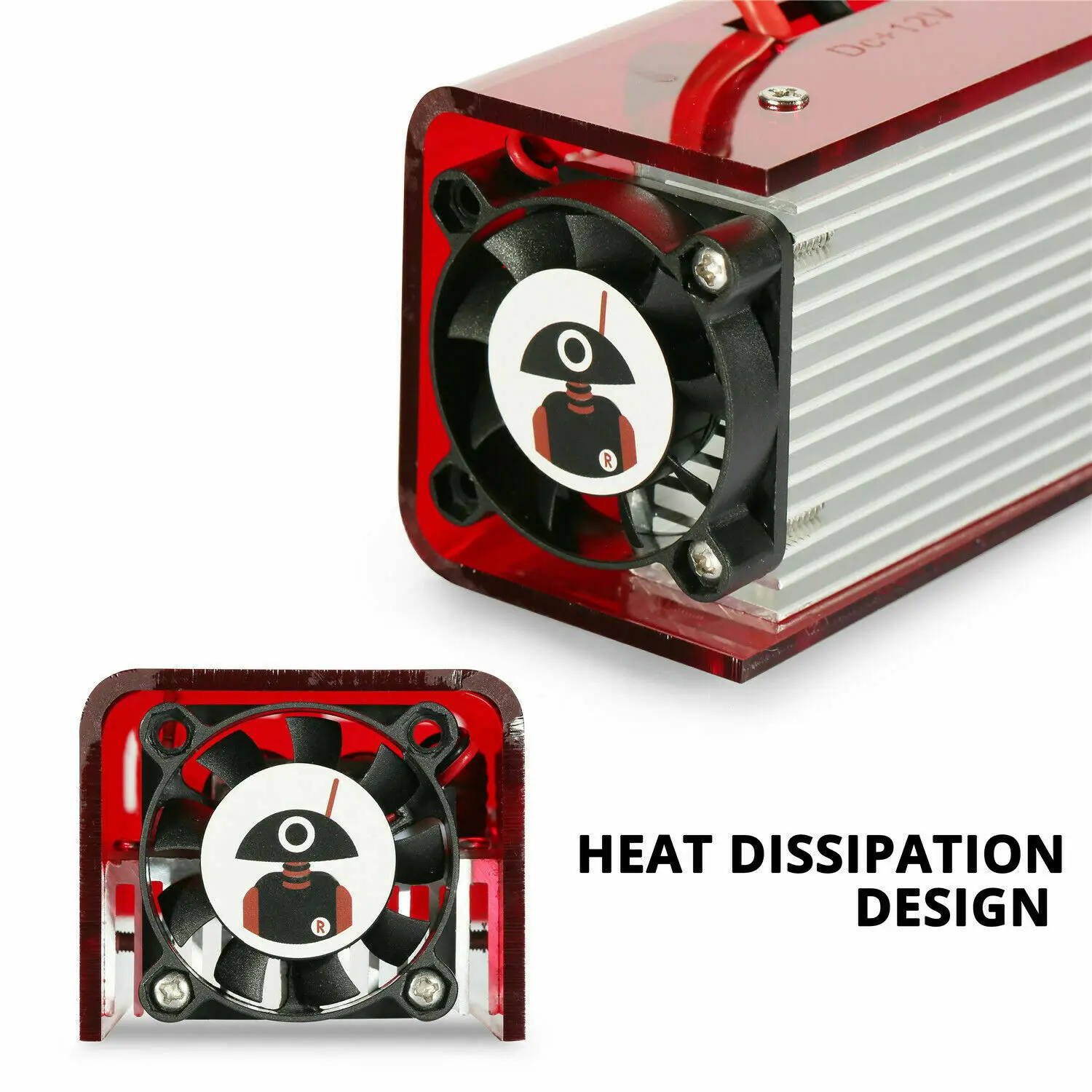

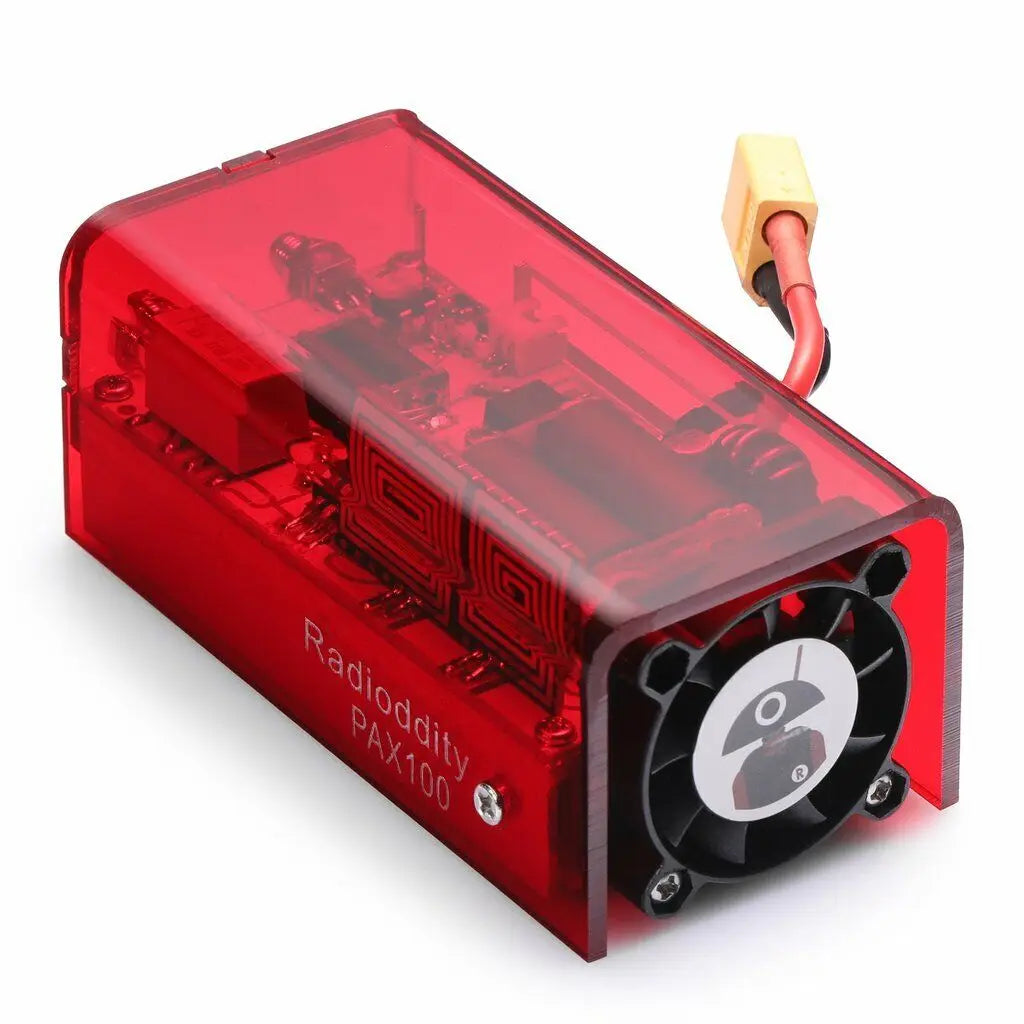

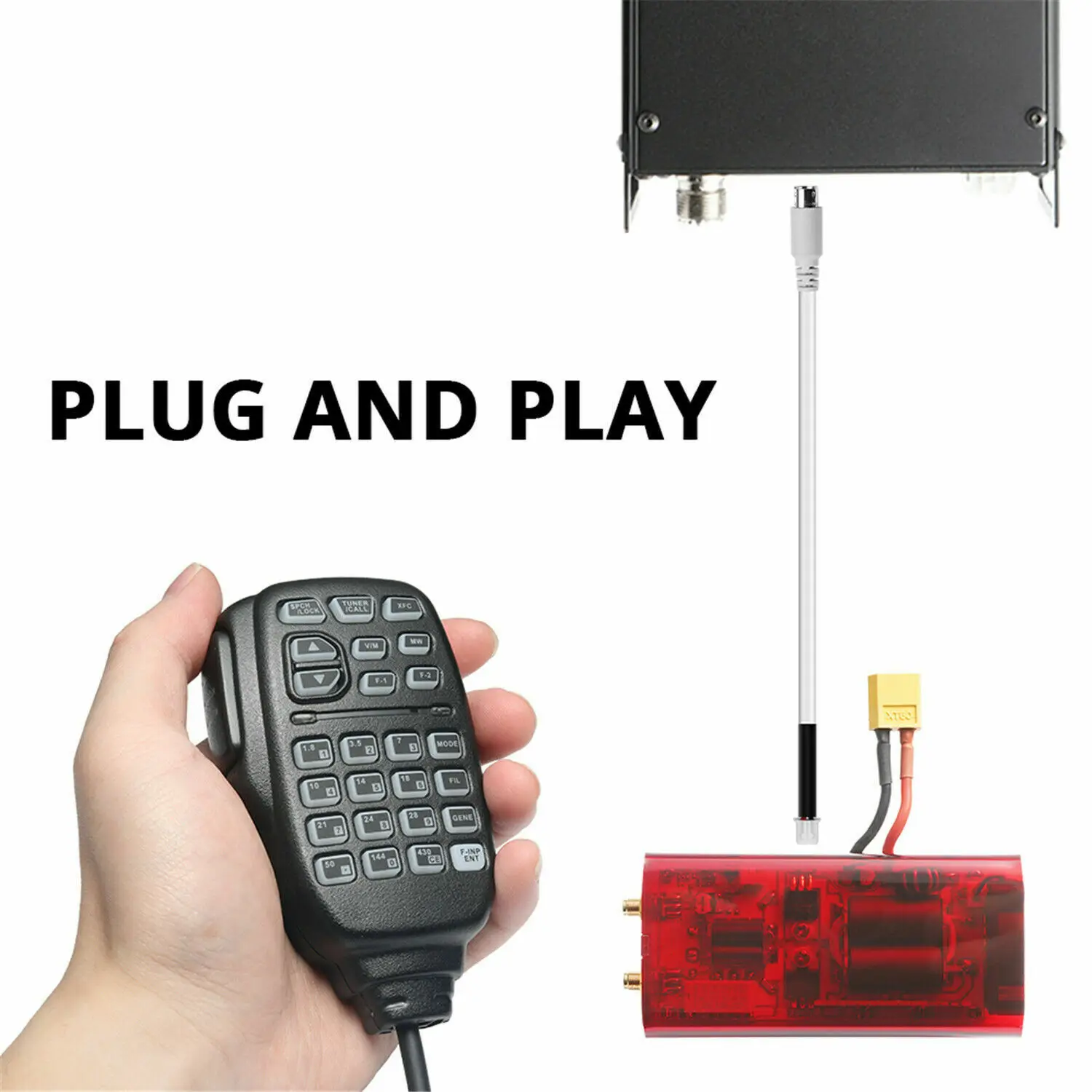

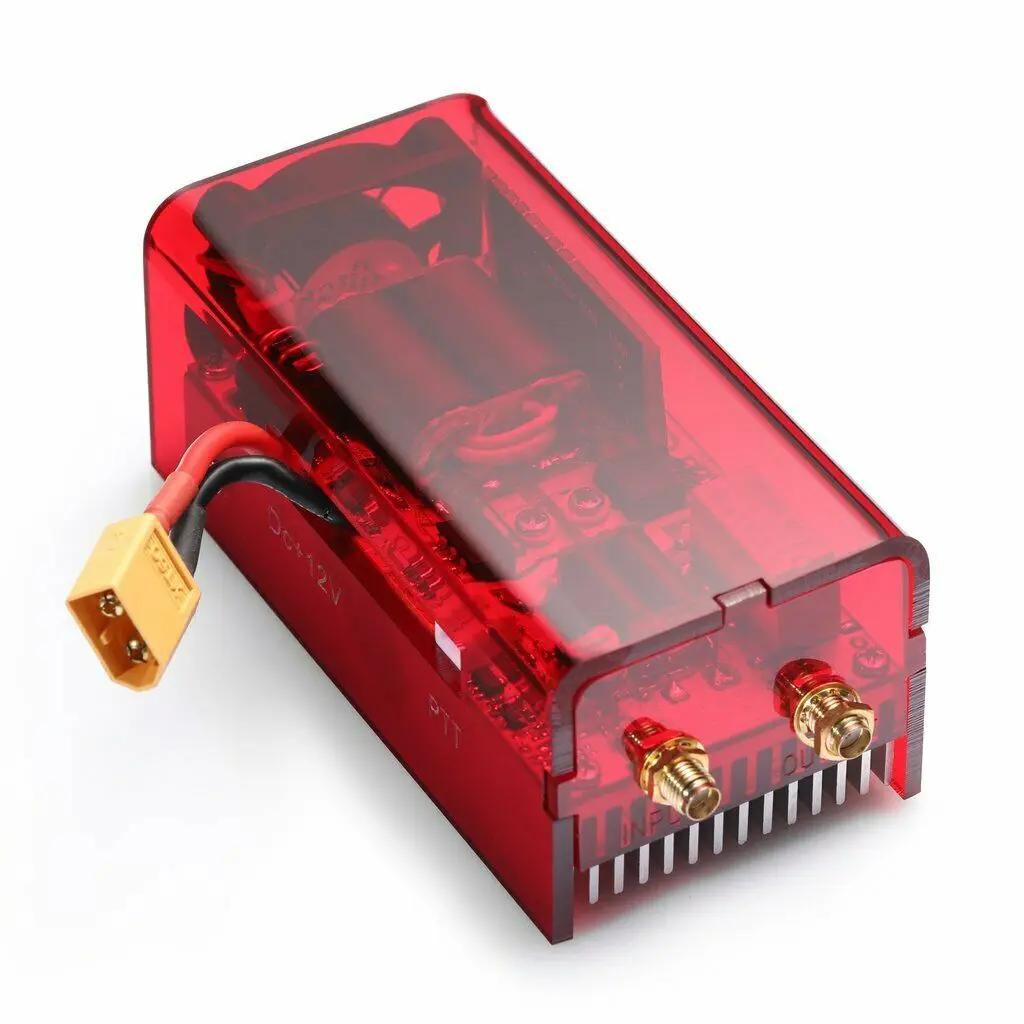

Heat Dissipation Details The amp uses a large aluminum heat sink. The whole PCB secures directly to this heat sink. High-conductivity interface materials are used to dissipate maximum heat and provide stable operation. A cooling fan is installed on one side of the heat-sink with 2 cooling modes. It is a low-noise model that provides excellent CFM.	Plug and Play Different from other amplifier kits, Radioddity PAX100 comes with a PTT Trigger Cable connecting to the G90/X5105. Simply press the PTT key of G90/x5105 to transmit and PAX100 will automatically amplify the output power to 80-100W without any other operation.	Portable & Non-slip Design It’s dimensions are (4.33 x 1.97 x 1.57 in). This DYI power amplifier kit only weighs 0.5lb. It is surprisingly small and has 4 non-skid pads on the bottom of the heat-sink. A beautiful clear poly-carbonate top mounts above the circuit board to protect it.

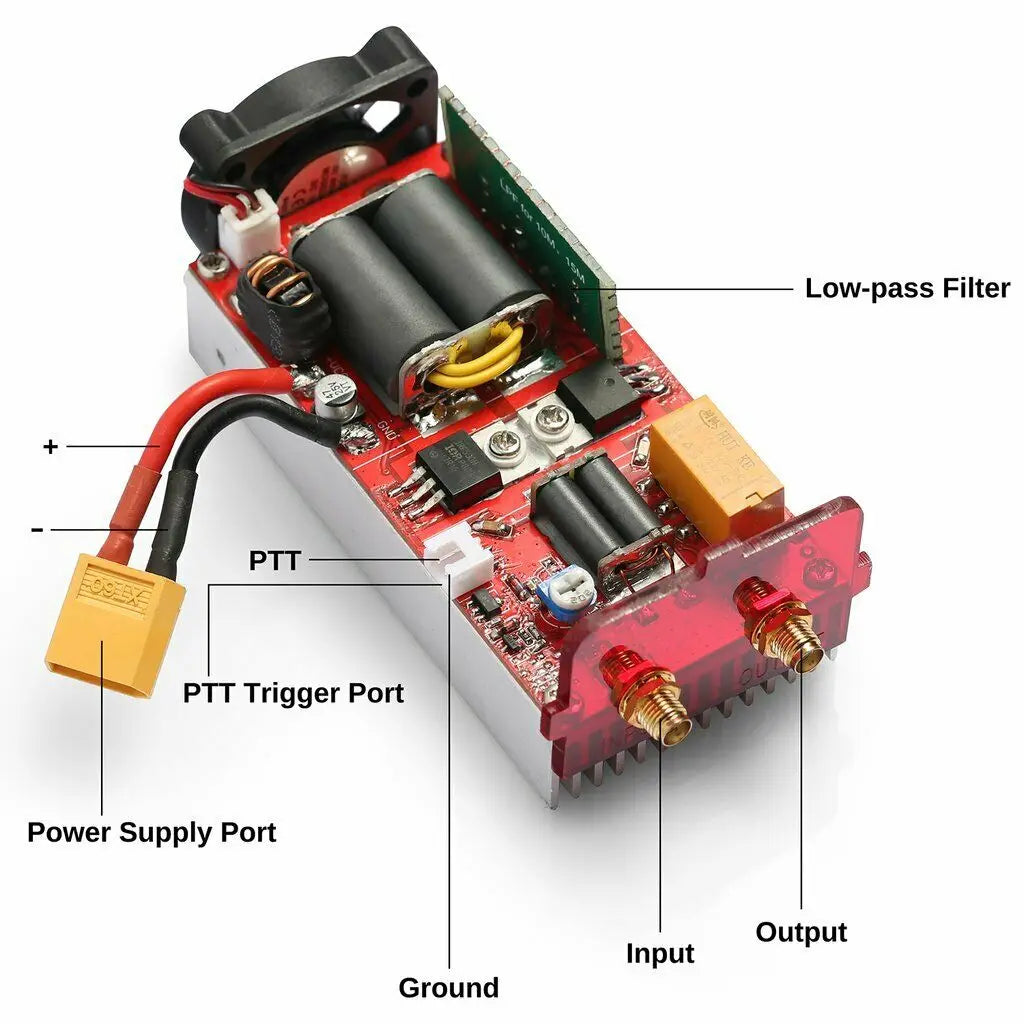

Specifications:

Frequency Range: 3 MHz～30MHz
Supported Modes: A1A (CW), J3E (SSB), A3E (AM), F3E (FM), F7M (C4FM), F1B (FSK)
Power Supply Voltage: DC 12V ～ 18V
Power Supply Current: Standby 0.2A | Transmit 12A maximum
Input SWR: <2.0: 1
Input / Output Impedance: 50 ohms (± 10%)
Through Loss: less than 0.5dB
Power Gain: greater than 15dB (± 2dB)
Maximum Input Power: 10W
Maximum Output Power: Input 5W, frequency <21MHz, power supply 15V = 100W
            Input 5W, frequency> 21MHz, power supply 15V = 70W

Low-pass Filter: Built-in 10, 15 and 17 meter band filters
Low-pass Filter Frequency: 33MHz (-6dB)
Harmonic Output: greater than -50db (even order), greater than -30dB (odd order)
Spurious Output Suppression: greater than 40dB
Input / Output Connector: SMA-K
Working Temperature: 0-50 ℃
Storage Temperature: -20-70 ℃
Storage Humidity: less than 55%
PTT Trigger Level: + VCC-2V (low trigger), GND + 5V (high trigger)
PTT Trigger Current: 2Ma
Product Size: 110 x 50 x 40mm | 4.33 x 1.97 x 1.57in
Product Weight: 230g | 0.51lb

Warning:

1. Transmitting with an open circuit or short circuit will damage the amplifier.
2. Antenna standing wave ratio of under 2.5 to 1 is required
3. Maximum power input is 10 watts

Compatible Models:

Xiegu G90, Xiegu X5105

Note:

1. This amplifier does not have an antenna tuner.
2. Hardwired connection for PTT is required for functioning.

Installation Guidance

Q & A:

Q: What is the difference on yours, yours is quite expensive I have seen similar amp going for cheaper on eBay.
A: It's a totally different product from what you saw on eBay or Alibaba. We made so many efforts to improve it. This version on eBay is not stable with only 50W sometimes and different performance for different radio (said compatible with many radios). We abandon the compatibility of ICOM and KW23.

What are the differences
1. Built-in 10, 15 and 17 meter band filters
2. Data adjustment for G90 & X5105 only (even not G1M)
3. Trigger cable/connector for G90 & X5105
4. Copper core feeder added
5. Plug and play for G90 & X5105, stable output
6. Circuit optimization
7. We improve some soldering parts for safety
All of the above have made its cost way more expensive than other versions you can see on eBay and Ali.

Q: Is soldering surface mount components needed?　How long would it take to put together?
A:　No, plug and play for PAX100 + LPFX7 + G90. If you've already had a DC power, 2 minutes.
If you prefer the filter model LPMX2 instead the LPFX7 with single-band filtering, you need to solder.

Q: Does the LPFX7 filter sit alongside the amp or does it fit inside the amp housing? If it goes alongside, do you include the cables needed to do all the connections? If I buy both, is anything missing that I need to connect it all?
A: It goes alongside. Both of them are with all the connectors and cables you need to install (except for the power plug). Refer to the following images to install. What you need is a DC power source.

Q: Is the power to the amp always on? Is there a switch?
A: For the amp, there is no power button. For the LPFX7 filter, it's with a power button, and 4 switches with LED to help you select the band you need.

User Manual:

Click Here to download.

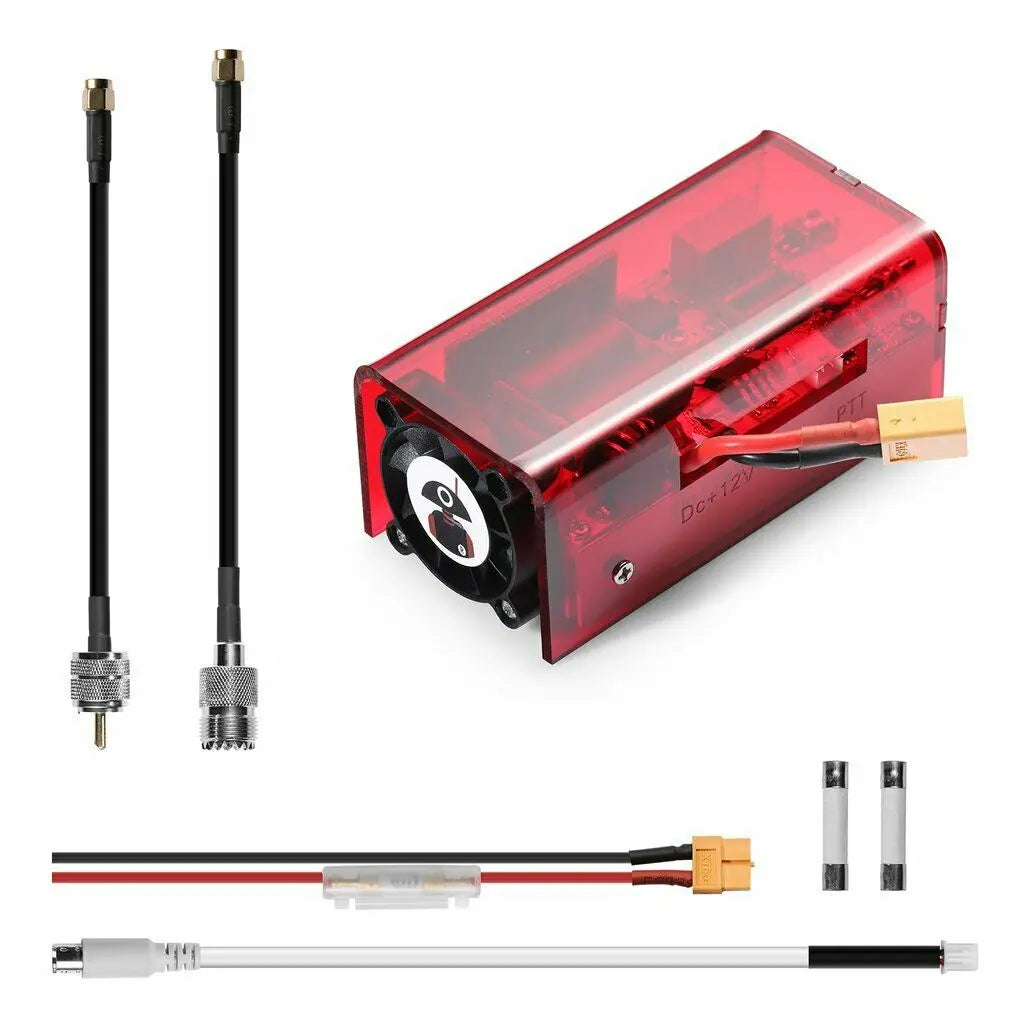

What's in the box

1 x Radioddity PAX100
1 x Power Cable
1 x SMA to PL-259 adapter cable
1 x SMA to SQ-239 adapter cable (female)
1 x G90/X5105 PTT Trigger Cable
