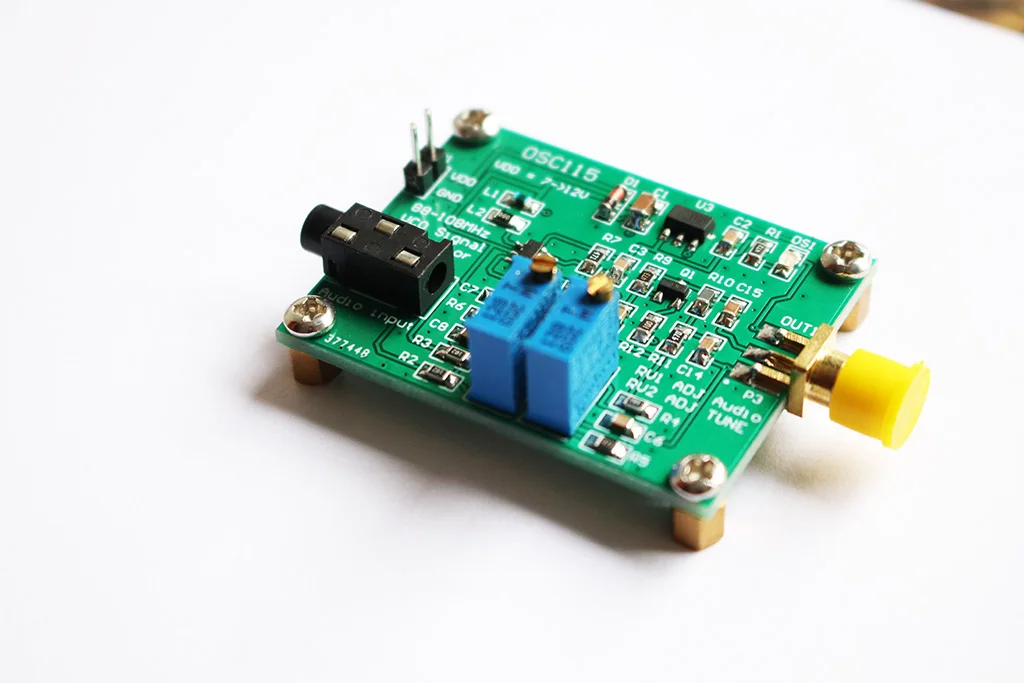

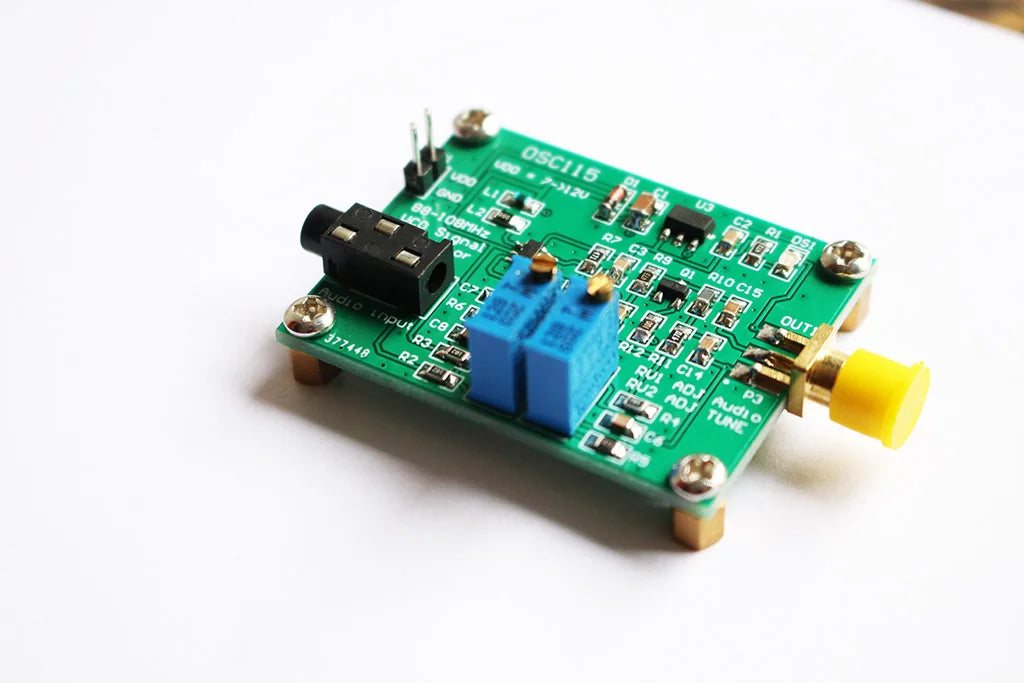

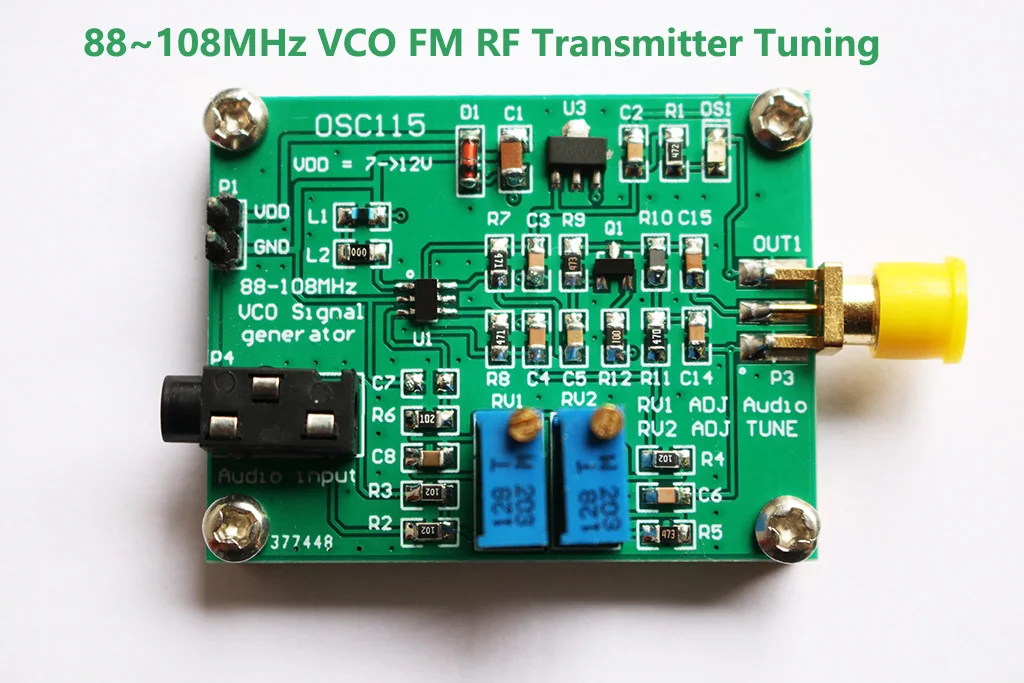

OSC115 88~108MHz FM audio signal generator module
1.1 Module parameters
Parameter unit
Output frequency range 88~108 MHz
Maximum output amplitude <2dBm dBm
Working voltage 7~12 V
Size 42*35 mm
Weight: 12 g

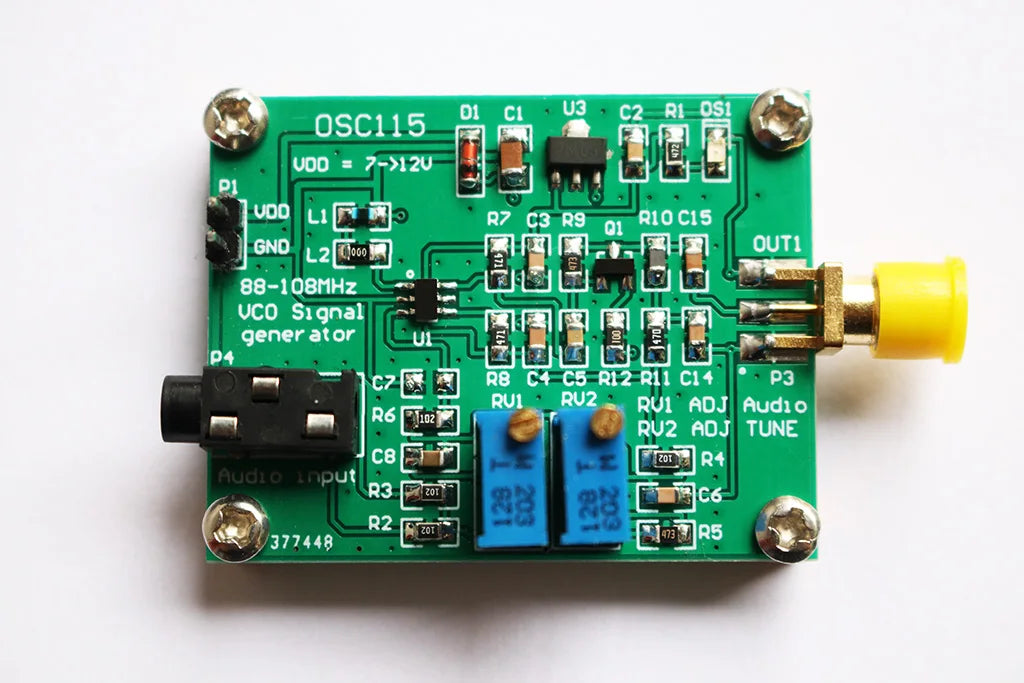

2.0 P1 interface: VDD: positive power supply;
GND: negative pole of power supply;
P4 interface: audio signal input.
P3 interface: FM radio frequency output signal. (RP SMA KE KHD outer screw inner hole)
RV1: adjust the volume;
RV2: adjust the VCO frequency;
