Original Xiegu XPA125B 100W HF Power Amplifier + Auto tuner ATU For X5105 X108G G1M G90
Original Xiegu XPA125B 100W HF Power Amplifier + Auto tuner ATU For X5105 X108G G1M G90
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Description:

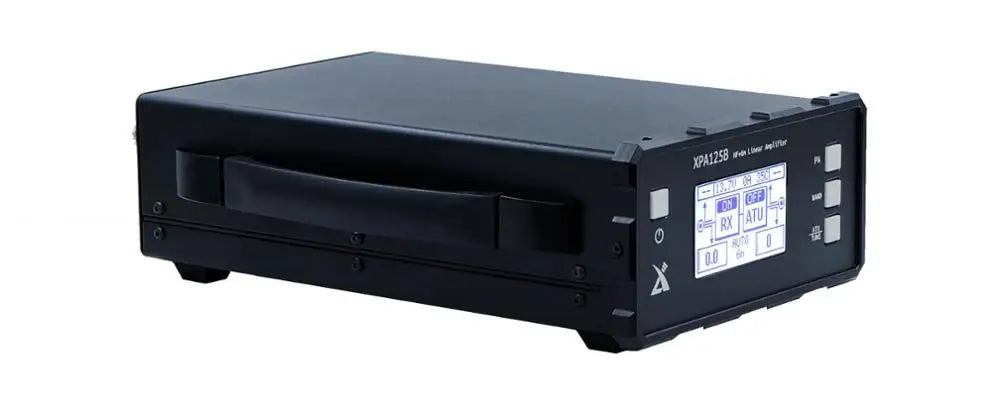

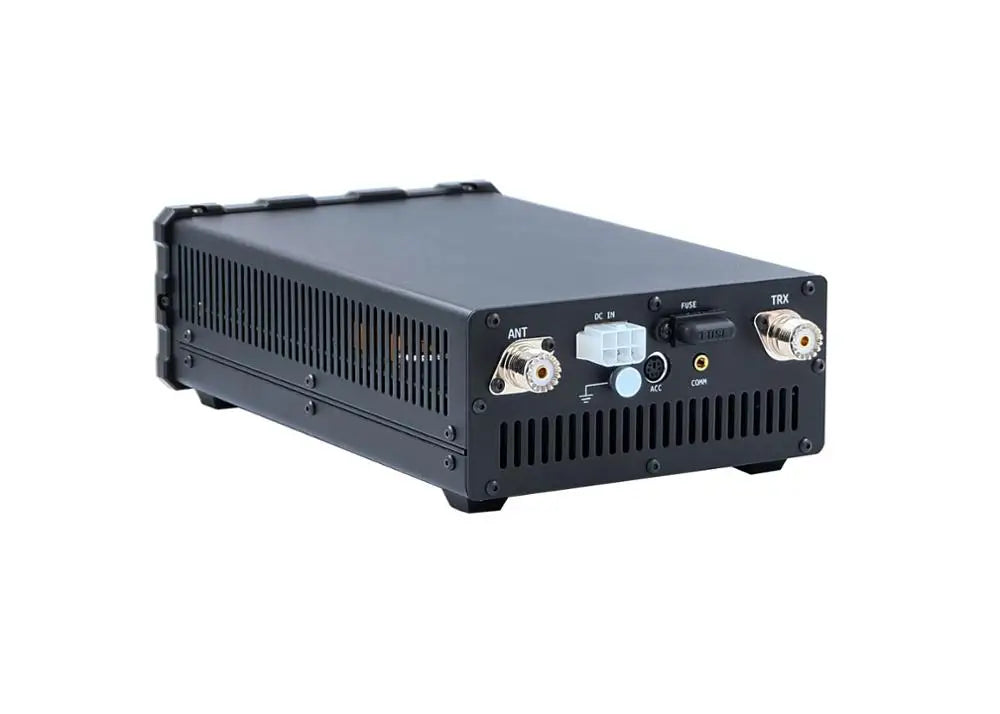

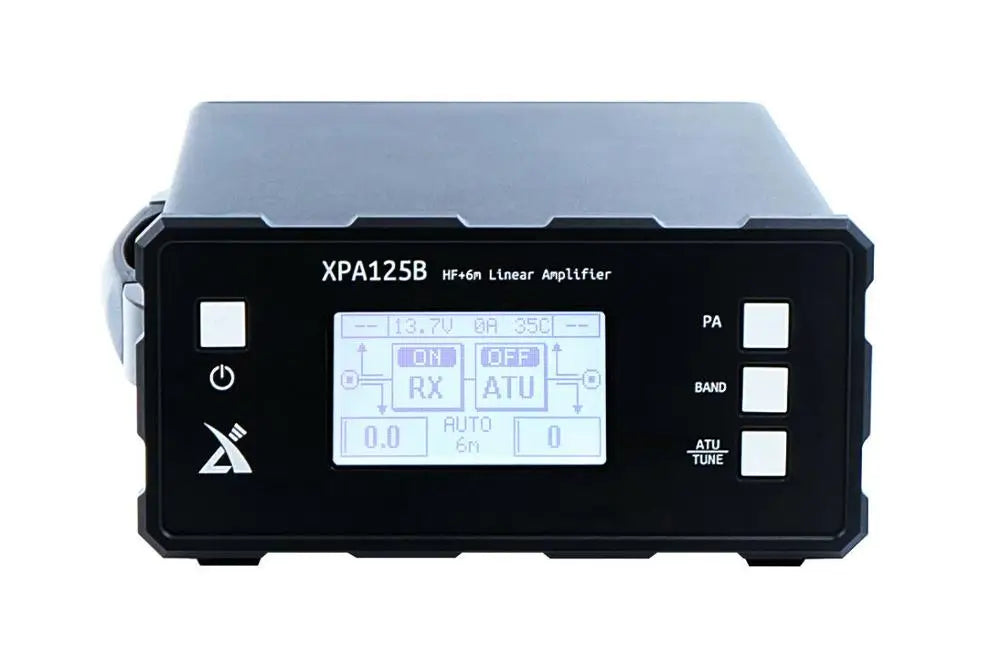

XPA125B is a 100W PA and ATU all-in-one machine for the Xiegu series.

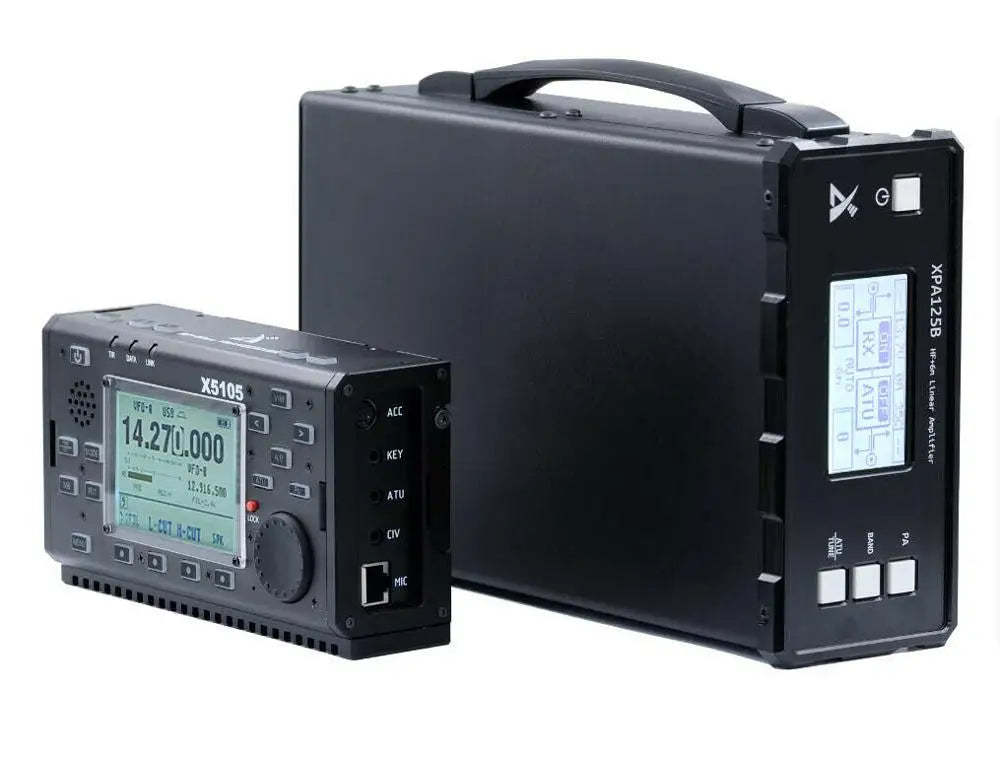

It can quickly build a high-power short-wave transceiver with the X5105, X108G, G1M, G90 and other hosts through the adapter C-19.
It is also possible to quickly build a high-power short-wave transceiver with an adapter such as ICOM817 through the adapter CN-20.
The mainframe is fully solid-state CNC design, with built-in perfect input and output protection function, so that you can communicate at any time.
Amplifier:
Frequency range: 1.8 – 54 MHz
Maximum output power: 1.8 - 30MHz ≥100W
50 - 54MHz
≥80W
Maximum operating ambient temperature: 55℃
Gain: 13dB (±1dB)
Spurious suppression:：≥ 50dB
Supply voltage: 12 - 15 V DC
Current draw @ maximum output:
Standby: 700 mA @Max
Transmit: 30A @Max
ATU:
Tuning frequency range: 1.8 – 30 MHz/50 – 54 MHz
Maximum tuning range: 14 - 500Ω
Product specifications：
Dimensions: 260 x 160 x 70 mm (not including control knobs, feet, handles, etc.)
Weight：3 Kg(host only)
Packge:
1x XPA125B AMP (The radio not included)
