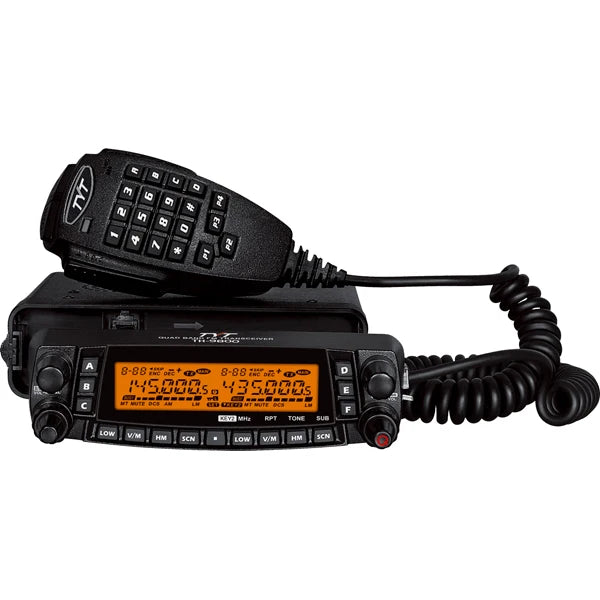

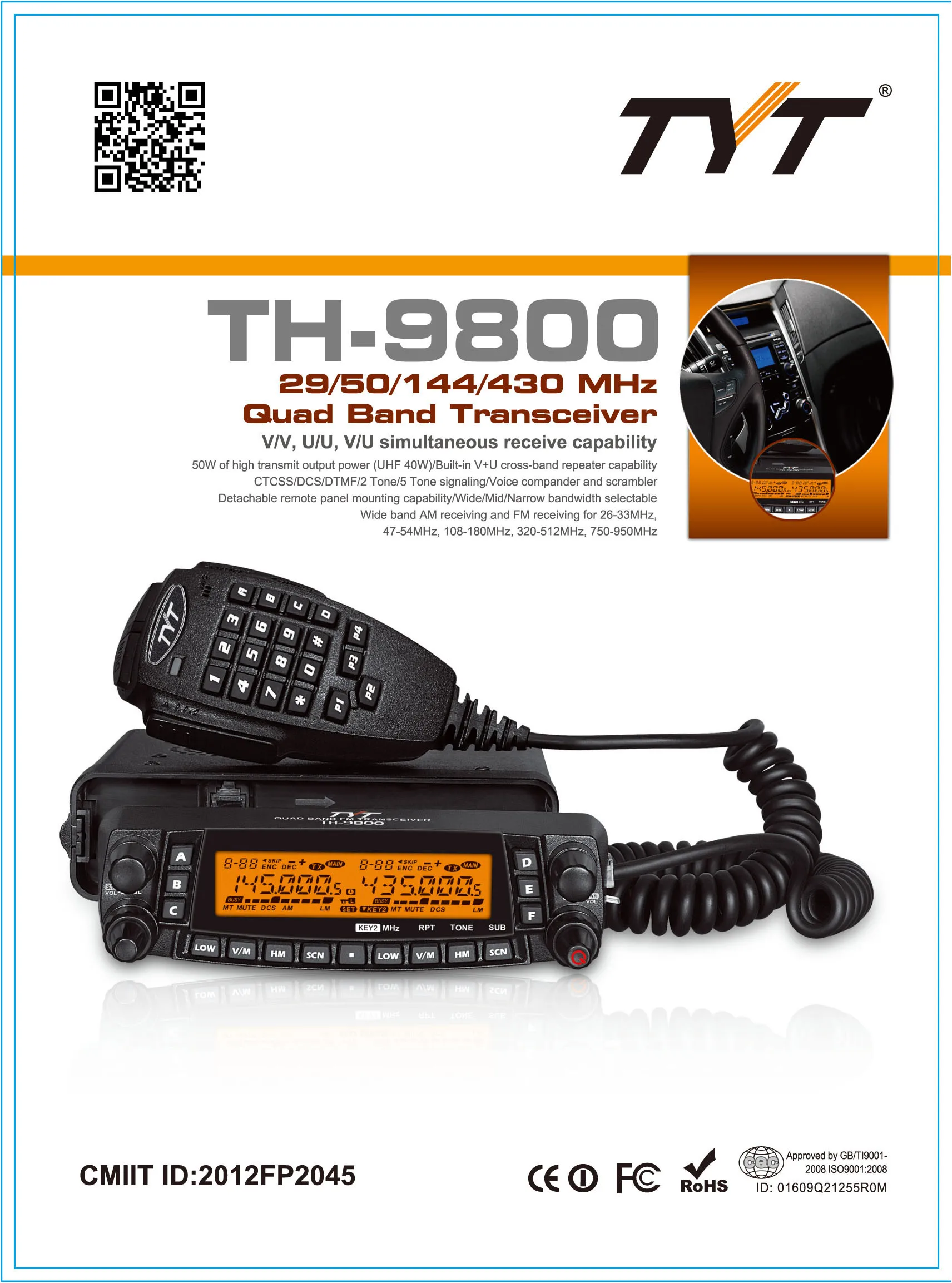

Original TYT TH-9800 Mobile Radio Station Transceiver Amateur Vehicle Radio Quad Band 29/50/144/430MHz Cross-Band Repeater 50W

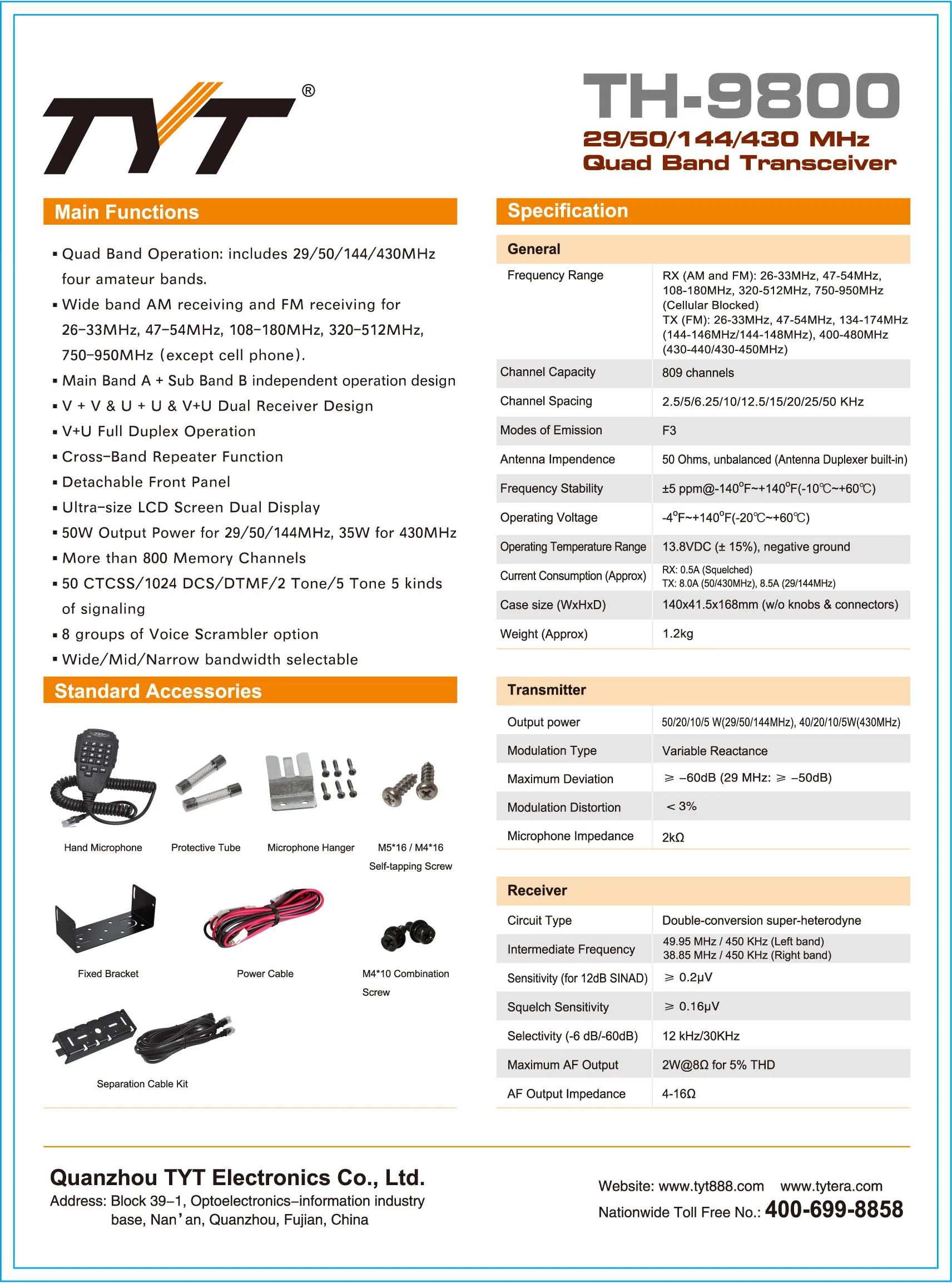

Main Features:

Welcome to Off-Road Equipment, The Latest Plus Version of TYT TH-9800, 50W/40W Full Quad Band Dual Display FM Amateur Mobile Radio/Transceiver, A MUST HAVE For all HAMs, FUN & GREAT VALUE as BASE STATION. Size: 5.5 x 1.6 x 6.6", Weight: 2.65 lbs. Package Content: TYT TH-9800, Mic Hanger, Power Cable, Mounting Bracket & Screws, User Manual, Programming Cable & Factory Disc.

Frequency: TX 26-33(10M)/47-54(6M)/136-174(2M)/400-480MHz(70CM), RX: 26-33/47-54/108-180/320-512/750-950MHz (P.S. AM mode selectable on VHF receive frequencies for Air Band reception), Output Power VHF: 50/20/10/5W UHF: 35/20/10/5W.

Features: V/V, U/U, V/U Simultaneous Receive, V+U Cross-Band Repeater,

Full Dual Display and Receive, High/Mid1/Mid2/Low Power Setting, Wide/Mid/Narrow Bandwidth Selectable, CTCSS/DCS, DTMF, 2 Tone & 5 Tone, Voice Compander & Scrambler, Remote Detachable Faceplate, 809 Alphanumeric Memory Channels, SQL, Scan, TOT, Full Direct Entry Keypad Mic.

Feature:
- Channel Capacity: 809 Alphanumeric Memory Channels
- Channel Spacing: 2.5/5/6.25/7.5/8.33/10/12.5/15/25/30/50/100KHz
- Operating Voltage: 13.8VDC (±5%)
- Current Consumption(Approx): RX: 0.5A (Squelched); Feature:
- Outstanding 0.2uV sensitivity across 10M/6M/2M/70CM bands
- Brilliant crossmodulation, intermodulation rejection and strong signal performance-similar to commercial radios
- Commercial quality and commercial performance
- 809 memory channels
- DTMF mic
- Digital FM broadcast band radio
- High/mid1/mid2/low output power levels
- Reverse frequency selection
- Dual (V/U) squelch set levels
- Dual repeater offsets selectable
- Multi-function scanning
- Repeater offset selectable
- Keypad lock function
- Channel name editing
- CTCSS/DCS encode/decode
- Dual Band/Dual Receive: (Full Duplex)
- Cross Band Repeat
- TX Power: 5-50 Watts
- Memories: 256
- Antenna Connection: Single SO-259S

Frequency Range:
- 26-33MHz (RX/TX) (AM band RX)
- 47-54MHz (RX/TX) (AM band RX)
- 136-174MHz (RX/TX)
- 400-480MHz (RX/TX)
- 108-136 (AM band RX only)
- 320-399.000 (RX only)
- 750-950 (RX only)

- Channel Capacity: 809 Alphanumeric Memory Channels
- Channel Spacing: 2.5/5/6.25/7.5/8.33/10/12.5/15/25/30/50/100KHz
- Operating Voltage: 13.8VDC (±5%)
- Current Consumption(Approx): RX: 0.5A (Squelched);TX: 8.5A
