TYT Mobile Car Radio TH-9000D Walkie Talkie Ham Radio VHF136-174MHz or UHF400-490MHz Walkie Talkie 60W/45W
Functions:
Frequency Range: VHF:136-174MHz 245-245.9875MHz (220-260MHz);
UHF: 400-480MHz. (These Frequency Range can be selectable to use.)
1.Output Power: VHF: 10W/25W/60W UHF: 45W/25W/10W
2. 8 Group's of Scrambler
3.1750Hz Tone CTCSS/DCS setting & scanning
4. 0-9 SQL grade setting
5. Frequency/Channel scanning
6. High/Mid/Low power selectable
7.Voice commander
8. Repeater offset shift
9.Keypad lock function
10.Contact book
11.Battery voltage display
12. DTMF/2 tone/5 tone
13. Remote kill/ stun/ activate/ revive
14. Emergency alarm
15.Wide/Narrow band setting
16.Channel name editing
17.Reverse frequency
18.VFO step setting:5/6.25/10/12.5/20/25/50kHz
|
General |
||
|
Frequency Range |
VHF：136~174MHz |
|
|
Number of Channels |
200 channels |
|
|
Channel Spacing |
25K (Wide Band) 20K(Middle Band) 12.5K (Narrow band) |
|
|
Phase-locked Step |
5KHz、6.25KHZ、8.33KHZ、10KHz、12.5KHz、15KHz、20KHz、 25KHz、 30KHz、 50KHz |
|
|
Operating Voltage |
13.8V DC ±15% |
|
|
Squelch |
Carrier/CTCSS/DCS/5Tone/2Tone/DTMF |
|
|
Frequency Stability |
±2.5ppm |
|
|
Operating Temperature |
-20 ~ +60℃ |
|
|

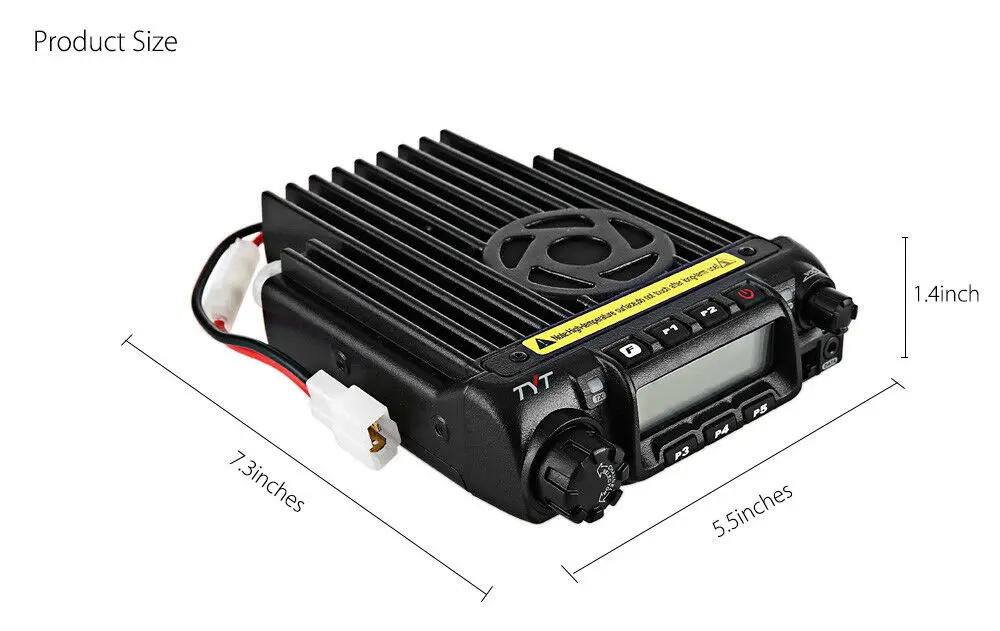

Dimensions(WxHxD) |
145(W)x47(H)x190(D)mm |
|
|
Weight |
about 1.2kg |
|
|
Transmitter(ETSI EN 300 086 standard testing) |
||
|
|
Wide band |
Narrow band |
|
Power Output |
60/25/10W(VHF) |
45/25/10 W(UHF) |
|
Modulation |
16KΦ F3E |
11KΦ F3E |
|
Adjacent Ch. power |
≥70dB |
≥60dB |
|
Hum & Noise |
≥40dB |
≥36dB |
|
Spurious Emission |
≥60dB |
≥60dB |
|
Audio response |
`+1~-3dB(0.3~3KHz) |
`+l~-3dB(0.3~2.55KHz) |
|
Audio Distortion |
≤5% |
|
|
Receiver(ETSI EN 300 086 standard testing) |
||
|
|
Wide band |
narrow band |
|
Sensitivity (for 12dB SINAD) |
≤0.25pV |
≤035pV |
|
Adjacent Ch. Selectivity |
≥70dB |
≥60dB |
|
Inter-Modulation |
≥65dB |
≥60dB |
|
Spurious Rejection |
≥70dB |
≥70dB |
|
Audio Response |
`+1~-3dB(0.3~3KHz) |
`+1~-3dB(0.3~2.55KHz) |
|
Hum & Noise |
≥45dB |
≥40dB |
|
Audio Distortion |
≤5% |
|
|
Audio power output |
>2W@10% |
|
