Original TAIWAN NISSEI RX-503 SWR/Watt Meter 1.8-525MHz 2/20/200W for Two-way Radio Watt meter for walkie talkie

Introduction:

This SWR/Watt meter is a highly accurate RF meter for measuring Forward Power, Reversed Power and VSWR by using cross-needle analog meter.

Main Features:

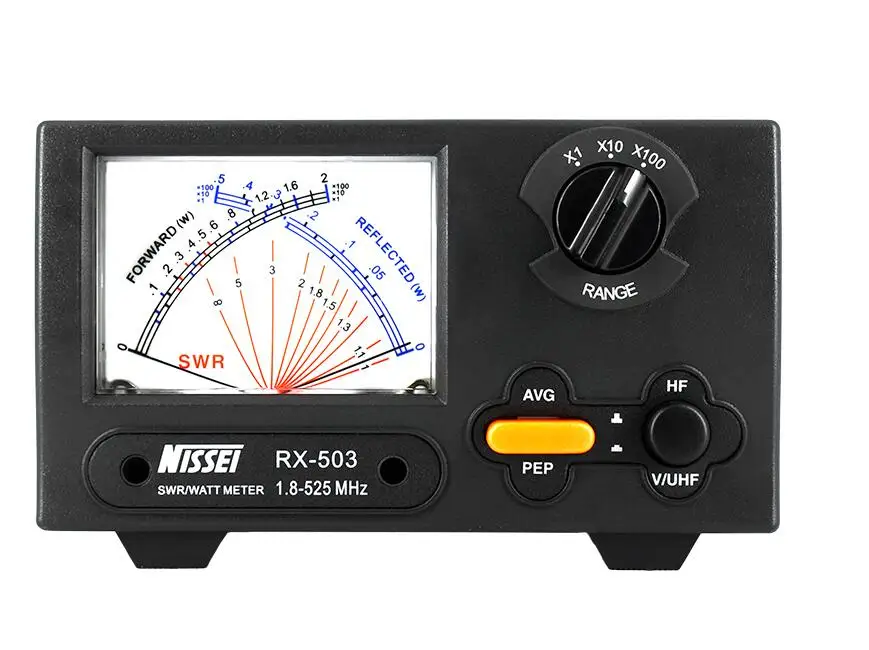

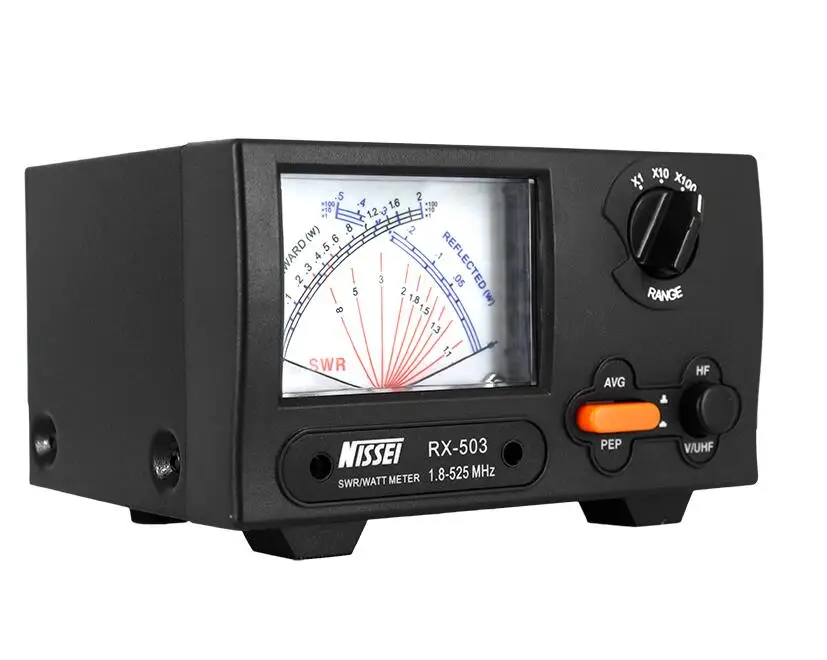

Large cross needle meter display.

Simultaneously display Forward,Reversed and VSWR ratio.

True directional coupler for increased accuracy over frequency.

LED backlighting in smooth illumination

Three color scale for improved readability.

Specifications:

Model                                                 RX-503
Frequency Range                               1.8-525MHz
Power Range                                      0-200W
Power Scale                                        2/20/200W
Maximum Power                                200W
Accuracy LOW Range                       (AVG) +/- 10%, (PEP) +/- 15%
Accuracy High(2) Range                    (AVG) +/- 5%, (PEP) +/- 10%
Min.Power(Fwd)                                1W

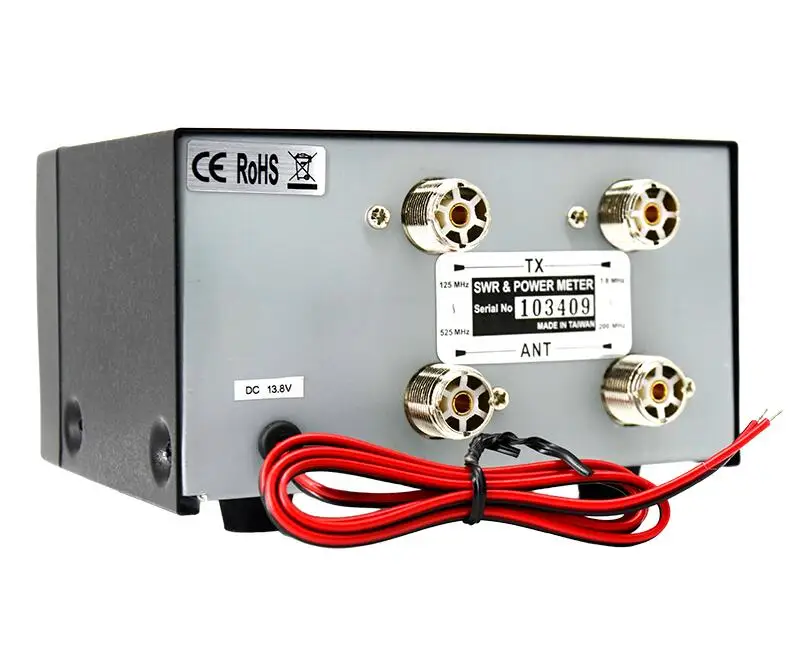

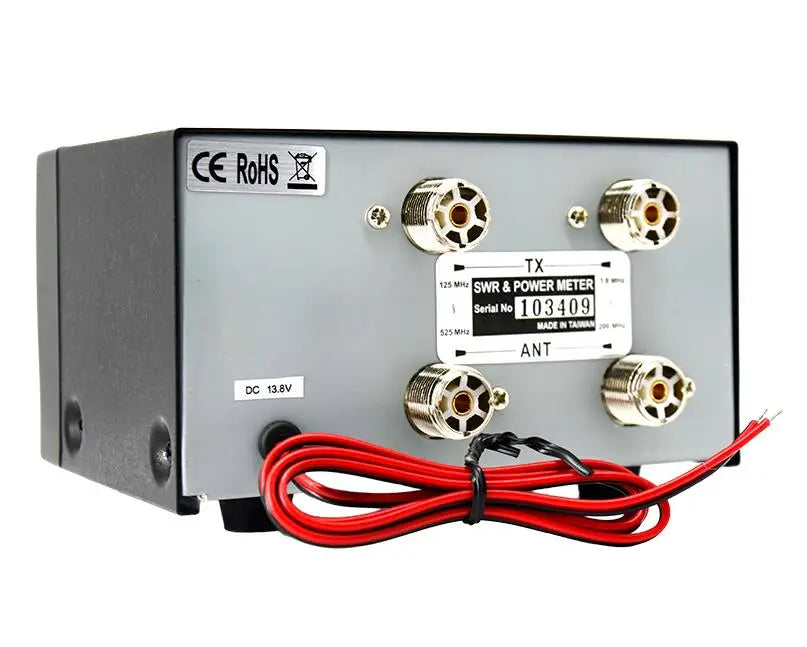

Input/Output Connector                      M(N Option)
Insertion Loss                                      Less than 0.1dB
Testing Function                                  Fwd/Rev Power,PEP,SWR
Input/Output Impedance                     50 OHM
Accessories                                          Operation Manul,13.8V DC wire
Dimension(W/H/D)                       140mm * 84mm * 122mm
Weight(Net)                                          950

Package Content:

1×NISSEI RX-503 SWR/Watt Meter

1×Operation Manual

1×13.8V DC Wire
