Original NanoRFE NanoVNA V2 Plus4 4" 4GHz Vector Network Analyzer 50KHz-4GHz Shortwave HF VHF UHF 70-90dB With 3200mAh Battery
Original NanoRFE NanoVNA V2 Plus4 4" 4GHz Vector Network Analyzer 50KHz-4GHz Shortwave HF VHF UHF 70-90dB With 3200mAh Battery
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Features
480 x 320 4-inch display
4GHz frequency range
Scanning speed increased by 4 times (400
points/sec)

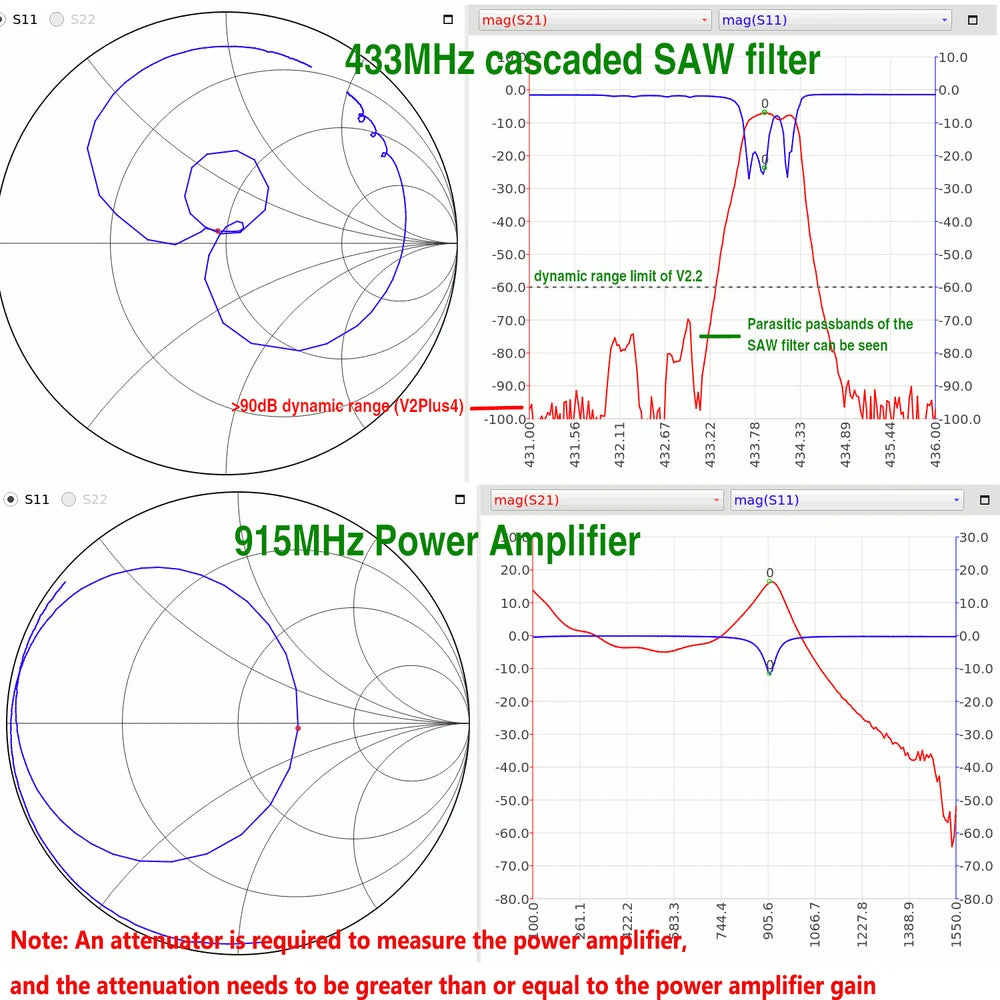

Up to 90dB dynamic range (1GHz)
Up to 80dB dynamic range (3GHz)
Specification:
Measuring frequency range:50kHz-4GHz
System dynamic range: 70dB (to 3GHz, after calibration, no averaging)
System dynamic range: 80dB (to 3GHz, after calibration, 5x average)
System dynamic range: 90dB (to 1GHz, after calibration, 20x average)
S11 noise floor (after calibration): -50dB (to 1.5GHz); -40dB (to 3GHz)
Scanning rate: 400 points/sec (f >= 140 MHz), 200 points/sec (f <140 MHz)
Number of scanning points (on the device screen): adjustable, up to 201 points
Number of calibration points (the maximum number of scan points for USB): 1024 points
Power supply: USB

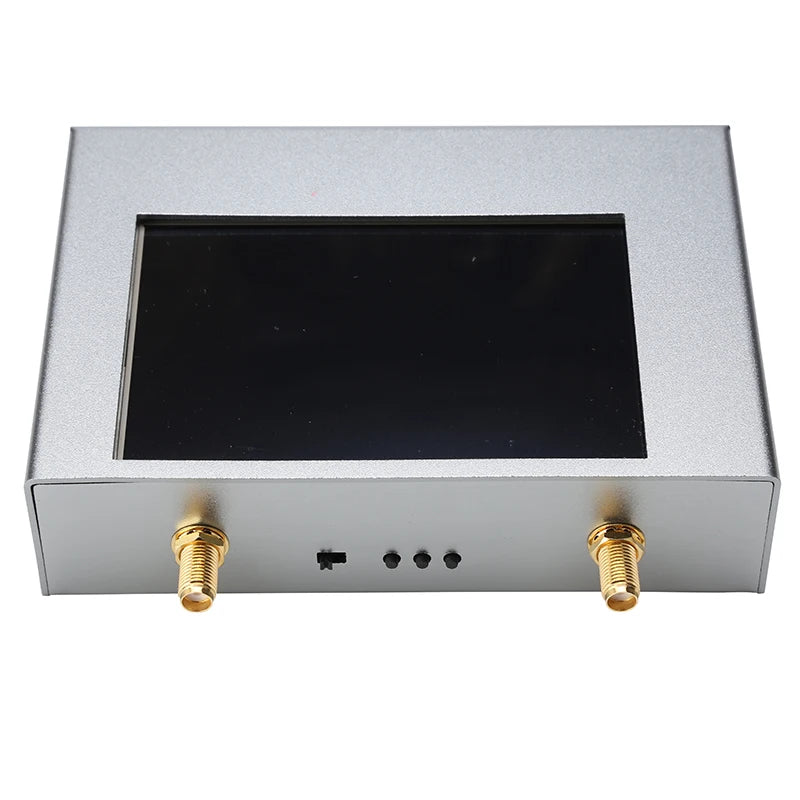

RF port: SMA (not RP-SMA!)

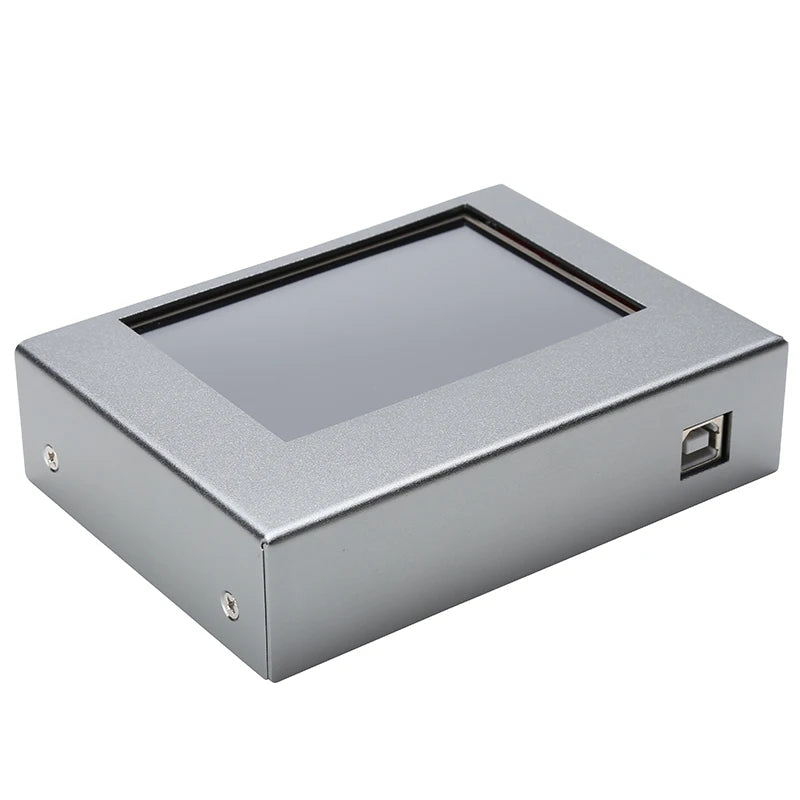

USB interface: USB Type-B

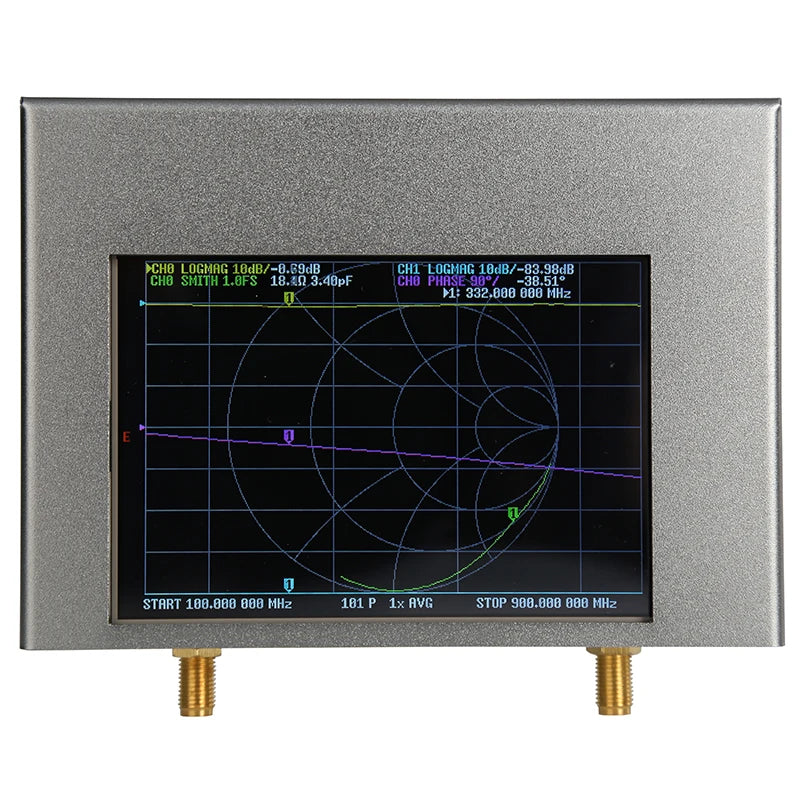

Display screen: 4 inch TFT (480 x 320)
Battery: with 3200mAh lithium battery
Port 2 return loss: >= 15dB (to 3GHz), 20dB (to 1.5GHz)
Display tracking: 4, marking: 4, setting save: 7
Computer software compatibility: Linux, Windows (above 7), Mac OS
Operation Introduction:
Tap anywhere on the screen to open the menu
Use the STIMULUS menu to set the frequency range
Use CAL> CALIBRATE menu to calibrate
For detailed instructions, see the user manual
More detail:
Information: https://nanorfe.com/nanovna-v2.html
Software download: https://nanorfe.com/nanovna-v2-software.html
User Manual: https://nanorfe.com/nanovna-v2-user-manual.html

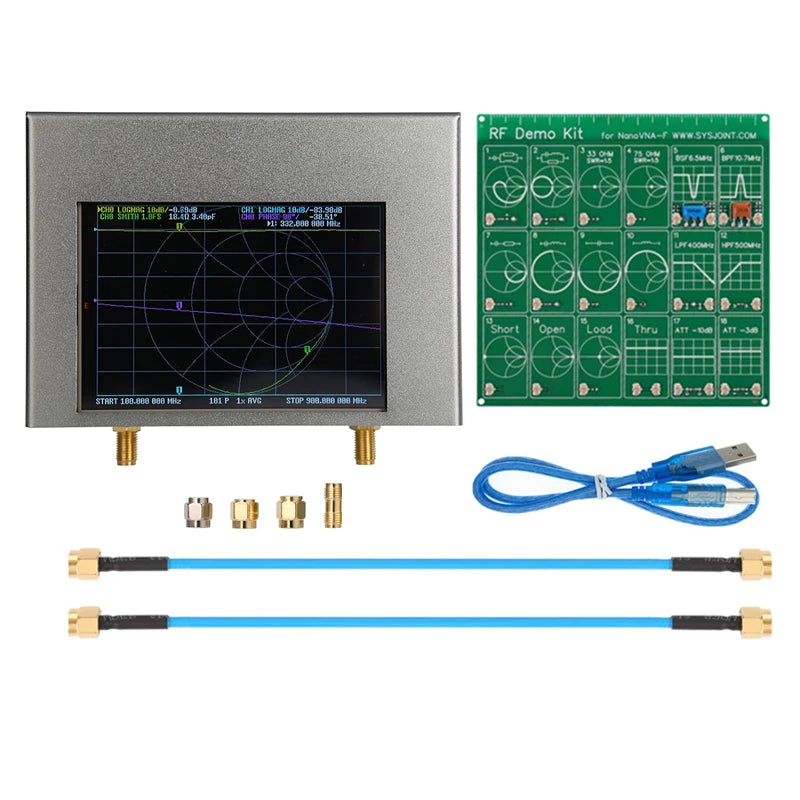

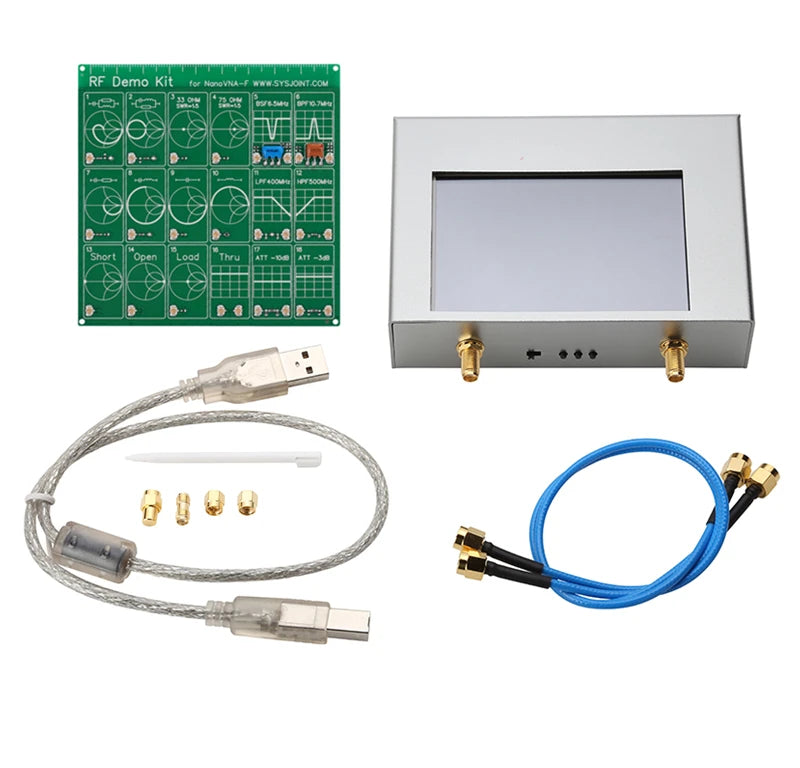

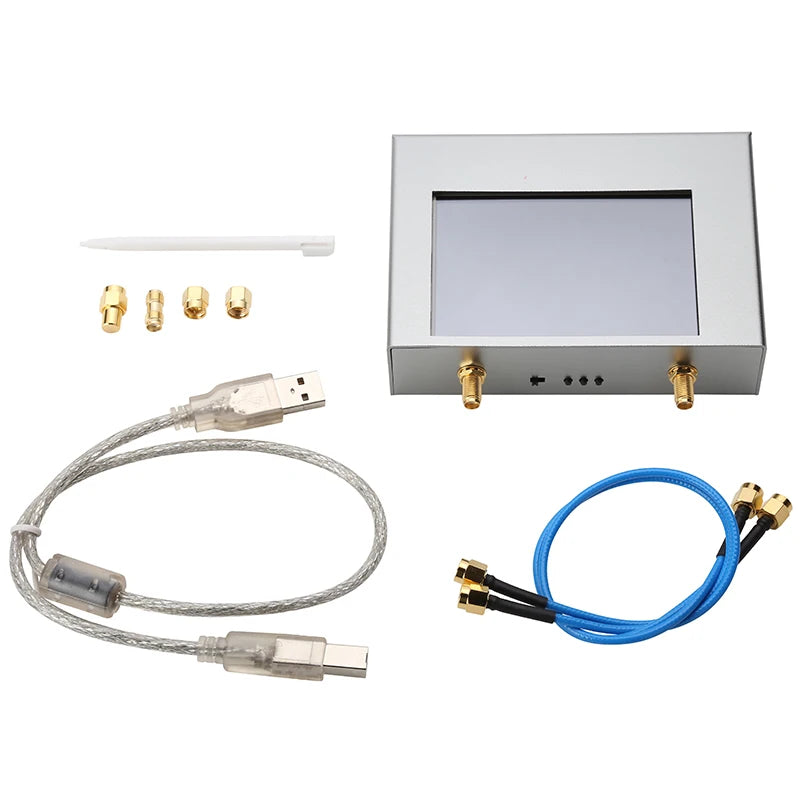

Package included:
1 x NANOVNA V2 Plus4
1 x USB Cable
2 x 50cm N male to male RG142-PUR RF cable
1 x SMA Simple Calibration Kit OPEN
1 x SMA Simple Calibration Kit SHORT
1 x SMA Simple Calibration Kit LOAD
1 x SMA Female to Female Connector
1 x Touch screen pen

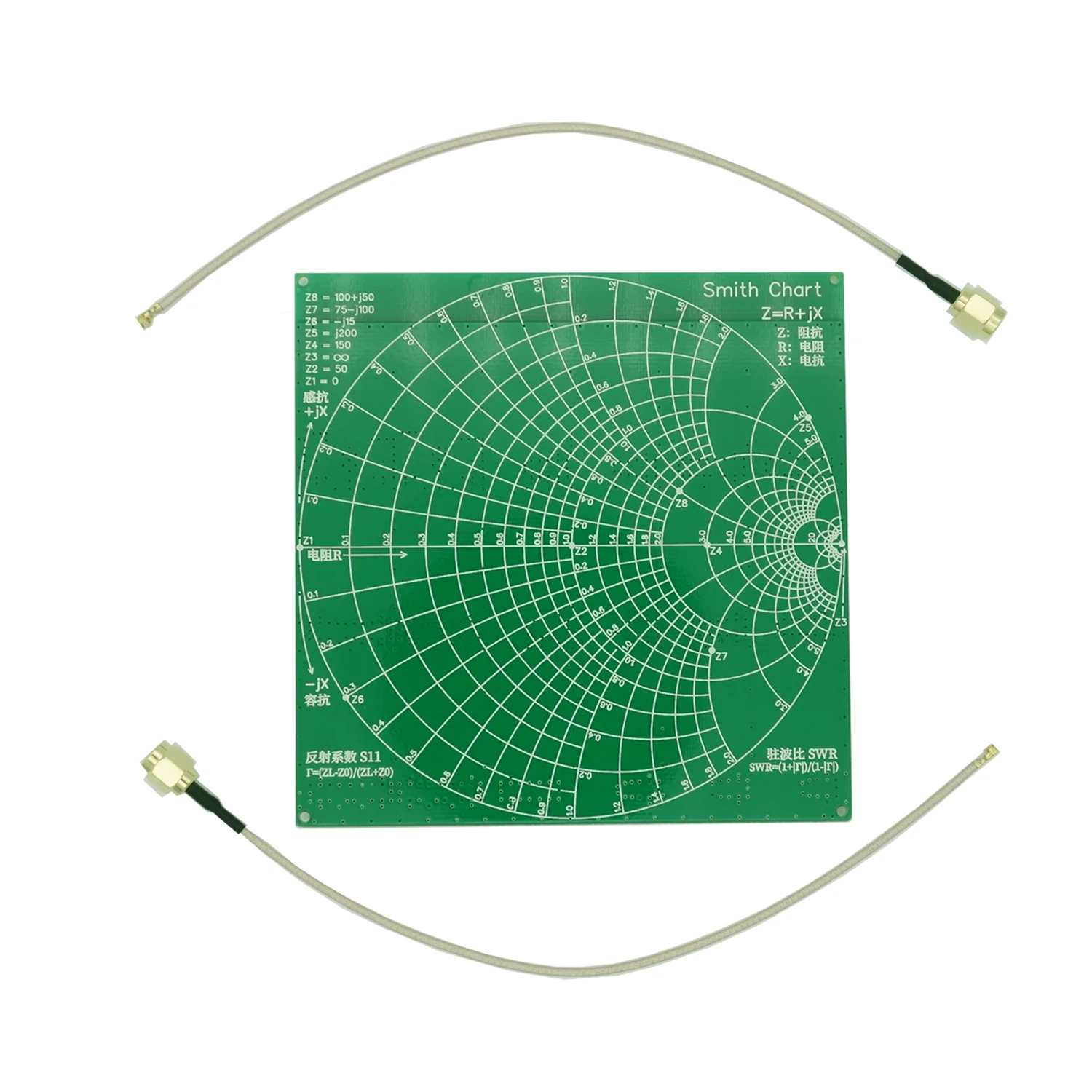

RF demo kit
