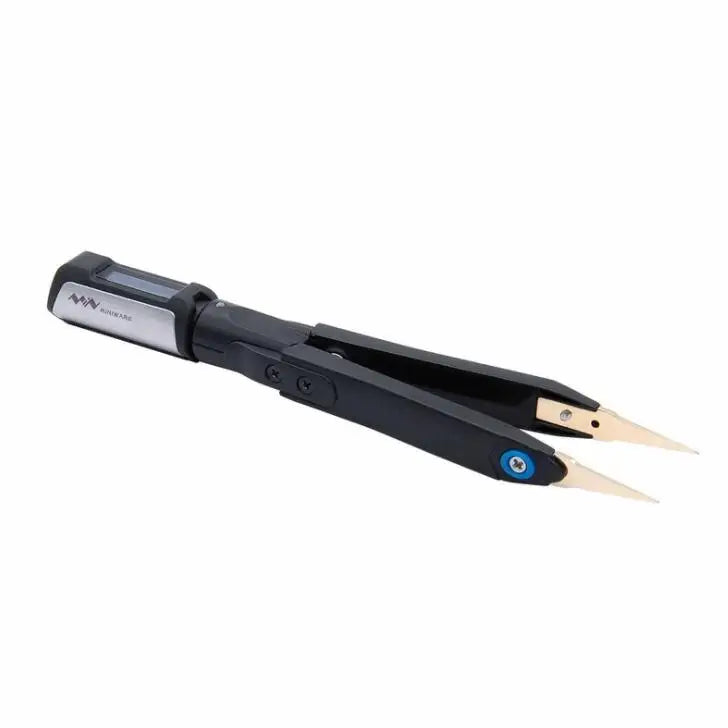

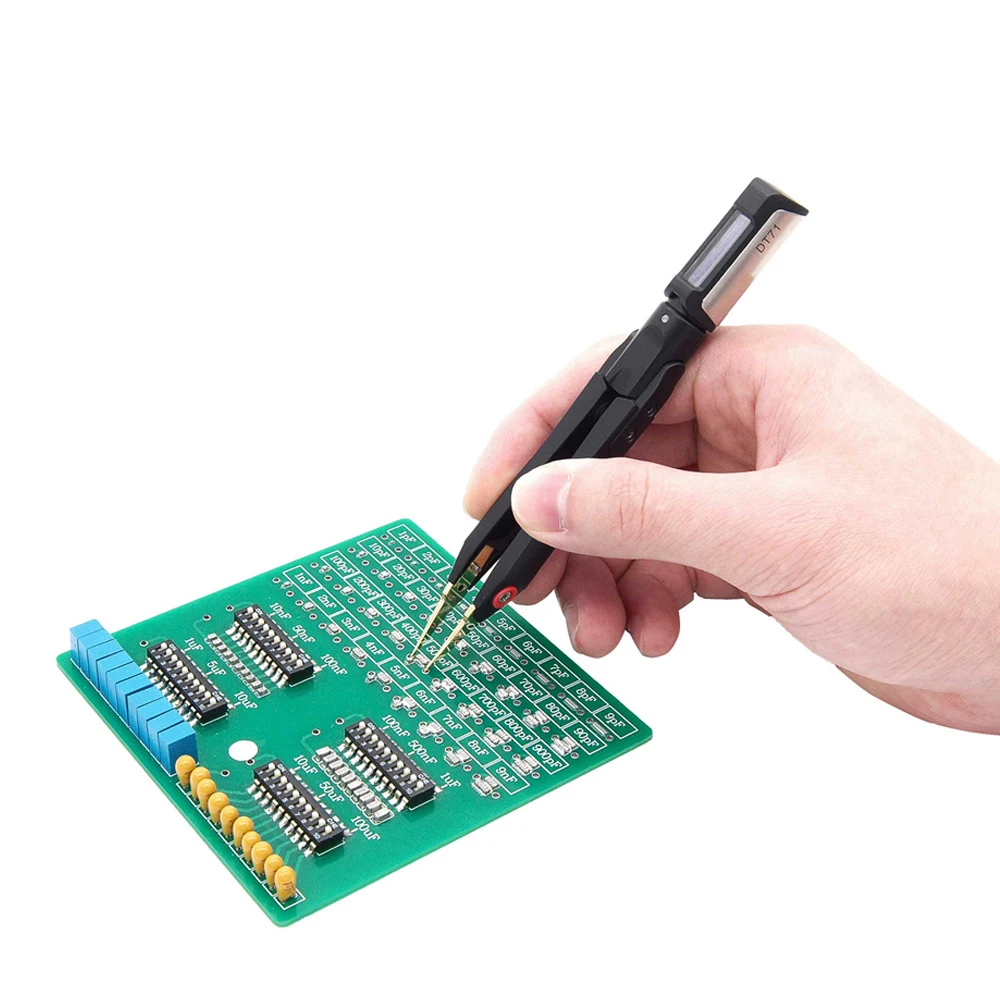

Original Miniware Portable Digital Smart Tweezers DT71 LCR Meter Signal Generator Debugging Reparing Tool OLED Display

Charging Voltage Note:

Please must provide DC 5V charging voltage to the DT71, if the charging voltage over 5V will damage the DT71

Features:

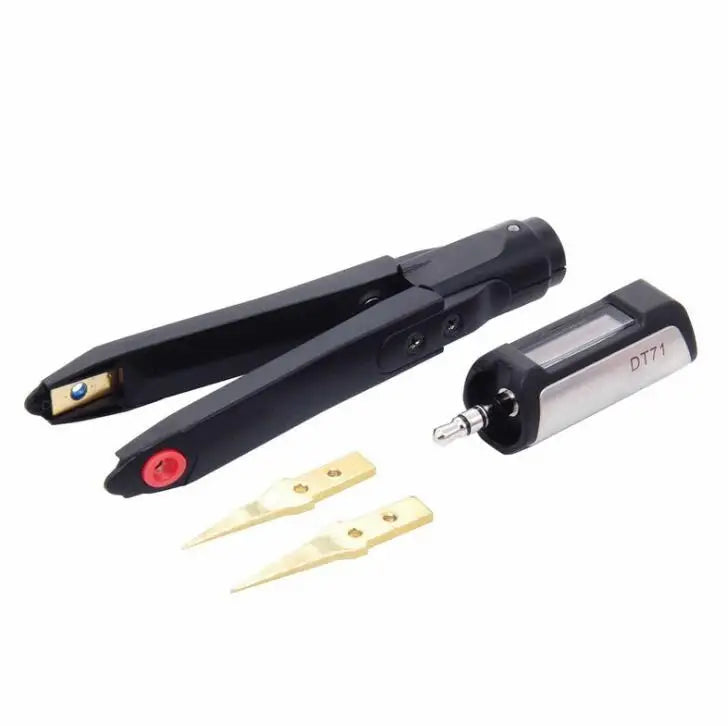

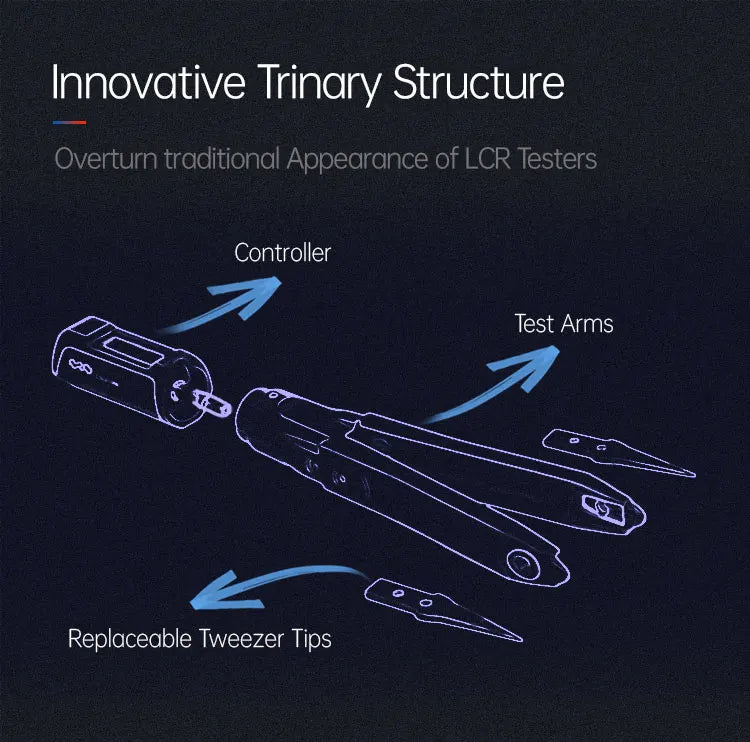

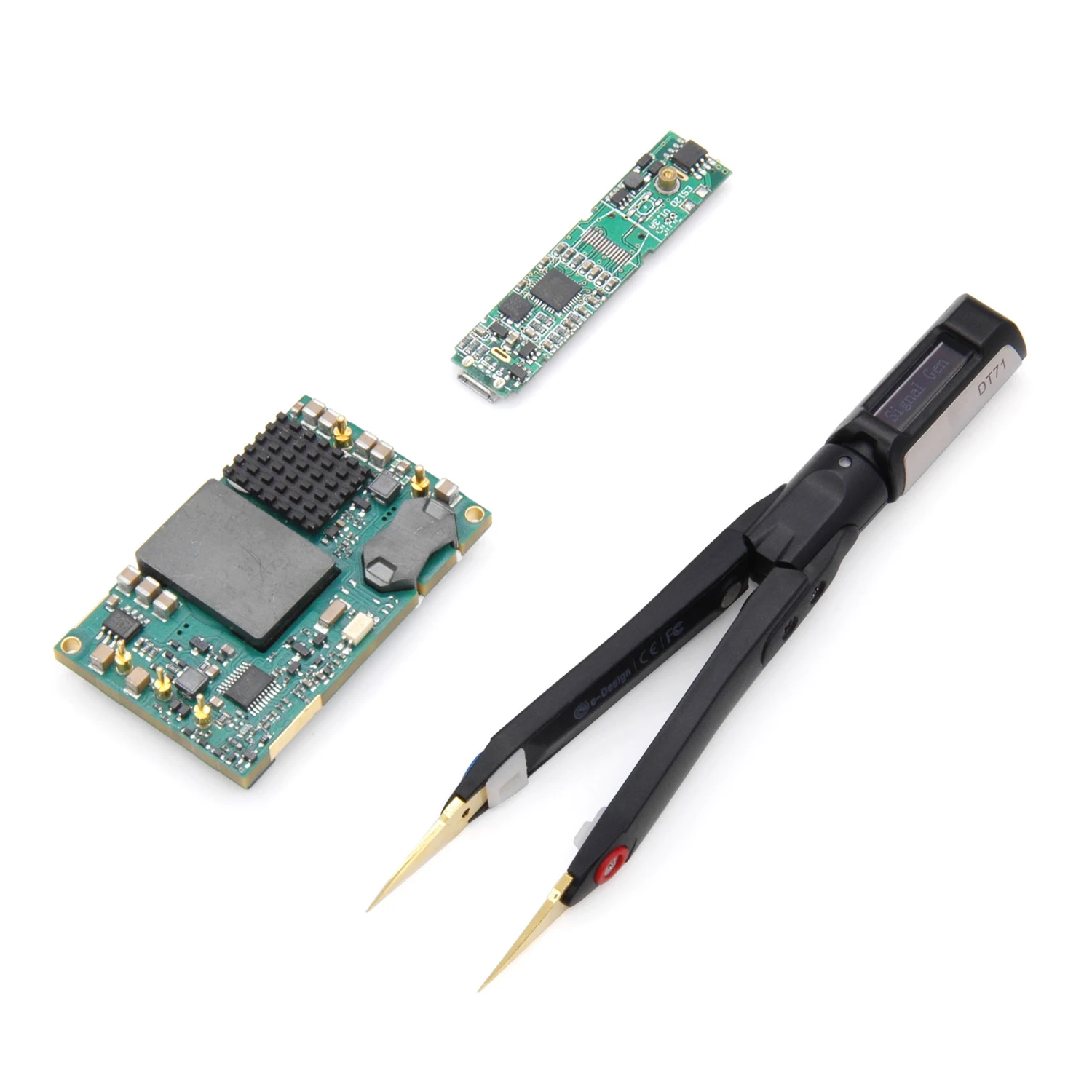

The three-section split structure of the tweezers shape can be split into the controller, the measuring arm and the tweezers head, which overturns the appearance restrictions of the traditional measuring instrument.

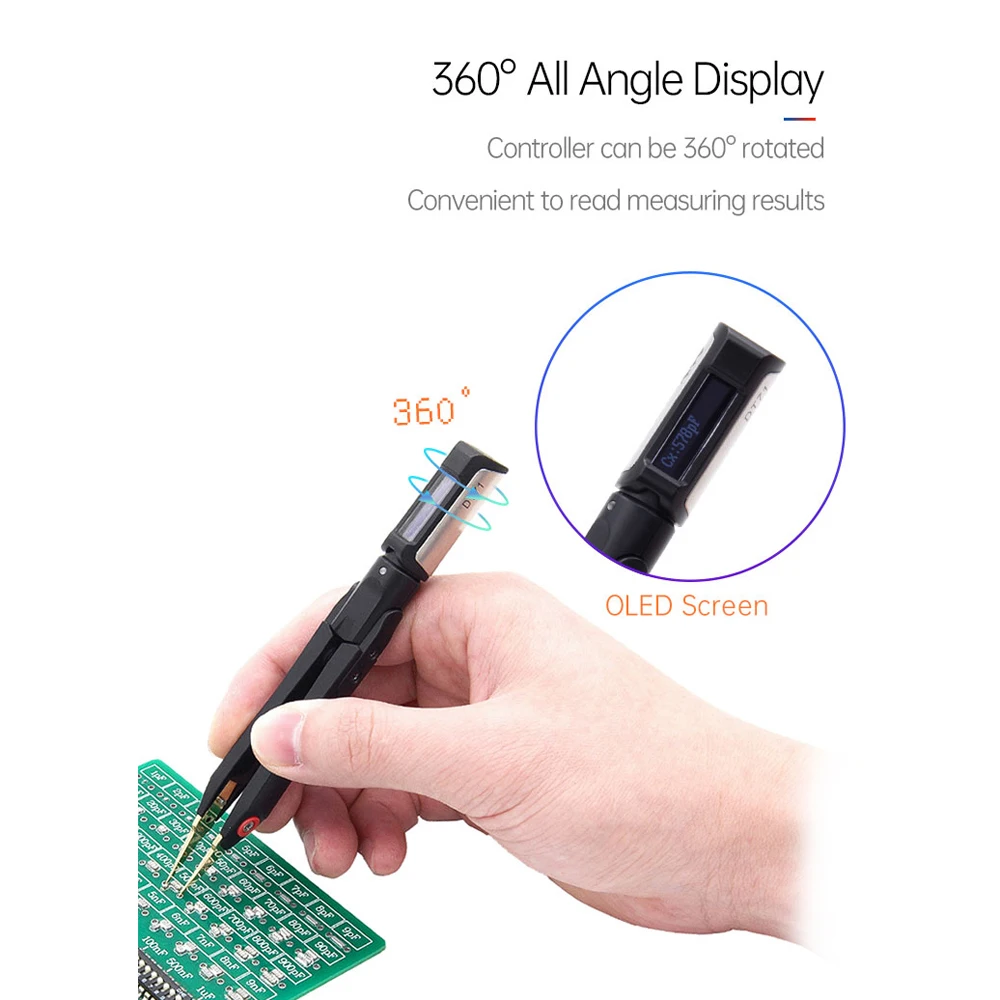

OLED screen, 360-degree adjustable window, to meet different viewing angles.

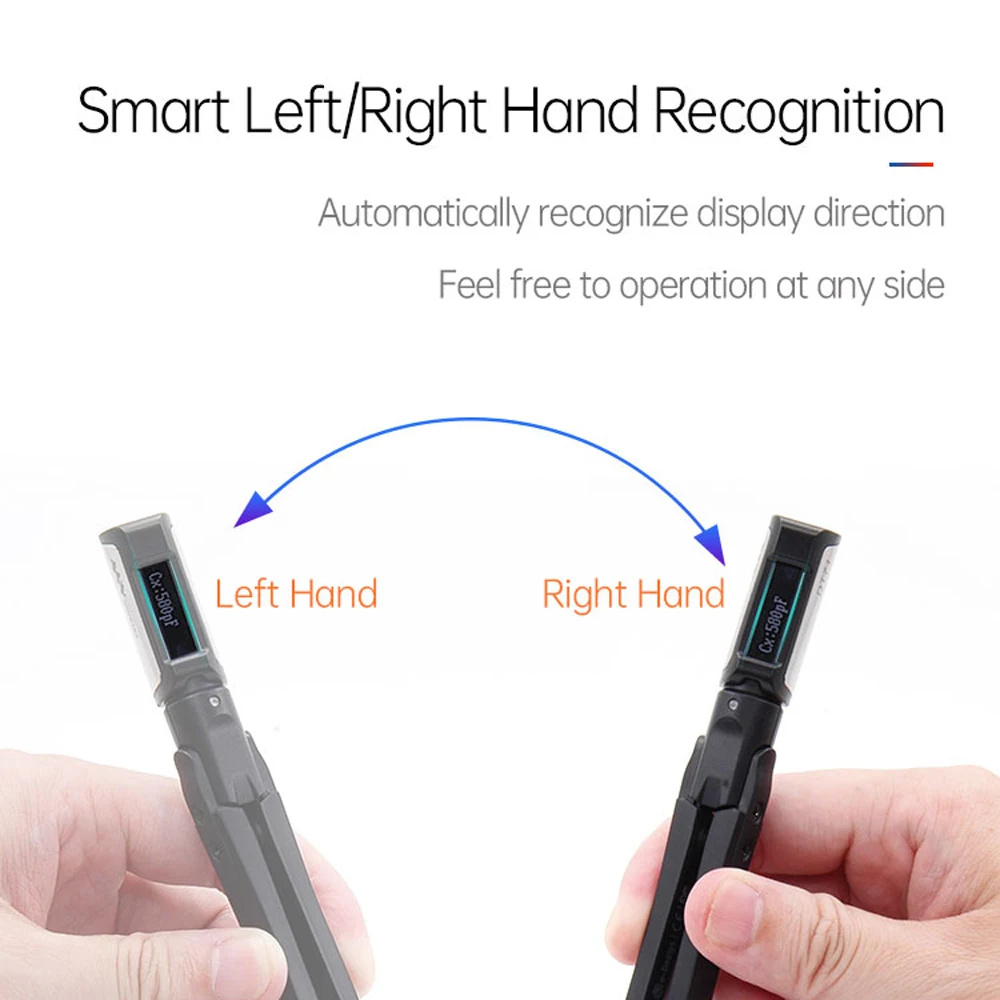

Intelligent attitude judgment, automatically distinguish left and right hand operation and switch screen display direction.
The controller adopts hidden touch buttons, light touch to shift gears, simple operation.

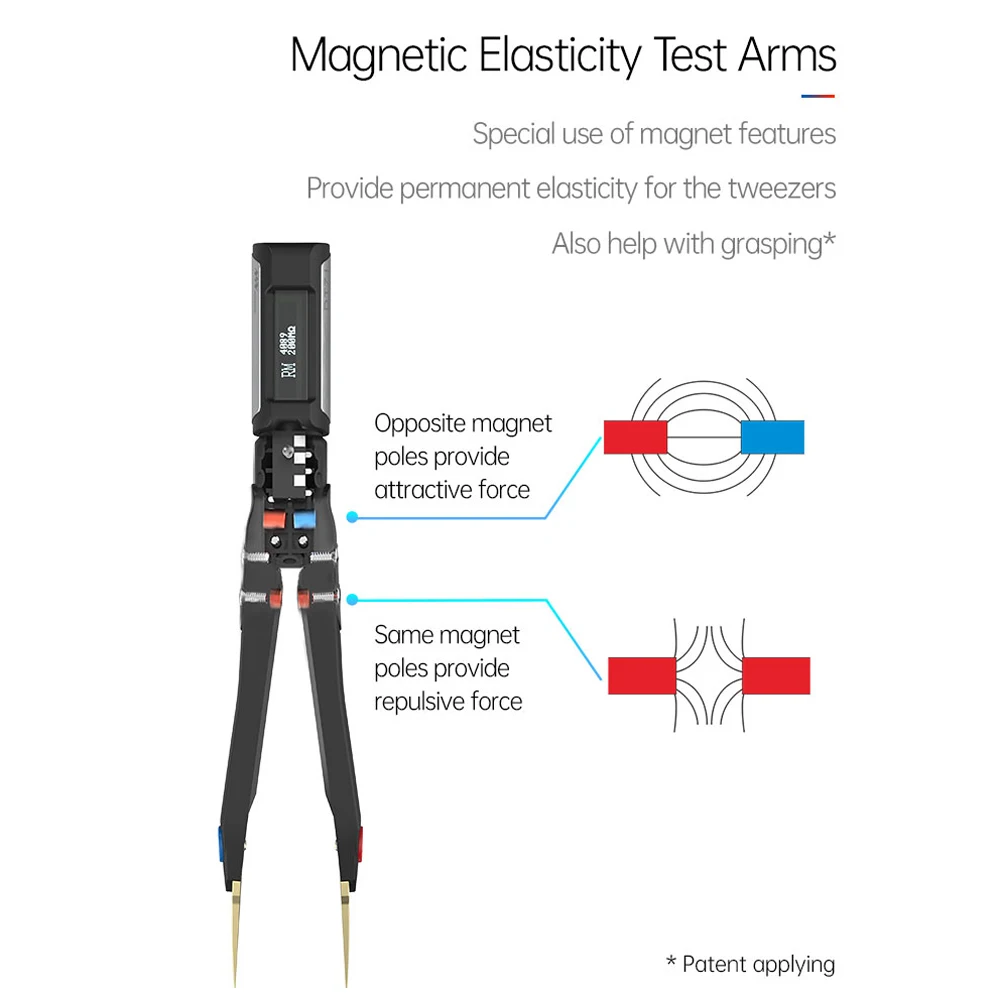

The measuring arm has magnetic elasticity, patented design, permanent magnetism, and ergonomics.
The measuring arm has a built-in double lithium battery with large capacity, balanced force, can be charged separately, and standby for a long time.
The gold-plated tweezers head can be exchanged to adapt to various usage scenarios.

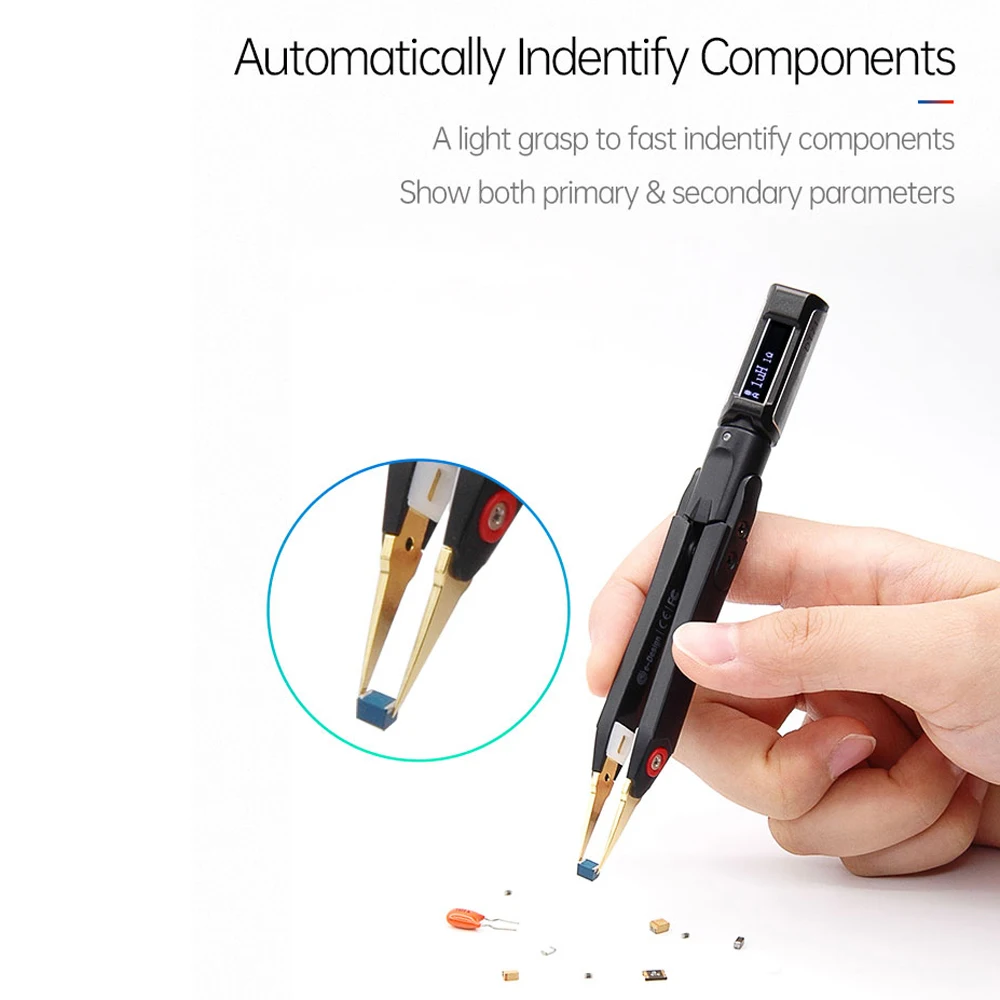

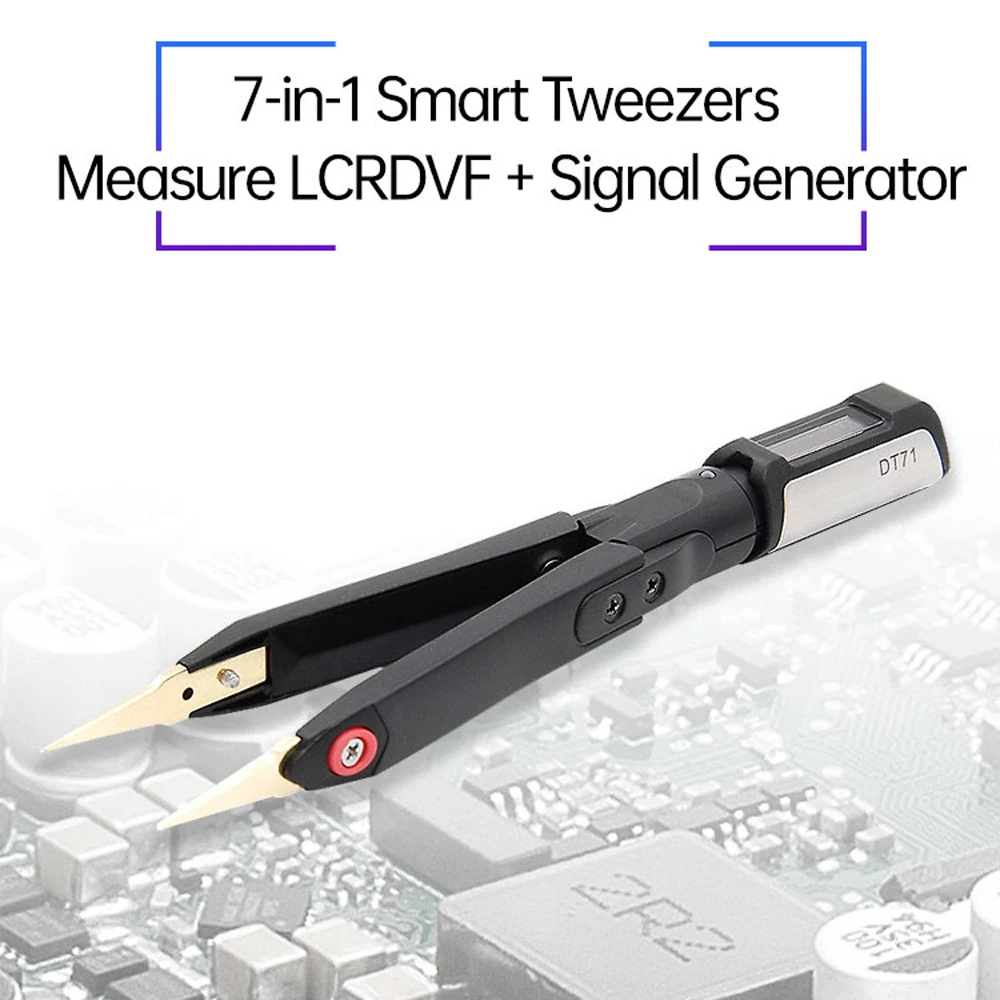

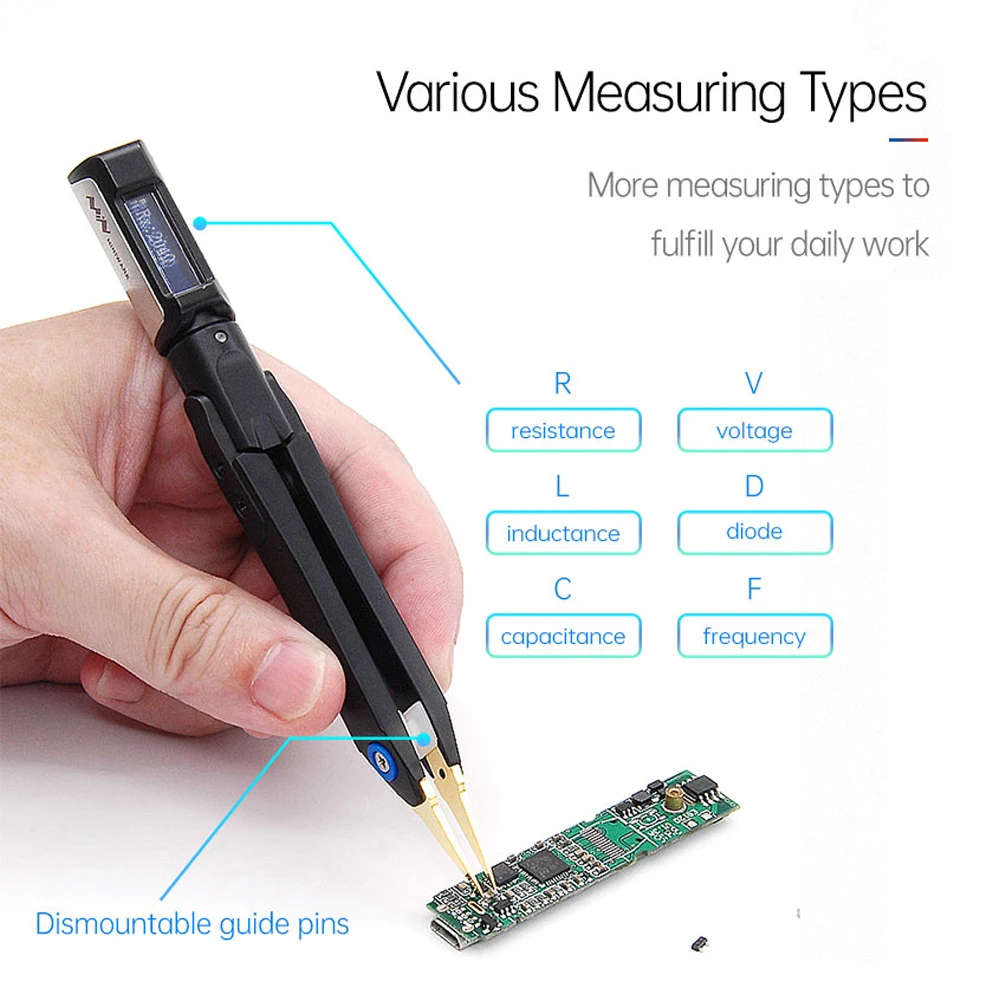

Abundant automatic measurement functions: resistance, capacitance, inductance, voltage, frequency, diode.
Built-in miniature signal generator, which can output various waveform signals (sine wave, noise wave, pulse wave, arbitrary wave).

Specifications:
Material: metal
Color: black
Battery: 2 * lithium battery, 50mAh 3.7V(included)
Operation time: 10 hours(in continuous operation)
Charging time: 2 hours
Display: 96*16 OLED
Operation: hidden touch button
Max input voltage: -5V~+50V
Source impedance: 1MΩ

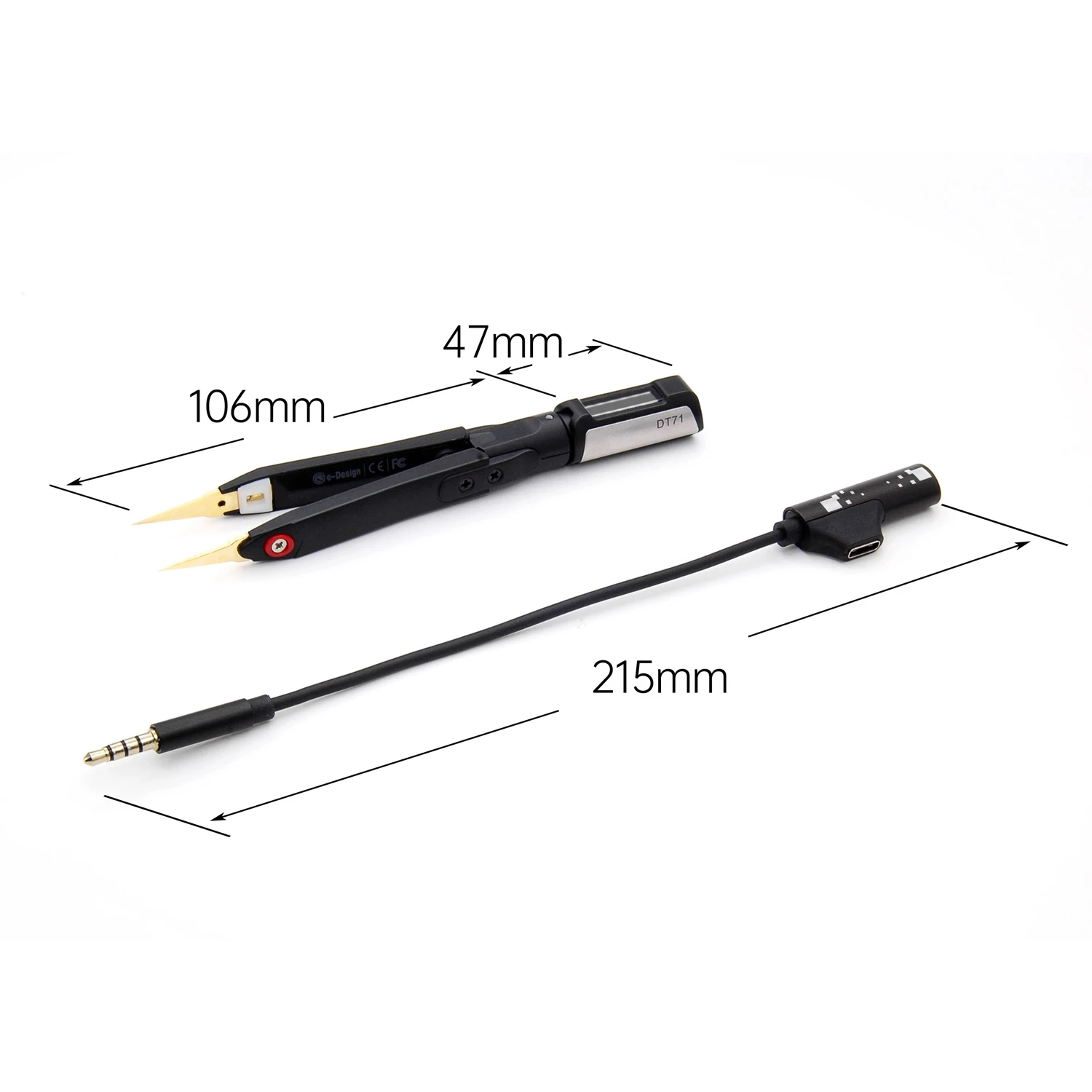

Controller size: 47mm / 1.9in
Test arms size: 106mm / 4.2in
Item weight: 22g / 0.8ounce

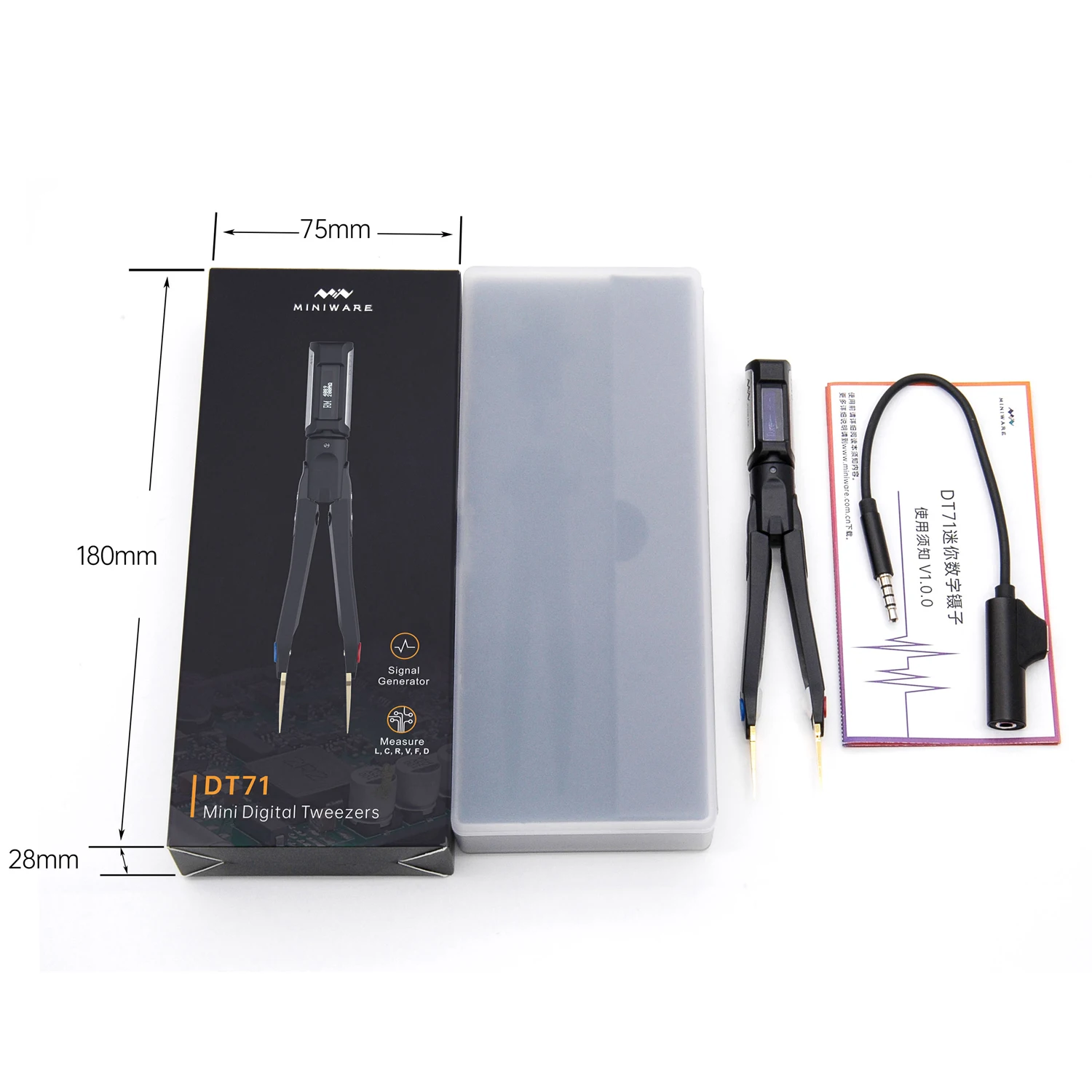

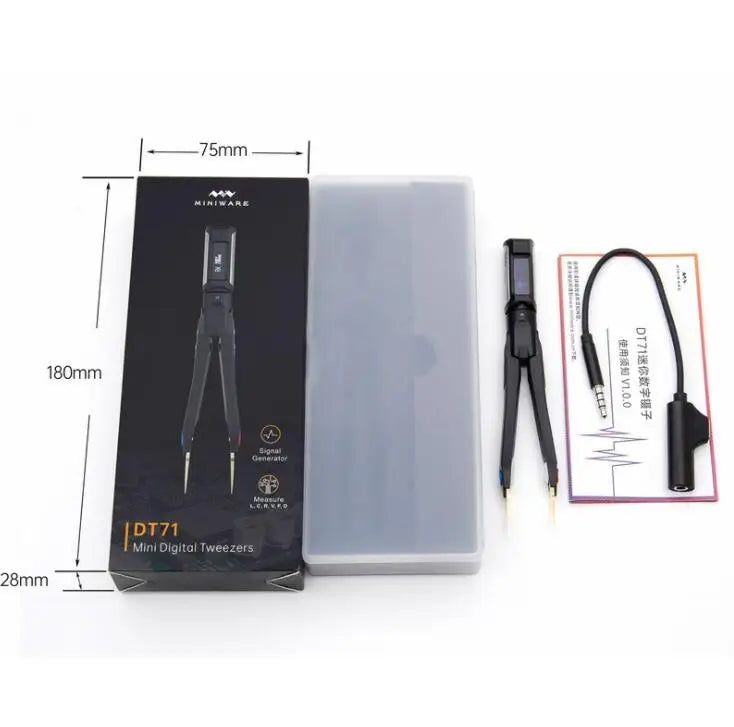

Package size: 180 * 75 * 28mm / 7.1 * 3.5 * 1.6in
Package weight: 133g / 4.6ounce

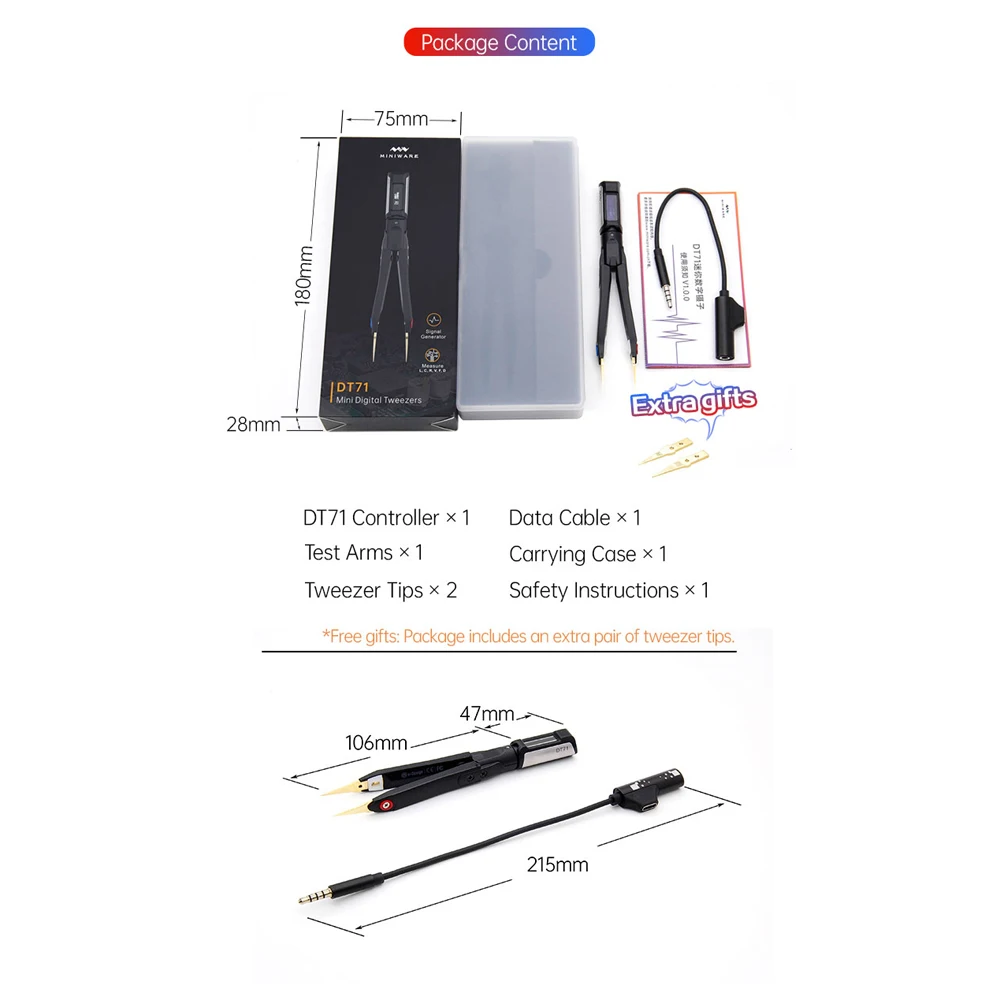

Packing List:
1 * DT71 Control Terminal
1 * USB Cable
1 * Measuring Arm
1 * Portable Pod
2 * Tweezers Head
1 * User Manual
