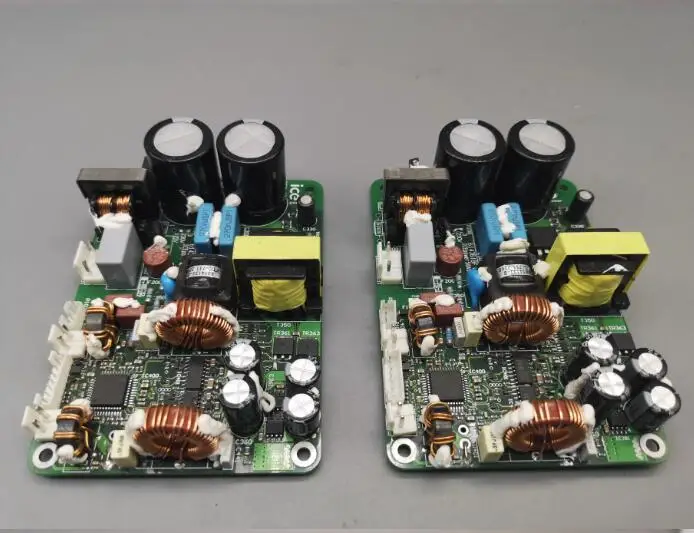

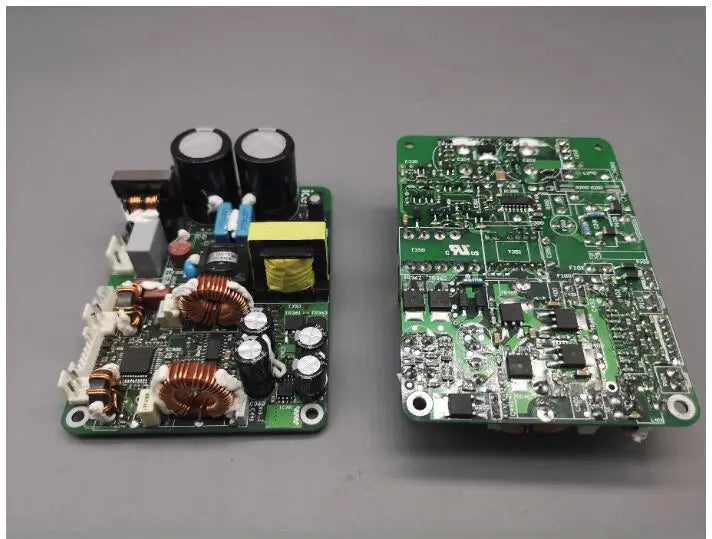

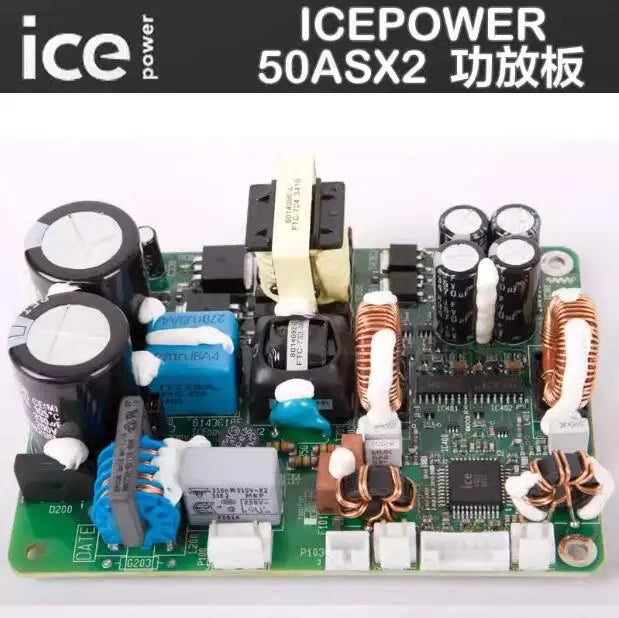

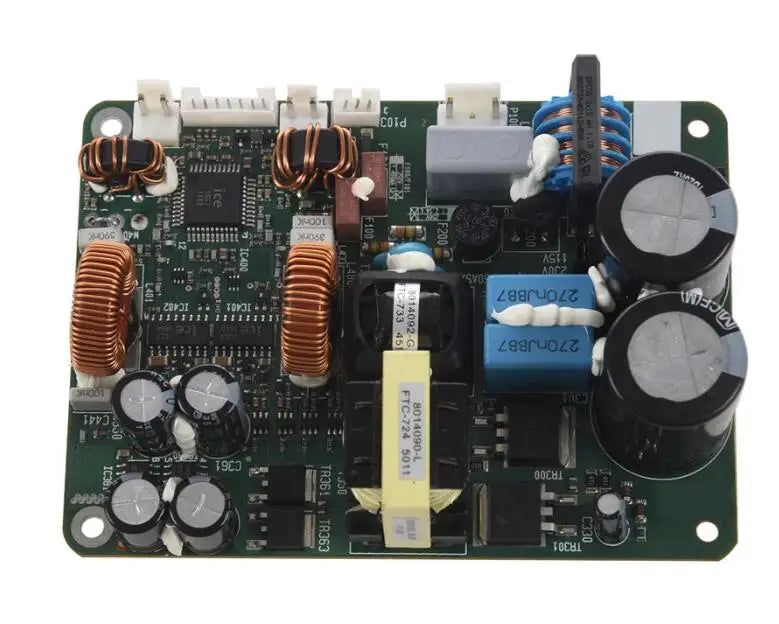

Original ICE50ASX2 Amplifier Board Hifi Audio Power Amp Board for ICEPOWER
Original ICE50ASX2 Amplifier Board Hifi Audio Power Amp Board for ICEPOWER
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Model 1 : 50Wx2 SE Stereo Amplifier Board
Key Specifications:
- Rated power: 1% THD + N, SE mode, 41khz 2 x 50W
- Rated power: 1% THD + N, SE mode, 81khz 2 x 25W
- Bandwidth: 83db, SE mode, 130 kHz
- Frequency response, 20Hz-20kHz, 2-8 load range +/- 0.5 dB
- Damping factor 8,100Hz and more than 500
- Total Harmonic Distortion (THD + N): 1khz, 1w 0.002%
- Dynamic range: SE mode, 120dB
- Color: Green
- Materials: Metal + pc

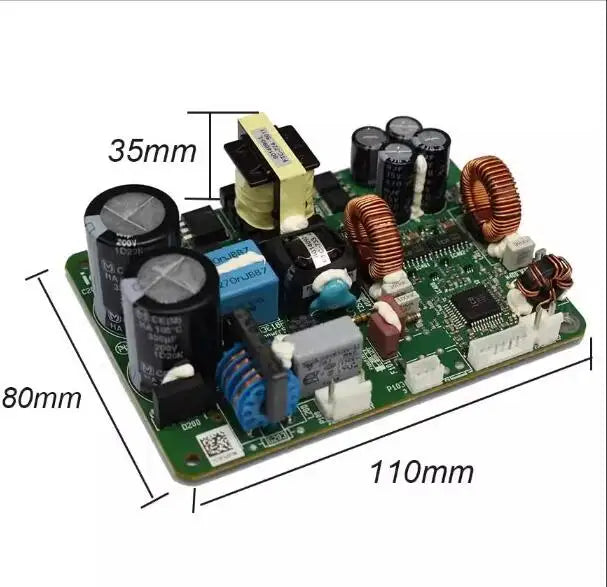

- Size: 11 x 8 x 3.5cm/4.3 x 3.1 x 1.4"
Model 2: 170W BTL One Channel Amplifier Board
Key Specifications:
- Rated power: 1% THD + N, BTL mode, 41khz 170W
- Maximum power: 10% THD + N, BTL mode, 41khz 220W
- Rated power: 1% THD + N, BTL mode, 8khz 100W
- Max power: 10% THD + N, BTL mode, 8khz 130W
- Frequency response, 20Hz-20kHz, 2-8 load range +/- 0.5 dB
- Damping factor 8,100Hz and more than 500
- Total Harmonic Distortion (THD + N): 1khz, 1w 0.002%
- Dynamic range: BTL mode, 125dB
- Color: Green
- Materials: Metal + pc
- Size: 11 x 8 x 3.5cm/4.3 x 3.1 x 1.4"

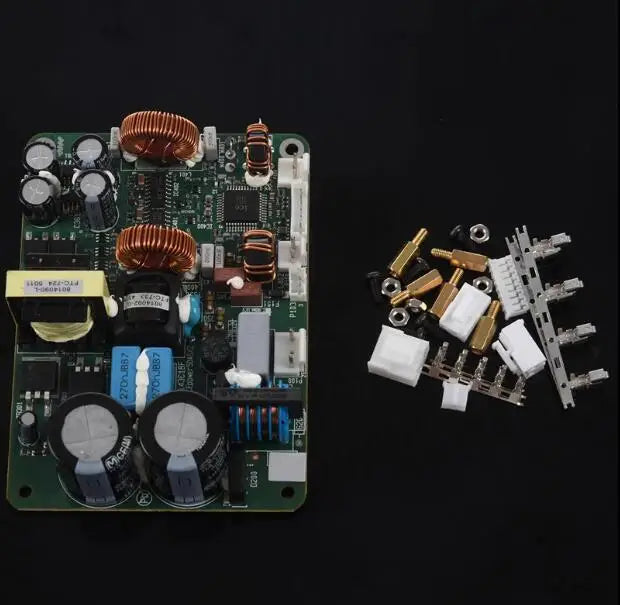

Package Included:
- 1 x Amplifier board
Description
Description
Model 1 : 50Wx2 SE Stereo Amplifier Board
Key Specifications:
- Rated power: 1% THD + N, SE mode, 41khz 2 x 50W
- Rated power: 1% THD + N, SE mode, 81khz 2 x 25W
- Bandwidth: 83db, SE mode, 130 kHz
- Frequency response, 20Hz-20kHz, 2-8 load range +/- 0.5 dB
- Damping factor 8,100Hz and more than 500
- Total Harmonic Distortion (THD + N): 1khz, 1w 0.002%
- Dynamic range: SE mode, 120dB
- Color: Green
- Materials: Metal + pc
- Size: 11 x 8 x 3.5cm/4.3 x 3.1 x 1.4"
Model 2: 170W BTL One Channel Amplifier Board
Key Specifications:
- Rated power: 1% THD + N, BTL mode, 41khz 170W
- Maximum power: 10% THD + N, BTL mode, 41khz 220W
- Rated power: 1% THD + N, BTL mode, 8khz 100W
- Max power: 10% THD + N, BTL mode, 8khz 130W
- Frequency response, 20Hz-20kHz, 2-8 load range +/- 0.5 dB
- Damping factor 8,100Hz and more than 500
- Total Harmonic Distortion (THD + N): 1khz, 1w 0.002%
- Dynamic range: BTL mode, 125dB
- Color: Green
- Materials: Metal + pc
- Size: 11 x 8 x 3.5cm/4.3 x 3.1 x 1.4"
Package Included:
- 1 x Amplifier board
