CW2021 Automatic Key Hand Button CW Interface Box For UV Handpiece Audio
Features:
Support automatic key (support point row exchange, left and right line order exchange,
Support hand button (support left and right line order exchange,
Double monitor (CW side tone monitor + hand SP monitor)
Tone 400-900HZ adjustable, WPM 5-35 adjustable
CW sync key signal output
Support for audio, support PTT automatic trigger function
Built-in passive buzzer, support mute
Built-in 2000MA lithium battery,
Built-in USB charging, power management circuit
No need to start PTT and power switch automatically sleep,
Standby current 26uA, theoretical standby up to 8 years,
Support ISP firmware upgrade
Panel reserved label writing area, writeable name and so on

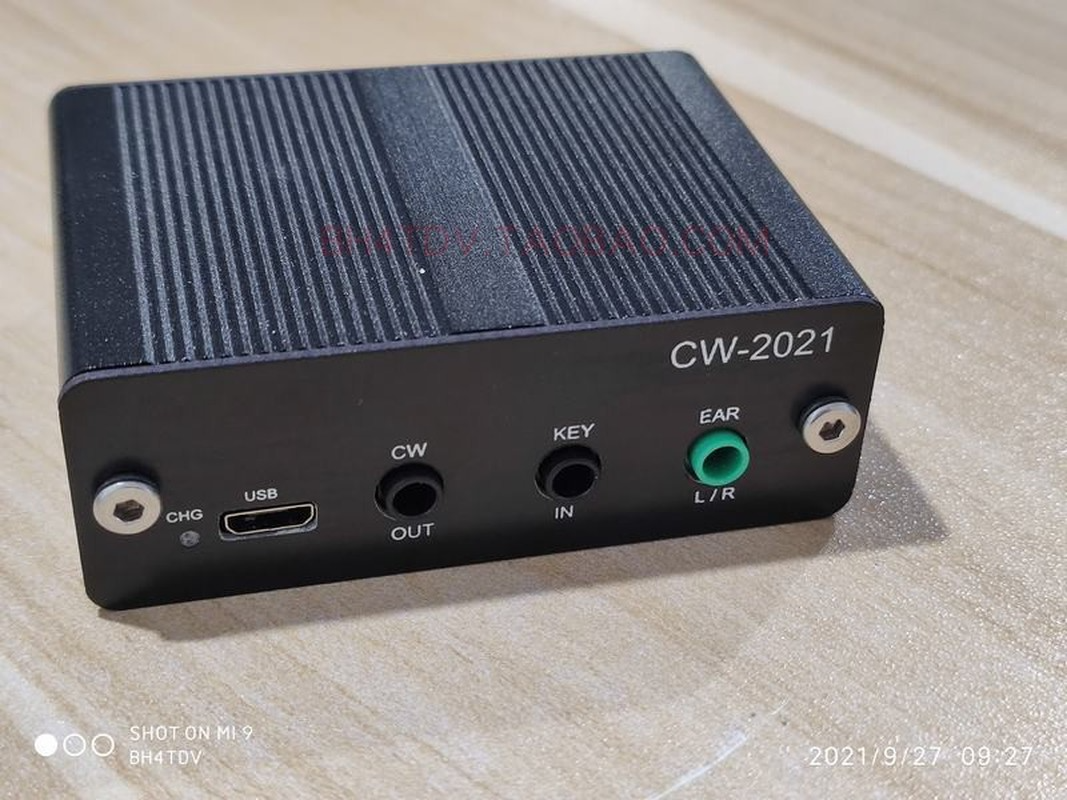

interface:
SP OUT monitor headphone port (two-channel: CW side tone monitor + hand SP monitor)
KEY IN key (two-channel: automatic key, hand key)
CW OUT sync key signal output
Miro USB universal socket for charging and upgrading firmware
Support computer command sending CW

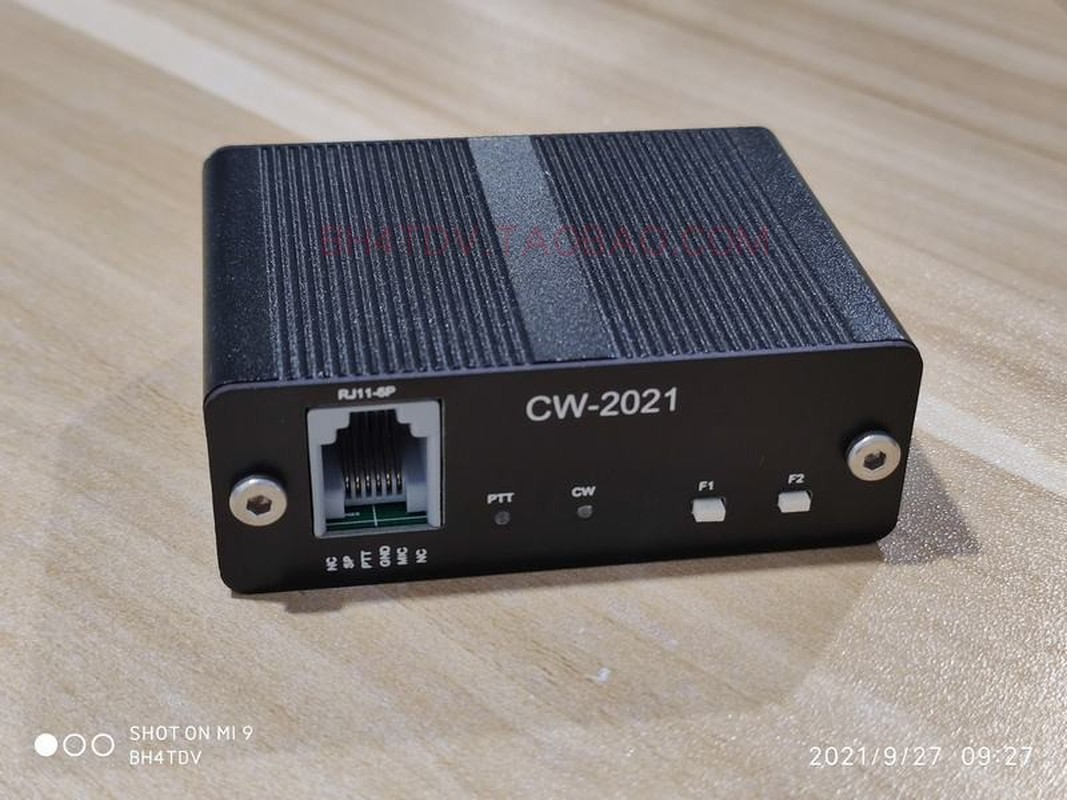

RJ11 radio interface, supporting various hand stations and car stations
Support computer command sending CW
RJ11 radio interface, supporting various hand stations and car stations
LED indication:
STU: job indication
CW: Touch synchronization indication
CHG: Charging indication
After a few seconds without pressing the key, the host will automatically enter the sleep standby state.
Press the hand key or auto key to wake up the host and PTT will be triggered automatically.
In the wake-up state of the host, in the manual key working mode, the key functions are as follows:
Press and hold key a to cycle the tone transmitted by the radio station and report t0-t9 at the same time
Note that the tone is transmitted by the radio station, and the tone of the built-in buzzer is fixed
Press and hold key B to cycle the buzzer switch and report b0-b1 at the same time
In the wake-up state of the host, in the automatic key working mode, the key functions are as follows:
Press and hold key a, speed regulation +, alarm s (5-35)
Press and hold the B key, and the speed regulation will alarm s (5-35)
In sleep standby mode, other setting functions:
Press and hold the a key, wake up the host with the electric shock key, automatically switch the left and right line sequence, draw left and right, or draw left and right, and report m0-m1 at the same time
Press and hold the B key, wake up the host with the electric shock key, cycle to switch PTT, delay about 1-9 seconds, and report d1-d9 at the same time
Press the hand key or auto key to wake up the host and PTT will be triggered automatically.
In the wake-up state of the host, in the manual key working mode, the key functions are as follows:
Press and hold key a to cycle the tone transmitted by the radio station and report t0-t9 at the same time
Note that the tone is transmitted by the radio station, and the tone of the built-in buzzer is fixed
Press and hold key B to cycle the buzzer switch and report b0-b1 at the same time
In the wake-up state of the host, in the automatic key working mode, the key functions are as follows:
Press and hold key a, speed regulation +, alarm s (5-35)
Press and hold the B key, and the speed regulation will alarm s (5-35)
In sleep standby mode, other setting functions:
Press and hold the a key, wake up the host with the electric shock key, automatically switch the left and right line sequence, draw left and right, or draw left and right, and report m0-m1 at the same time
Press and hold the B key, wake up the host with the electric shock key, cycle to switch PTT, delay about 1-9 seconds, and report d1-d9 at the same time
