OSC202 Thermostatic Crystal Oscillator OCXO Module 2-Channel 10MHz Signal Output
•OSC202 OCXO module frequency accuracy is 10MHz signal (+/-200ppb);
•2-channel signal output, one is a standard 10MHz sine wave signal, the other is a 10MHz frequency multiplier signal. The frequency division has 16 types, the signal output frequency division is selected through DIP Code Switch.
•User can adjust RV1 potentiometer to correct the deviation of the 10MHz frequency (+/-2.0ppm).

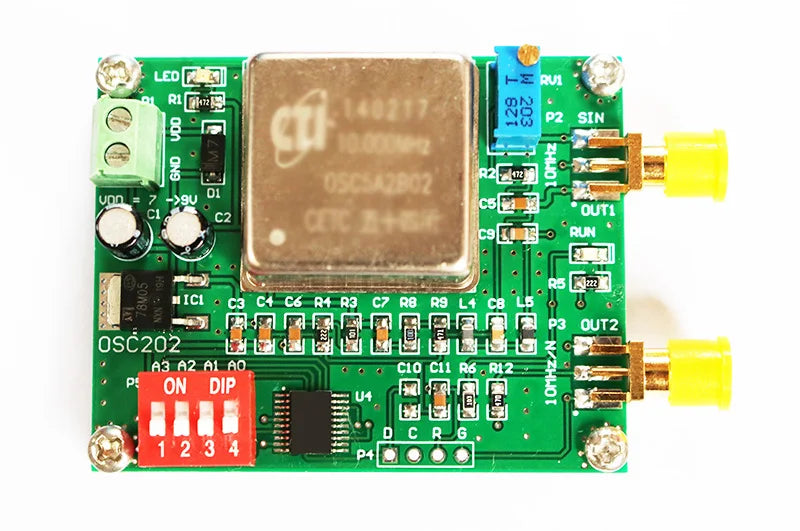

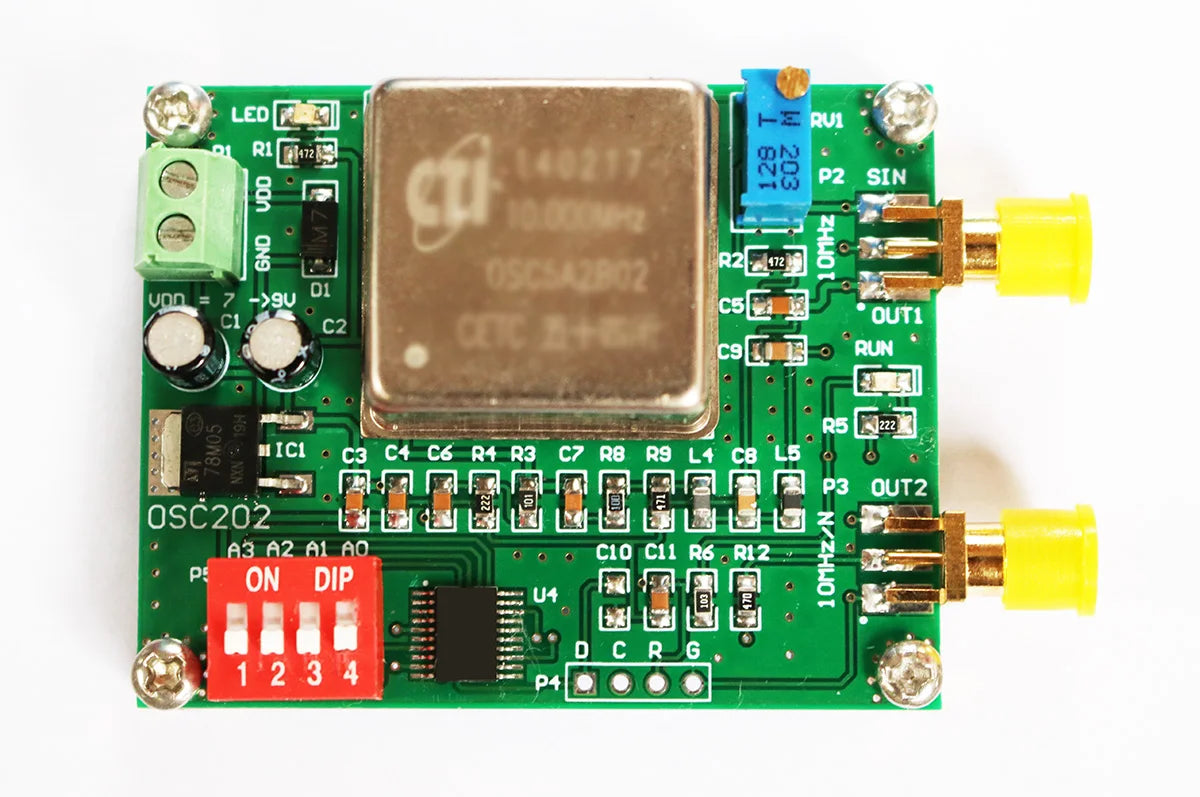

•P1: Power input interface; (7~9V 500MA).
• P2: 10MHz sine wave signal output interface; (10Mhz amplitude: 2.5Vpp) SMA interface
• P3: 10MHz N-frequency pulse signal output interface; (10Mhz/N amplitude: 5Vpp) SMA interface
• RV1: Correct the deviation of 10Mhz output frequency (+/-2.0ppm)
• DIP Code Switch Frequency Selection code table:
00: A3=0, A2=0, A1=0, A0=0, OUT = 2.5MHz
01: A3=0, A2=0, A1=0, A0=1, OUT = 2.0MHz
02: A3=0, A2=0, A1=1, A0=0, OUT = 1.0MHz
03: A3=0, A2=0, A1=1, A0=1, OUT = 500KHz
04: A3=0, A2=1, A1=0, A0=0, OUT = 200KHz
05: A3=0, A2=1, A1=0, A0=1, OUT = 100KHz
06: A3=0, A2=1, A1=1, A0=0, OUT = 50KHz
07: A3=0, A2=1, A1=1, A0=1, OUT = 25KHz
08: A3=1, A2=0, A1=0, A0=0, OUT = 20KHz
09: A3=1, A2=0, A1=0, A0=1, OUT = 10KHz
10: A3=1, A2=0, A1=1, A0=0, OUT = 5KHz
11: A3=1, A2=0, A1=1, A0=1, OUT = 1KHz
12: A3=1, A2=1, A1=0, A0=0, OUT = 100Hz
13: A3=1, A2=1, A1=0, A0=1, OUT = 50Hz
14: A3=1, A2=1, A1=1, A0=0, OUT = 10Hz
15: A3=1, A2=1, A1=1, A0=1, OUT = 2Hz
0 = connect directly to ground(L)
1 = connect directly to VDD(H)
Description
Description
OSC202 Thermostatic Crystal Oscillator OCXO Module 2-Channel 10MHz Signal Output
•OSC202 OCXO module frequency accuracy is 10MHz signal (+/-200ppb);
•2-channel signal output, one is a standard 10MHz sine wave signal, the other is a 10MHz frequency multiplier signal. The frequency division has 16 types, the signal output frequency division is selected through DIP Code Switch.
•User can adjust RV1 potentiometer to correct the deviation of the 10MHz frequency (+/-2.0ppm).
•P1: Power input interface; (7~9V 500MA).
• P2: 10MHz sine wave signal output interface; (10Mhz amplitude: 2.5Vpp) SMA interface
• P3: 10MHz N-frequency pulse signal output interface; (10Mhz/N amplitude: 5Vpp) SMA interface
• RV1: Correct the deviation of 10Mhz output frequency (+/-2.0ppm)
• DIP Code Switch Frequency Selection code table:
00: A3=0, A2=0, A1=0, A0=0, OUT = 2.5MHz
01: A3=0, A2=0, A1=0, A0=1, OUT = 2.0MHz
02: A3=0, A2=0, A1=1, A0=0, OUT = 1.0MHz
03: A3=0, A2=0, A1=1, A0=1, OUT = 500KHz
04: A3=0, A2=1, A1=0, A0=0, OUT = 200KHz
05: A3=0, A2=1, A1=0, A0=1, OUT = 100KHz
06: A3=0, A2=1, A1=1, A0=0, OUT = 50KHz
07: A3=0, A2=1, A1=1, A0=1, OUT = 25KHz
08: A3=1, A2=0, A1=0, A0=0, OUT = 20KHz
09: A3=1, A2=0, A1=0, A0=1, OUT = 10KHz
10: A3=1, A2=0, A1=1, A0=0, OUT = 5KHz
11: A3=1, A2=0, A1=1, A0=1, OUT = 1KHz
12: A3=1, A2=1, A1=0, A0=0, OUT = 100Hz
13: A3=1, A2=1, A1=0, A0=1, OUT = 50Hz
14: A3=1, A2=1, A1=1, A0=0, OUT = 10Hz
15: A3=1, A2=1, A1=1, A0=1, OUT = 2Hz
0 = connect directly to ground(L)
1 = connect directly to VDD(H)
