New X310 SDR Platform KINTEX7-410T FPGA Built-in 2x USX160 RF Sub Card GPSDO Module Support UHD RFnoc GNU Radio
New X310 SDR Platform KINTEX7-410T FPGA Built-in 2x USX160 RF Sub Card GPSDO Module Support UHD RFnoc GNU Radio
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
This is the fully compatible version X310,equipped with a resource rich user programmable Kintex-7 FPGA and some optional high-speed interfaces (PCIe, 10G ports).Composed of a gigabit port and equipped with a built-in UBX160 RF sub card, the RF sub card has a maximum bandwidth of 160MHz. The XC7K410TPFPGA provides high-speed connections between all major components including RF front-end, host interface, and DDR3 memory. Adopting open source technology
The cross platform UHD driver has a large number of development frameworks, supports RFNoC development framework and open source projects, including two UBX160 daughter cards and a GPSDO module
Features

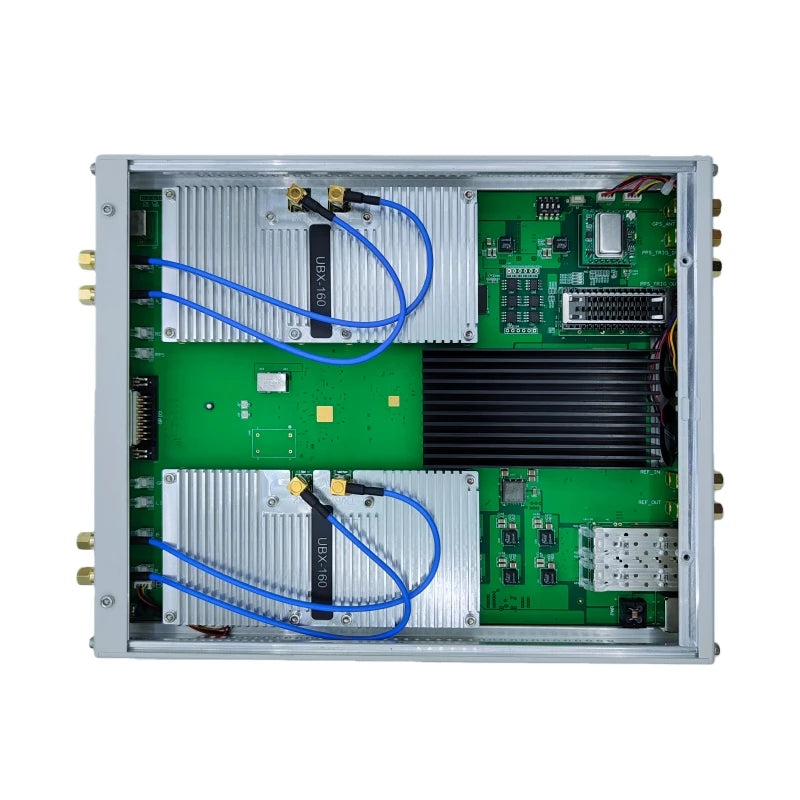

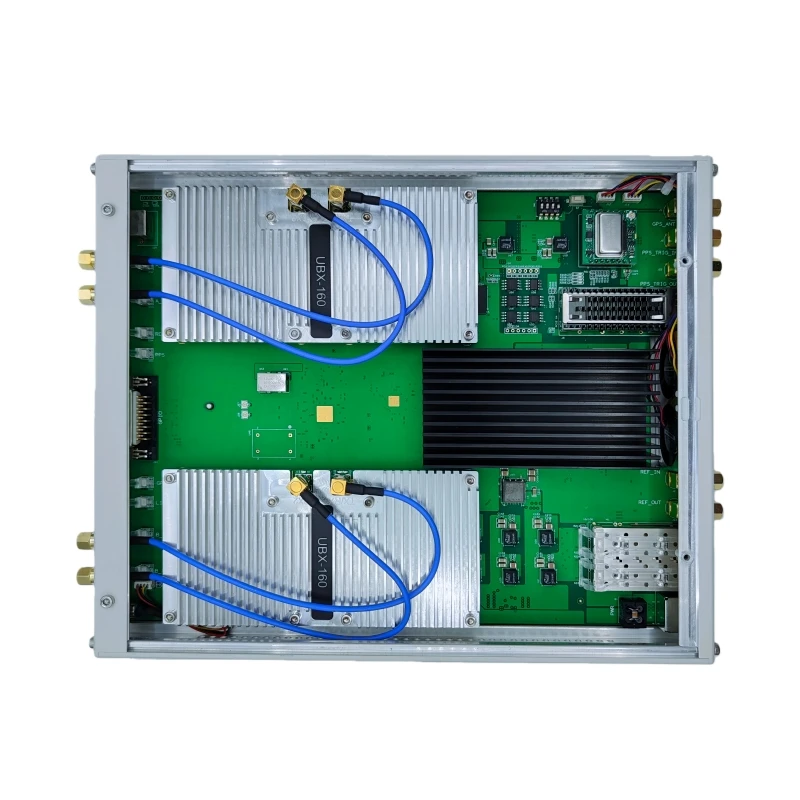

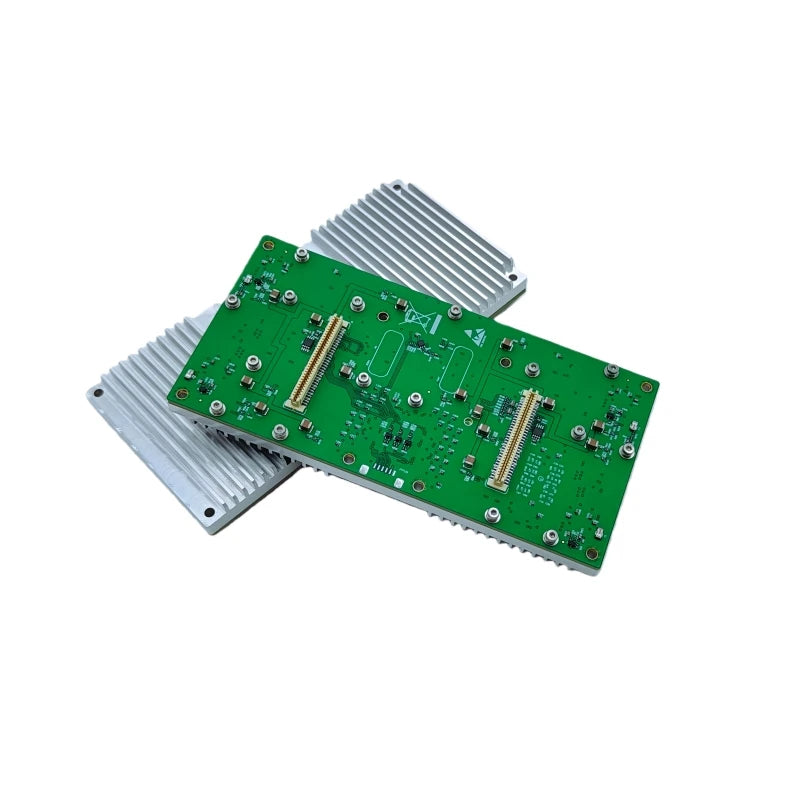

1. Built in two RF daughter boards, supporting a maximum of 160MHz and a frequency range of 10M~6GHz, can be replaced with other official cards
2. Xilinx Kintex-7XC7K410T provides high-performance digital signal processing capabilities;
3. Multiple high-speed interfaces;
4. UHD supports multiple frameworks:
GNU Radio
RFNocFPGA development framework;
C++/Python APl;
5. Flexible and stable clock processing structure; Considering electromagnetic interference and thermal effects, some clock circuits are placed at the bottom of the board.
6. The compact and sturdy appearance is extremely convenient for desktop or rack installation and use
Parameter:
1. Frequency coverage: 10MHz-6GHz;
2. Output power (with UBX160 daughter board 3G typical power): 12dBm;
3. ADC sampling rate (maximum): 200mS/s; ADC resolution: 14 bits;
4. DAC sampling rate: 800MS/s; DAC resolution: 16 bits;

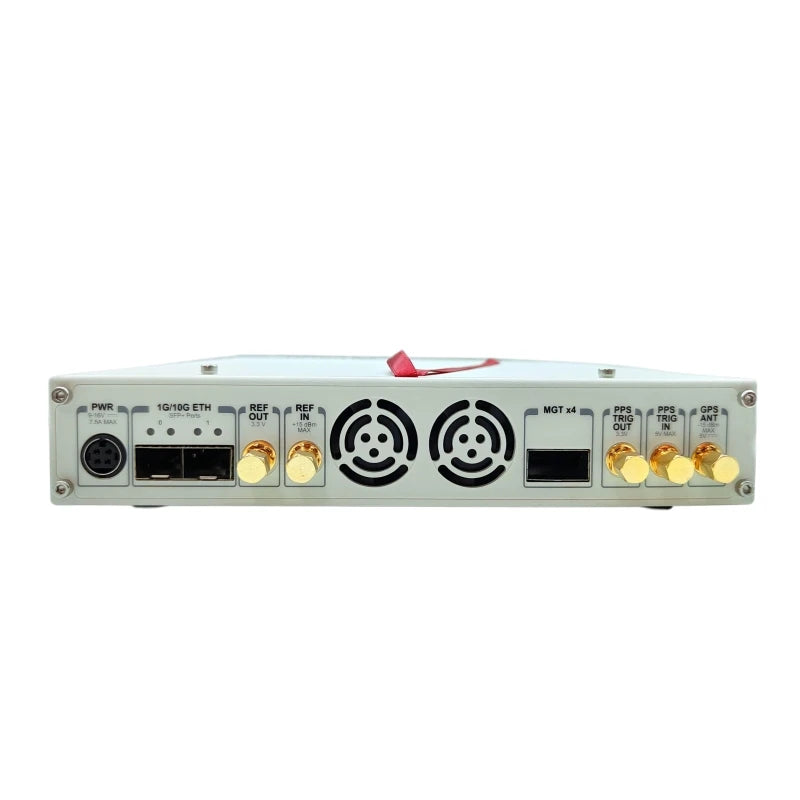

5. Supports 10Gb full duplex 10 Gigabit Ethernet port;
6. Supports 400Gb QSF28 interface;
7. Supports 1Gb full duplex gigabit Ethernet port;
8. Supports 10GbX2 full duplex 10 Gigabit Ethernet port;
9. Configurable sampling rate;
10. Built in GPSDO;
11. Support operations related to OctoClock and OctoClock-G;
12. DC voltage input: 12V, actually accepts 9-15V;
13. Power consumption (2 UBX-160 cards): 36W;
14. External dimensions: not exceeding 280mm * 210mm * 30mm;
15. Weight: 0.450kg
Package include
1 x X310
