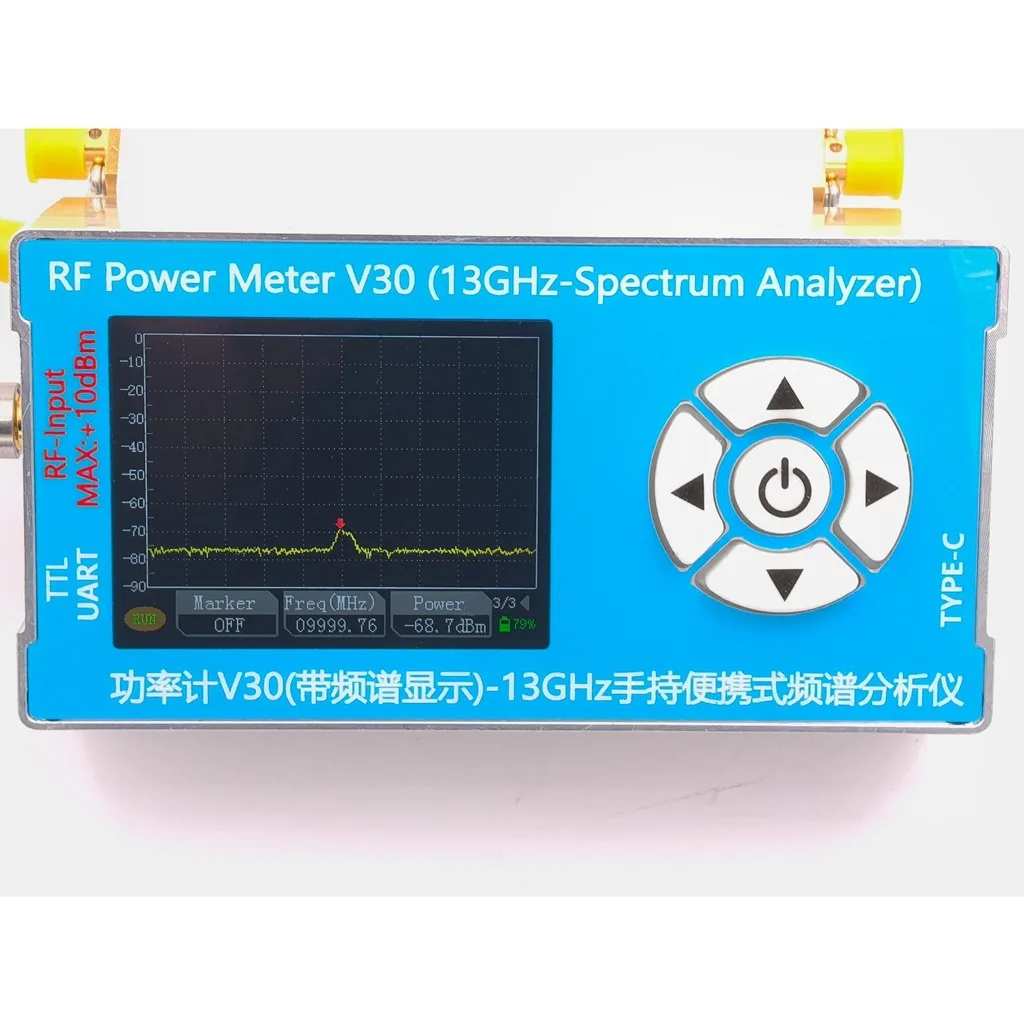

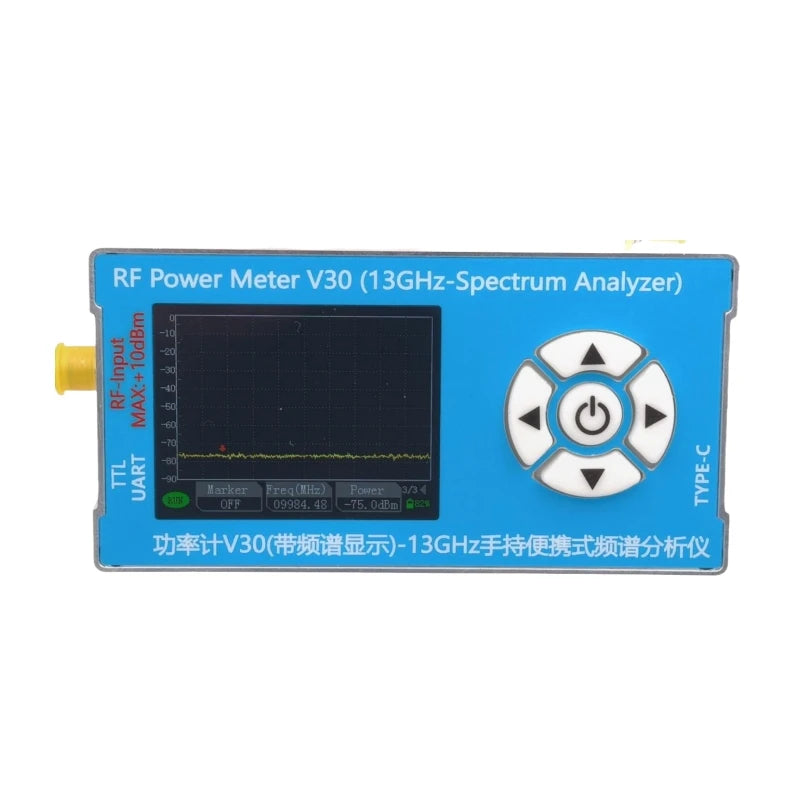

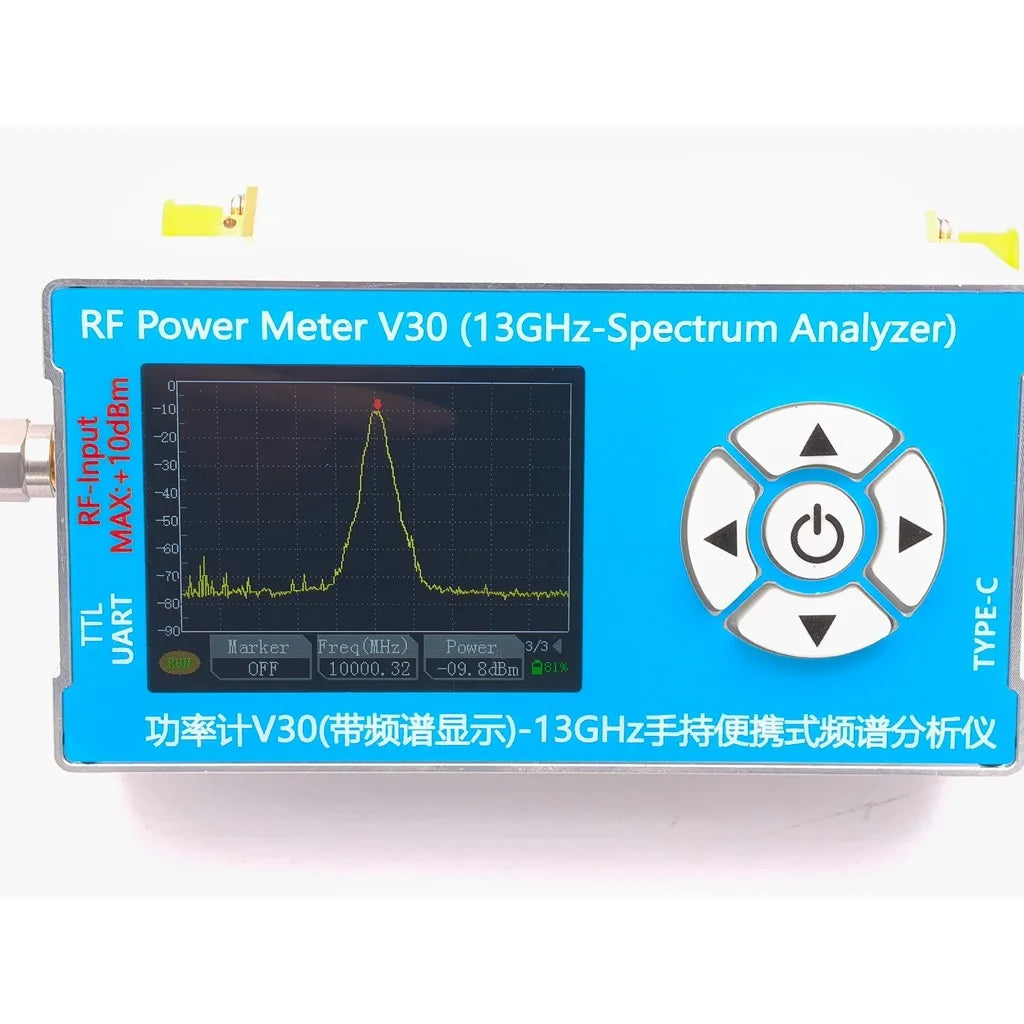

New V30 13GHz Portable Spectrum Analyzer RF Power Meter Signal Interference Detection Sweep Frequency Analyzer
New V30 13GHz Portable Spectrum Analyzer RF Power Meter Signal Interference Detection Sweep Frequency Analyzer
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Specification
Specification:
- Model: V30 power meter - 13GHz portable spectrum analyzer
- Frequency range: 5MHz - 13GHz
- Maximum scanning span: 6000MHz
- Measuring time: ≤100ms
- Bandwidth: 300kHz (fixed)
- Minimum frequency step: 20kHz
- Measuring frequency error: ±0.1MHz
- Background noise: < -80dBm
- Impedance: 50ohms
- Measuring power range (connect with external attenuator): +30dBm ~ -80dBm
- Maximum input power: +10dBm
- Measuring power error: ±0.5dB
- Communication interface: USB Type-C, TTL serial port
- Upper computer: support
- Battery: 3500mA
- Product size: 97 x 50 x 30mm
- Net weight: 273g

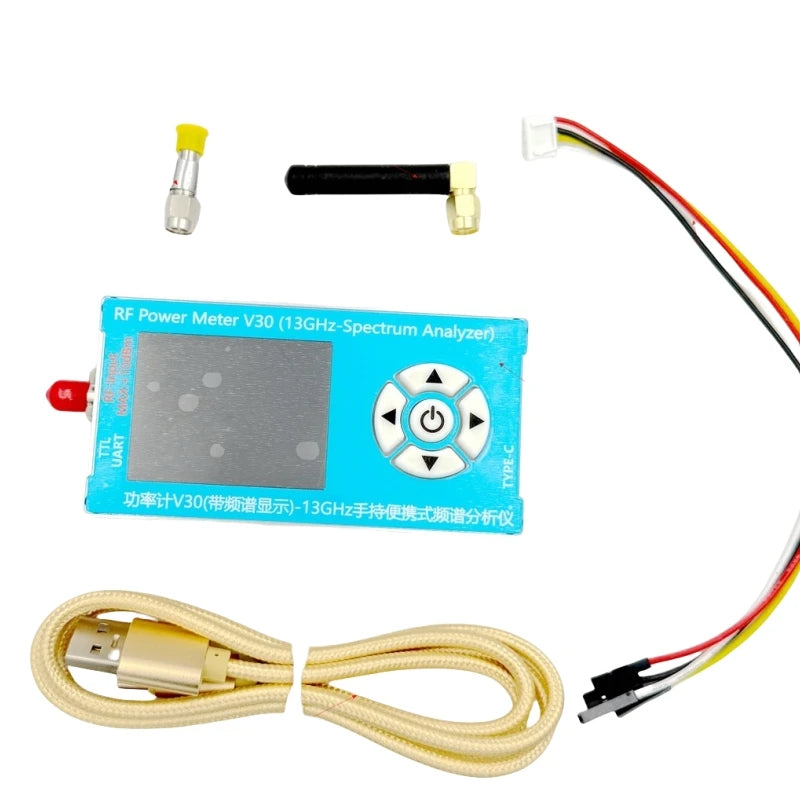

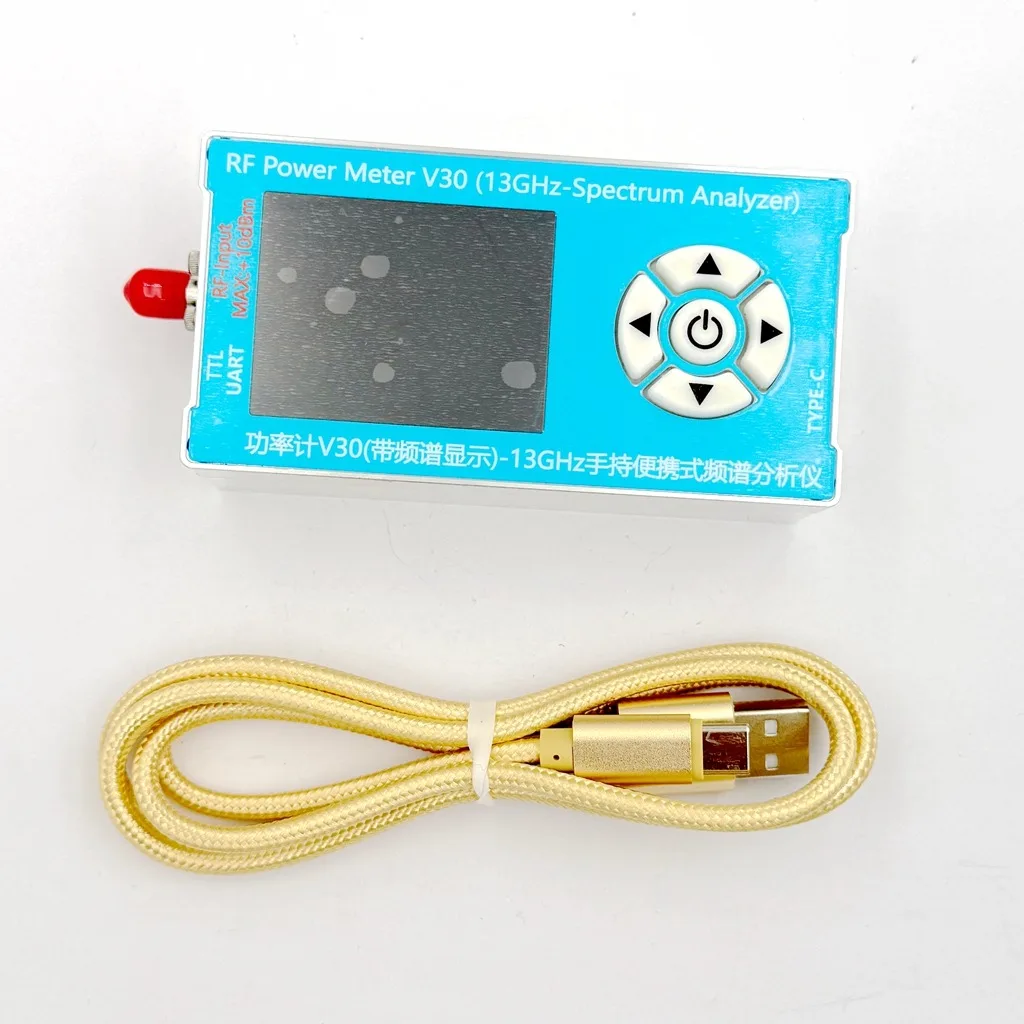

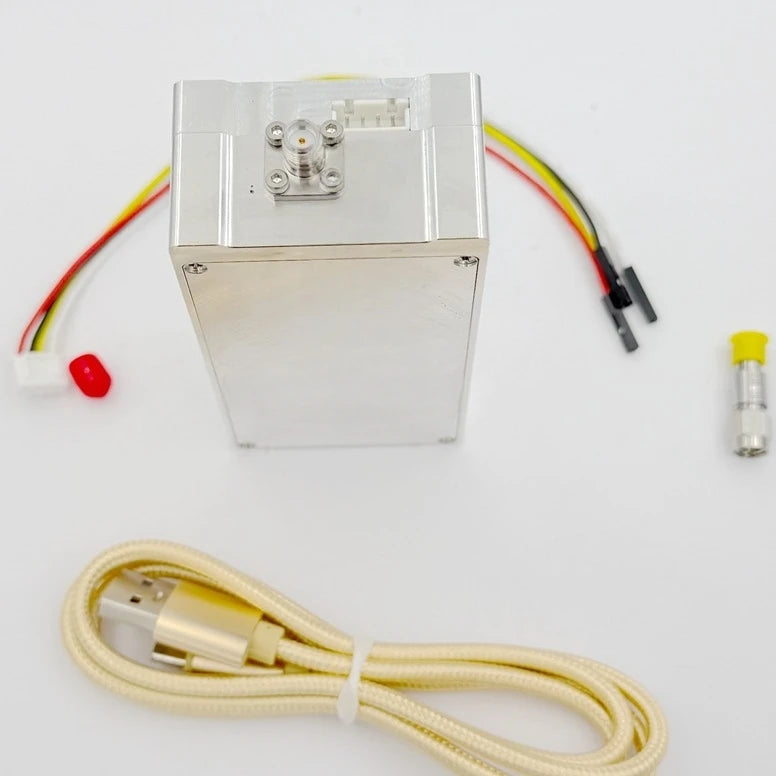

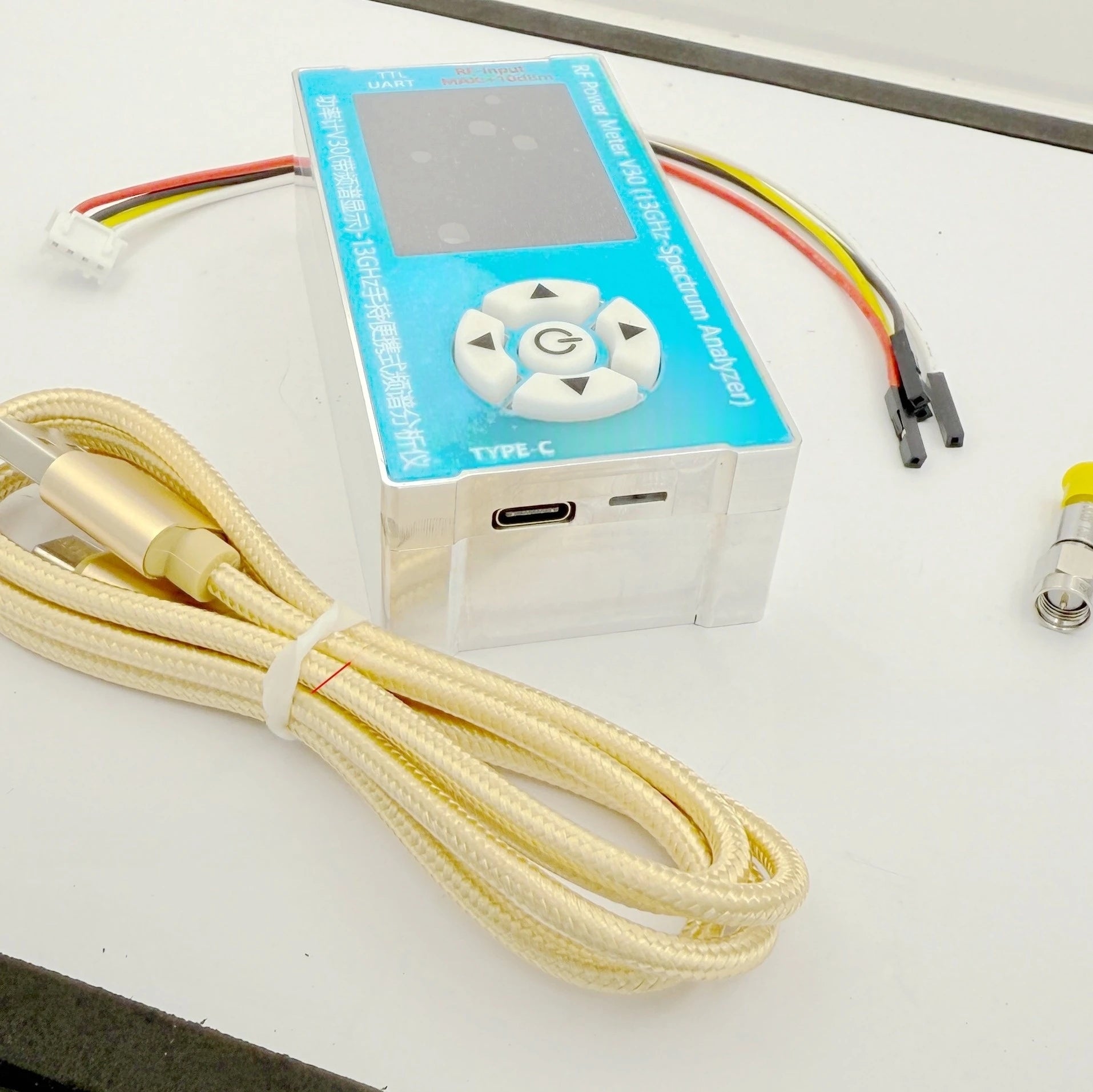

Package Included:
Option A:
1 x RF Power Meter
1 x Type-C Cable
Option B:
1 x RF Power Meter
1 x 13G 30dB attenuator
1 x 2.4G-5.8G antenna
1 x TTL cable
1 x Type-C Cable
