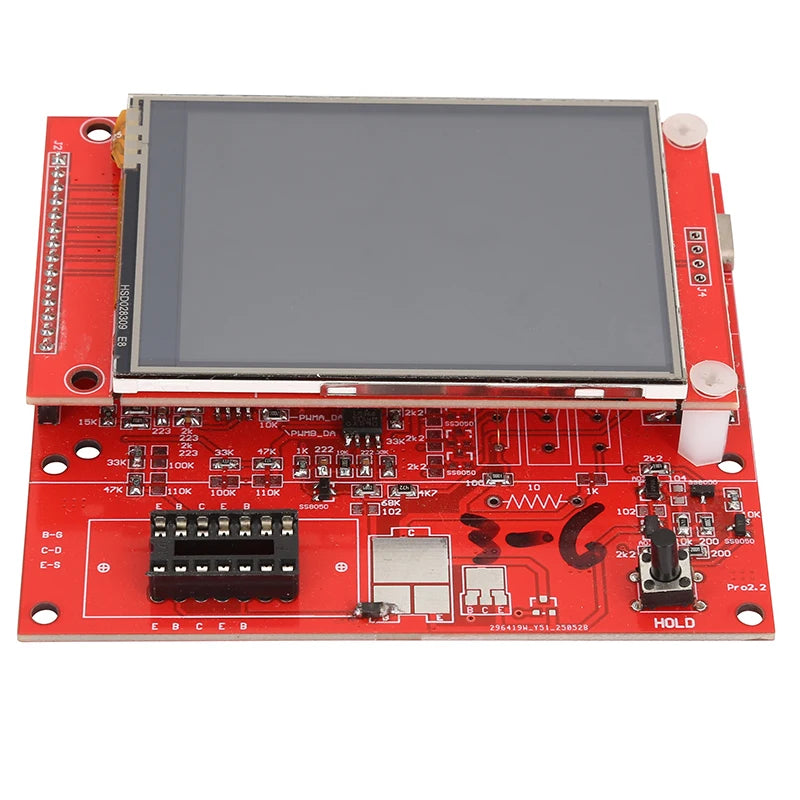

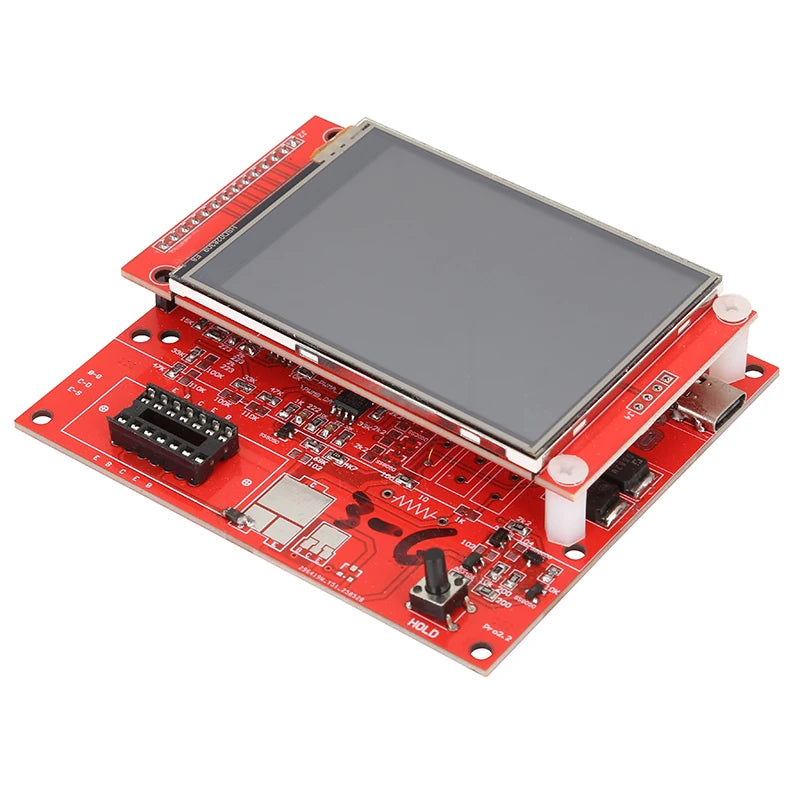

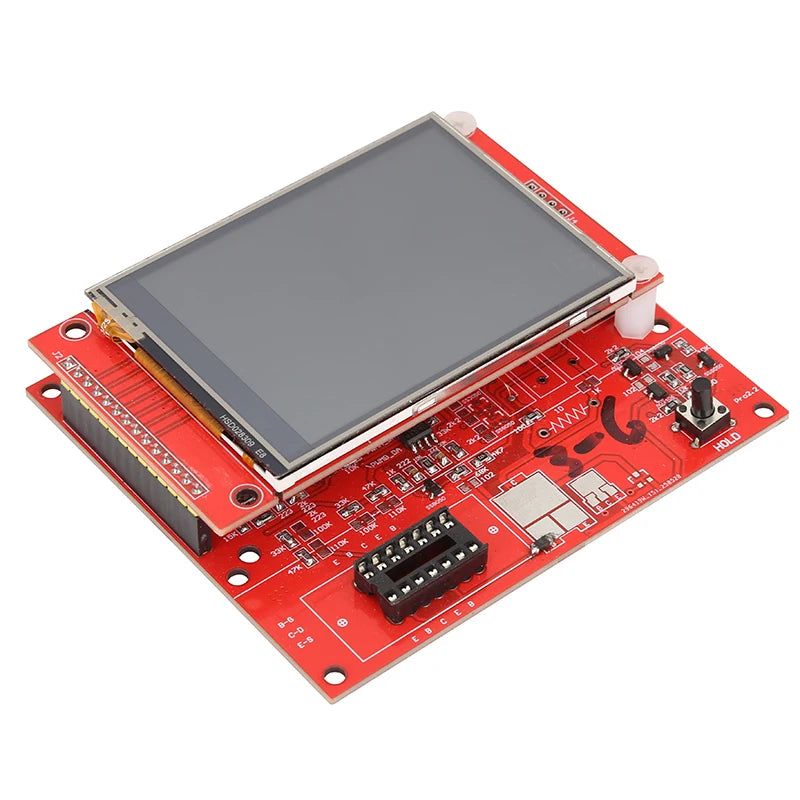

New Transistor Illustration Instrument Characteristic Curve Tester Collector Current Collector Current 100mA max
New Transistor Illustration Instrument Characteristic Curve Tester Collector Current Collector Current 100mA max
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /06/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Description
IC maximum current 100ma

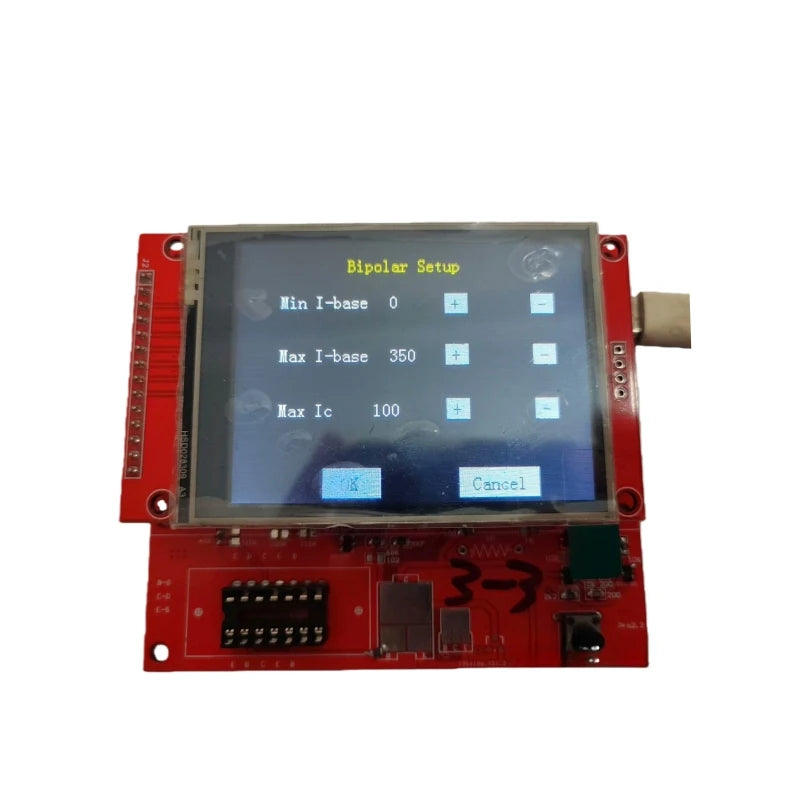

IB maximum 350ua
VG maximum 12V
VC maximum 12V
2.8-inch touch screen, type C power supply

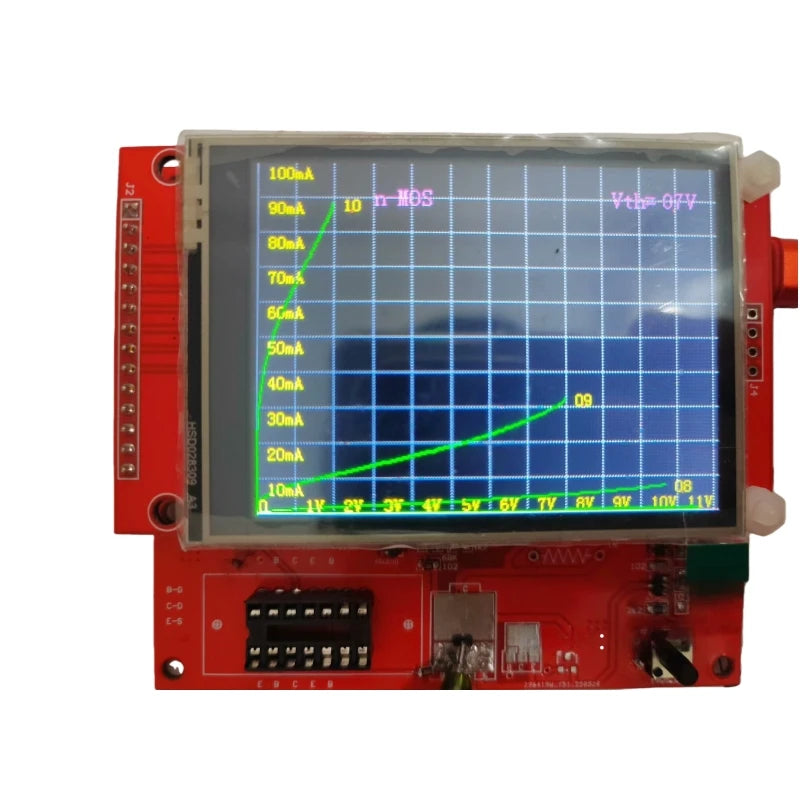

Press the Hold button to retain the current curve. Scan the curve of another tube to compare the curve and parameters, and press HOLD again to release the retention.
DIP14 socket has no polarity above or below, and the corresponding pin definition can be plugged in

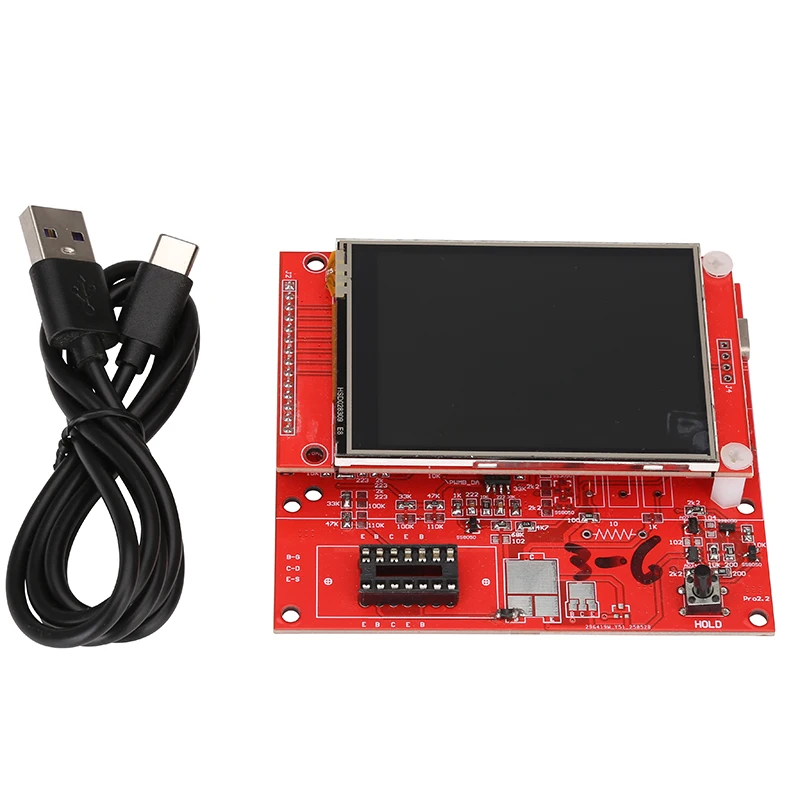

Package include
