Product specifications:

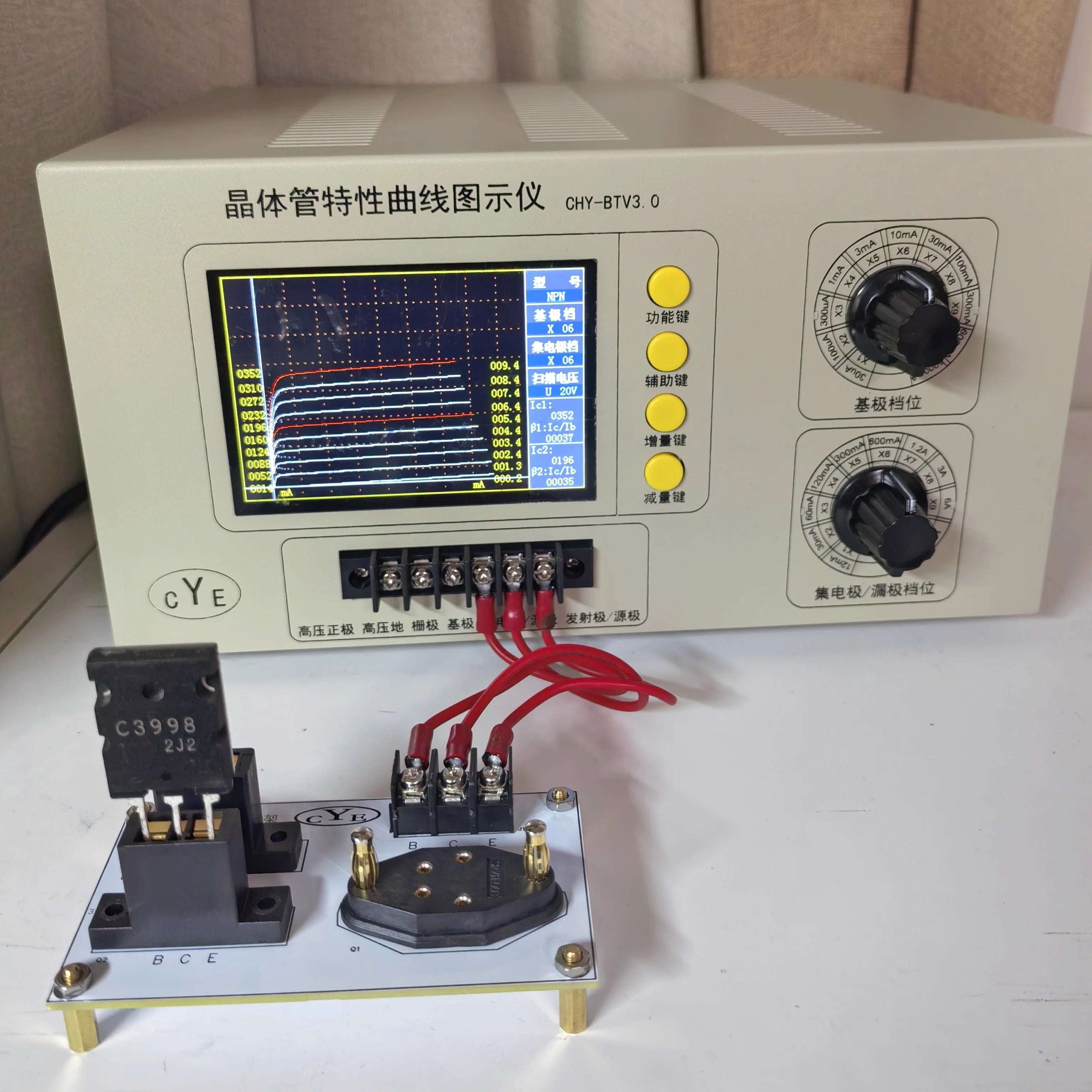

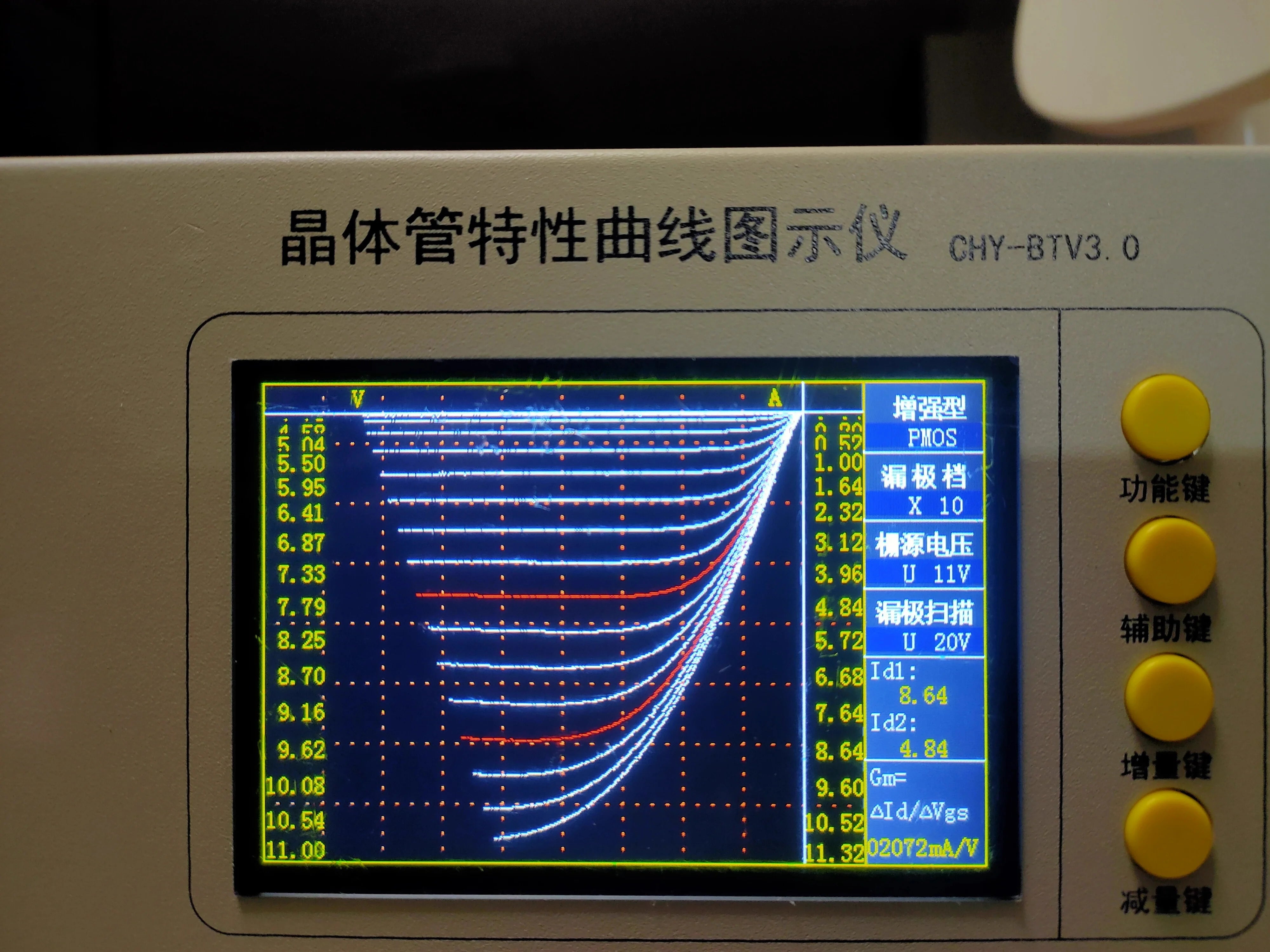

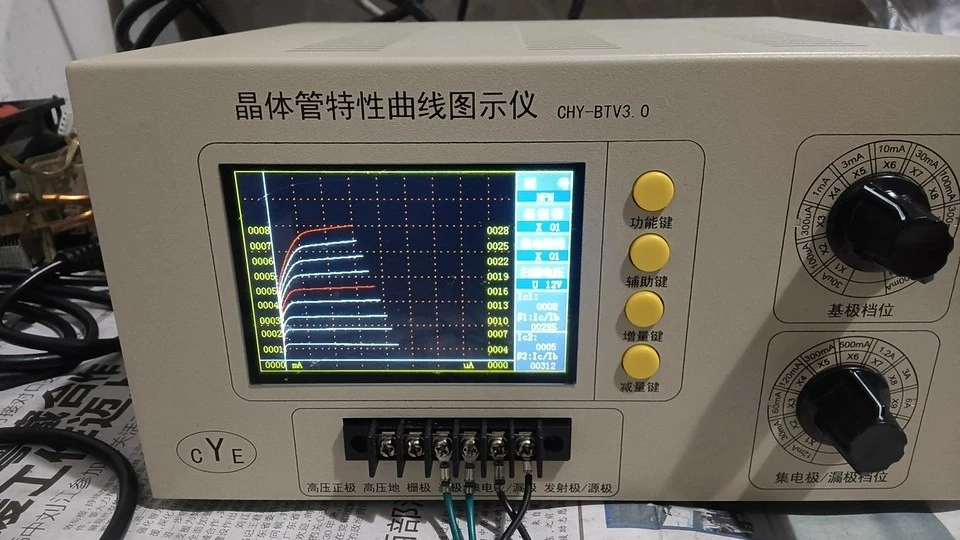

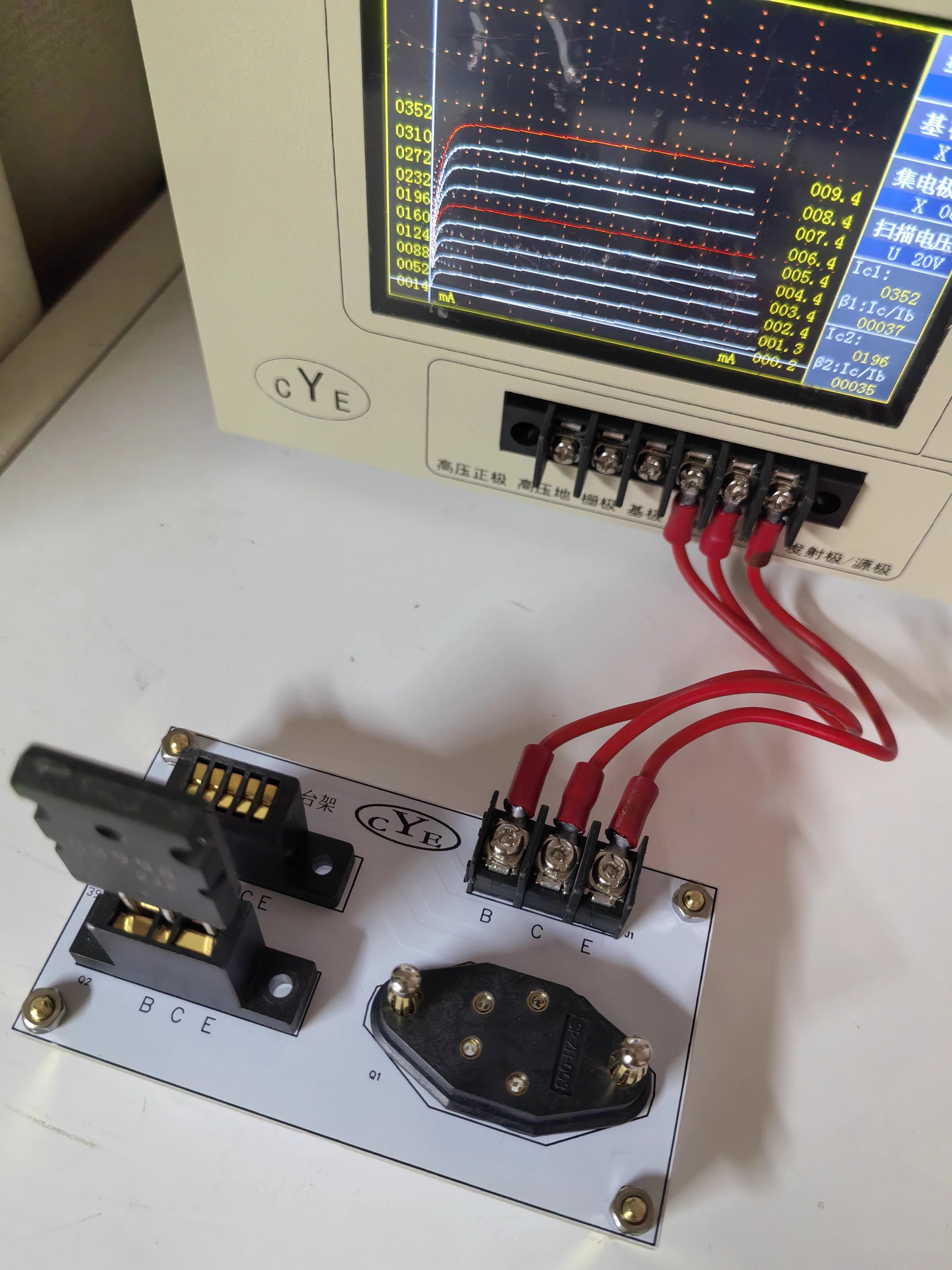

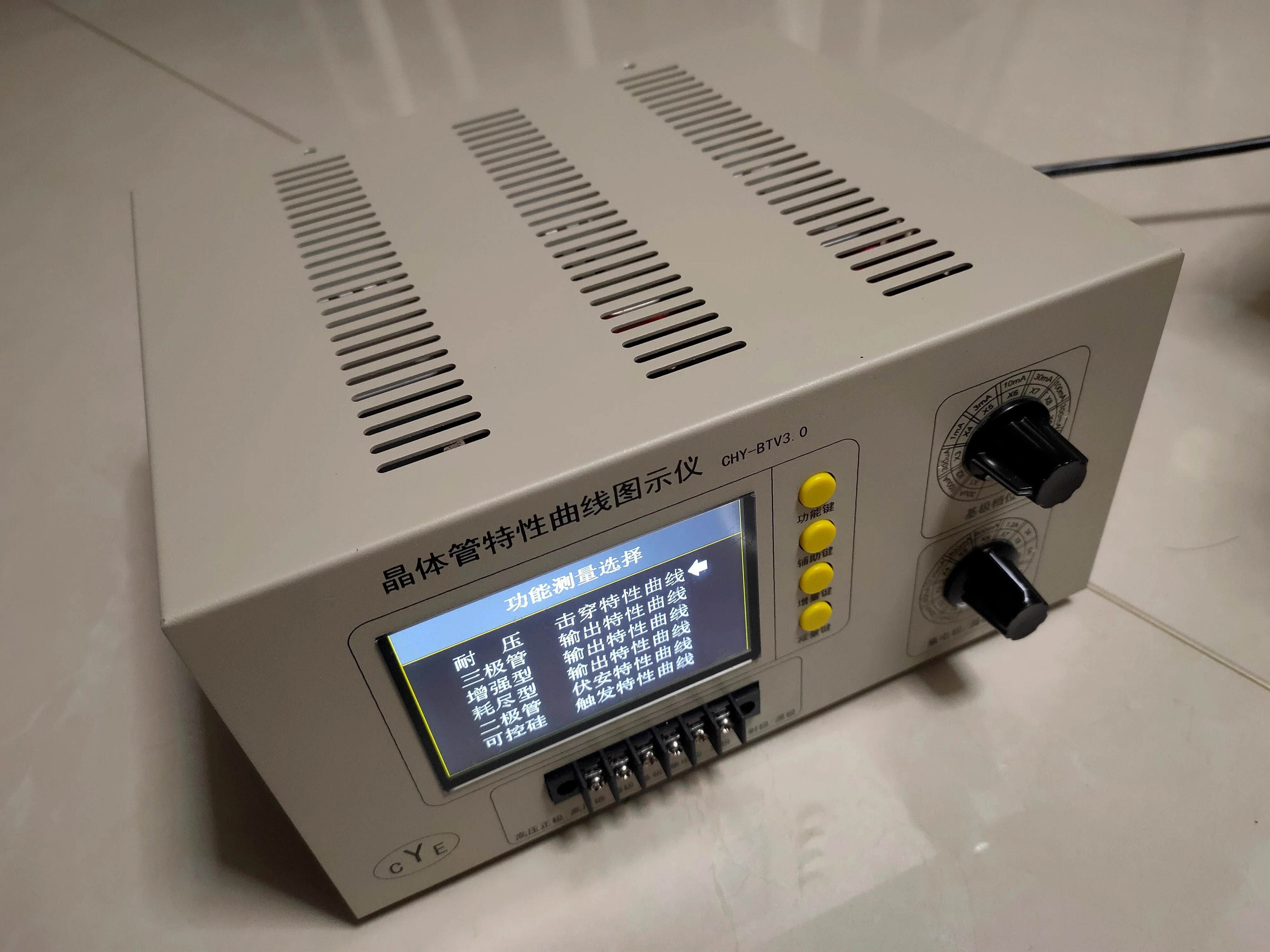

Transistor characteristic curve graphing instrument, maximum current 20A, minimum 12mA. Transistor, field-effect transistor IGBT、 Diode characteristic curve, thyristor triggered conduction curve parameters, device 2000V withstand voltage curve parameters.
This machine adopts a 24V 20A dual power supply, push-pull output positive or negative or bidirectional sawtooth wave scanning voltage, which can linearly increase from 0V to the set value (such as 1V, 2V, 12V and other integer voltages), and can carry heavy loads, that is, from 0V to 20V, it can carry 1 ohm. The actual sampling RC value is 0.3 ohms. At 20A, there is still 14V voltage drop in the transistor (field transistor). The maximum base current is 1000mA, and the minimum is 30UA, which is scanned in 8 steps
Package include
1 x Tester
Description
Description
Product specifications:
Transistor characteristic curve graphing instrument, maximum current 20A, minimum 12mA. Transistor, field-effect transistor IGBT、 Diode characteristic curve, thyristor triggered conduction curve parameters, device 2000V withstand voltage curve parameters.
This machine adopts a 24V 20A dual power supply, push-pull output positive or negative or bidirectional sawtooth wave scanning voltage, which can linearly increase from 0V to the set value (such as 1V, 2V, 12V and other integer voltages), and can carry heavy loads, that is, from 0V to 20V, it can carry 1 ohm. The actual sampling RC value is 0.3 ohms. At 20A, there is still 14V voltage drop in the transistor (field transistor). The maximum base current is 1000mA, and the minimum is 30UA, which is scanned in 8 steps
Package include
1 x Tester
