New Transistor Illustration Instrument Characteristic Curve Tester Collector Current 150mA max
New Transistor Illustration Instrument Characteristic Curve Tester Collector Current 150mA max
In stock
-
All orders are dispatched the next 3 business days!
-
We will beat any price. We back all products with a 1 year guarantee.
Order in the next 0 hours 0 minutes to get it by /02/2026
Couldn't load pickup availability
Guaranteed Safe Checkout
Product specifications:
1. Working power supply+18V1A
2. The working voltage of the main control panel inside the board is+5V, the working voltage of the LCD screen is 3.3V, the working voltage of the LCD backlight board is+5.8V, and other chips
Operating voltage+/-9V
3. Measurement of collector operating voltage for NPN transistor+9V and PNP transistor -9V using the characteristic curve of a crystal transistor; volt ampere characteristic of a crystal diode.The working voltage for the sex curve is+9V, and the working voltage for measuring the resistance volt ampere characteristic curve is+9V.
4. Class wave base current maximum current 200uA/step, range 10 times, i.e. 200UA/gear, 100UA/gear, 66.7 UA/gear, 50UA/gear, 40UA/gear, 33.3UA/gear, 28.5UA/gear, 25UA/gear, 22.2UA/gear, 20UA/gear.
5. The maximum current of the collector is 150MA, and the range is divided into 10 magnifications.

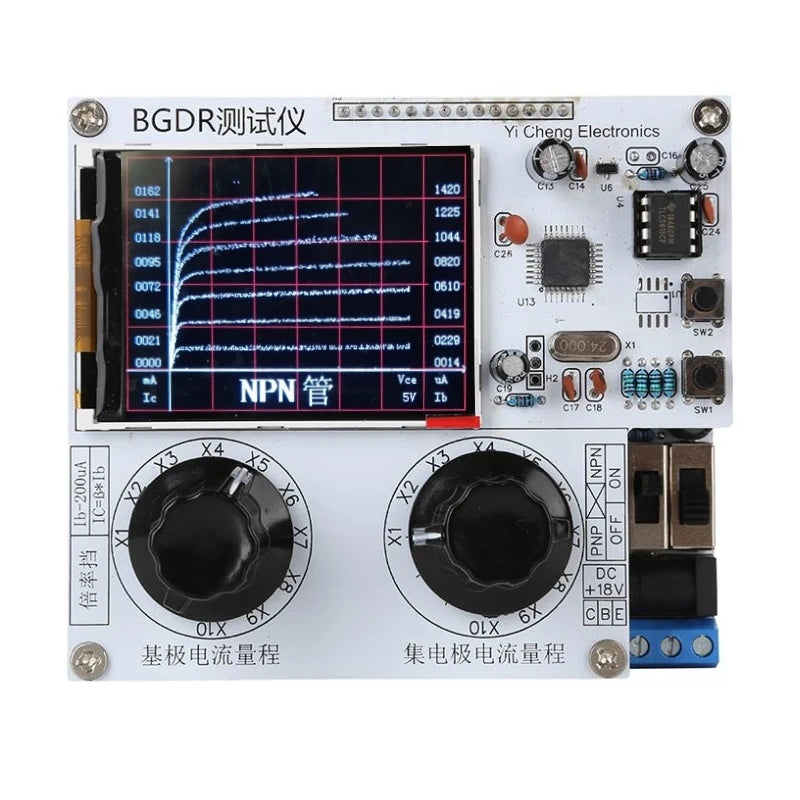

6. The output characteristic curve scanning line has a total of 8 levels and can be displayed in a single operation.
7. The single scanning speed is 440MS, and the total scanning speed is 3200MS.
8. Measure the voltage on the horizontal axis of the interface at 0.91V per grid, for a total of 5 and a half grids. Confirm the voltage based on the position on the horizontal axis.
9. The output characteristic curve can be obtained by reading the data based on the curve position and dividing it by the range multiplier to obtain the actual current value.
The actual current value can be obtained by dividing the input characteristic curve by the base current range multiplier based on the vertical axis data.
10. Operation panel buttons: up key (secondary key), down key (primary key). Please refer to the instructions for specific usage.
11. The display screen is a 2.4-inch TFTIPS high-definition screen with a resolution of 240 * 320.
12. Product size: 98x86x56 units in millimeters.

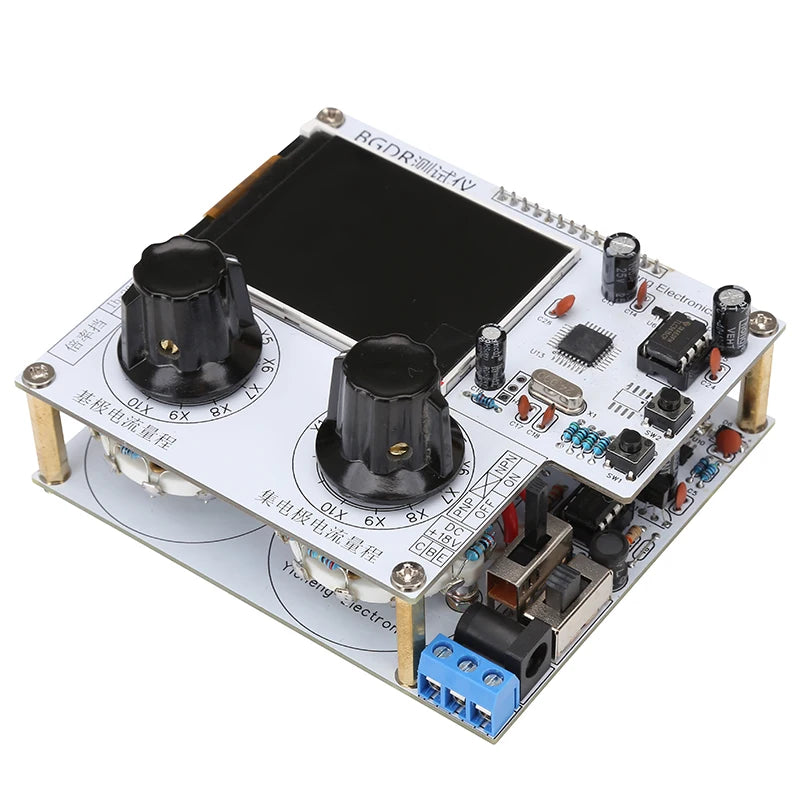

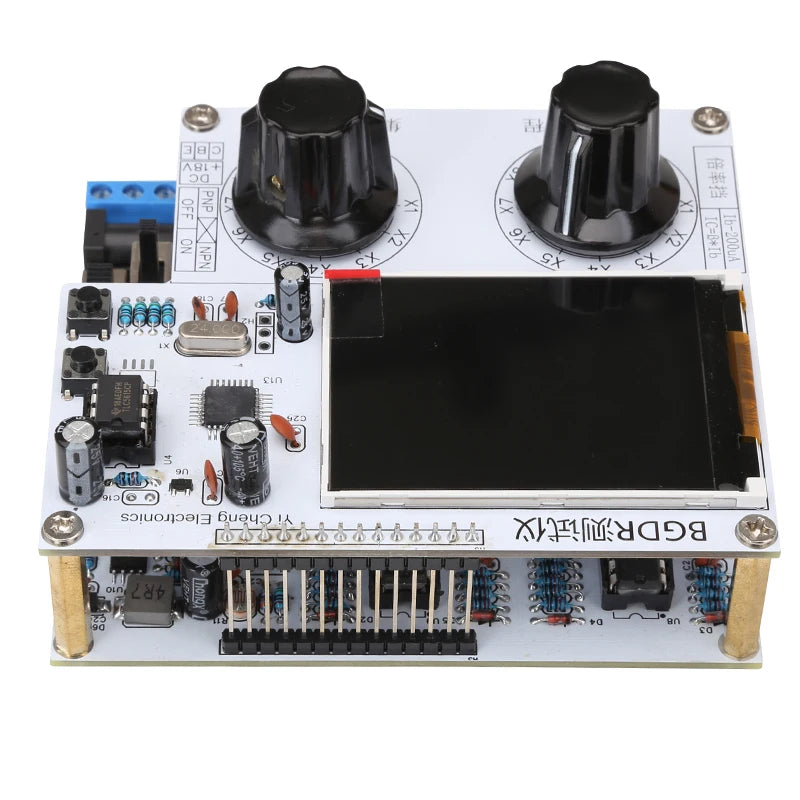

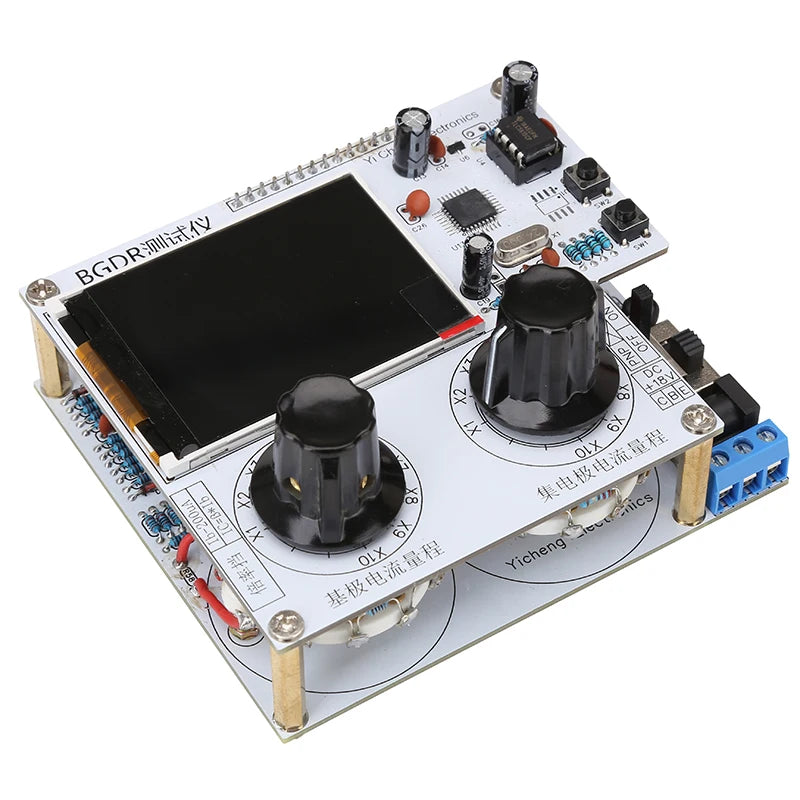

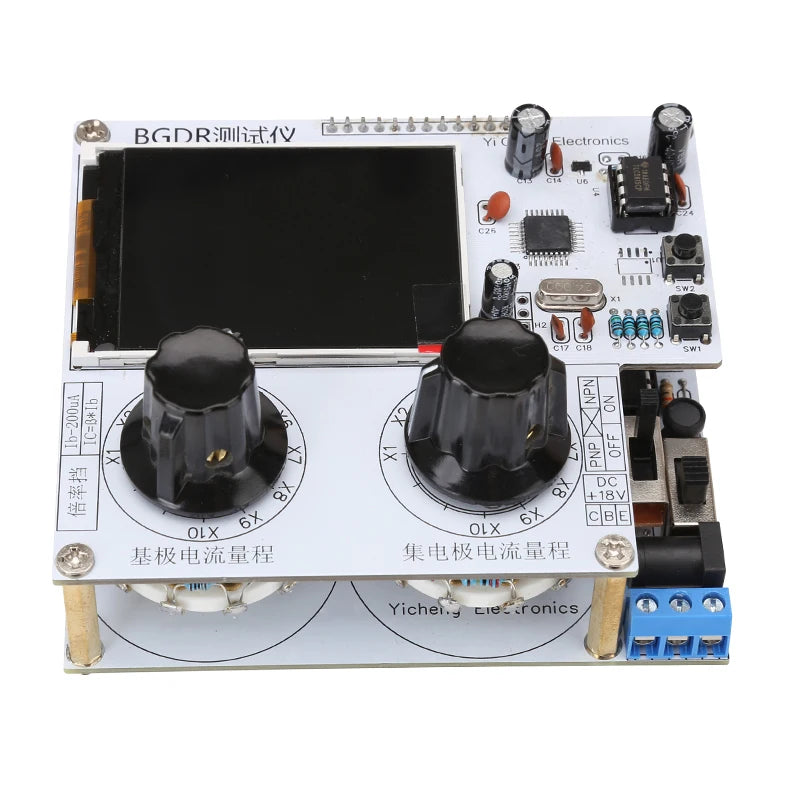

Panel Introduction:
1. Power input port: socket+18V.
2. Main screen: Read the parameters of the counting transistor according to the operation.
3. Switch conversion port:
The upper end of the left switch is used to measure NPN tubes, resistors, and diodes, while the lower end of the left switch is used to measure PNP tubes.
Set the upper end of the right switch to ON to turn on the machine, and set the lower end of the left switch to OFF to turn off the machine.
4. Measurement interface:
(Transistor) Left C-pole, middle B-pole, right E-pole
(Diode) Left P terminal, right N terminal
Key: Short press to select the primary key, long press to confirm and return. Long press the secondary key to refresh, short press to change a single scan.
Range: The base and collector rate ranges are divided into 10 levels, and the measured value is divided by the corresponding rate range.
Package include
1 x Tester
1 x Power adapter
